Rattus norvegicus
| Assembly | Physical composition | Protein state | Molecular copy count | Associated components | Data consistency |
|---|---|---|---|---|---|
| 1 | Protein monomer | Monomer | Protein 1 | No other associated polymer | Consistent with protein count |
| UniProt name | DLG1_RAT |
| Isoform | — |
| PDB entities | 1 |
| Chains and sequence ranges | Author chain A； PDBConstruct 1–93； UniProt 221–313 |
The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.
| Entry ID entry_id | 1zok |
| Deposition date deposition_date | 2005-05-13 |
| Structure title title | PDZ1 Domain Of Synapse Associated Protein 97 |
| Keywords keywords | PDZ, PDZ1, SAP97, Synapse Associated Protein 97, Beta Strand, Helix, MEMBRANE PROTEIN; MEMBRANE PROTEIN |
| Experimental Method method | SOLUTION NMR |

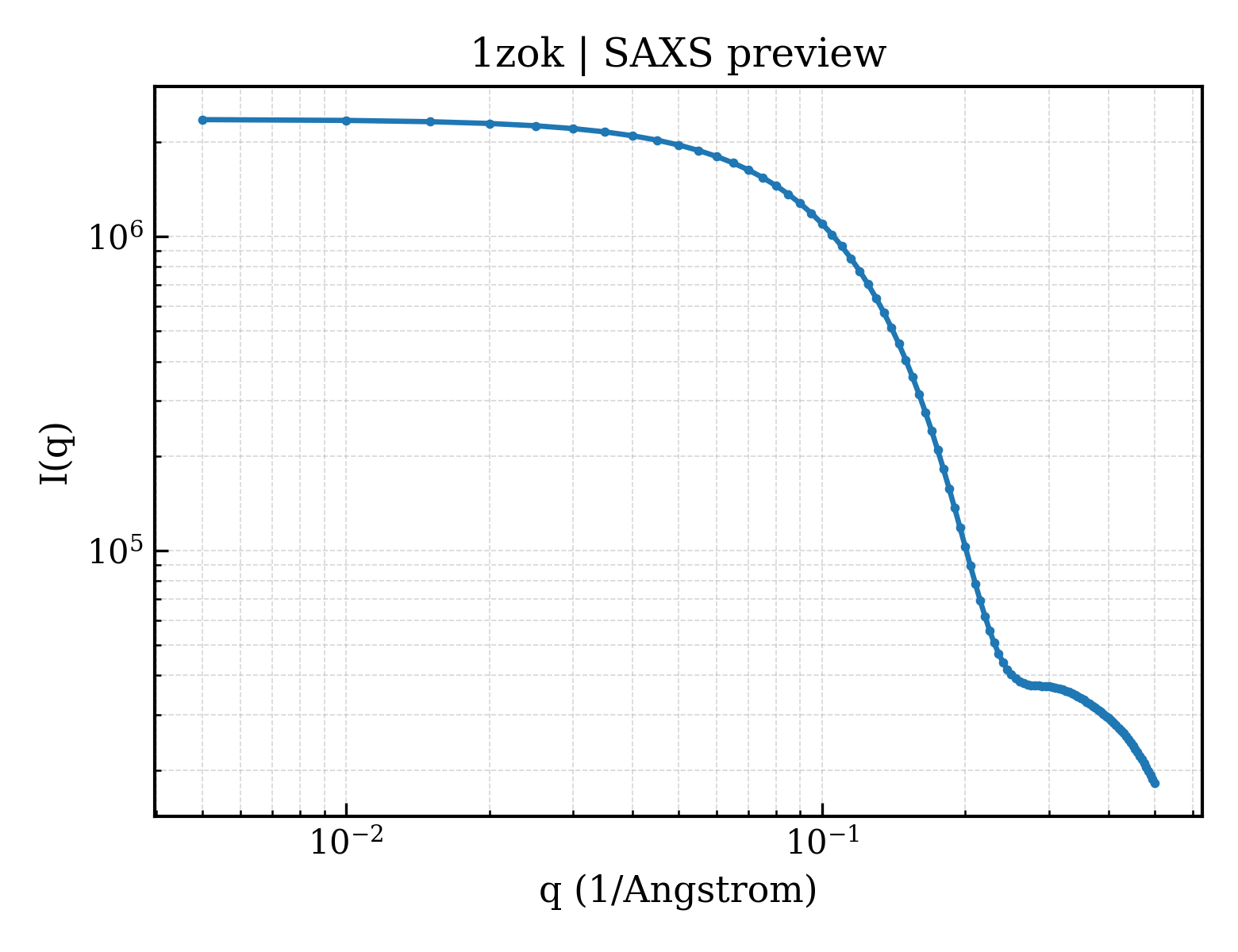

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.
Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)
| Rg（Guinier） | 15.04 Å |
| Rg (electron density) | 13.61 Å |
| Total Rg | 14.81 Å |
| Atom count | 1423 |
| Residues | 93 |
| Excluded volume | 12485 ų |
| Maximum q | 0.500 Å⁻¹ |
| Domain ID domain_id | d1zoka1 |
| Class class | b — All beta proteins |
| Fold Fold fold | b.36 — PDZ domain-like |
| Superfamily Superfamily superfamily | b.36.1 — PDZ domain-like |
| Family Family family | b.36.1.1 — PDZ domain |
| Domain ID domain_id | 1zokA00 |
| Class class | 2 — Mainly Beta |
| Architecture architecture | 30 — Roll |
| Topology topology | 42 — Pdz3 Domain |
| Homologous superfamily homologous superfamily | 10 — PDZ domain |
