SAXSdb — 1zor

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

isocitrate dehydrogenase

Thermotoga maritima

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	SODIUM ION × 2 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q9X0N2_THEMA
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–399； UniProt 1–399 Author chain B； PDBConstruct 1–399； UniProt 1–399

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1zor
Deposition date deposition_date	2005-05-13
Structure title title	Isocitrate dehydrogenase from the hyperthermophile Thermotoga maritima
Keywords keywords	wild type enzyme, cis-proline, thermostable, OXIDOREDUCTASE; OXIDOREDUCTASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1zor__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1zor__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

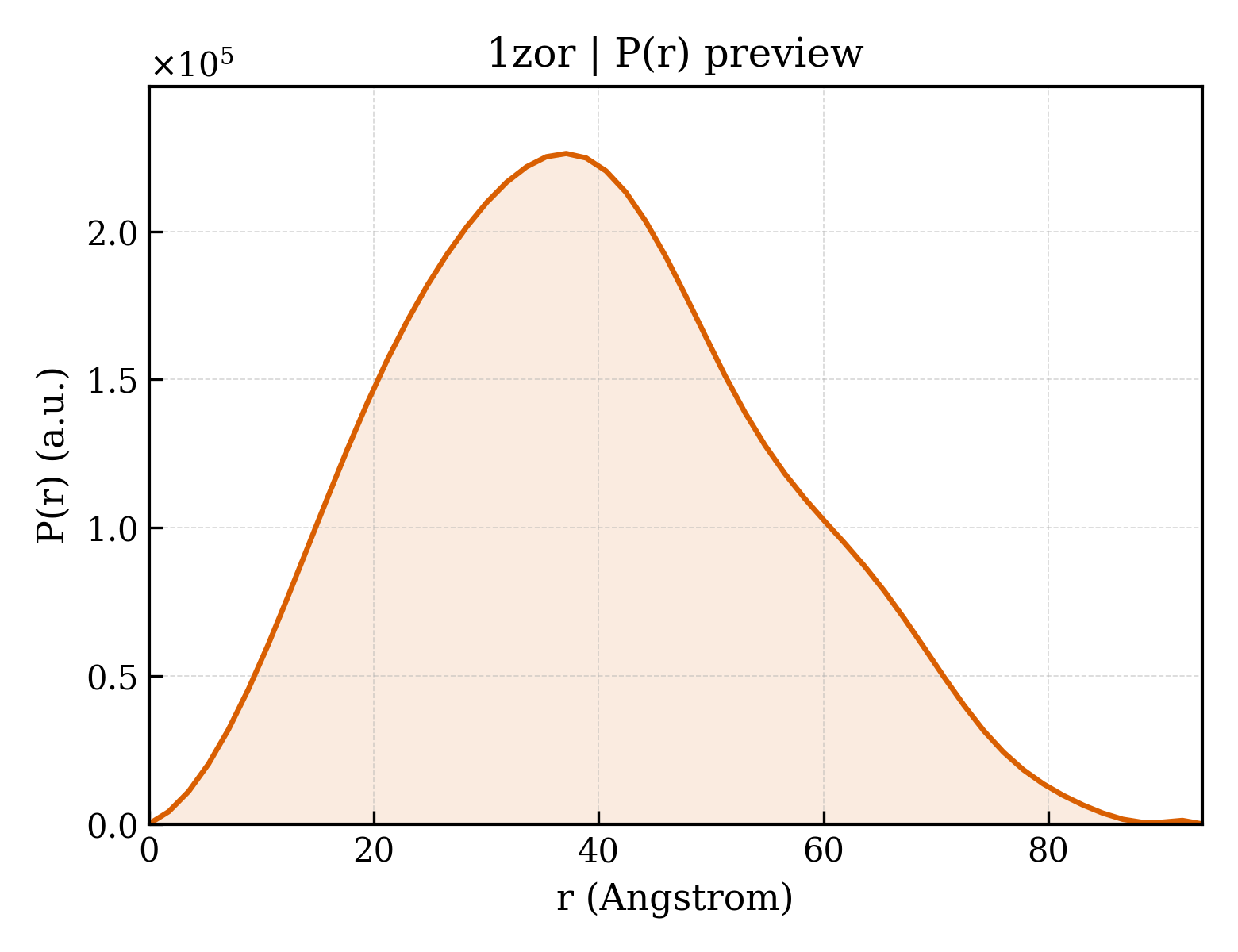

1zor__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	29.98 Å
Rg (electron density)	29.29 Å
Total Rg	30.08 Å
Atom count	6360
Residues	795
Excluded volume	114750 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1zor__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	isocitrate dehydrogenase
Molecular weight formula_weight	45468.6 kDa
EC 编号 ec_number	1.1.1.42
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	6966

MEKVKVKNPIVELDGDEMARVMWKMIKEKLILPYLDIQLVYFDLGIKKRDETDDQITIEAAKAIKKYGVGVKCATITPDAERVKEYNLKKAWKSPNATIRAYLDGTVFRKPIMVKNVPPLVKRWKKPIIIGRHAYGDIYNAVEAKVEGPAEVELVVRNKENKTLLVHKFEGNGVVMAMHNLEKSIRSFAQSCINYAISEKVDIWFATKDTISKVYHAYFKDIFQEEVDKRKEELEKAGVNYRYMLIDDAAAQILRSEGGMLWACMNYEGDIMSDMIASGFGSLGLMTSVLVSPDGVYEFEAAHGTVRRHYYRYLKGEKTSTNPTASIFAWTGAIRKRGELDGTPEVCEFADKLEKAVINTIESGVITKDLQPFTEPPIDKYVTLEEFIDEVKKNLEKLL

Source Source

Source organism organism	Thermotoga maritima
NCBI taxonomy ID ncbi_taxonomy_id	243274
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	SODIUM ION
Molecular weight formula_weight	23.0 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	428

▼

6. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1zora_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.77 — Isocitrate/Isopropylmalate dehydrogenase-like
Superfamily Superfamily superfamily	c.77.1 — Isocitrate/Isopropylmalate dehydrogenase-like
Family Family family	c.77.1.0 — automated matches

Domain ID domain_id	d1zorb_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.77 — Isocitrate/Isopropylmalate dehydrogenase-like
Superfamily Superfamily superfamily	c.77.1 — Isocitrate/Isopropylmalate dehydrogenase-like
Family Family family	c.77.1.0 — automated matches

CATH v4.4 (2 domains)

Domain ID domain_id	1zorA00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	718 — Isopropylmalate Dehydrogenase
Homologous superfamily homologous superfamily	10 — Isopropylmalate Dehydrogenase

Domain ID domain_id	1zorB00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	718 — Isopropylmalate Dehydrogenase
Homologous superfamily homologous superfamily	10 — Isopropylmalate Dehydrogenase

▶

Unit-cell length a length_a	62.470 Å
Unit-cell length b length_b	88.051 Å
Unit-cell length c length_c	180.926 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.240 Å
Low-resolution limit resolution_low	35.560 Å
R factor r_factor	0.1865
R_work r_work	0.1845
R_free r_free	0.2232
