Pseudomonas sp.
| Assembly | Physical composition | Protein state | Molecular copy count | Associated components | Data consistency |
|---|---|---|---|---|---|
| 1 | Protein homooligomer | Homooligomer | Protein 2 | ACETIC ACID × 2 water × 2 | Consistent with protein count |
| UniProt name | HAD_PSEUY |
| Isoform | — |
| PDB entities | 1 |
| Chains and sequence ranges | Author chain A； PDBConstruct 1–232； UniProt 1–232 |
The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.
| Entry ID entry_id | 1zrn |
| Deposition date deposition_date | 1998-03-03 |
| Structure title title | INTERMEDIATE STRUCTURE OF L-2-HALOACID DEHALOGENASE WITH MONOCHLOROACETATE |
| Keywords keywords | DEHALOGENASE, HYDROLASE; DEHALOGENASE |
| Experimental Method method | X-RAY DIFFRACTION |

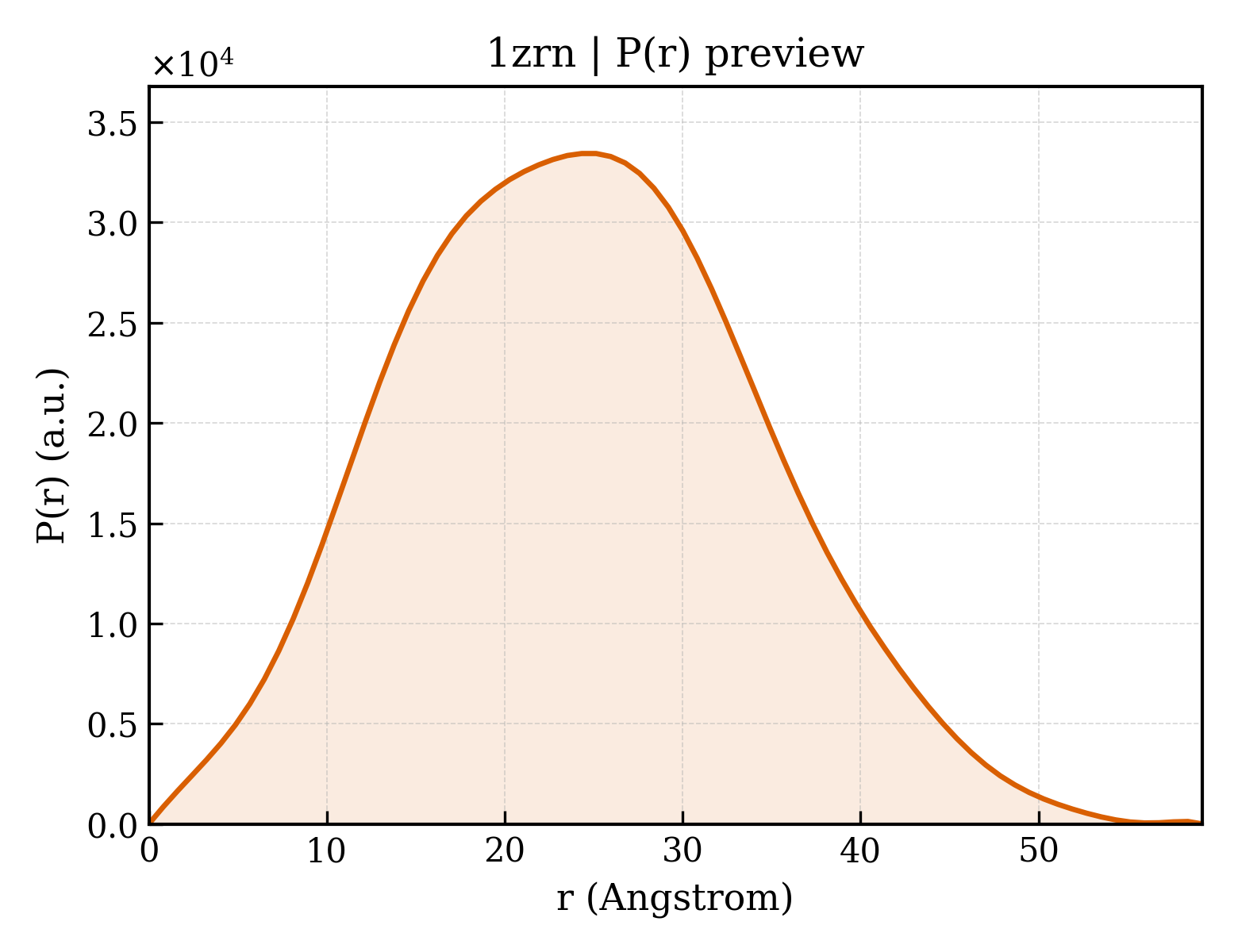

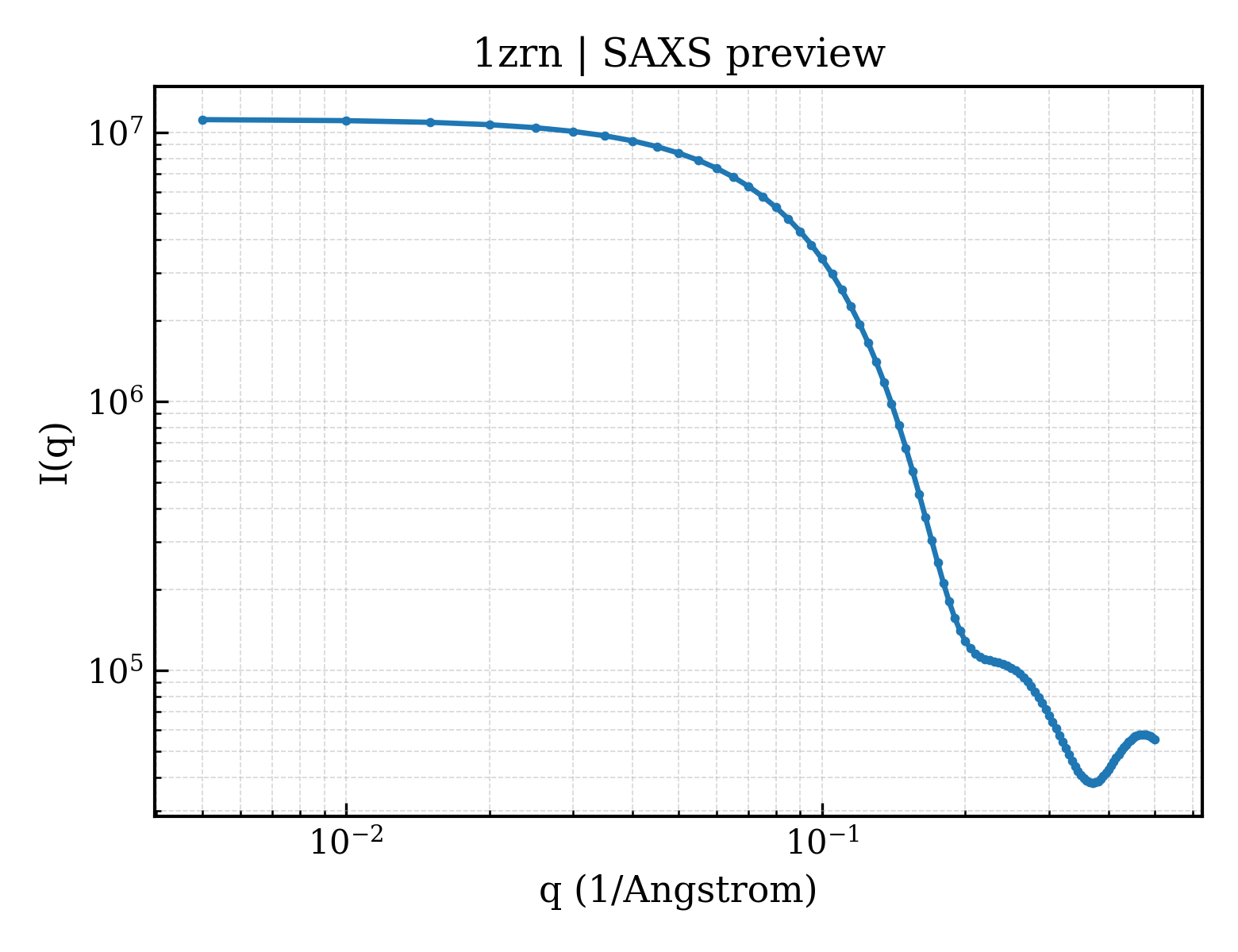

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.
Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)
| Rg（Guinier） | 23.99 Å |
| Rg (electron density) | 23.08 Å |
| Total Rg | 23.95 Å |
| Atom count | 3500 |
| Residues | 440 |
| Excluded volume | 61916 ų |
| Maximum q | 0.500 Å⁻¹ |
| Domain ID domain_id | d1zrna_ |
| Class class | c — Alpha and beta proteins (a/b) |
| Fold Fold fold | c.108 — HAD-like |
| Superfamily Superfamily superfamily | c.108.1 — HAD-like |
| Family Family family | c.108.1.1 — HAD-related |
| Domain ID domain_id | 1zrnA01 |
| Class class | 3 — Alpha Beta |
| Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| Topology topology | 50 — Rossmann fold |
| Homologous superfamily homologous superfamily | 1000 — HAD superfamily/HAD-like |
| Domain ID domain_id | 1zrnA02 |
| Class class | 1 — Mainly Alpha |
| Architecture architecture | 10 — Orthogonal Bundle |
| Topology topology | 150 — DNA polymerase; domain 1 |
| Homologous superfamily homologous superfamily | 240 — Putative phosphatase; domain 2 |
