1. Protein Identity and Related Structures Protein Identity & Related Structures

5,10-methylenetetrahydrofolate reductase

Escherichia coli

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	SULFATE ION × 3 FLAVIN-ADENINE DINUCLEOTIDE × 2 1,4-DIHYDRONICOTINAMIDE ADENINE DINUCLEOTIDE × 2 water × 2	Consistent with protein count
2	Protein homooligomer	Homooligomer	Protein 2	SULFATE ION × 3 FLAVIN-ADENINE DINUCLEOTIDE × 2 1,4-DIHYDRONICOTINAMIDE ADENINE DINUCLEOTIDE × 2 water × 2	Consistent with protein count
3	Protein homooligomer	Homooligomer	Protein 6	SULFATE ION × 8 FLAVIN-ADENINE DINUCLEOTIDE × 6 1,4-DIHYDRONICOTINAMIDE ADENINE DINUCLEOTIDE × 6 water × 6	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	METF_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–296； UniProt 1–296 Author chain B； PDBConstruct 1–296； UniProt 1–296 Author chain C； PDBConstruct 1–296； UniProt 1–296

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1zrq
Deposition date deposition_date	2005-05-19
Structure title title	Escherichia coli Methylenetetrahydrofolate Reductase (reduced) complexed with NADH, pH 6.0
Keywords keywords	TIM BARREL, FLAVIN, REDUCTASE, NADH, OXIDOREDUCTASE; OXIDOREDUCTASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1zrq__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1zrq__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

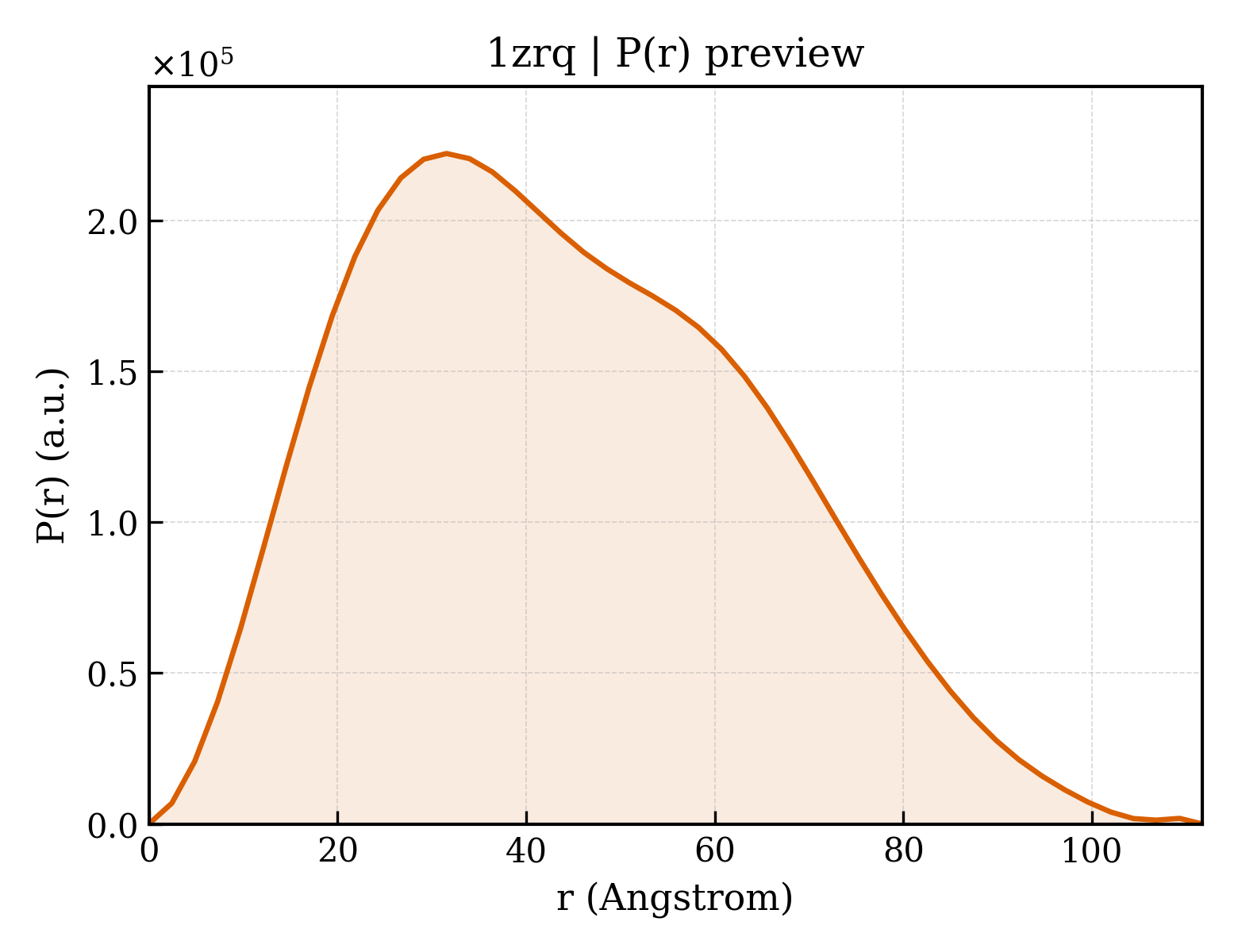

1zrq__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	28.80 Å
Rg (electron density)	28.23 Å
Total Rg	28.70 Å
Atom count	4437
Residues	549
Excluded volume	78084 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1zrq__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1zrq__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
3	1	`1zrq__assembly_3__model_1`	hexameric （6）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	5,10-methylenetetrahydrofolate reductase
Molecular weight formula_weight	34215.9 kDa
EC 编号 ec_number	1.7.99.5
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C
Atom count atom_count	7024

MSFFHASQRDALNQSLAEVQGQINVSFEFFPPRTSEMEQTLWNSIDRLSSLKPKFVSVTYGANSGERDRTHSIIKGIKDRTGLEAAPHLTCIDATPDELRTIARDYWNNGIRHIVALRGDLPPGSGKPEMYASDLVTLLKEVADFDISVAAYPEVHPEAKSAQADLLNLKRKVDAGANRAITQFFFDVESYLRFRDRCVSAGIDVEIIPGILPVSNFKQAKKFADMTNVRIPAWMAQMFDGLDDDAETRKLVGANIAMDMVKILSREGVKDFHFYTLNRAEMSYAICHTLGVRPGLLEHHHHHH

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 3 Entity 3 non-polymer

Description description	FLAVIN-ADENINE DINUCLEOTIDE
Molecular weight formula_weight	785.5 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 4 Entity 4 non-polymer

Description description	1,4-DIHYDRONICOTINAMIDE ADENINE DINUCLEOTIDE
Molecular weight formula_weight	665.4 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	262

▼

6. Fold Classification (SCOP + CATH) 6 domains

SCOP 2.08 (3 domains)

Domain ID domain_id	d1zrqa_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.23 — FAD-linked oxidoreductase
Family Family family	c.1.23.1 — Methylenetetrahydrofolate reductase

Domain ID domain_id	d1zrqb_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.23 — FAD-linked oxidoreductase
Family Family family	c.1.23.1 — Methylenetetrahydrofolate reductase

Domain ID domain_id	d1zrqc_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.23 — FAD-linked oxidoreductase
Family Family family	c.1.23.1 — Methylenetetrahydrofolate reductase

CATH v4.4 (3 domains)

Domain ID domain_id	1zrqA00
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	220 —

Domain ID domain_id	1zrqB00
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	220 —

Domain ID domain_id	1zrqC00
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	220 —

▶

Unit-cell length a length_a	102.187 Å
Unit-cell length b length_b	128.155 Å
Unit-cell length c length_c	96.861 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	120.94 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	2.200 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	0.2190
R_work r_work	0.2190
R_free r_free	0.2520
