SAXSdb — 1zv1

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Doublesex protein

Drosophila melanogaster

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	DSX_DROME
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 3–65； UniProt 350–412 Author chain B； PDBConstruct 3–65； UniProt 350–412

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1zv1
Deposition date deposition_date	2005-06-01
Structure title title	Crystal structure of the dimerization domain of doublesex protein from D. melanogaster
Keywords keywords	doublesex, uba domain, dimerization, sex determination, transcription factor, PROTEIN BINDING; PROTEIN BINDING
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1zv1__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1zv1__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

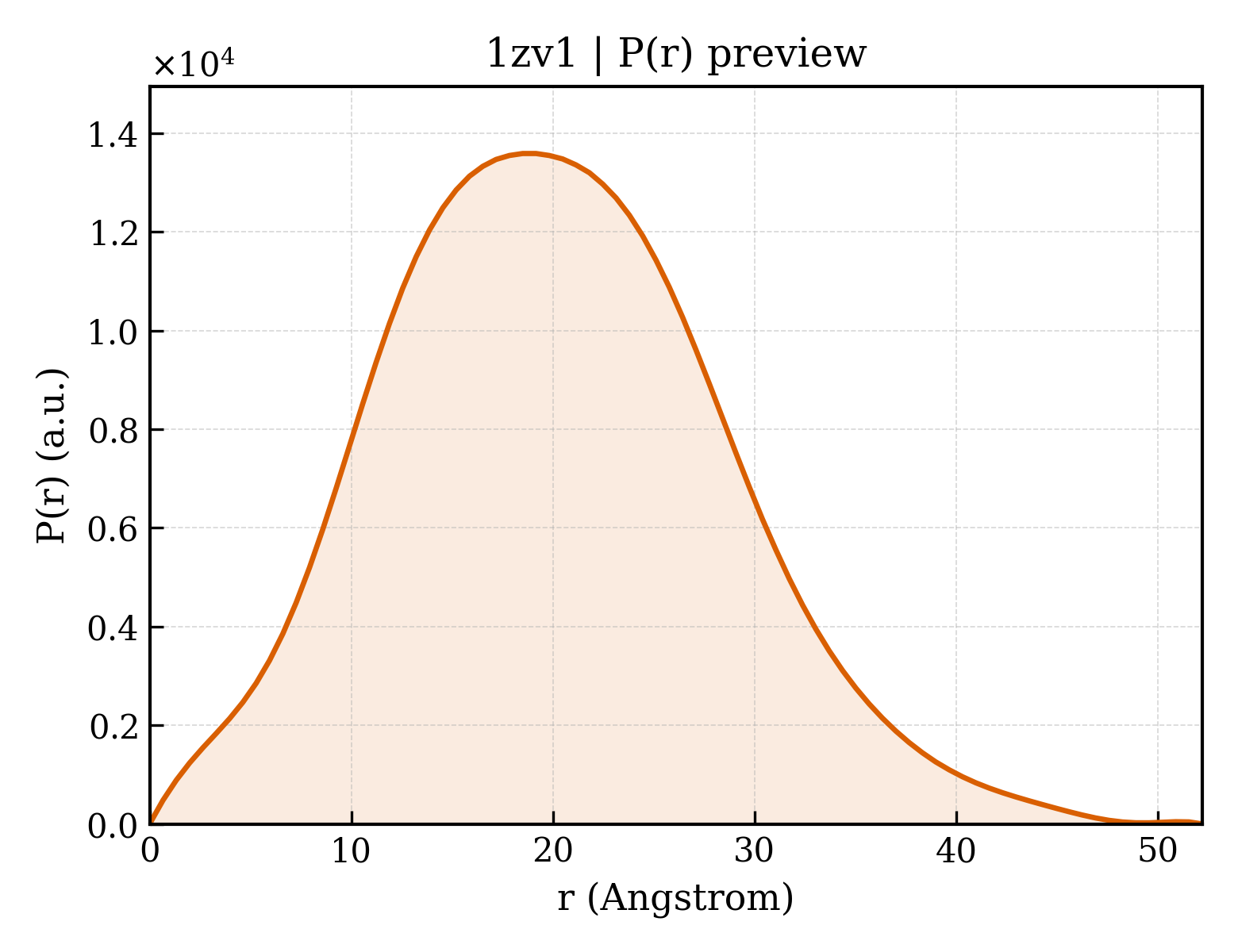

1zv1__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	15.40 Å
Rg (electron density)	13.95 Å
Total Rg	15.05 Å
Atom count	972
Residues	118
Excluded volume	17305 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1zv1__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (2)

▼

6. Fold Classification (SCOP + CATH) 2 domains

CATH v4.4 (2 domains)

Domain ID domain_id	1zv1A00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	8 — Helicase, Ruva Protein; domain 3
Homologous superfamily homologous superfamily	10 — Ubiquitin-associated (UBA) domain

Domain ID domain_id	1zv1B00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	8 — Helicase, Ruva Protein; domain 3
Homologous superfamily homologous superfamily	10 — Ubiquitin-associated (UBA) domain

▶

Unit-cell length a length_a	39.773 Å
Unit-cell length b length_b	46.623 Å
Unit-cell length c length_c	59.771 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	1.600 Å
Low-resolution limit resolution_low	10.860 Å
R factor r_factor	0.2108
R_work r_work	0.2085
R_free r_free	0.2572

Description description	Doublesex protein
Molecular weight formula_weight	7745.7 kDa
Source method src_method	man
Copy count entity_count	2

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	1120

Crystal structure of the dimerization domain of doublesex protein from D. melanogaster

1. Protein Identity and Related Structures Protein Identity & Related Structures

Doublesex protein

State in the Current Structure

Other States of the Same Protein in the Database

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

1zv1__assembly_1__model_1

1zv1__assembly_1__model_1 | I(q)

1zv1__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

5. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 water

6. Fold Classification (SCOP + CATH) 2 domains

CATH v4.4 (2 domains)

7. Citations (1)

Source organism organism	Drosophila melanogaster
Common name common_name	fruit fly
NCBI taxonomy ID ncbi_taxonomy_id	7227
Host organism host_organism	Escherichia coli

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	126
