1zwv

Solution Structure of the subunit binding domain (hbSBD) of the human mitochondrial branched-chain alpha-ketoacid dehydrogenase

Method: SOLUTION NMR
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Lipoamide acyltransferase component of branched-chain alpha-keto acid dehydrogenase complex, mitochondrial

Homo sapiens

UniProt P11182

State in the Current Structure

Assembly Physical composition Protein state Molecular copy count Associated components Data consistency
1 Protein monomer Monomer Protein 1 No other associated polymer Consistent with protein count

Other States of the Same Protein in the Database

Monomer
1k8m 1k8o 1zwv 2coo

4 assemblies

Homodimer

None

Homotetramer

None

Other homooligomers

None

Heteromeric or nucleic-acid complex
3rnm 3rnm

2 assemblies

View Construct and Data Evidence
UniProt name ODB2_HUMAN
Isoform —
PDB entities 1
Chains and sequence ranges Author chain A； PDBConstruct 2–50； UniProt 165–213

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id1zwv
Deposition date deposition_date2005-06-06
Structure title titleSolution Structure of the subunit binding domain (hbSBD) of the human mitochondrial branched-chain alpha-ketoacid dehydrogenase
Keywords keywordssubunit binding domain, Transferase; TRANSFERASE
Experimental Method methodSOLUTION NMR
▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1zwv__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

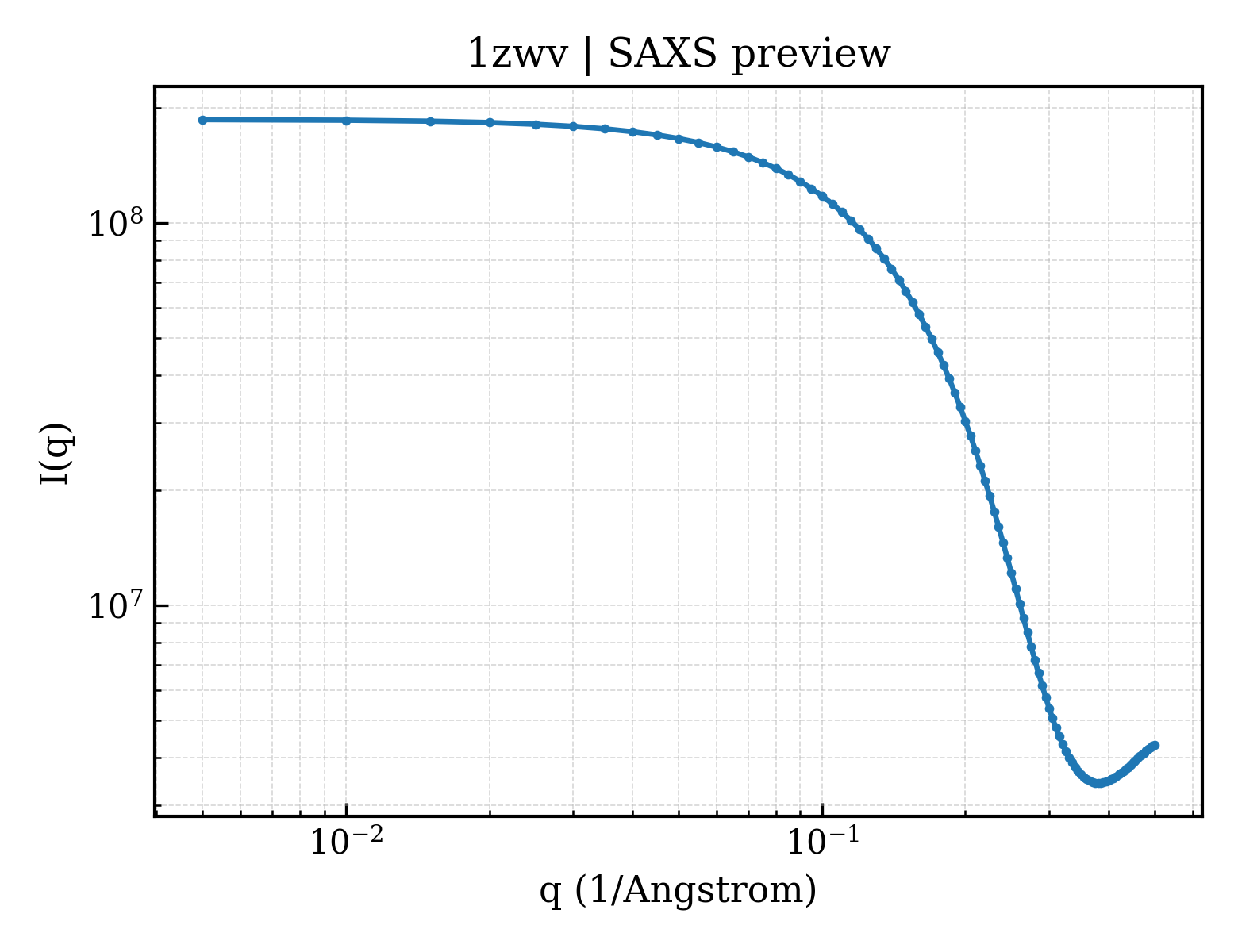

1zwv__assembly_1__model_1 | I(q)

10-2 10-1 105 q (1/Angstrom) I(q)
100 plotted points; both axes use logarithmic scales.

1zwv__assembly_1__model_1 | P(r) · Pending

The new assembly/model P(r) has not been calculated yet This placeholder does not display legacy data r (Angstrom) P(r)
P(r) will be calculated and displayed separately for the same assembly/model.
Rg（Guinier）12.69 Å
Rg (electron density)11.17 Å
Total Rg12.79 Å
Atom count839
Residues52
Excluded volume7301 ų
Maximum q0.500 Å⁻¹
Assembly Model Structure unit Oligomeric description Status CRYSOL Actions
1 1 1zwv__assembly_1__model_1 monomeric （1） Success 4.1.3-1-20251215 (887e7ef) View Download
1 2 1zwv__assembly_1__model_2 monomeric （1） Success 4.1.3-1-20251215 (887e7ef) View Download
1 3 1zwv__assembly_1__model_3 monomeric （1） Success 4.1.3-1-20251215 (887e7ef) View Download
1 4 1zwv__assembly_1__model_4 monomeric （1） Success 4.1.3-1-20251215 (887e7ef) View Download
1 5 1zwv__assembly_1__model_5 monomeric （1） Success 4.1.3-1-20251215 (887e7ef) View Download
1 6 1zwv__assembly_1__model_6 monomeric （1） Success 4.1.3-1-20251215 (887e7ef) View Download
1 7 1zwv__assembly_1__model_7 monomeric （1） Success 4.1.3-1-20251215 (887e7ef) View Download
1 8 1zwv__assembly_1__model_8 monomeric （1） Success 4.1.3-1-20251215 (887e7ef) View Download
1 9 1zwv__assembly_1__model_9 monomeric （1） Success 4.1.3-1-20251215 (887e7ef) View Download
1 10 1zwv__assembly_1__model_10 monomeric （1） Success 4.1.3-1-20251215 (887e7ef) View Download
1 11 1zwv__assembly_1__model_11 monomeric （1） Success 4.1.3-1-20251215 (887e7ef) View Download
1 12 1zwv__assembly_1__model_12 monomeric （1） Success 4.1.3-1-20251215 (887e7ef) View Download
1 13 1zwv__assembly_1__model_13 monomeric （1） Success 4.1.3-1-20251215 (887e7ef) View Download
1 14 1zwv__assembly_1__model_14 monomeric （1） Success 4.1.3-1-20251215 (887e7ef) View Download
1 15 1zwv__assembly_1__model_15 monomeric （1） Success 4.1.3-1-20251215 (887e7ef) View Download
1 16 1zwv__assembly_1__model_16 monomeric （1） Success 4.1.3-1-20251215 (887e7ef) View Download
1 17 1zwv__assembly_1__model_17 monomeric （1） Success 4.1.3-1-20251215 (887e7ef) View Download
1 18 1zwv__assembly_1__model_18 monomeric （1） Success 4.1.3-1-20251215 (887e7ef) View Download
1 19 1zwv__assembly_1__model_19 monomeric （1） Success 4.1.3-1-20251215 (887e7ef) View Download
1 20 1zwv__assembly_1__model_20 monomeric （1） Success 4.1.3-1-20251215 (887e7ef) View Download
▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (1)

▼

6. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (3 domains)

Domain ID domain_idd1zwva1
Class classa — All alpha proteins
Fold Fold folda.9 — Peripheral subunit-binding domain of 2-oxo acid dehydrogenase complex
Superfamily Superfamily superfamilya.9.1 — Peripheral subunit-binding domain of 2-oxo acid dehydrogenase complex
Family Family familya.9.1.0 — automated matches
Domain ID domain_idd1zwva2
Class classl — Artifacts
Fold Fold foldl.1 — Tags
Superfamily Superfamily superfamilyl.1.1 — Tags
Family Family familyl.1.1.1 — Tags
Domain ID domain_idd1zwva3
Class classl — Artifacts
Fold Fold foldl.1 — Tags
Superfamily Superfamily superfamilyl.1.1 — Tags
Family Family familyl.1.1.1 — Tags

CATH v4.4 (1 domains)

Domain ID domain_id1zwvA00
Class class4 — Few Secondary Structures
Architecture architecture10 — Irregular
Topology topology320 — Dihydrolipoamide Transferase
Homologous superfamily homologous superfamily10 — E3-binding domain
▶
