1zz7
Crystal Structure of FeII HppE in Complex with Substrate form 1
SAXS 散射曲线 SAXS Profile

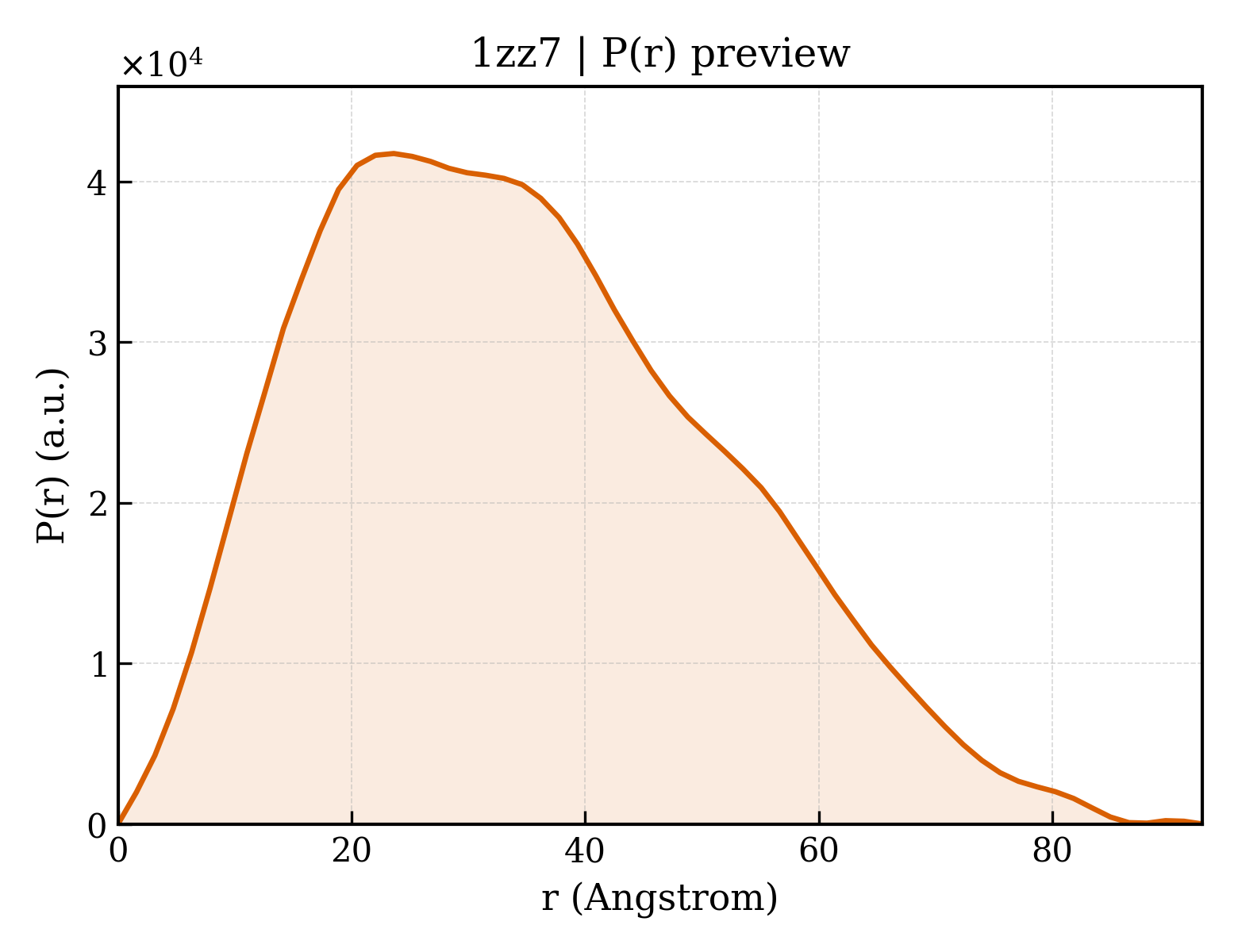

P(r) 距离分布 P(r) Distribution
1. 结构基本信息 1. Structure Basics
| 条目编号 entry_id | 1zz7 |
| 沉积日期 deposition_date | 2005-06-13 |
| 结构标题 title | Crystal Structure of FeII HppE in Complex with Substrate form 1 |
| 关键词 keywords | Substrate-Enzyme Complex, Cupin, Mononuclear Iron Enzyme, OXIDOREDUCTASE; OXIDOREDUCTASE |
| 实验方法 method | X-RAY DIFFRACTION |
2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)
| 回转半径 Rg (Guinier) rg_guinier | 26.94 Å |
| 回转半径 Rg (电子) rg_electron | 26.62 Å |
| 零角强度 I(0) i0 | 23407000.00 |
| 分子量 molecular_weight | 37163.0 kDa |
| 排除体积 excluded_volume | 46508 ų |
| 包络体积 envelope_volume | 60487 ų |
| 水化壳体积 shell_volume | 20237 ų |
| 包络直径 envelope_diameter | 95.1 Å |
| 壳层 Rg shell_rg | 31.91 Å |
| 包络 Rg envelope_rg | 26.20 Å |
| 形状 Rg shape_rg | 26.62 Å |
| 总 Rg total_rg | 27.24 Å |
| 总原子数 total_atoms | 2610 |
| 残基数 n_residues | 352 |
| 球谐函数阶数 n_harmonics | 20 |
| q 范围 q_range | — – 0.5000 Å−1 |
| 数据点数 n_points | 101 |
| 壳层类型 shell_type | directional |
| 溶剂电子密度 solvent_density | 0.3340 e/ų |
| 壳层衬度 contrast_shell | 0.0300 e/ų |
| CRYSOL 版本 crysol_version | 4.1.3 |
3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)
| 最大尺寸 Dmax dmax | 92.8 Å |
| Rg (实空间) rg_real | 27.13 Å |
| Rg 误差 (实空间) rg_real_error | 1.17 Å |
| I(0) (实空间) i0_real | 2.3410e+07 |
| I(0) 误差 (实空间) i0_real_error | 3.7300e+05 |
| Rg (倒空间) rg_reciprocal | 27.07 Å |
| I(0) (倒空间) i0_reciprocal | 23410000.0000 |
| 解质量估计 total_estimate | 0.8542 |
| 解质量评级 solution_quality | GOOD a GOOD solution |
| P(r) 峰数 n_peaks | 2 |
| 主峰位置 r_peak_primary | 23.6 Å |
| 偏度 Skewness skewness | 0.429 |
| 峰度 Kurtosis kurtosis | -0.426 |
| 角度范围 angular_range | — – 0.2950 Å−1 |
| 当前正则化参数 α current_alpha | 0.0000 |
| 最高正则化参数 α highest_alpha | 2858000.0000 |
| 实空间数据点数 n_real_points | 60 |
| GNOM 版本 gnom_version | 4.1.3 |
| 质量判据 quality_criteria | AN1: 0.000; Oscil: 0.822; Stabil: 0.998; Sysdev: 1.000; Positv: 1.000; Valcen: 0.661; Smooth: 0.981 |
4. 晶体学与实验 4. Crystallography & Experiment
5. 实体与聚合体信息 (4)
6. 折叠分类 (SCOP + CATH) 8 domains
SCOP 2.08 (4 domains)
| 结构域编号 domain_id | d1zz7a1 |
| 类 Class class | a — All alpha proteins |
| 折叠类型 Fold fold | a.35 — lambda repressor-like DNA-binding domains |
| 超家族 Superfamily superfamily | a.35.1 — lambda repressor-like DNA-binding domains |
| 家族 Family family | a.35.1.3 — SinR domain-like |
| 结构域编号 domain_id | d1zz7a2 |
| 类 Class class | b — All beta proteins |
| 折叠类型 Fold fold | b.82 — Double-stranded beta-helix |
| 超家族 Superfamily superfamily | b.82.1 — RmlC-like cupins |
| 家族 Family family | b.82.1.10 — TM1459-like |
| 结构域编号 domain_id | d1zz7b1 |
| 类 Class class | a — All alpha proteins |
| 折叠类型 Fold fold | a.35 — lambda repressor-like DNA-binding domains |
| 超家族 Superfamily superfamily | a.35.1 — lambda repressor-like DNA-binding domains |
| 家族 Family family | a.35.1.3 — SinR domain-like |
| 结构域编号 domain_id | d1zz7b2 |
| 类 Class class | b — All beta proteins |
| 折叠类型 Fold fold | b.82 — Double-stranded beta-helix |
| 超家族 Superfamily superfamily | b.82.1 — RmlC-like cupins |
| 家族 Family family | b.82.1.10 — TM1459-like |
CATH v4.4 (4 domains)
| 结构域编号 domain_id | 1zz7A01 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 10 — Orthogonal Bundle |
| 拓扑 Topology topology | 260 — 434 Repressor (Amino-terminal Domain) |
| 同源超家族 H-superfamily homologous superfamily | 40 — lambda repressor-like DNA-binding domains |
| 结构域编号 domain_id | 1zz7A02 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 60 — Sandwich |
| 拓扑 Topology topology | 120 — Jelly Rolls |
| 同源超家族 H-superfamily homologous superfamily | 10 — Jelly Rolls |
| 结构域编号 domain_id | 1zz7B01 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 10 — Orthogonal Bundle |
| 拓扑 Topology topology | 260 — 434 Repressor (Amino-terminal Domain) |
| 同源超家族 H-superfamily homologous superfamily | 40 — lambda repressor-like DNA-binding domains |
| 结构域编号 domain_id | 1zz7B02 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 60 — Sandwich |
| 拓扑 Topology topology | 120 — Jelly Rolls |
| 同源超家族 H-superfamily homologous superfamily | 10 — Jelly Rolls |
