SAXSdb — 1zzd

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Ribonucleoside-diphosphate reductase large chain 1

Saccharomyces cerevisiae

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	Ribonucleoside-diphosphate reductase small chain 2 × 2 （P49723） water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RIR1_YEAST
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–888； UniProt 1–888

Ribonucleoside-diphosphate reductase small chain 2

OrganismNot specified

UniProt P49723

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	Ribonucleoside-diphosphate reductase large chain 1 × 2 （P21524） water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RIR4_YEAST
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–9； UniProt 337–345

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1zzd
Deposition date deposition_date	2005-06-13
Structure title title	Structures of Yeast Ribonucleotide Reductase I
Keywords keywords	Eukaryotic, Ribonucleotide Reductase, dNTP Regulation, OXIDOREDUCTASE; OXIDOREDUCTASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1zzd__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1zzd__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

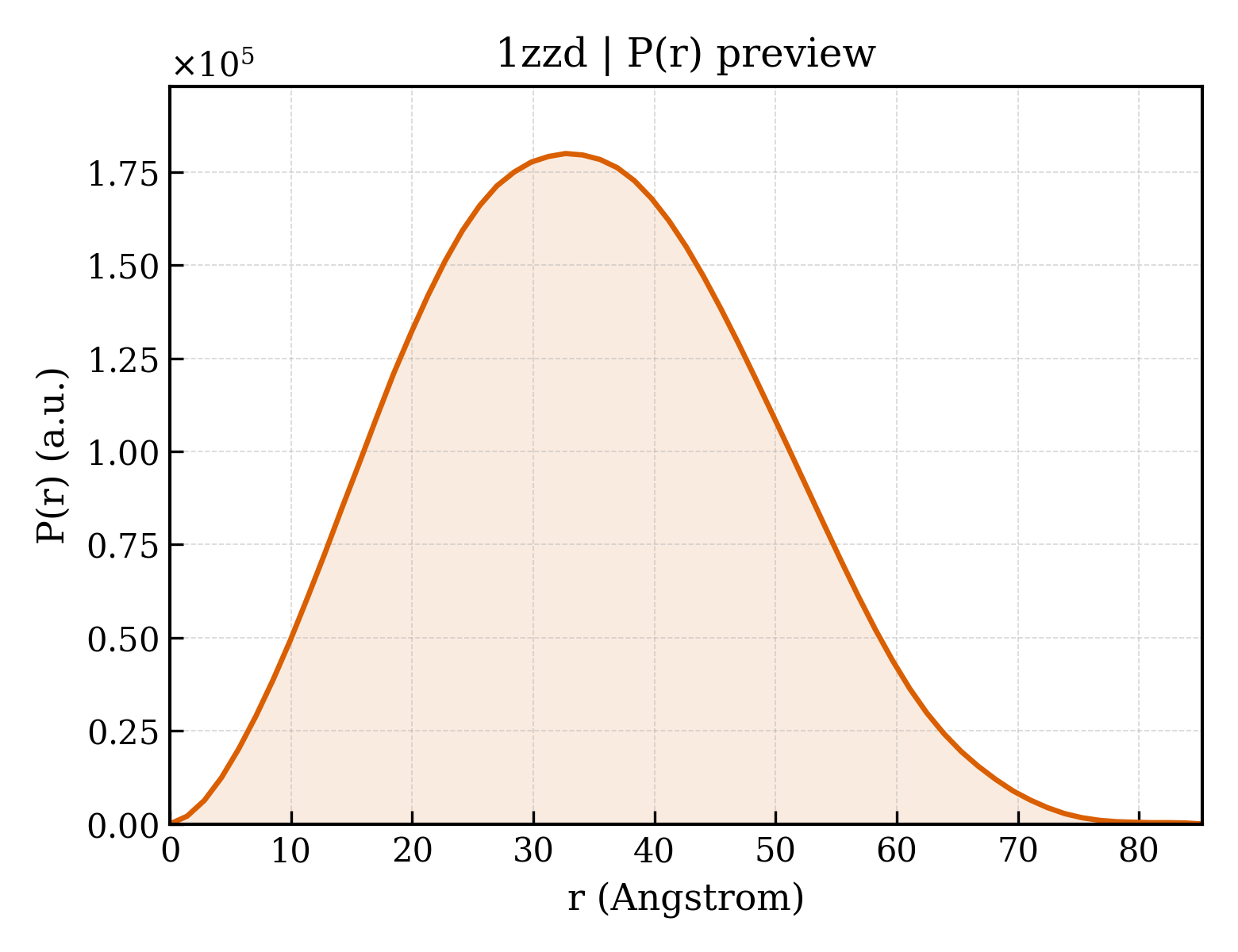

1zzd__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	38.04 Å
Rg (electron density)	37.81 Å
Total Rg	38.15 Å
Atom count	10366
Residues	1292
Excluded volume	184740 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1zzd__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Ribonucleoside-diphosphate reductase large chain 1
Molecular weight formula_weight	99673.0 kDa
EC 编号 ec_number	1.17.4.1
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	5241

MYVYKRDGRKEPVQFDKITARISRLCYGLDPKHIDAVKVTQRIISGVYEGVTTIELDNLAAETCAYMTTVHPDYATLAARIAISNLHKQTTKQFSKVVEDLYRYVNAATGKPAPMISDDVYNIVMENKDKLNSAIVYDRDFQYSYFGFKTLERSYLLRINGQVAERPQHLIMRVALGIHGRDIEAALETYNLMSLKYFTHASPTLFNAGTPKPQMSSCFLVAMKEDSIEGIYDTLKECALISKTAGGIGLHIHNIRSTGSYIAGTNGTSNGLIPMIRVFNNTARYVDQGGNKRPGAFALYLEPWHADIFDFIDIRKNHGKEEIRARDLFPALWIPDLFMKRVEENGTWTLFSPTSAPGLSDCYGDEFEALYTRYEKEGRGKTIKAQKLWYSILEAQTETGTPFVVYKDACNRKSNQKNLGVIKSSNLCCEIVEYSAPDETAVCNLASVALPAFIETSEDGKTSTYNFKKLHEIAKVVTRNLNRVIDRNYYPVEEARKSNMRHRPIALGVQGLADTFMLLRLPFDSEEARLLNIQIFETIYHASMEASCELAQKDGPYETFQGSPASQGILQFDMWDQKPYGMWDWDTLRKDIMKHGVRNSLTMAPMPTASTSQILGYNECFEPVTSNMYSRRVLSGEFQVVNPYLLRDLVDLGIWDEGMKQYLITQNGSIQGLPNVPQELKDLYKTVWEISQKTIINMAADRSVYIDQSHSLNLFLRAPTMGKLTSMHFYGWKKGLKTGMYYLRTQAASAAIQFTIDQKIADQATENVADISNLKRPSYMPSSASYAASDFVPAAVTANATIPSLDSSSEASREASPAPTGSHSLTKGMAELNVQESKVEVPEVPAPTKNEEKAAPIVDDEETEFDIYNSKVIACAIDNPEACEMCSG

Source Source

Source organism organism	Saccharomyces cerevisiae
Common name common_name	;baker's yeast ;
NCBI taxonomy ID ncbi_taxonomy_id	4932
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 polymer

Description description	Ribonucleoside-diphosphate reductase small chain 2
Molecular weight formula_weight	1143.2 kDa
EC 编号 ec_number	1.17.4.1
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

KEINFDDDF

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	58

▼

6. Fold Classification (SCOP + CATH) 1 domains

CATH v4.4 (1 domains)

Domain ID domain_id	1zzdA00
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	70 — Anaerobic Ribonucleotide-triphosphate Reductase Large Chain
Homologous superfamily homologous superfamily	20 —

▶

Unit-cell length a length_a	108.321 Å
Unit-cell length b length_b	117.682 Å
Unit-cell length c length_c	64.518 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 2
Space-group number int_tables_number	18
Crystal system crystal_system	—

Resolution resolution	2.600 Å
Low-resolution limit resolution_low	50.000 Å
R factor r_factor	0.2074
R_work r_work	0.2015
R_free r_free	0.2601
