23vl

Crystal structure of AS-like domain of APS kinase from Entamoeba histolytica

Method: X-RAY DIFFRACTION
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

adenylyl-sulfate kinase

Entamoeba histolytica

UniProt A0A5K1U9J0

State in the Current Structure

Assembly Physical composition Protein state Molecular copy count Associated components Data consistency
1 Protein monomer Monomer Protein 1 water × 1 Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence
UniProt name A0A5K1U9J0_ENTHI
Isoform —
PDB entities 1
Chains and sequence ranges Author chain A; PDBConstruct 24–317; UniProt 1–294

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id23vl
Deposition date deposition_date2026-02-20
Structure title titleCrystal structure of AS-like domain of APS kinase from Entamoeba histolytica
Keywords keywordsSULFATE ACTIVATION, SULFURYLASE-LIKE DOMAIN, SULFURYLASE-lLIKE; SULFATE ACTIVATION
Experimental Method methodX-RAY DIFFRACTION
▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

23vl__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

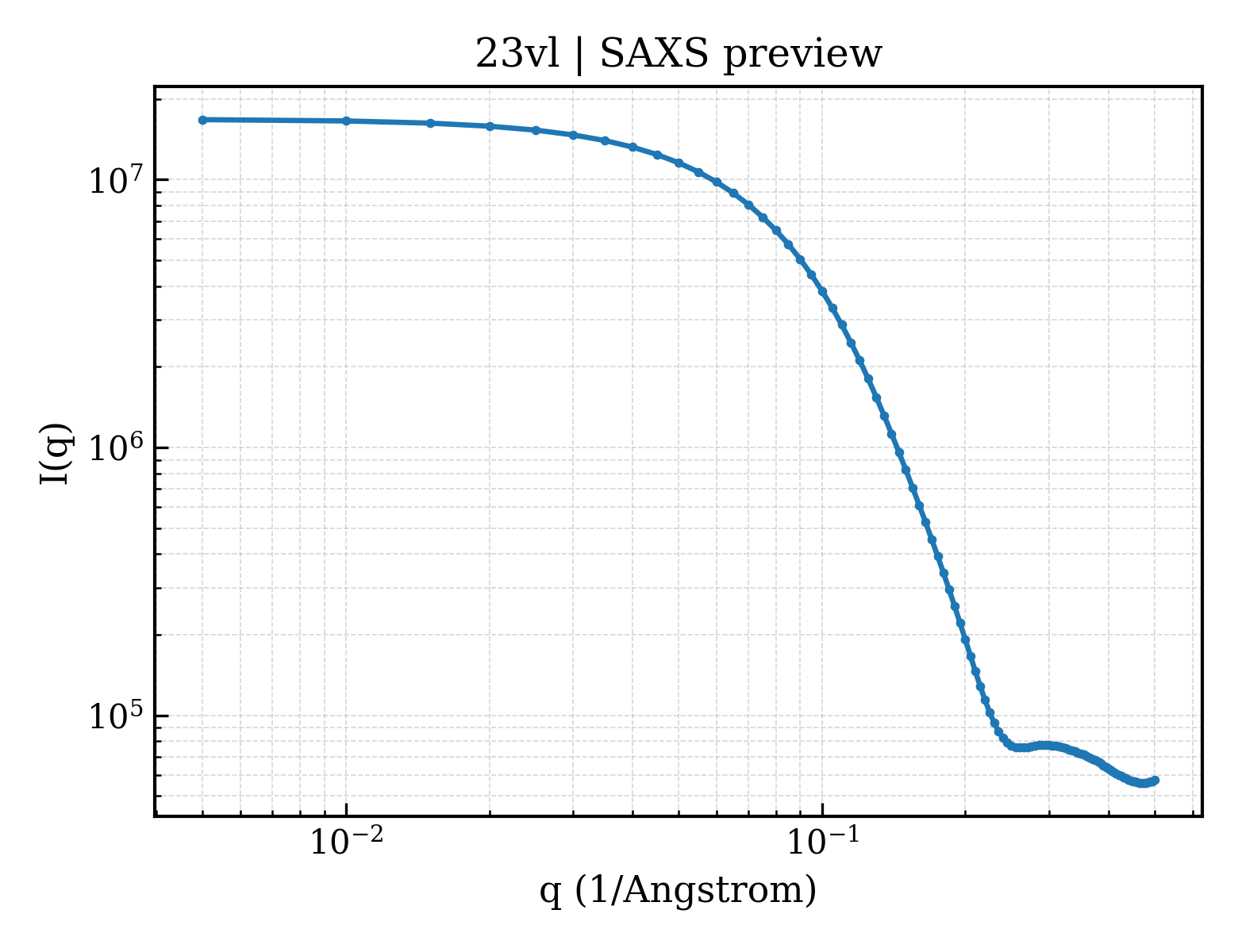

23vl__assembly_1__model_1 | I(q)

10-2 10-1 105 106 107 q (1/Angstrom) I(q)
100 plotted points; both axes use logarithmic scales.

23vl__assembly_1__model_1 | P(r) · Pending

The new assembly/model P(r) has not been calculated yet This placeholder does not display legacy data r (Angstrom) P(r)
P(r) will be calculated and displayed separately for the same assembly/model.
Rg(Guinier)21.21 Å
Rg (electron density)20.53 Å
Total Rg21.49 Å
Atom count2244
Residues289
Excluded volume40445 ų
Maximum q0.500 Å⁻¹
Assembly Model Structure unit Oligomeric description Status CRYSOL Actions
1 1 23vl__assembly_1__model_1 monomeric (1) Success 4.1.3-1-20251215 (887e7ef) View Download
▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (2)

▶

7. Citations (1)
