SAXSdb — 23vy

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Nuclear receptor ROR-alpha,undecapeptide

synthetic construct

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	CHOLESTEROL × 2 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RORA_MOUSE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 6–251； UniProt 269–514 Author chain B； PDBConstruct 6–251； UniProt 269–514

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	23vy
Deposition date deposition_date	2026-02-21
Structure title title	Crystal structure of the mouse RORalpha ligand binding domain in fusion with an NRIP1 LXXLL peptide
Keywords keywords	nuclear receptor, ligand binding domain, cholesterol, transcription factor, TRANSCRIPTION; TRANSCRIPTION
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

23vy__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

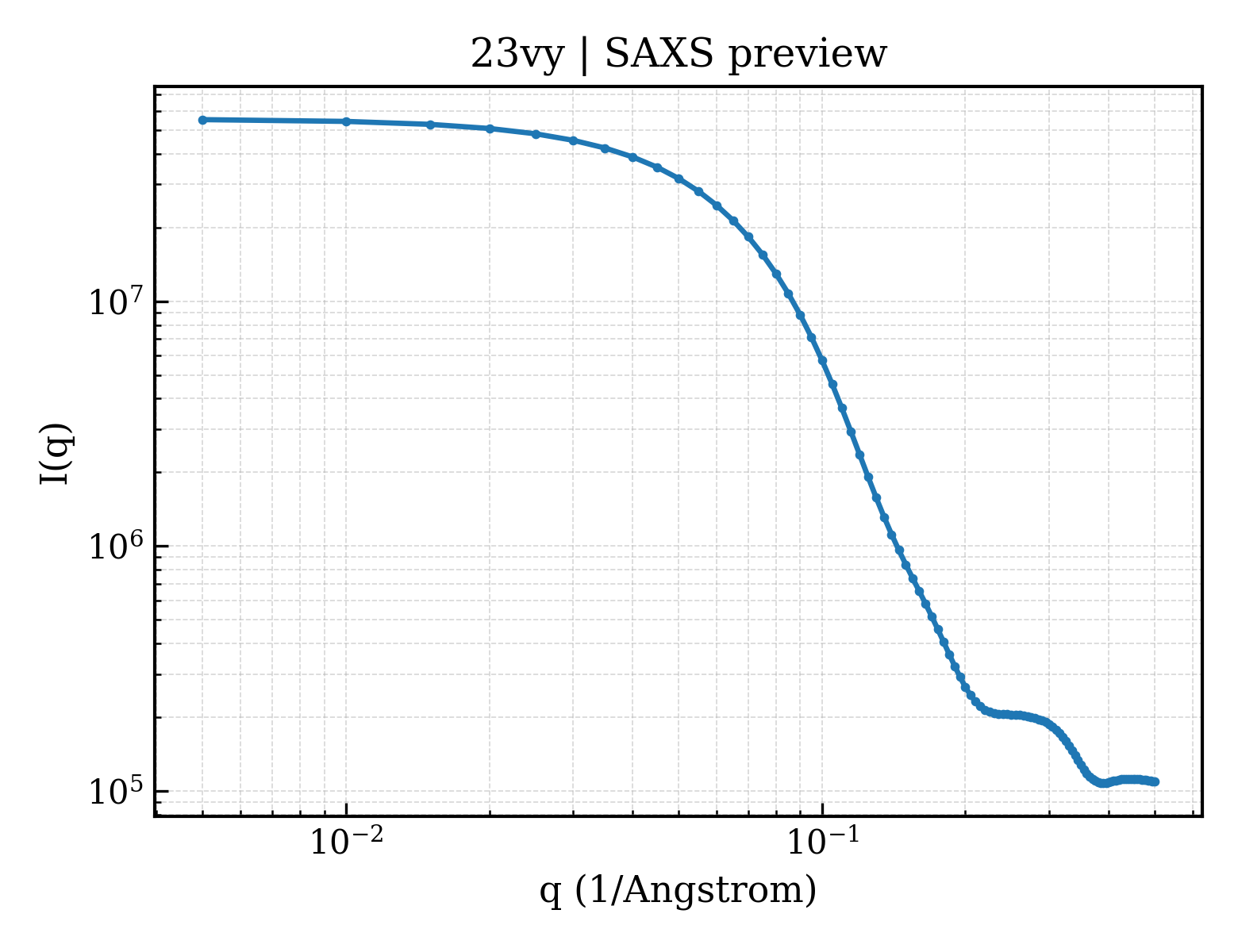

23vy__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

23vy__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	25.82 Å
Rg (electron density)	24.44 Å
Total Rg	25.37 Å
Atom count	4264
Residues	515
Excluded volume	77146 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`23vy__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Nuclear receptor ROR-alpha,undecapeptide
Molecular weight formula_weight	30550.4 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	4270

GSAMGSMAELEHLAQNISKSHLETCQYLREELQQITWQTFLQEEIENYQNKQREVMWQLCAIKITEAIQYVVEFAKRIDGFMELCQNDQIVLLKAGSLEVVFIRMCRAFDSQNNTVYFDGKYASPDVFKSLGCEDFISFVFEFGKSLCSMHLTEDEIALFSAFVLMSADRSWLQEKVKIEKLQQKIQLALQHVLQKNHREDGILTKLICKVSTLRALCGRHTEKLMAFKAIYPDIVRLHFPPLYKELFTSEGGTLLQLLLGHKN

Source Source

Source organism organism	synthetic construct
NCBI taxonomy ID ncbi_taxonomy_id	32630
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 non-polymer

Description description	CHOLESTEROL
Molecular weight formula_weight	386.7 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	6

▶

Unit-cell length a length_a	115.804 Å
Unit-cell length b length_b	75.775 Å
Unit-cell length c length_c	81.661 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	119.04 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	monoclinic

Resolution resolution	2.700 Å
Low-resolution limit resolution_low	34.200 Å
R factor r_factor	0.1882
R_work r_work	0.1814
R_free r_free	0.2490

Crystal structure of the mouse RORalpha ligand binding domain in fusion with an NRIP1 LXXLL peptide
