SAXSdb — 24js

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Ion transport protein

Aliarcobacter butzleri RM4018

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 4	CHAPSO × 4 1,2-DIMYRISTOYL-SN-GLYCERO-3-PHOSPHOCHOLINE × 8 DODECYL-BETA-D-MALTOSIDE × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	A8EVM5_ALIB4
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–267； UniProt 1–267

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	24js
Deposition date deposition_date	2026-03-06
Structure title title	Crystal structure of voltage-gated sodium channel NavAb N49K mutant
Keywords keywords	ion channel, MEMBRANE PROTEIN; MEMBRANE PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

24js__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

24js__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

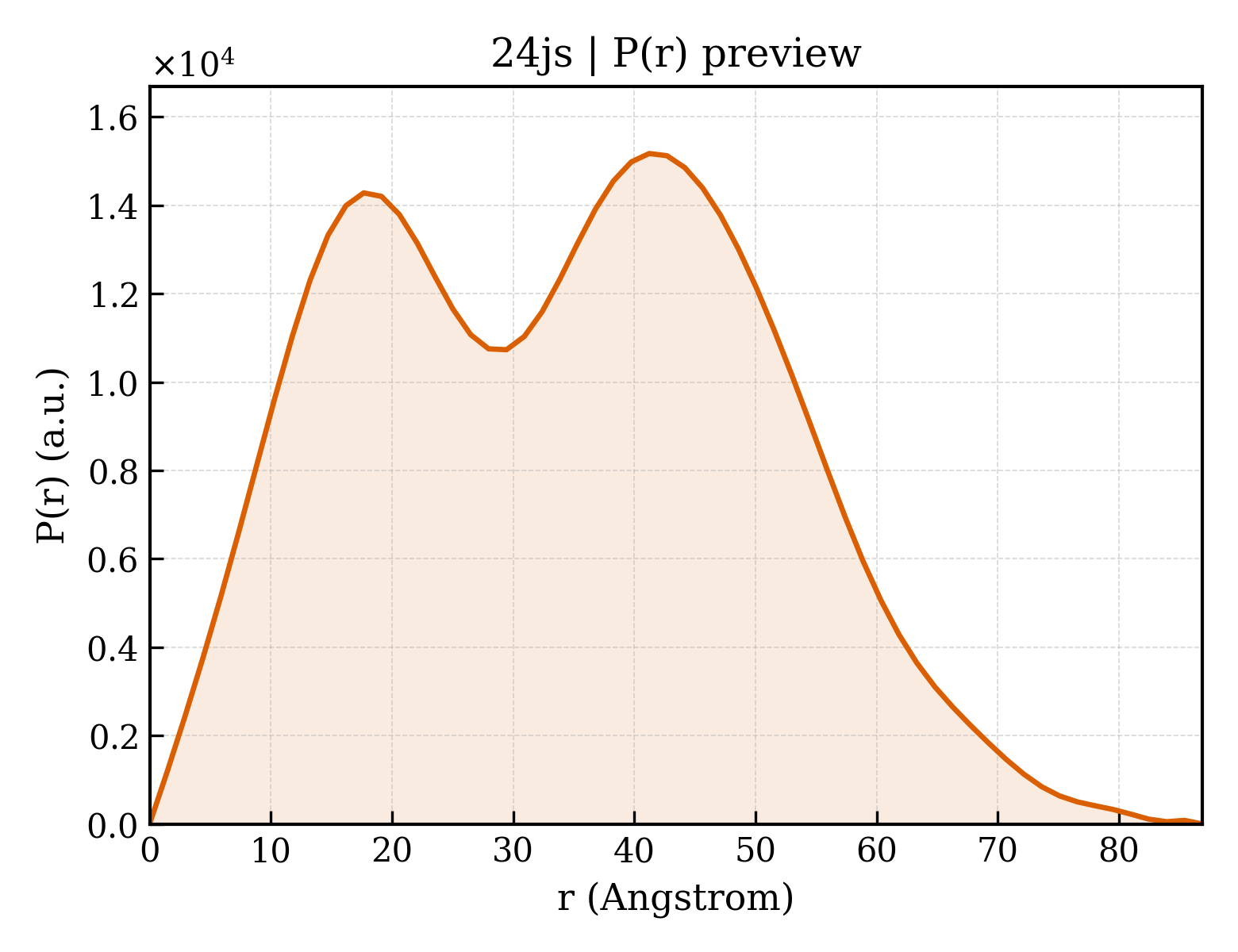

24js__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	33.78 Å
Rg (electron density)	32.73 Å
Total Rg	33.32 Å
Atom count	7824
Residues	876
Excluded volume	148320 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`24js__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Ion transport protein
Molecular weight formula_weight	31079.0 kDa
Mutation mutation	N49K
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1956

MYLRITNIVESSFFTKFIIYLIVLNGITMGLETSKTFMQSFGVYTTLFKQIVITIFTIEIILRIYVHRISFFKDPWSLFDFFVVAISLVPTSSGFEILRVLRVLRLFRLVTAVPQMRKIVSALISVIPGMLSVIALMTLFFYIFAIMATQLFGERFPEWFGTLGESFYTLFQVMTLESWSMGIVRPLMEVYPYAWVFFIPFIFVVAFVMINLVVAIIVDAMAILNQKEEQHIIDEVQSHEDNINNEIIKLREEIVELKELIKTSLKN

Source Source

Source organism organism	Aliarcobacter butzleri RM4018
NCBI taxonomy ID ncbi_taxonomy_id	367737
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	CHAPSO
Molecular weight formula_weight	631.9 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	1,2-DIMYRISTOYL-SN-GLYCERO-3-PHOSPHOCHOLINE
Molecular weight formula_weight	678.9 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 non-polymer

Description description	DODECYL-BETA-D-MALTOSIDE
Molecular weight formula_weight	510.6 kDa
Source method src_method	syn
Copy count entity_count	1

▶

Unit-cell length a length_a	126.850 Å
Unit-cell length b length_b	126.850 Å
Unit-cell length c length_c	203.430 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	I 4 2 2
Space-group number int_tables_number	97
Crystal system crystal_system	tetragonal

Resolution resolution	3.500 Å
Low-resolution limit resolution_low	28.360 Å
R factor r_factor	0.2532
R_work r_work	0.2521
R_free r_free	0.2736

Crystal structure of voltage-gated sodium channel NavAb N49K mutant
