SAXSdb — 28ym

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Capsid protein

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 40	No other associated polymer	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	A0A348G6U1_9VIRU
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–153； UniProt 9–161 Author chain AA； PDBConstruct 1–153； UniProt 9–161 Author chain AB； PDBConstruct 1–153； UniProt 9–161 Author chain AC； PDBConstruct 1–153； UniProt 9–161 Author chain AD； PDBConstruct 1–153； UniProt 9–161 Author chain AE； PDBConstruct 1–153； UniProt 9–161 Author chain AF； PDBConstruct 1–153； UniProt 9–161 Author chain AG； PDBConstruct 1–153； UniProt 9–161 Author chain AH； PDBConstruct 1–153； UniProt 9–161 Author chain AI； PDBConstruct 1–153； UniProt 9–161 Author chain AJ； PDBConstruct 1–153； UniProt 9–161 Author chain AK； PDBConstruct 1–153； UniProt 9–161 Author chain AL； PDBConstruct 1–153； UniProt 9–161 Author chain AM； PDBConstruct 1–153； UniProt 9–161 Author chain AN； PDBConstruct 1–153； UniProt 9–161 Author chain B； PDBConstruct 1–153； UniProt 9–161 Author chain C； PDBConstruct 1–153； UniProt 9–161 Author chain D； PDBConstruct 1–153； UniProt 9–161 Author chain E； PDBConstruct 1–153； UniProt 9–161 Author chain F； PDBConstruct 1–153； UniProt 9–161 Author chain G； PDBConstruct 1–153； UniProt 9–161 Author chain H； PDBConstruct 1–153； UniProt 9–161 Author chain I； PDBConstruct 1–153； UniProt 9–161 Author chain J； PDBConstruct 1–153； UniProt 9–161 Author chain K； PDBConstruct 1–153； UniProt 9–161 Author chain L； PDBConstruct 1–153； UniProt 9–161 Author chain M； PDBConstruct 1–153； UniProt 9–161 Author chain N； PDBConstruct 1–153； UniProt 9–161 Author chain O； PDBConstruct 1–153； UniProt 9–161 Author chain P； PDBConstruct 1–153； UniProt 9–161 Author chain Q； PDBConstruct 1–153； UniProt 9–161 Author chain R； PDBConstruct 1–153； UniProt 9–161 Author chain S； PDBConstruct 1–153； UniProt 9–161 Author chain T； PDBConstruct 1–153； UniProt 9–161 Author chain U； PDBConstruct 1–153； UniProt 9–161 Author chain V； PDBConstruct 1–153； UniProt 9–161 Author chain W； PDBConstruct 1–153； UniProt 9–161 Author chain X； PDBConstruct 1–153； UniProt 9–161 Author chain Y； PDBConstruct 1–153； UniProt 9–161 Author chain Z； PDBConstruct 1–153； UniProt 9–161

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	28ym
Deposition date deposition_date	2026-03-02
Structure title title	Tobacco Mosaic Virus (TMV)
Keywords keywords	Tobacco Mosaic, Virus; VIRUS
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

28ym__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

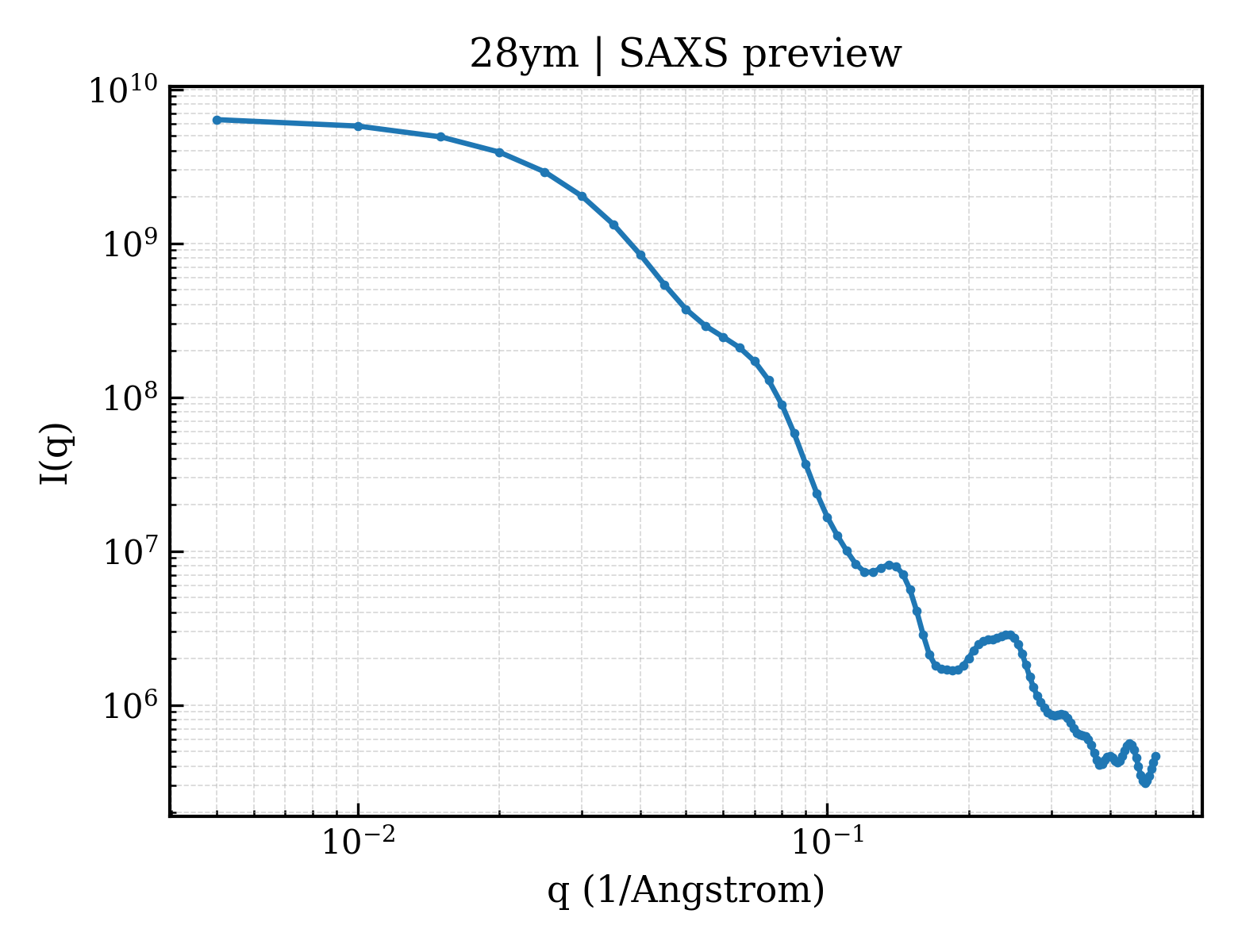

28ym__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

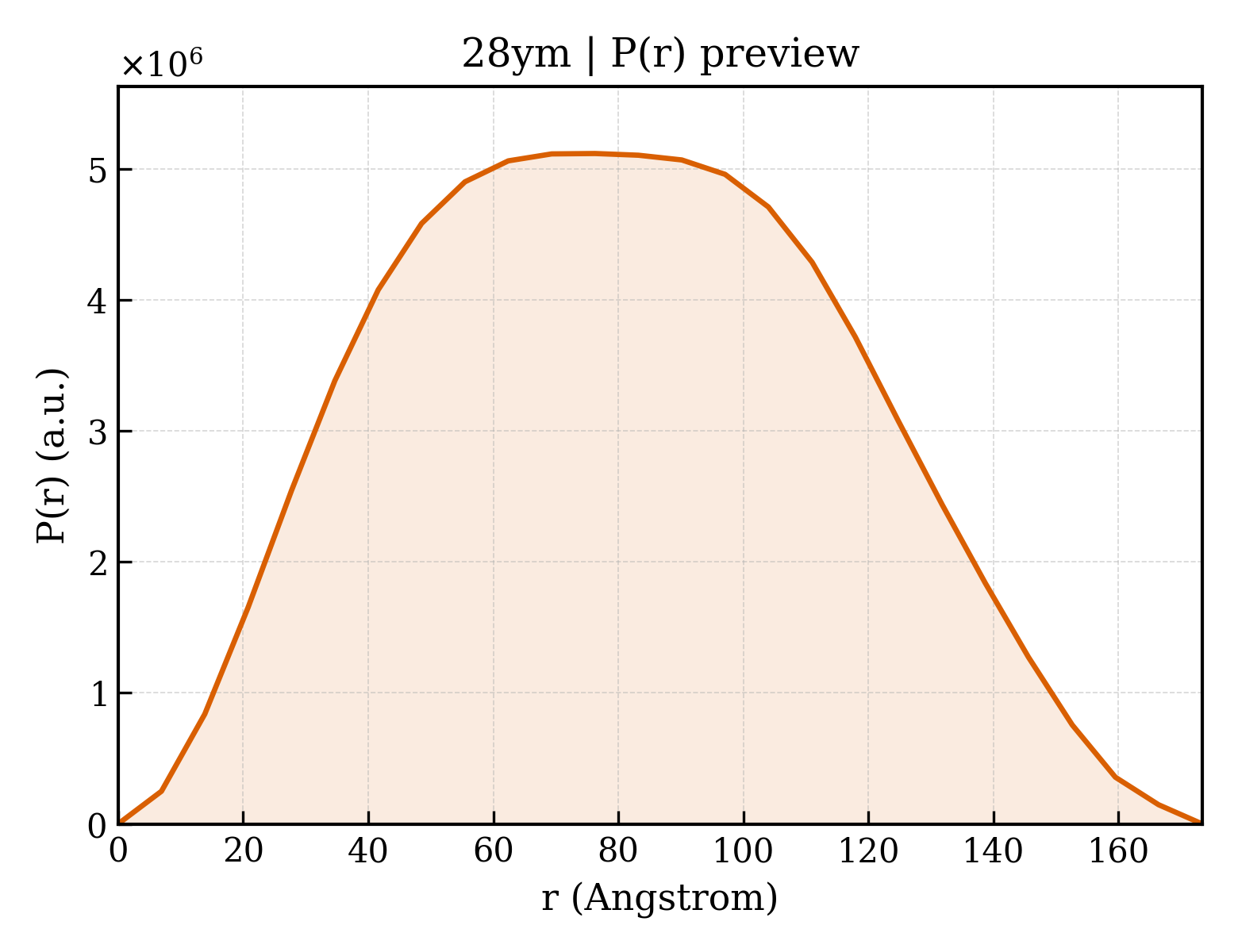

28ym__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	62.12 Å
Rg (electron density)	62.42 Å
Total Rg	62.29 Å
Atom count	48240
Residues	6120
Excluded volume	852090 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`28ym__assembly_1__model_1`	40-meric （40）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (1)

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	1.71 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	880163

Description description	Capsid protein
Molecular weight formula_weight	17092.0 kDa
Mutation mutation	None
Source method src_method	nat
Copy count entity_count	40

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,AA,AB,AC,AD,AE,AF,AG,AH,AI,AJ,AK,AL,AM,AN,B,C,D,E,F,G,H,I,J,K,L,M,N,O,P,Q,R,S,T,U,V,W,X,Y,Z
Atom count atom_count	48240
