29on

Crystal structure of the staphylococcal efflux pump QacA in the inward open state in complex with nanobody 89

Method: X-RAY DIFFRACTION D_max: 121.0 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

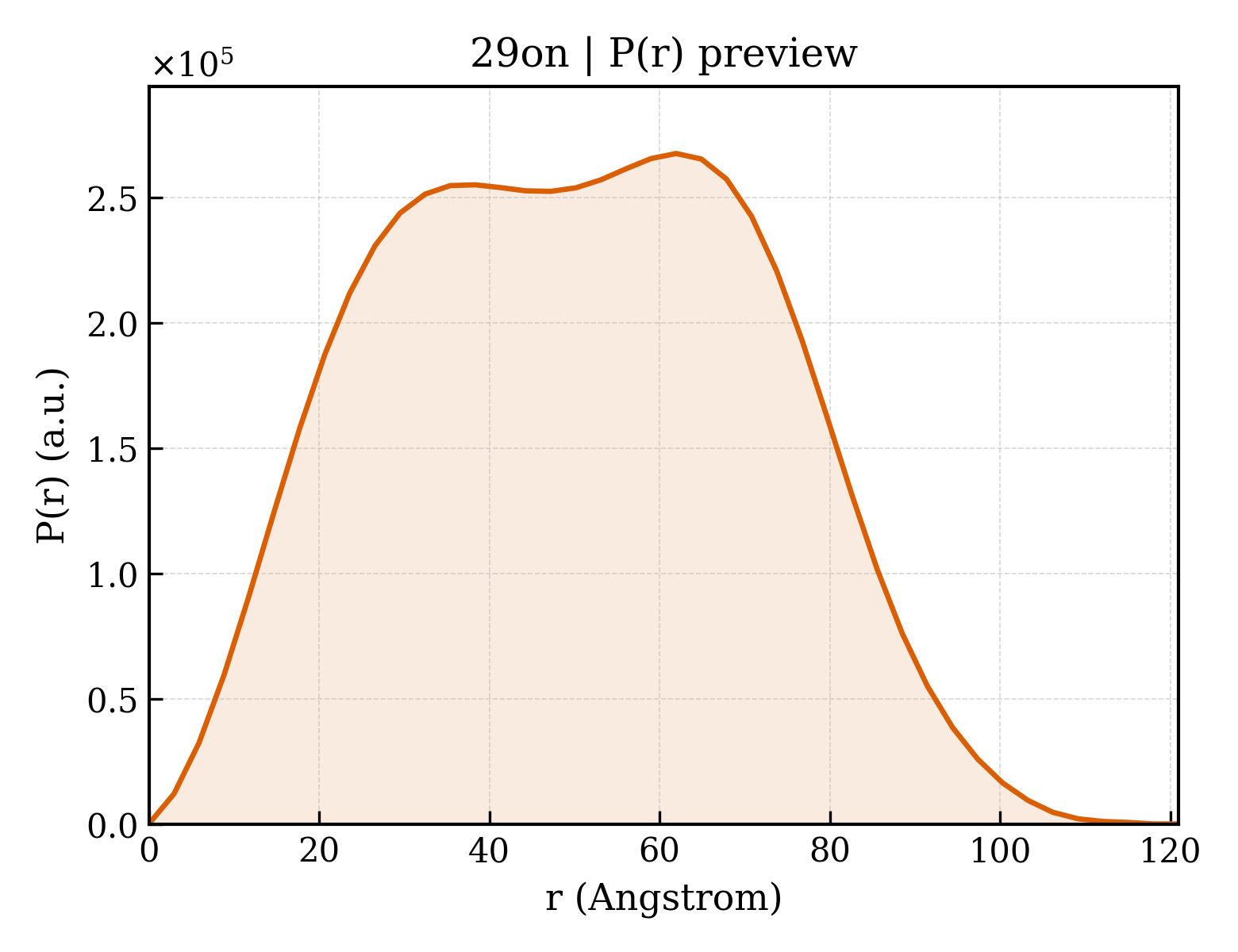

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	29on
沉积日期 deposition_date	2026-03-26
最后修订 last_revision	2026-04-22
结构标题 title	Crystal structure of the staphylococcal efflux pump QacA in the inward open state in complex with nanobody 89
关键词 keywords	;Multidrug efflux pump, Major Facilitator Superfamily, MFS, DHA2 family, Antimicrobial resistance, Drug resistance, Proton-coupled transport, Drug-proton antiport, Membrane protein, 14-transmembrane helix, Secondary active transporter, Cationic substrate efflux, Nanobody, Single-domain Indian camelid antibody ;; MEMBRANE PROTEIN
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	38.71 Å
回转半径 Rg (电子) rg_electron	38.09 Å
零角强度 I(0) i0	221808000.00
分子量 molecular_weight	132580.0 kDa
排除体积 excluded_volume	170790 Å³
包络体积 envelope_volume	224590 Å³
水化壳体积 shell_volume	48435 Å³
包络直径 envelope_diameter	125.2 Å
壳层 Rg shell_rg	45.16 Å
包络 Rg envelope_rg	36.82 Å
形状 Rg shape_rg	38.08 Å
总 Rg total_rg	38.60 Å
总原子数 total_atoms	9333
残基数 n_residues	1233
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	121.0 Å
Rg (实空间) rg_real	38.56 Å
Rg 误差 (实空间) rg_real_error	1.02 Å
I(0) (实空间) i0_real	2.2180e+08
I(0) 误差 (实空间) i0_real_error	3.5170e+06
Rg (倒空间) rg_reciprocal	38.66 Å
I(0) (倒空间) i0_reciprocal	221800000.0000
解质量估计 total_estimate	0.8982
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	62.0 Å
偏度 Skewness skewness	0.063
峰度 Kurtosis kurtosis	-0.804
角度范围 angular_range	— – 0.2050 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	31530000.0000
实空间数据点数 n_real_points	42
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.916; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.997; Smooth: 0.928

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (6)

Entity 1 polymer

描述 description	Antiseptic resistance protein
分子量 formula_weight	55784.3 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B
原子数 atom_count	9333

MISFFTKTTDMMTSKKRWTALVVLAVSLFVVTMDMTILIMALPELVRELEPSGTQQLWIVDIYSLVLAGFIIPLSAFADKWGRKKALLTGFALFGLVSLAIFFAESAEFVIAIRFLLGIAGALIMPTTLSMIRVIFENPKERATALAVWSIASSIGAVFGPIIGGALLEQFSWHSAFLINVPFAIIAVVAGLFLLPESKLSKEKSHSWDIPSTILSIAGMIGLVWSIKEFSKEGLADIIPWVVIVLAITMIVIFVKRNLSSSDPMLDVRLFKKRSFSAGTIAAFMTMFAMASVLLLASQWLQVVEELSPFKAGLYLLPMAIGDMVFAPIAPGLAARFGPKIVLPSGIGIAAIGMFIMYFFGHPLSYSTMALALILVGAGMASLAVASALIMLETPTSKAGNAAAVEESMYDLGNVFGVAVLGSLSSMLYRVFLDISSFSSKGIVGDLAHVAEESVVGAVEVAKATGIKQLANEAVTSFNDAFVATALVGGIIMIIISIVVYLLIPKSLDITKQKLEVLFQ

来源 Source

来源生物 organism	Staphylococcus aureus
NCBI 分类编号 ncbi_taxonomy_id	1280
宿主生物 host_organism	Escherichia coli

Entity 2 polymer

描述 description	Nanobody 89
分子量 formula_weight	15965.6 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C,D

MAQVQLVESGGGLVQAGGSLKLSCAASGRTFSSAYMGWFRQAPGKEREFVAAIKWSGGSTYYAHSVKGRFTISRDNAKNTVYLQMNSLKPEDTAVYYCATKGNPNSYEYDVWGQGTQVTVSSAAAHHHHHHGAAEQKLISEEDLNGAA

来源 Source

来源生物 organism	Lama glama
NCBI 分类编号 ncbi_taxonomy_id	9844
宿主生物 host_organism	Escherichia coli

Entity 3 non-polymer

描述 description	PHOSPHATIDYLETHANOLAMINE
分子量 formula_weight	734.0 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 4 non-polymer

描述 description	(1S)-2-{[{[(2R)-2,3-DIHYDROXYPROPYL]OXY}(HYDROXY)PHOSPHORYL]OXY}-1-[(PALMITOYLOXY)METHYL]ETHYL STEARATE
分子量 formula_weight	751.0 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 5 non-polymer

描述 description	DODECYL-ALPHA-D-MALTOSIDE
分子量 formula_weight	510.6 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

Entity 6 non-polymer

描述 description	OXAMIC ACID
分子量 formula_weight	89.0 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	188.304 Å
晶胞边长 b length_b	94.335 Å
晶胞边长 c length_c	98.306 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	97.47 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	8

空间群 space_group	C 1 2 1
空间群编号 int_tables_number	5
晶系 crystal_system	—

分辨率 resolution	3.320 Å
最低分辨率 resolution_low	31.530 Å
R 因子 r_factor	0.2986
R_work r_work	0.2972
R_free r_free	0.3265

fit	/app/data/saxs_computation/9o/29on/29on.fit
pddf	/app/data/pr_computation/9o/29on/29on.pr.out
profile	/app/data/saxs_computation/9o/29on/29on.dat
