2a2o

CRYSTAL STRUCTURE OF a putativeTenA family transcriptional regulator (BT_3146) FROM BACTEROIDES THETAIOTAOMICRON VPI-5482 AT 2.16 A RESOLUTION

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

hypothetical protein BT3146

Bacteroides thetaiotaomicron

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 6	1,2-ETHANEDIOL × 24 POTASSIUM ION × 7 water × 6	Consistent with protein count
2	Protein homooligomer	Homooligomer	Protein 6	1,2-ETHANEDIOL × 24 POTASSIUM ION × 6 water × 6	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q8A309_BACTN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 13–258； UniProt 1–246 Author chain B； PDBConstruct 13–258； UniProt 1–246 Author chain C； PDBConstruct 13–258； UniProt 1–246 Author chain D； PDBConstruct 13–258； UniProt 1–246 Author chain E； PDBConstruct 13–258； UniProt 1–246 Author chain F； PDBConstruct 13–258； UniProt 1–246 Author chain G； PDBConstruct 13–258； UniProt 1–246

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2a2o
Deposition date deposition_date	2005-06-22
Structure title title	CRYSTAL STRUCTURE OF a putativeTenA family transcriptional regulator (BT_3146) FROM BACTEROIDES THETAIOTAOMICRON VPI-5482 AT 2.16 A RESOLUTION
Keywords keywords	;PUTATIVE TENA FAMILY TRANSCRIPTIONAL REGULATOR, STRUCTURAL GENOMICS, JOINT CENTER FOR STRUCTURAL GENOMICS, JCSG, PROTEIN STRUCTURE INITIATIVE, PSI, TRANSCRIPTION ;; TRANSCRIPTION
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2a2o__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2a2o__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

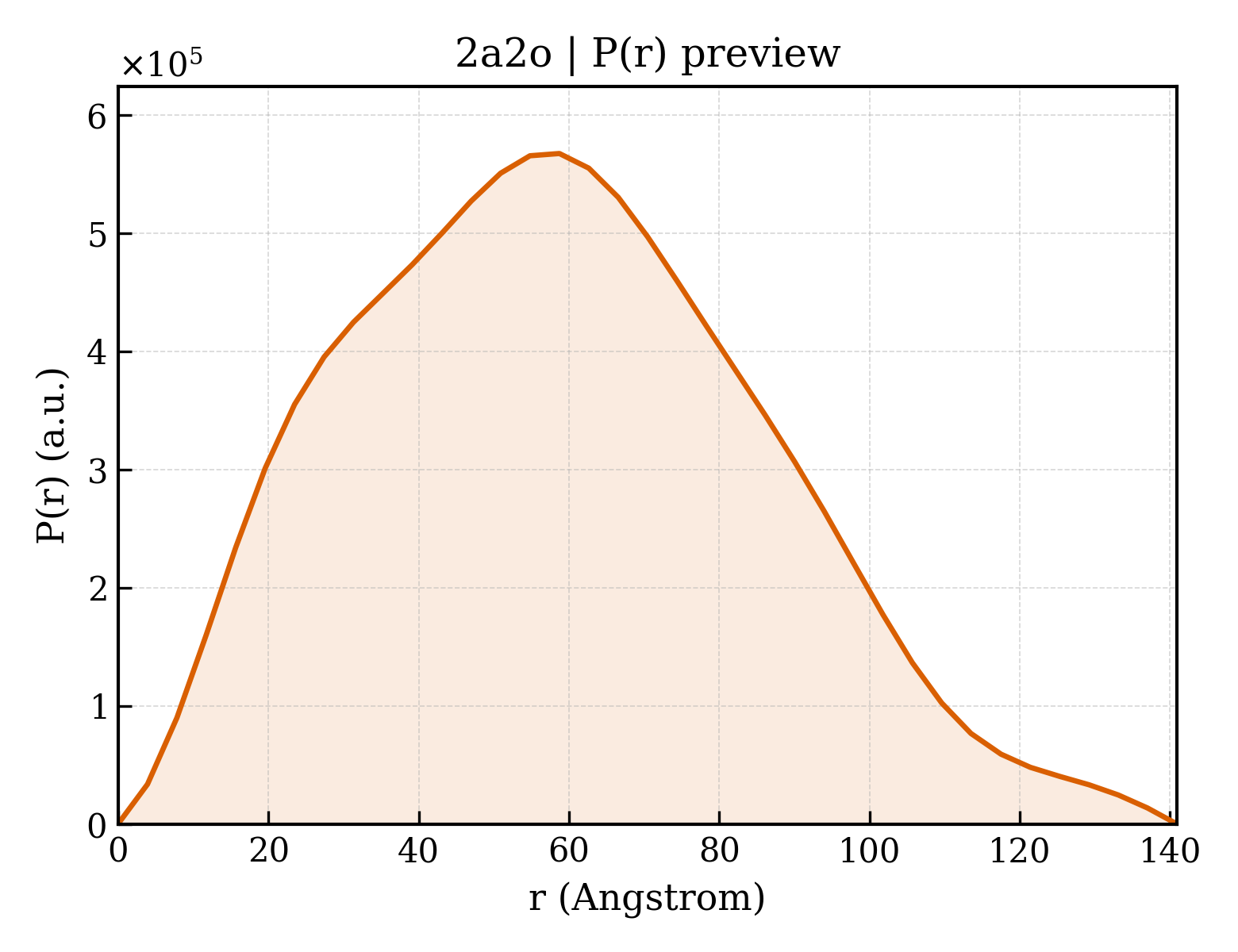

2a2o__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	40.97 Å
Rg (electron density)	40.12 Å
Total Rg	40.79 Å
Atom count	11152
Residues	1342
Excluded volume	198780 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2a2o__assembly_1__model_1`	hexameric （6）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`2a2o__assembly_2__model_1`	hexameric （6）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	hypothetical protein BT3146
Molecular weight formula_weight	30007.3 kDa
Source method src_method	man
Copy count entity_count	7

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E,F,G
Atom count atom_count	14881

MGSDKIHHHHHHMNDFKNQWLRKRTFAIPASRLTGRLTTLKSDVPAADSLFWKLWNGSLDTAVQVLQTDYFKGIAAGTLDPNAYGSLMVQDGYYCFRGRDDYATAATCAQDETLREFFKAKAKSYDEYNETYHQTWHLREASGLIPGTDIKDYADYEAYVAGSLASPYMCVVMLPCEYLWPWIANFLDGYTPTNSLYRFWIEWNGGTPNGAYQMGNMLEQYRDKIDEDKAVEIFNTAMNYELKVFTSSTILTTIENGK

Source Source

Source organism organism	Bacteroides thetaiotaomicron
NCBI taxonomy ID ncbi_taxonomy_id	226186
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	1,2-ETHANEDIOL
Molecular weight formula_weight	62.1 kDa
Source method src_method	syn
Copy count entity_count	28

Entity 3 Entity 3 non-polymer

Description description	POTASSIUM ION
Molecular weight formula_weight	39.1 kDa
Source method src_method	syn
Copy count entity_count	8

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	1715

▼

6. Fold Classification (SCOP + CATH) 14 domains

SCOP 2.08 (7 domains)

Domain ID domain_id	d2a2oa_
Class class	a — All alpha proteins
Fold Fold fold	a.132 — Heme oxygenase-like
Superfamily Superfamily superfamily	a.132.1 — Heme oxygenase-like
Family Family family	a.132.1.3 — TENA/THI-4

Domain ID domain_id	d2a2ob_
Class class	a — All alpha proteins
Fold Fold fold	a.132 — Heme oxygenase-like
Superfamily Superfamily superfamily	a.132.1 — Heme oxygenase-like
Family Family family	a.132.1.3 — TENA/THI-4

Domain ID domain_id	d2a2oc_
Class class	a — All alpha proteins
Fold Fold fold	a.132 — Heme oxygenase-like
Superfamily Superfamily superfamily	a.132.1 — Heme oxygenase-like
Family Family family	a.132.1.3 — TENA/THI-4

Domain ID domain_id	d2a2od_
Class class	a — All alpha proteins
Fold Fold fold	a.132 — Heme oxygenase-like
Superfamily Superfamily superfamily	a.132.1 — Heme oxygenase-like
Family Family family	a.132.1.3 — TENA/THI-4

Domain ID domain_id	d2a2oe_
Class class	a — All alpha proteins
Fold Fold fold	a.132 — Heme oxygenase-like
Superfamily Superfamily superfamily	a.132.1 — Heme oxygenase-like
Family Family family	a.132.1.3 — TENA/THI-4

Domain ID domain_id	d2a2of_
Class class	a — All alpha proteins
Fold Fold fold	a.132 — Heme oxygenase-like
Superfamily Superfamily superfamily	a.132.1 — Heme oxygenase-like
Family Family family	a.132.1.3 — TENA/THI-4

Domain ID domain_id	d2a2og_
Class class	a — All alpha proteins
Fold Fold fold	a.132 — Heme oxygenase-like
Superfamily Superfamily superfamily	a.132.1 — Heme oxygenase-like
Family Family family	a.132.1.3 — TENA/THI-4

CATH v4.4 (7 domains)

Domain ID domain_id	2a2oA00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	910 — Heme Oxygenase; Chain A
Homologous superfamily homologous superfamily	10 — Heme oxygenase-like

Domain ID domain_id	2a2oB00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	910 — Heme Oxygenase; Chain A
Homologous superfamily homologous superfamily	10 — Heme oxygenase-like

Domain ID domain_id	2a2oC00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	910 — Heme Oxygenase; Chain A
Homologous superfamily homologous superfamily	10 — Heme oxygenase-like

Domain ID domain_id	2a2oD00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	910 — Heme Oxygenase; Chain A
Homologous superfamily homologous superfamily	10 — Heme oxygenase-like

Domain ID domain_id	2a2oE00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	910 — Heme Oxygenase; Chain A
Homologous superfamily homologous superfamily	10 — Heme oxygenase-like

Domain ID domain_id	2a2oF00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	910 — Heme Oxygenase; Chain A
Homologous superfamily homologous superfamily	10 — Heme oxygenase-like

Domain ID domain_id	2a2oG00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	910 — Heme Oxygenase; Chain A
Homologous superfamily homologous superfamily	10 — Heme oxygenase-like

▶

Unit-cell length a length_a	201.238 Å
Unit-cell length b length_b	201.238 Å
Unit-cell length c length_c	291.030 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	84

Space group space_group	P 63 2 2
Space-group number int_tables_number	182
Crystal system crystal_system	—

Resolution resolution	2.160 Å
Low-resolution limit resolution_low	48.850 Å
R factor r_factor	—
R_work r_work	0.1450
R_free r_free	0.1730
