SAXSdb — 2a8x

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Dihydrolipoyl dehydrogenase

Mycobacterium tuberculosis

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	FLAVIN-ADENINE DINUCLEOTIDE × 2 (4S)-2-METHYL-2,4-PENTANEDIOL × 1 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	DLDH_MYCTU
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–464； UniProt 1–464 Author chain B； PDBConstruct 1–464； UniProt 1–464

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2a8x
Deposition date deposition_date	2005-07-10
Structure title title	Crystal Structure of Lipoamide Dehydrogenase from Mycobacterium tuberculosis
Keywords keywords	lipoamide dehydrogenase; pyruvate dehydrogenase; alpha keto acid dehydrogenase, OXIDOREDUCTASE; OXIDOREDUCTASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2a8x__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2a8x__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

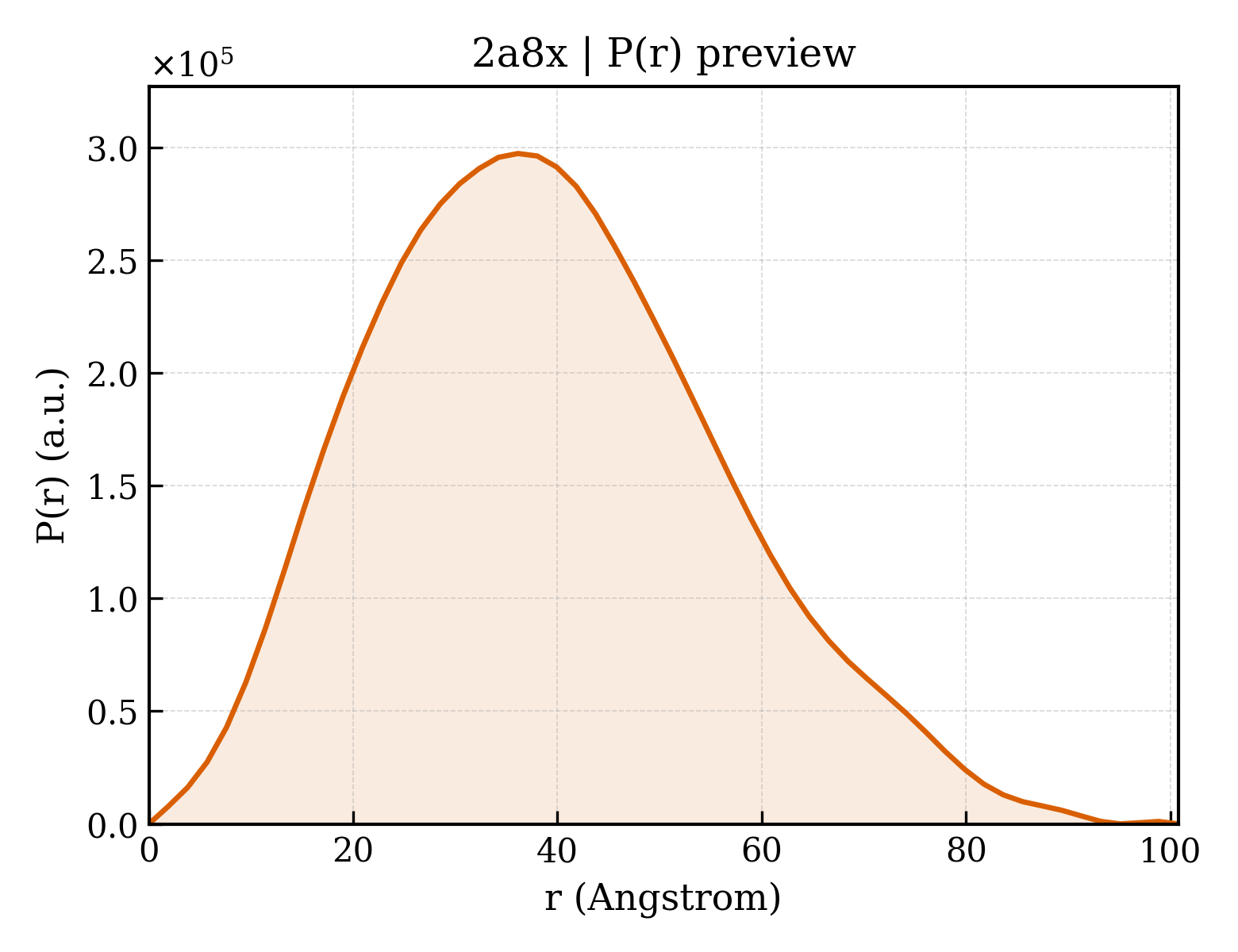

2a8x__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	30.07 Å
Rg (electron density)	29.31 Å
Total Rg	29.95 Å
Atom count	7052
Residues	914
Excluded volume	125710 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2a8x__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Dihydrolipoyl dehydrogenase
Molecular weight formula_weight	49621.2 kDa
EC 编号 ec_number	1.8.1.4
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	7385

MTHYDVVVLGAGPGGYVAAIRAAQLGLSTAIVEPKYWGGVCLNVGCIPSKALLRNAELVHIFTKDAKAFGISGEVTFDYGIAYDRSRKVAEGRVAGVHFLMKKNKITEIHGYGTFADANTLLVDLNDGGTESVTFDNAIIATGSSTRLVPGTSLSANVVTYEEQILSRELPKSIIIAGAGAIGMEFGYVLKNYGVDVTIVEFLPRALPNEDADVSKEIEKQFKKLGVTILTATKVESIADGGSQVTVTVTKDGVAQELKAEKVLQAIGFAPNVEGYGLDKAGVALTDRKAIGVDDYMRTNVGHIYAIGDVNGLLQLAHVAEAQGVVAAETIAGAETLTLGDHRMLPRATFCQPNVASFGLTEQQARNEGYDVVVAKFPFTANAKAHGVGDPSGFVKLVADAKHGELLGGHLVGHDVAELLPELTLAQRWDLTASELARNVHTHPTMSEALQECFHGLVGHMINF

Source Source

Source organism organism	Mycobacterium tuberculosis
NCBI taxonomy ID ncbi_taxonomy_id	1773
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	FLAVIN-ADENINE DINUCLEOTIDE
Molecular weight formula_weight	785.5 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 non-polymer

Description description	(4S)-2-METHYL-2,4-PENTANEDIOL
Molecular weight formula_weight	118.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	333

▼

6. Fold Classification (SCOP + CATH) 6 domains

CATH v4.4 (6 domains)

Domain ID domain_id	2a8xA01
Class class	3 — Alpha Beta
Architecture architecture	50 — 3-Layer(bba) Sandwich
Topology topology	50 — FAD/NAD(P)-binding domain
Homologous superfamily homologous superfamily	60 — FAD/NAD(P)-binding domain

Domain ID domain_id	2a8xA02
Class class	3 — Alpha Beta
Architecture architecture	50 — 3-Layer(bba) Sandwich
Topology topology	50 — FAD/NAD(P)-binding domain
Homologous superfamily homologous superfamily	60 — FAD/NAD(P)-binding domain

Domain ID domain_id	2a8xA03
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	390 — Enolase-like; domain 1
Homologous superfamily homologous superfamily	30 — FAD/NAD-linked reductase, C-terminal dimerisation domain

Domain ID domain_id	2a8xB01
Class class	3 — Alpha Beta
Architecture architecture	50 — 3-Layer(bba) Sandwich
Topology topology	50 — FAD/NAD(P)-binding domain
Homologous superfamily homologous superfamily	60 — FAD/NAD(P)-binding domain

Domain ID domain_id	2a8xB02
Class class	3 — Alpha Beta
Architecture architecture	50 — 3-Layer(bba) Sandwich
Topology topology	50 — FAD/NAD(P)-binding domain
Homologous superfamily homologous superfamily	60 — FAD/NAD(P)-binding domain

Domain ID domain_id	2a8xB03
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	390 — Enolase-like; domain 1
Homologous superfamily homologous superfamily	30 — FAD/NAD-linked reductase, C-terminal dimerisation domain

▶

Unit-cell length a length_a	83.582 Å
Unit-cell length b length_b	96.677 Å
Unit-cell length c length_c	122.889 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.400 Å
Low-resolution limit resolution_low	19.940 Å
R factor r_factor	0.1991
R_work r_work	0.1990
R_free r_free	0.2460

Crystal Structure of Lipoamide Dehydrogenase from Mycobacterium tuberculosis
