SAXSdb — 2aac

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

ARAC

Escherichia coli

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	beta-D-fucopyranose × 2 ACETIC ACID × 2 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ARAC_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–177； UniProt 2–178 Author chain B； PDBConstruct 1–177； UniProt 2–178

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2aac
Deposition date deposition_date	1996-10-31
Structure title title	ESCHERCHIA COLI GENE REGULATORY PROTEIN ARAC COMPLEXED WITH D-FUCOSE
Keywords keywords	TRANSCRIPTION FACTOR, CARBOHYDRATE BINDING, COILED-COIL, JELLY ROLL; TRANSCRIPTION FACTOR
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2aac__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2aac__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

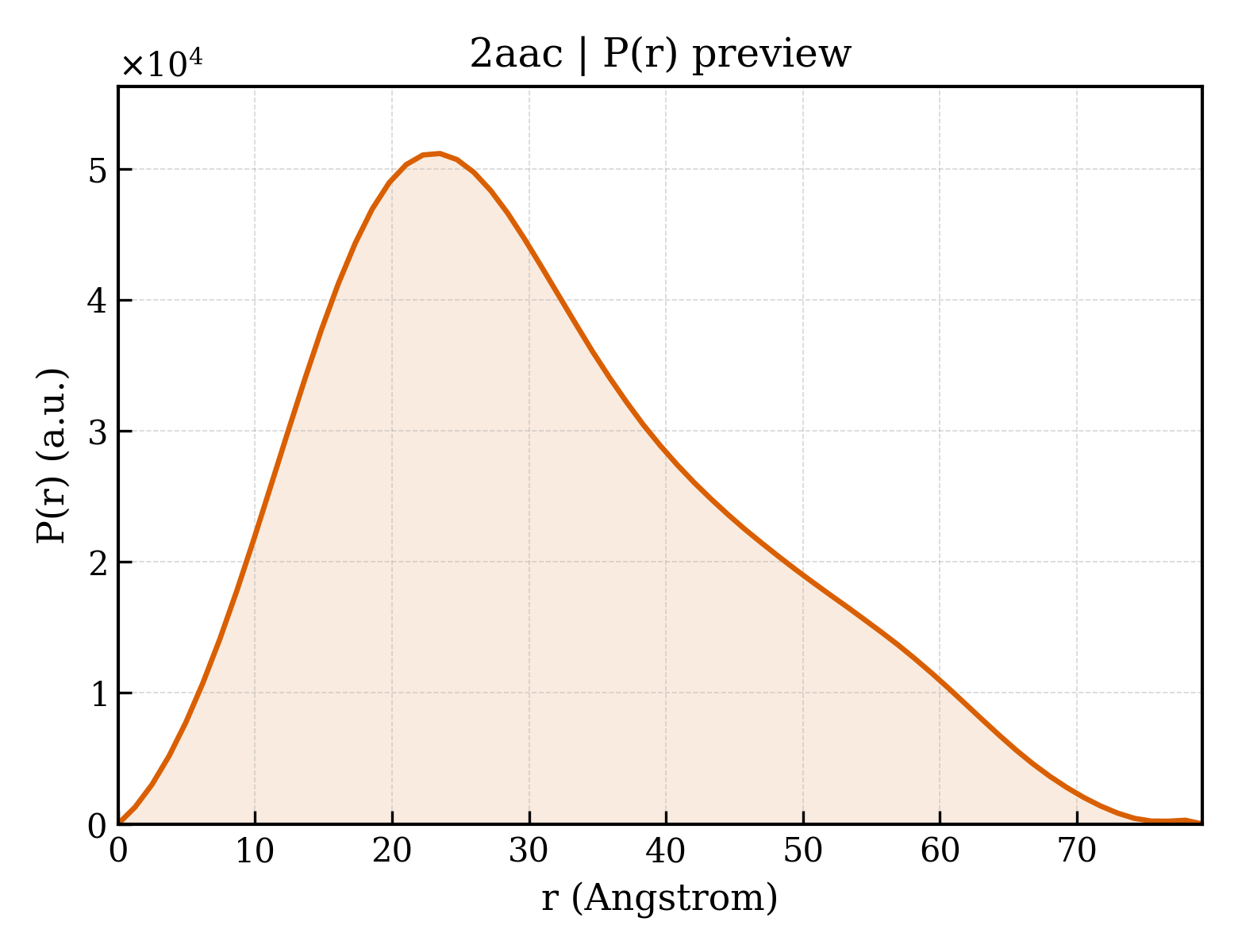

2aac__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	23.90 Å
Rg (electron density)	23.03 Å
Total Rg	23.80 Å
Atom count	2647
Residues	326
Excluded volume	46940 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2aac__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	ARAC
Molecular weight formula_weight	20547.2 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	3052

AEAQNDPLLPGYSFNAHLVAGLTPIEANGYLDFFIDRPLGMKGYILNLTIRGQGVVKNQGREFVCRPGDILLFPPGEIHHYGRHPEAREWYHQWVYFRPRAYWHEWLNWPSIFANTGFFRPDEAHQPHFSDLFGQIINAGQGEGRYSELLAINLLEQLLLRRMEAINESLHPPMDNR

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	beta-D-fucopyranose
Molecular weight formula_weight	164.2 kDa
Source method src_method	man
Copy count entity_count	2

Entity 3 Entity 3 non-polymer

Description description	ACETIC ACID
Molecular weight formula_weight	60.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	405

▼

6. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d2aaca_
Class class	b — All beta proteins
Fold Fold fold	b.82 — Double-stranded beta-helix
Superfamily Superfamily superfamily	b.82.4 — Regulatory protein AraC
Family Family family	b.82.4.1 — Regulatory protein AraC

Domain ID domain_id	d2aacb_
Class class	b — All beta proteins
Fold Fold fold	b.82 — Double-stranded beta-helix
Superfamily Superfamily superfamily	b.82.4 — Regulatory protein AraC
Family Family family	b.82.4.1 — Regulatory protein AraC

CATH v4.4 (2 domains)

Domain ID domain_id	2aacA00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	280 — Regulatory protein AraC

Domain ID domain_id	2aacB00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	280 — Regulatory protein AraC

▶

Unit-cell length a length_a	39.247 Å
Unit-cell length b length_b	93.682 Å
Unit-cell length c length_c	49.915 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	95.57 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	1.600 Å
Low-resolution limit resolution_low	7.000 Å
R factor r_factor	0.1760
R_work r_work	0.1760
R_free r_free	0.2220
