SAXSdb — 2ae6

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

acetyltransferase, GNAT family

Enterococcus faecalis

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 4	MAGNESIUM ION × 2 GLYCEROL × 2 ETHANOL × 3 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q839D1_ENTFA
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 4–166； UniProt 1–163 Author chain B； PDBConstruct 4–166； UniProt 1–163 Author chain C； PDBConstruct 4–166； UniProt 1–163 Author chain D； PDBConstruct 4–166； UniProt 1–163

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2ae6
Deposition date deposition_date	2005-07-21
Structure title title	Crystal Structure of Acetyltransferase of GNAT family from Enterococcus faecalis V583
Keywords keywords	;GCN5-related N-acetyltransferase (GNAT), alpha-beta, Structural Genomics, PSI, Protein Structure Initiative, Midwest Center for Structural Genomics, MCSG, TRANSFERASE ;; TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2ae6__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2ae6__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

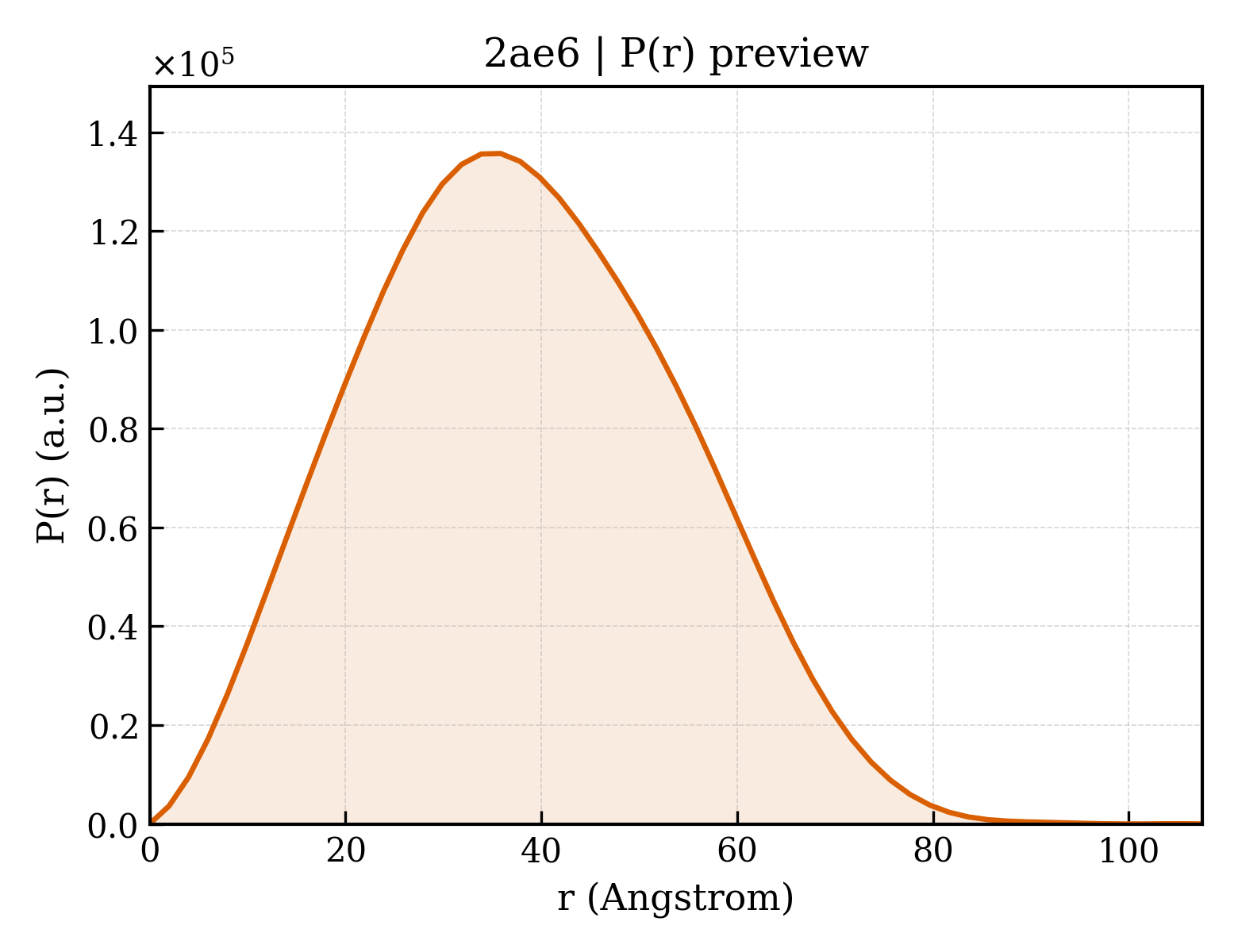

2ae6__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	29.19 Å
Rg (electron density)	28.11 Å
Total Rg	29.11 Å
Atom count	4701
Residues	570
Excluded volume	84099 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2ae6__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	acetyltransferase, GNAT family
Molecular weight formula_weight	19002.9 kDa
EC 编号 ec_number	2.3.-.-
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D
Atom count atom_count	5046

SNAMSTSLTIRLVAEADWPALHALDQIIWTKKNTPAEIQPLSLAAYQEKMKDETIFVAISGQQLAGFIEVHPPTSLAAHQKQWLLSIGVSPDFQDQGIGGSLLSYIKDMAEISGIHKLSLRVMATNQEAIRFYEKHGFVQEAHFKEEFYINGHYCDDYQYAYFIEK

Source Source

Source organism organism	Enterococcus faecalis
NCBI taxonomy ID ncbi_taxonomy_id	226185
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 non-polymer

Description description	ETHANOL
Molecular weight formula_weight	46.1 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	264

▼

6. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d2ae6a1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.108 — Acyl-CoA N-acyltransferases (Nat)
Superfamily Superfamily superfamily	d.108.1 — Acyl-CoA N-acyltransferases (Nat)
Family Family family	d.108.1.1 — N-acetyl transferase, NAT

Domain ID domain_id	d2ae6b_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.108 — Acyl-CoA N-acyltransferases (Nat)
Superfamily Superfamily superfamily	d.108.1 — Acyl-CoA N-acyltransferases (Nat)
Family Family family	d.108.1.1 — N-acetyl transferase, NAT

Domain ID domain_id	d2ae6c_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.108 — Acyl-CoA N-acyltransferases (Nat)
Superfamily Superfamily superfamily	d.108.1 — Acyl-CoA N-acyltransferases (Nat)
Family Family family	d.108.1.1 — N-acetyl transferase, NAT

Domain ID domain_id	d2ae6d_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.108 — Acyl-CoA N-acyltransferases (Nat)
Superfamily Superfamily superfamily	d.108.1 — Acyl-CoA N-acyltransferases (Nat)
Family Family family	d.108.1.1 — N-acetyl transferase, NAT

CATH v4.4 (4 domains)

Domain ID domain_id	2ae6A00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	630 — Aminopeptidase
Homologous superfamily homologous superfamily	30 — Gcn5-related N-acetyltransferase (GNAT)

Domain ID domain_id	2ae6B00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	630 — Aminopeptidase
Homologous superfamily homologous superfamily	30 — Gcn5-related N-acetyltransferase (GNAT)

Domain ID domain_id	2ae6C00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	630 — Aminopeptidase
Homologous superfamily homologous superfamily	30 — Gcn5-related N-acetyltransferase (GNAT)

Domain ID domain_id	2ae6D00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	630 — Aminopeptidase
Homologous superfamily homologous superfamily	30 — Gcn5-related N-acetyltransferase (GNAT)

▶

Unit-cell length a length_a	64.618 Å
Unit-cell length b length_b	64.618 Å
Unit-cell length c length_c	176.396 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	P 32
Space-group number int_tables_number	145
Crystal system crystal_system	—

Resolution resolution	2.190 Å
Low-resolution limit resolution_low	58.820 Å
R factor r_factor	0.2152
R_work r_work	0.2101
R_free r_free	0.2593
