Nostoc sp.
| Assembly | Physical composition | Protein state | Molecular copy count | Associated components | Data consistency |
|---|---|---|---|---|---|
| 1 | Protein monomer | Monomer | Protein 1 | No other associated polymer | Consistent with protein count |
| UniProt name | Q8YWG3_ANASP |
| Isoform | — |
| PDB entities | 1 |
| Chains and sequence ranges | Author chain A； PDBConstruct 4–88； UniProt 1–85 |
The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.
| Entry ID entry_id | 2afe |
| Deposition date deposition_date | 2005-07-25 |
| Structure title title | Solution Structure of Asl1650, an Acyl Carrier Protein from Anabaena sp. PCC 7120 with a Variant Phosphopantetheinylation-Site Sequence |
| Keywords keywords | ;twisted antiparallel helical bundle; acyl carrier protein family, Structural Genomics, PSI, Protein Structure Initiative, Joint Center for Structural Genomics, JCSG, LIGAND BINDING PROTEIN ;; LIGAND BINDING PROTEIN |
| Experimental Method method | SOLUTION NMR |
This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

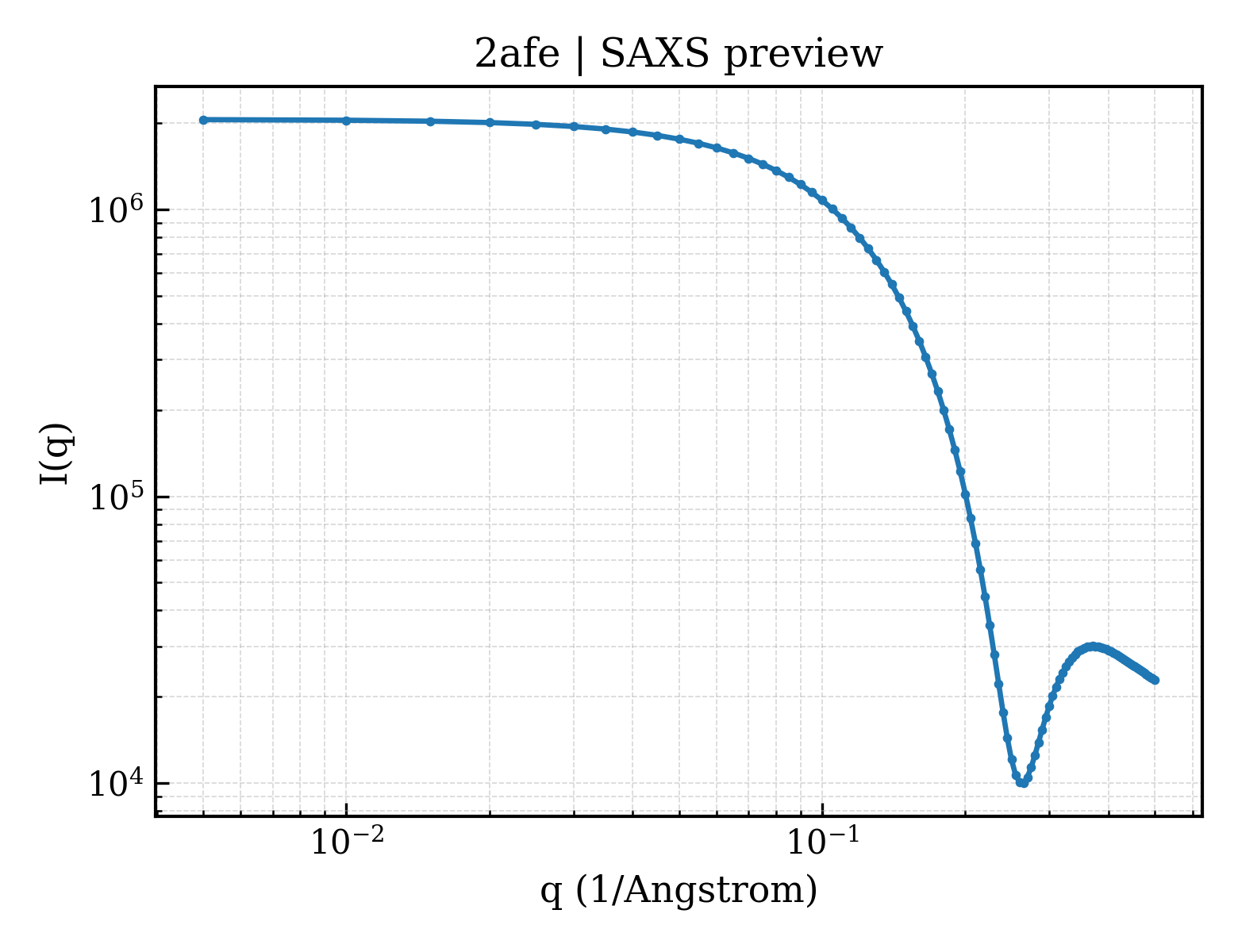

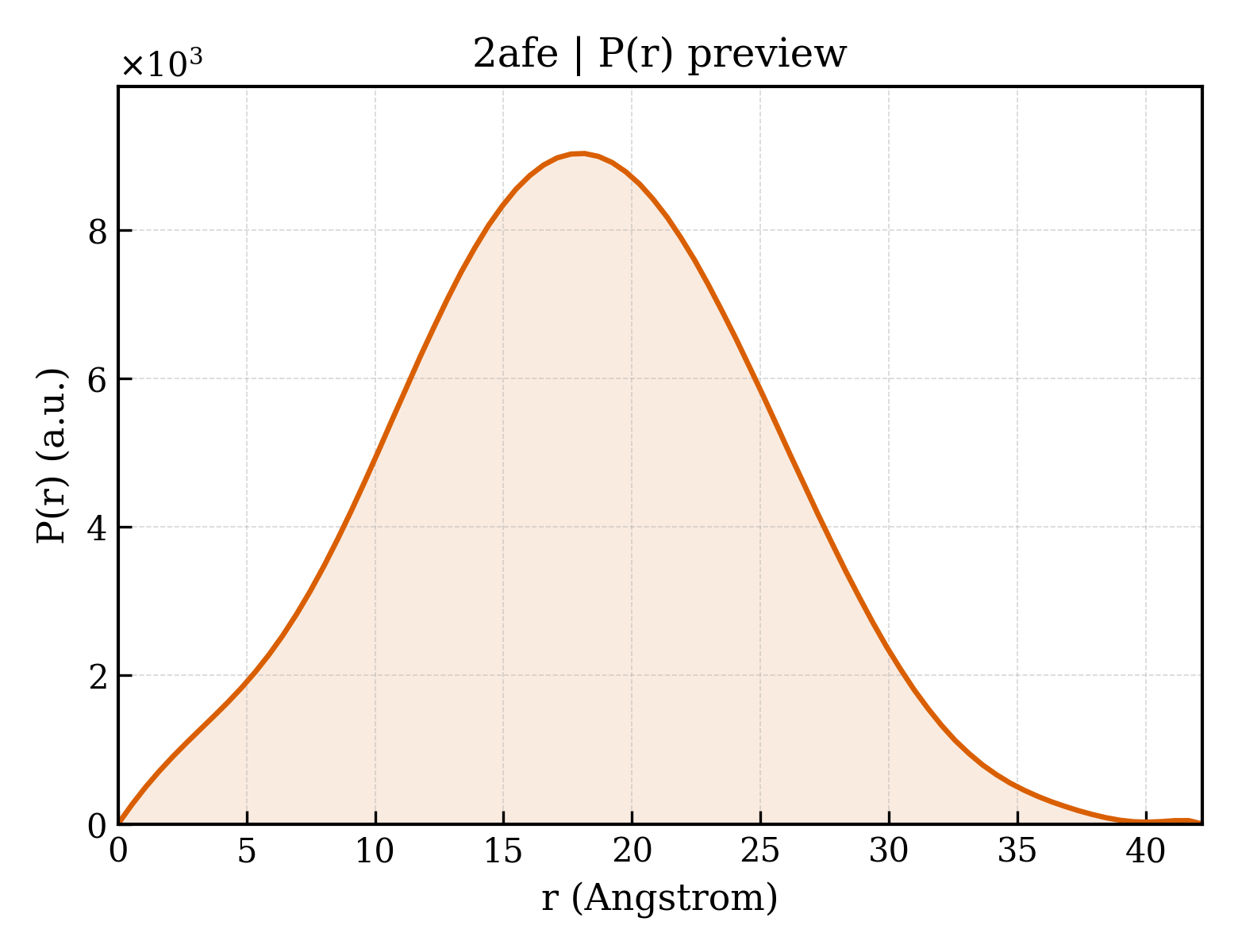

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)
| Rg（Guinier） | 13.82 Å |
| Rg (electron density) | 12.03 Å |
| Total Rg | 13.58 Å |
| Atom count | 1411 |
| Residues | 88 |
| Excluded volume | 12713 ų |
| Maximum q | 0.500 Å⁻¹ |
| Domain ID domain_id | 2afeA00 |
| Class class | 1 — Mainly Alpha |
| Architecture architecture | 10 — Orthogonal Bundle |
| Topology topology | 1200 — Non-ribosomal Peptide Synthetase Peptidyl Carrier Protein; Chain A |
| Homologous superfamily homologous superfamily | 10 — ACP-like |
