SAXSdb — 2ahx

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	2ahx
沉积日期 deposition_date	2005-07-28
结构标题 title	Crystal structure of ErbB4/HER4 extracellular domain
关键词 keywords	x-ray crystallography; neuregulins; heparin-binding, CELL CYCLE, SIGNALING PROTEIN; CELL CYCLE,SIGNALING PROTEIN
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	51.28 Å
回转半径 Rg (电子) rg_electron	51.88 Å
零角强度 I(0) i0	333675000.00
分子量 molecular_weight	140710.0 kDa
排除体积 excluded_volume	172310 Å³
包络体积 envelope_volume	294800 Å³
水化壳体积 shell_volume	53797 Å³
包络直径 envelope_diameter	188.8 Å
壳层 Rg shell_rg	47.25 Å
包络 Rg envelope_rg	49.49 Å
形状 Rg shape_rg	51.92 Å
总 Rg total_rg	51.55 Å
总原子数 total_atoms	9802
残基数 n_residues	1226
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	191.6 Å
Rg (实空间) rg_real	51.74 Å
Rg 误差 (实空间) rg_real_error	2.85 Å
I(0) (实空间) i0_real	3.3370e+08
I(0) 误差 (实空间) i0_real_error	7.0940e+06
Rg (倒空间) rg_reciprocal	50.90 Å
I(0) (倒空间) i0_reciprocal	333300000.0000
解质量估计 total_estimate	0.7778
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	61.8 Å
偏度 Skewness skewness	0.609
峰度 Kurtosis kurtosis	-0.009
角度范围 angular_range	— – 0.1550 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	11440000.0000
实空间数据点数 n_real_points	32
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.521; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.740; Smooth: 0.805

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (5)

Entity 1 polymer

描述 description	Receptor tyrosine-protein kinase erbB-4
分子量 formula_weight	69030.9 kDa
EC 编号 ec_number	2.7.1.112
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B
原子数 atom_count	9940

RQSVCAGTENKLSSLSDLEQQYRALRKYYENCEVVMGNLEITSIEHNRDLSFLRSVREVTGYVLVALNQFRYLPLENLRIIRGTKLYEDRYALAIFLNYRKDGNFGLQELGLKNLTEILNGGVYVDQNKFLCYADTIHWQDIVRNPWPSNLTLVSTNGSSGCGRCHKSCTGRCWGPTENHCQTLTRTVCAEQCDGRCYGPYVSDCCHRECAGGCSGPKDTDCFACMNFNDSGACVTQCPQTFVYNPTTFQLEHNFNAKYTYGAFCVKKCPHNFVVDSSSCVRACPSSKMEVEENGIKMCKPCTDICPKACDGIGTGSLMSAQTVDSSNIDKFINCTKINGNLIFLVTGIHGDPYNAIEAIDPEKLNVFRTVREITGFLNIQSWPPNMTDFSVFSNLVTIGGRVLYSGLSLLILKQQGITSLQFQSLKEISAGNIYITDNSNLCYYHTINWTTLFSTINQRIVIRDNRKAENCTAEGMVCNHLCSSDGCWGPGPDQCLSCRRFSRGRICIESCNLYDGEFREFENDSICVECDPQCEKMEDGLLTCHGPGPDNCTKCSHFKDGPNCVEKCPDGLQGANSFIFKYADPDRECHPCHPNCTQGCNGPTSHDCIYYPWTGH

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Cricetulus griseus

Entity 2 non-polymer

描述 description	2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	221.2 kDa
来源方法 src_method	man
拷贝数 entity_count	16

Entity 3 non-polymer

描述 description	SULFATE ION
分子量 formula_weight	96.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	3

Entity 4 non-polymer

描述 description	YTTRIUM (III) ION
分子量 formula_weight	88.9 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 5 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	138

▼

6. 折叠分类 (SCOP + CATH) 8 domains

CATH v4.4 (8 domains)

结构域编号 domain_id	2ahxA01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	80 — Alpha-Beta Horseshoe
拓扑 Topology topology	20 — 24 nucleotide stem-loop, u2 snrnp hairpin iv. U2 a'; Chain A
同源超家族 H-superfamily homologous superfamily	20 — Receptor L-domain

结构域编号 domain_id	2ahxA02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	10 — Ribbon
拓扑 Topology topology	220 — Hormone Receptor, Insulin-like Growth Factor Receptor 1; Chain A domain 2
同源超家族 H-superfamily homologous superfamily	10 — Hormone Receptor, Insulin-like Growth Factor Receptor 1; Chain A, domain 2

结构域编号 domain_id	2ahxA03
类 Class class	3 — Alpha Beta
架构 Architecture architecture	80 — Alpha-Beta Horseshoe
拓扑 Topology topology	20 — 24 nucleotide stem-loop, u2 snrnp hairpin iv. U2 a'; Chain A
同源超家族 H-superfamily homologous superfamily	20 — Receptor L-domain

结构域编号 domain_id	2ahxA04
类 Class class	2 — Mainly Beta
架构 Architecture architecture	10 — Ribbon
拓扑 Topology topology	220 — Hormone Receptor, Insulin-like Growth Factor Receptor 1; Chain A domain 2
同源超家族 H-superfamily homologous superfamily	10 — Hormone Receptor, Insulin-like Growth Factor Receptor 1; Chain A, domain 2

结构域编号 domain_id	2ahxB01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	80 — Alpha-Beta Horseshoe
拓扑 Topology topology	20 — 24 nucleotide stem-loop, u2 snrnp hairpin iv. U2 a'; Chain A
同源超家族 H-superfamily homologous superfamily	20 — Receptor L-domain

结构域编号 domain_id	2ahxB02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	10 — Ribbon
拓扑 Topology topology	220 — Hormone Receptor, Insulin-like Growth Factor Receptor 1; Chain A domain 2
同源超家族 H-superfamily homologous superfamily	10 — Hormone Receptor, Insulin-like Growth Factor Receptor 1; Chain A, domain 2

结构域编号 domain_id	2ahxB03
类 Class class	3 — Alpha Beta
架构 Architecture architecture	80 — Alpha-Beta Horseshoe
拓扑 Topology topology	20 — 24 nucleotide stem-loop, u2 snrnp hairpin iv. U2 a'; Chain A
同源超家族 H-superfamily homologous superfamily	20 — Receptor L-domain

结构域编号 domain_id	2ahxB04
类 Class class	2 — Mainly Beta
架构 Architecture architecture	10 — Ribbon
拓扑 Topology topology	220 — Hormone Receptor, Insulin-like Growth Factor Receptor 1; Chain A domain 2
同源超家族 H-superfamily homologous superfamily	10 — Hormone Receptor, Insulin-like Growth Factor Receptor 1; Chain A, domain 2

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	76.960 Å
晶胞边长 b length_b	203.090 Å
晶胞边长 c length_c	261.320 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	16

空间群 space_group	C 2 2 21
空间群编号 int_tables_number	20
晶系 crystal_system	—

分辨率 resolution	2.396 Å
最低分辨率 resolution_low	29.880 Å
R 因子 r_factor	0.2370
R_work r_work	0.2350
R_free r_free	0.2650

fit	/app/data/saxs_computation/ah/2ahx/2ahx.fit
pddf	/app/data/pr_computation/ah/2ahx/2ahx.pr.out
profile	/app/data/saxs_computation/ah/2ahx/2ahx.dat

Crystal structure of ErbB4/HER4 extracellular domain

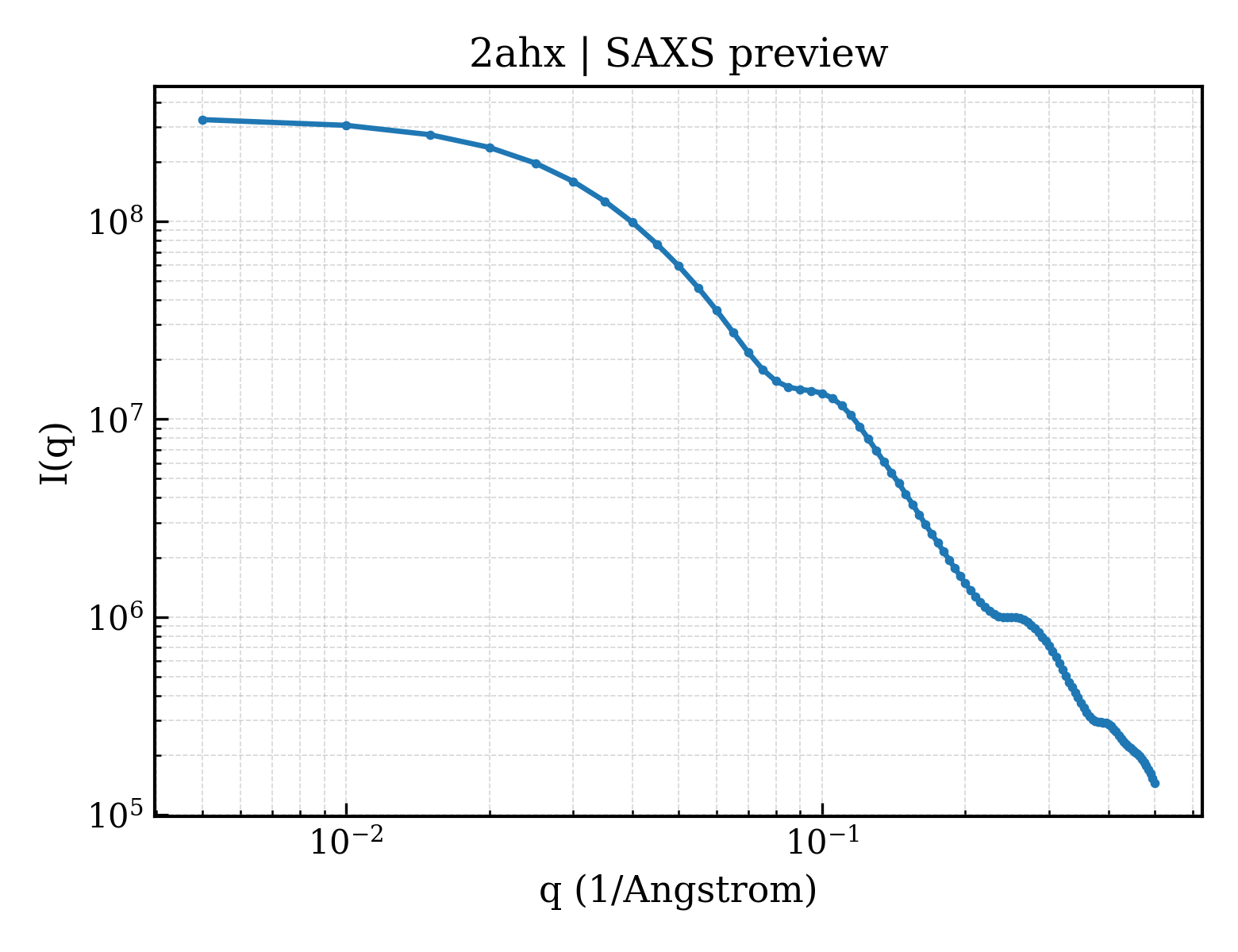

SAXS 散射曲线 SAXS Profile

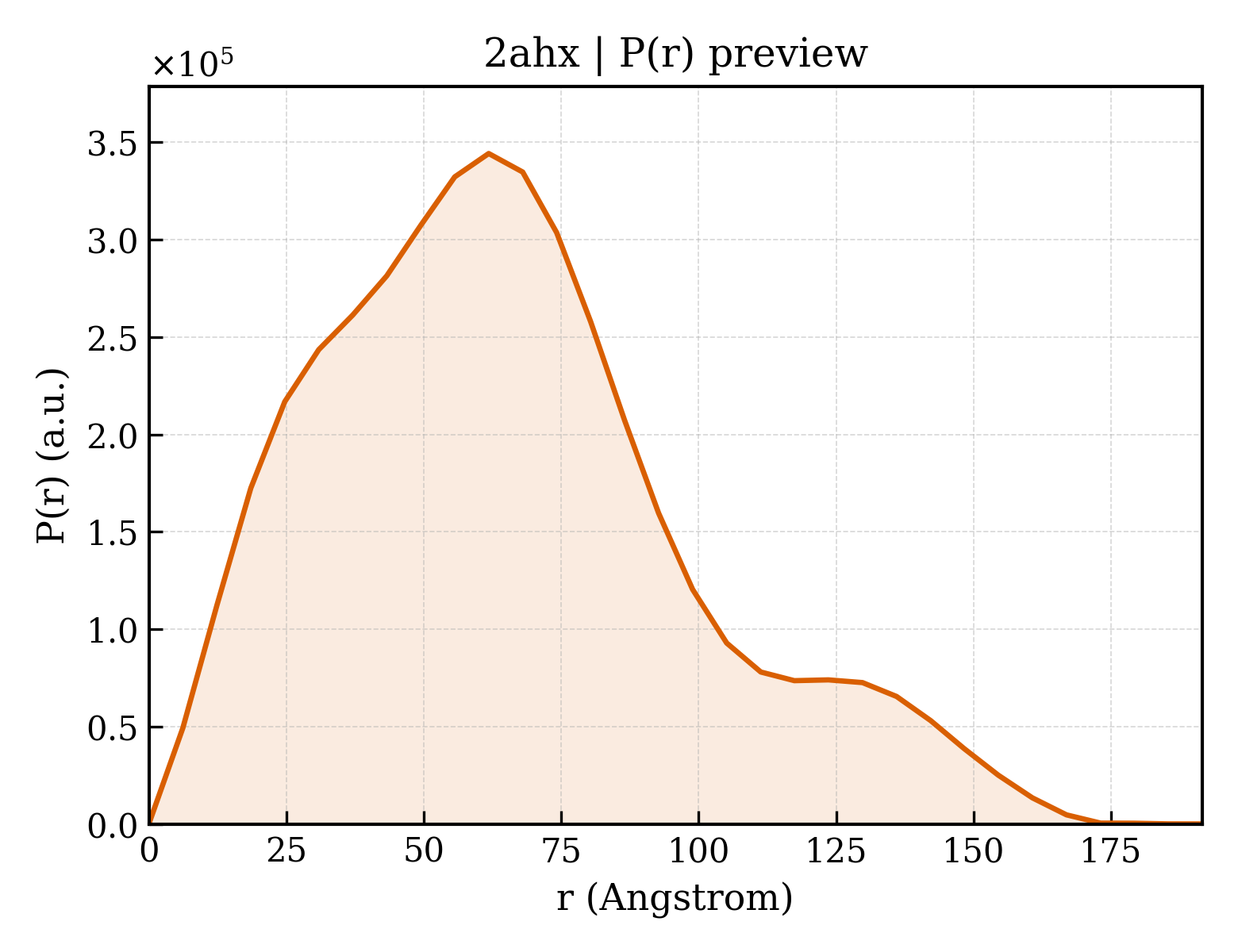

P(r) 距离分布 P(r) Distribution
