2ai0

Anti-Cocaine Antibody 7.5.21, Crystal Form III

Method: X-RAY DIFFRACTION D_max: 235.6 Å Quality: REASONABLE

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Immunoglobulin Heavy Chain

OrganismNot specified

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain H； UniProt 21–234	Not recorded	Immunoglobulin Light Chain kappa × 1 SO4 SULFATE ION × 7 GOL GLYCEROL × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7；277 K；16% PEG8000, 0.3M ammonium sulfate, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.20 Å R-free 0.279
10	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain H； UniProt 21–234 Chain J； UniProt 21–234	Not recorded	Immunoglobulin Light Chain kappa × 2 SO4 SULFATE ION × 12 GOL GLYCEROL × 3	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7；277 K；16% PEG8000, 0.3M ammonium sulfate, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.20 Å R-free 0.279
11	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain J； UniProt 21–234 Chain K； UniProt 21–234	Not recorded	Immunoglobulin Light Chain kappa × 2 SO4 SULFATE ION × 12 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7；277 K；16% PEG8000, 0.3M ammonium sulfate, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.20 Å R-free 0.279
12	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain H； UniProt 21–234 Chain I； UniProt 21–234	Not recorded	Immunoglobulin Light Chain kappa × 2 SO4 SULFATE ION × 15 GOL GLYCEROL × 3	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7；277 K；16% PEG8000, 0.3M ammonium sulfate, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.20 Å R-free 0.279
2	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain I； UniProt 21–234	Not recorded	Immunoglobulin Light Chain kappa × 1 SO4 SULFATE ION × 8 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7；277 K；16% PEG8000, 0.3M ammonium sulfate, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.20 Å R-free 0.279
3	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain J； UniProt 21–234	Not recorded	Immunoglobulin Light Chain kappa × 1 SO4 SULFATE ION × 5 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7；277 K；16% PEG8000, 0.3M ammonium sulfate, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.20 Å R-free 0.279
4	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain K； UniProt 21–234	Not recorded	Immunoglobulin Light Chain kappa × 1 SO4 SULFATE ION × 7	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7；277 K；16% PEG8000, 0.3M ammonium sulfate, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.20 Å R-free 0.279
5	Protein heterocomplex Heteromer Protein × 8 PDB declaration: octameric（8） Consistent with protein copy count	Chain H； UniProt 21–234 Chain I； UniProt 21–234 Chain J； UniProt 21–234 Chain K； UniProt 21–234	Not recorded	Immunoglobulin Light Chain kappa × 4 SO4 SULFATE ION × 27 GOL GLYCEROL × 4	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7；277 K；16% PEG8000, 0.3M ammonium sulfate, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.20 Å R-free 0.279
6	Protein heterocomplex Heteromer Protein × 8 PDB declaration: octameric（8） Consistent with protein copy count	Chain H； UniProt 21–234 Chain I； UniProt 21–234 Chain J； UniProt 21–234 Chain K； UniProt 21–234	Not recorded	Immunoglobulin Light Chain kappa × 4 SO4 SULFATE ION × 27 GOL GLYCEROL × 4	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7；277 K；16% PEG8000, 0.3M ammonium sulfate, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.20 Å R-free 0.279
7	Protein heterocomplex Heteromer Protein × 8 PDB declaration: octameric（8） Consistent with protein copy count	Chain H； UniProt 21–234 Chain I； UniProt 21–234 Chain J； UniProt 21–234 Chain K； UniProt 21–234	Not recorded	Immunoglobulin Light Chain kappa × 4 SO4 SULFATE ION × 27 GOL GLYCEROL × 4	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7；277 K；16% PEG8000, 0.3M ammonium sulfate, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.20 Å R-free 0.279
8	Protein heterocomplex Heteromer Protein × 8 PDB declaration: octameric（8） Consistent with protein copy count	Chain H； UniProt 21–234 Chain I； UniProt 21–234 Chain J； UniProt 21–234 Chain K； UniProt 21–234	Not recorded	Immunoglobulin Light Chain kappa × 4 SO4 SULFATE ION × 27 GOL GLYCEROL × 4	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7；277 K；16% PEG8000, 0.3M ammonium sulfate, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.20 Å R-free 0.279
9	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain I； UniProt 21–234 Chain K； UniProt 21–234	Not recorded	Immunoglobulin Light Chain kappa × 2 SO4 SULFATE ION × 15 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7；277 K；16% PEG8000, 0.3M ammonium sulfate, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.20 Å R-free 0.279

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 2AI0	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2IPT PFA1 Fab Fragment Deposited 2006-10-12	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain H 123–234（112 aa）	Not recorded	ACM ACETAMIDE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；294 K；0.1 M Hepes, 25% PEG3350, pH 7.5, VAPOR DIFFUSION, temperature 294K	Resolution 2.00 Å R-free 0.223
3J42 Obstruction of Dengue Virus Maturation by Fab Fragments of the 2H2 Antibody Deposited 2013-06-13	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 720 PDB declaration: 720-meric	Chain G 120–230（111 aa） Fragment：SEE REMARK 999 Chain I 120–230（111 aa） Fragment：SEE REMARK 999 Chain K 120–230（111 aa） Fragment：SEE REMARK 999	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer 100 mM phosphate buffer；pH 7；100 mM phosphate buffer cryo-EM vitrification conditions 100 K；Cryogen ETHANE；Plunged into liquid ethane (homemade plunger)	Resolution 21.00 Å
3J42 Obstruction of Dengue Virus Maturation by Fab Fragments of the 2H2 Antibody Deposited 2013-06-13	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Heteromer；Protein × 12 PDB declaration: dodecameric	Chain G 120–230（111 aa） Fragment：SEE REMARK 999 Chain I 120–230（111 aa） Fragment：SEE REMARK 999 Chain K 120–230（111 aa） Fragment：SEE REMARK 999	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer 100 mM phosphate buffer；pH 7；100 mM phosphate buffer cryo-EM vitrification conditions 100 K；Cryogen ETHANE；Plunged into liquid ethane (homemade plunger)	Resolution 21.00 Å
3J42 Obstruction of Dengue Virus Maturation by Fab Fragments of the 2H2 Antibody Deposited 2013-06-13	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Insufficient information Heteromer；Protein × 60 PDB declaration: 60-meric	Chain G 120–230（111 aa） Fragment：SEE REMARK 999 Chain I 120–230（111 aa） Fragment：SEE REMARK 999 Chain K 120–230（111 aa） Fragment：SEE REMARK 999	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer 100 mM phosphate buffer；pH 7；100 mM phosphate buffer cryo-EM vitrification conditions 100 K；Cryogen ETHANE；Plunged into liquid ethane (homemade plunger)	Resolution 21.00 Å
3J42 Obstruction of Dengue Virus Maturation by Fab Fragments of the 2H2 Antibody Deposited 2013-06-13	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 4 Insufficient information Heteromer；Protein × 72 PDB declaration: 72-meric	Chain G 120–230（111 aa） Fragment：SEE REMARK 999 Chain I 120–230（111 aa） Fragment：SEE REMARK 999 Chain K 120–230（111 aa） Fragment：SEE REMARK 999	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer 100 mM phosphate buffer；pH 7；100 mM phosphate buffer cryo-EM vitrification conditions 100 K；Cryogen ETHANE；Plunged into liquid ethane (homemade plunger)	Resolution 21.00 Å
3J42 Obstruction of Dengue Virus Maturation by Fab Fragments of the 2H2 Antibody Deposited 2013-06-13	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 5 Insufficient information Heteromer；Protein × 12 PDB declaration: dodecameric	Chain G 120–230（111 aa） Fragment：SEE REMARK 999 Chain I 120–230（111 aa） Fragment：SEE REMARK 999 Chain K 120–230（111 aa） Fragment：SEE REMARK 999	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer 100 mM phosphate buffer；pH 7；100 mM phosphate buffer cryo-EM vitrification conditions 100 K；Cryogen ETHANE；Plunged into liquid ethane (homemade plunger)	Resolution 21.00 Å
4KVC 2H2 Fab fragment of immature Dengue virus Deposited 2013-05-22	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric	Chain H 120–230（111 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；298 K；25% PEG 6000 0.1 M MES 0.2M NH4Cl, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.31 Å R-free 0.234

3 other PDB entries and 7 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	Q6PIP8_MOUSE
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain H； PDBConstruct 2–223； UniProt 21–234 Author chain I； PDBConstruct 2–223； UniProt 21–234 Author chain J； PDBConstruct 2–223； UniProt 21–234 Author chain K； PDBConstruct 2–223； UniProt 21–234

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

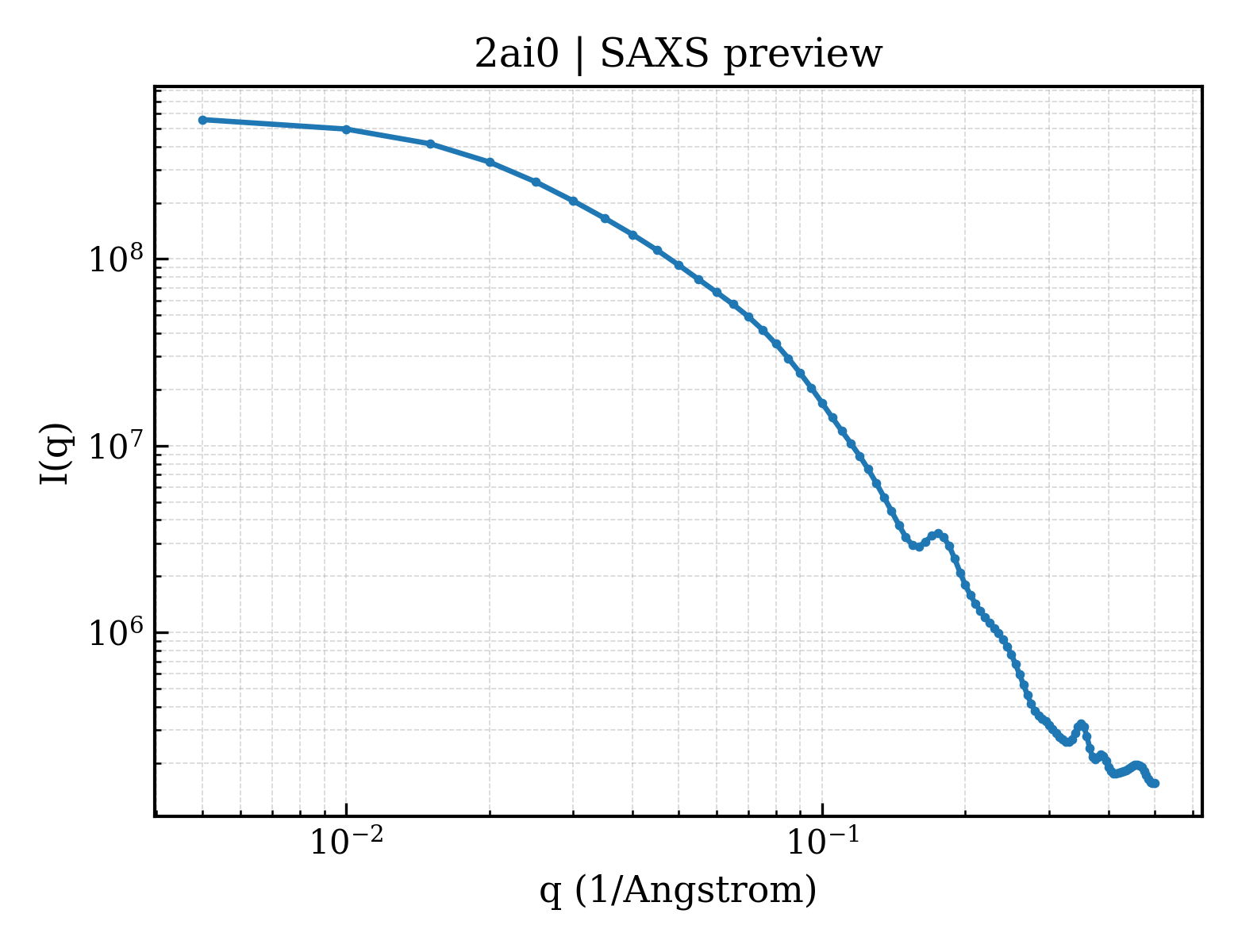

SAXS scattering curve SAXS Profile

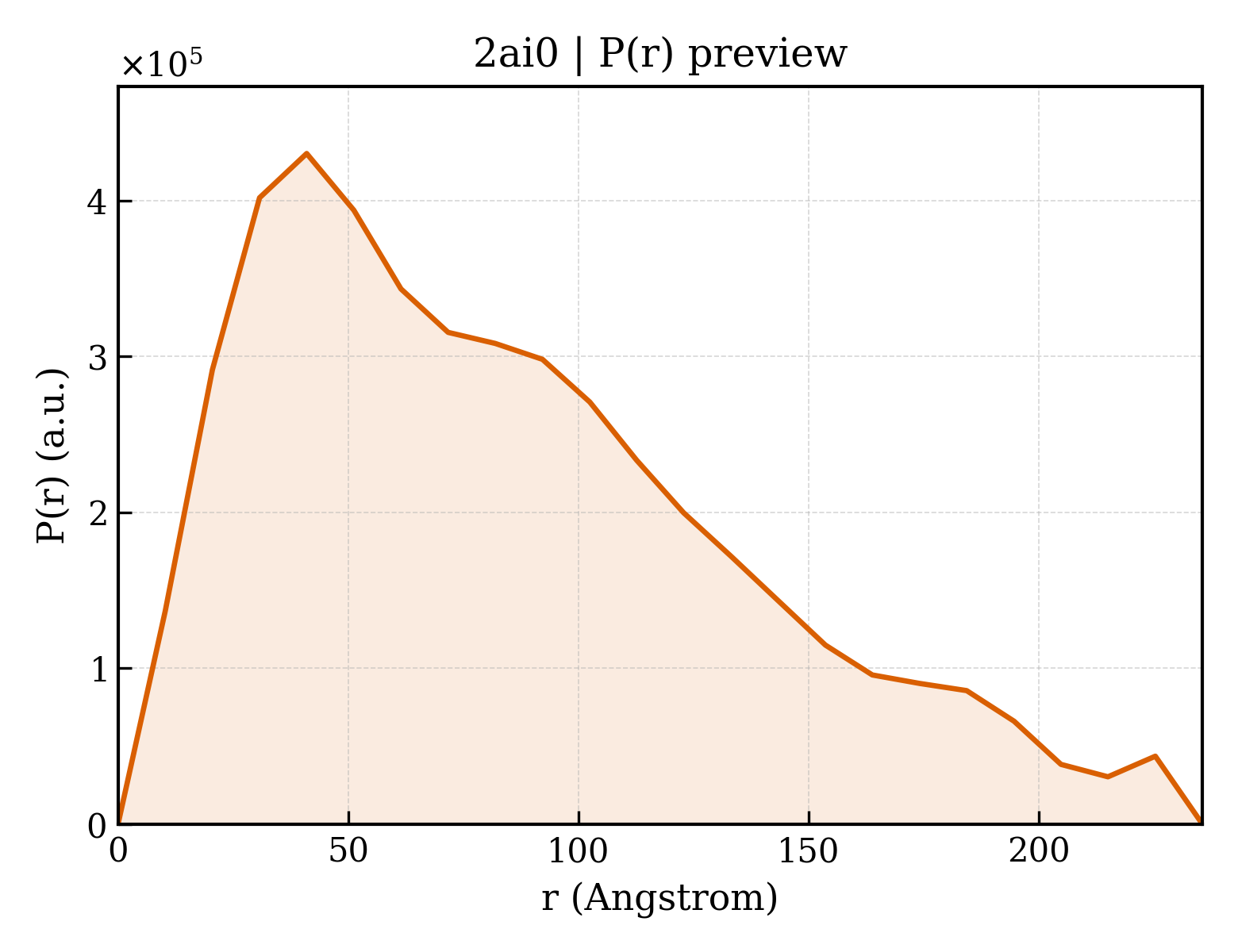

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2ai0
Deposition date deposition_date	2005-07-28
Structure title title	Anti-Cocaine Antibody 7.5.21, Crystal Form III
Keywords keywords	Immune System; IMMUNE SYSTEM
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	68.39 Å
Radius of gyration Rg (electron density) rg_electron	70.03 Å
Forward intensity I(0) i0	579983000.00
Molecular weight molecular_weight	193020.0 kDa
Excluded volume excluded_volume	238490 Å³
Envelope volume envelope_volume	375740 Å³
Hydration-shell volume shell_volume	55322 Å³
Envelope diameter envelope_diameter	253.4 Å
Shell Rg shell_rg	48.63 Å
Envelope Rg envelope_rg	71.12 Å
Shape Rg shape_rg	70.00 Å
Total Rg total_rg	69.47 Å
Total atoms total_atoms	13543
Residues n_residues	1744
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	235.6 Å
Rg (real space) rg_real	69.31 Å
Rg uncertainty (real space) rg_real_error	2.81 Å
I(0) (real space) i0_real	5.7980e+08
I(0) uncertainty (real space) i0_real_error	1.3650e+07
Rg (reciprocal space) rg_reciprocal	64.98 Å
I(0) (reciprocal space) i0_reciprocal	575400000.0000
Solution quality estimate total_estimate	0.6525
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	41.0 Å
Skewness Skewness skewness	0.715
Kurtosis Kurtosis kurtosis	-0.190
Angular range angular_range	— – 0.1150 Å⁻¹
Current regularization parameter α current_alpha	0.0005
Highest regularization parameter α highest_alpha	15700000.0000
Real-space data points n_real_points	24
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.348; Stabil: 0.997; Sysdev: 1.000; Positv: 1.000; Valcen: 0.192; Smooth: 0.250

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Immunoglobulin Light Chain kappa
Molecular weight formula_weight	24035.7 kDa
Source method src_method	nat
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	L,M,N,O
Atom count atom_count	14074

DVLMTQSPLSLPVSLGDQASISCRCSQSIVKSNGHTYLEWYLQKPGRSPKLLIYKVSNRFSGVPDRFSGSGSGTDFTLRISRVEAEDLGVYYCFQGSHIPWTFGGGTKLESKRADAAPTVSIFPPSSEQLTSGGASVVCFLNNFYPKDINVKWKIDGSERQNGVLNSWTDQDSKDSTYSMSSTLTLTKDEYERHNSYTCEATHKTSTSPIVKSFNRN

Entity 2 Entity 2 polymer

Description description	Immunoglobulin Heavy Chain
Molecular weight formula_weight	24147.0 kDa
Source method src_method	nat
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	H,I,J,K

DVKLVESGGGLVKPGGSLRLSCAASGFTFRNYGMSWVRQTPEKRLEWVAAISGNSLYTSYPDSVKGRFTISRDNAKNNLYLQMSSLRSEDTALYFCARHDDYYGKSPYFFDVWGAGTTVTASSAKTTPPSVYPLAPGSAAQTNSMVTLGCLVKGYFPEPVTVTWNSGSLSSGVHTFPAVLQSDLYTLSSSVTVPSSTWPSETVTCNVAHPASSTKVDKKIVPRD

Entity 3 Entity 3 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	27

Entity 4 Entity 4 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	531

▼

7. Fold Classification (SCOP + CATH) 28 domains

SCOP 2.08 (12 domains)

Domain ID domain_id	d2ai0h_
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.1 — V set domains (antibody variable domain-like)

Domain ID domain_id	d2ai0i_
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.1 — V set domains (antibody variable domain-like)

Domain ID domain_id	d2ai0j_
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.1 — V set domains (antibody variable domain-like)

Domain ID domain_id	d2ai0k_
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.1 — V set domains (antibody variable domain-like)

Domain ID domain_id	d2ai0l1
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.1 — V set domains (antibody variable domain-like)

Domain ID domain_id	d2ai0l2
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.0 — automated matches

Domain ID domain_id	d2ai0m1
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.1 — V set domains (antibody variable domain-like)

Domain ID domain_id	d2ai0m2
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.0 — automated matches

Domain ID domain_id	d2ai0n1
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.1 — V set domains (antibody variable domain-like)

Domain ID domain_id	d2ai0n2
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.0 — automated matches

Domain ID domain_id	d2ai0o1
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.1 — V set domains (antibody variable domain-like)

Domain ID domain_id	d2ai0o2
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.0 — automated matches

CATH v4.4 (16 domains)

Domain ID domain_id	2ai0H01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	2ai0H02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	2ai0I01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	2ai0I02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	2ai0J01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	2ai0J02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	2ai0K01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	2ai0K02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	2ai0L01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	2ai0L02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	2ai0M01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	2ai0M02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	2ai0N01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	2ai0N02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	2ai0O01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	2ai0O02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

▶

8. Citations (1)

▶

Unit-cell length a length_a	159.979 Å
Unit-cell length b length_b	216.355 Å
Unit-cell length c length_c	58.320 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	P 21 21 2
Space-group number int_tables_number	18
Crystal system crystal_system	—

Resolution resolution	2.200 Å
Low-resolution limit resolution_low	129.100 Å
R factor r_factor	—
R_work r_work	0.2220
R_free r_free	0.2790

fit	/app/data/saxs_computation/ai/2ai0/2ai0.fit
pddf	/app/data/pr_computation/ai/2ai0/2ai0.pr.out
profile	/app/data/saxs_computation/ai/2ai0/2ai0.dat

Anti-Cocaine Antibody 7.5.21, Crystal Form III

1. Protein Identity and Related Structures Protein Identity & Related Structures

Immunoglobulin Heavy Chain

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

6. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Polymer Polymer

Entity 2 Entity 2 polymer

Polymer Polymer

Entity 3 Entity 3 non-polymer

Entity 4 Entity 4 non-polymer

Entity 5 Entity 5 water

7. Fold Classification (SCOP + CATH) 28 domains

SCOP 2.08 (12 domains)

CATH v4.4 (16 domains)

8. Citations (1)

9. Files and Curves (10)

Files (7)

Curves (3)
