SAXSdb — 2alg

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

non-specific lipid transfer protein

Prunus persica

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	LAURIC ACID × 1 HEPTANE × 1 water × 1	Consistent with protein count
2	Protein monomer	Monomer	Protein 1	LAURIC ACID × 1 SULFATE ION × 1 HEXAETHYLENE GLYCOL × 1 water × 1	Consistent with protein count
3	Protein homooligomer	Homooligomer	Protein 4	LAURIC ACID × 4 HEPTANE × 2 SULFATE ION × 2 HEXAETHYLENE GLYCOL × 2 water × 4	Consistent with protein count
4	Protein homooligomer	Homooligomer	Protein 4	LAURIC ACID × 4 HEPTANE × 2 SULFATE ION × 2 HEXAETHYLENE GLYCOL × 2 water × 4	Consistent with protein count
5	Protein homooligomer	Homooligomer	Protein 2	LAURIC ACID × 2 HEPTANE × 1 SULFATE ION × 1 HEXAETHYLENE GLYCOL × 1 water × 2	Consistent with protein count
6	Protein homooligomer	Homooligomer	Protein 2	LAURIC ACID × 2 SULFATE ION × 2 HEXAETHYLENE GLYCOL × 2 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	NLTP1_PRUPE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 2–92； UniProt 27–117 Author chain B； PDBConstruct 2–92； UniProt 27–117

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2alg
Deposition date deposition_date	2005-08-05
Structure title title	Crystal structure of peach Pru p3, the prototypic member of the family of plant non-specific lipid transfer protein pan-allergens
Keywords keywords	Non-specific lipid transfer protein, LTP, ns-LTP, FOOD ALLERGEN, LIPID TRANSPORT; LIPID TRANSPORT
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2alg__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

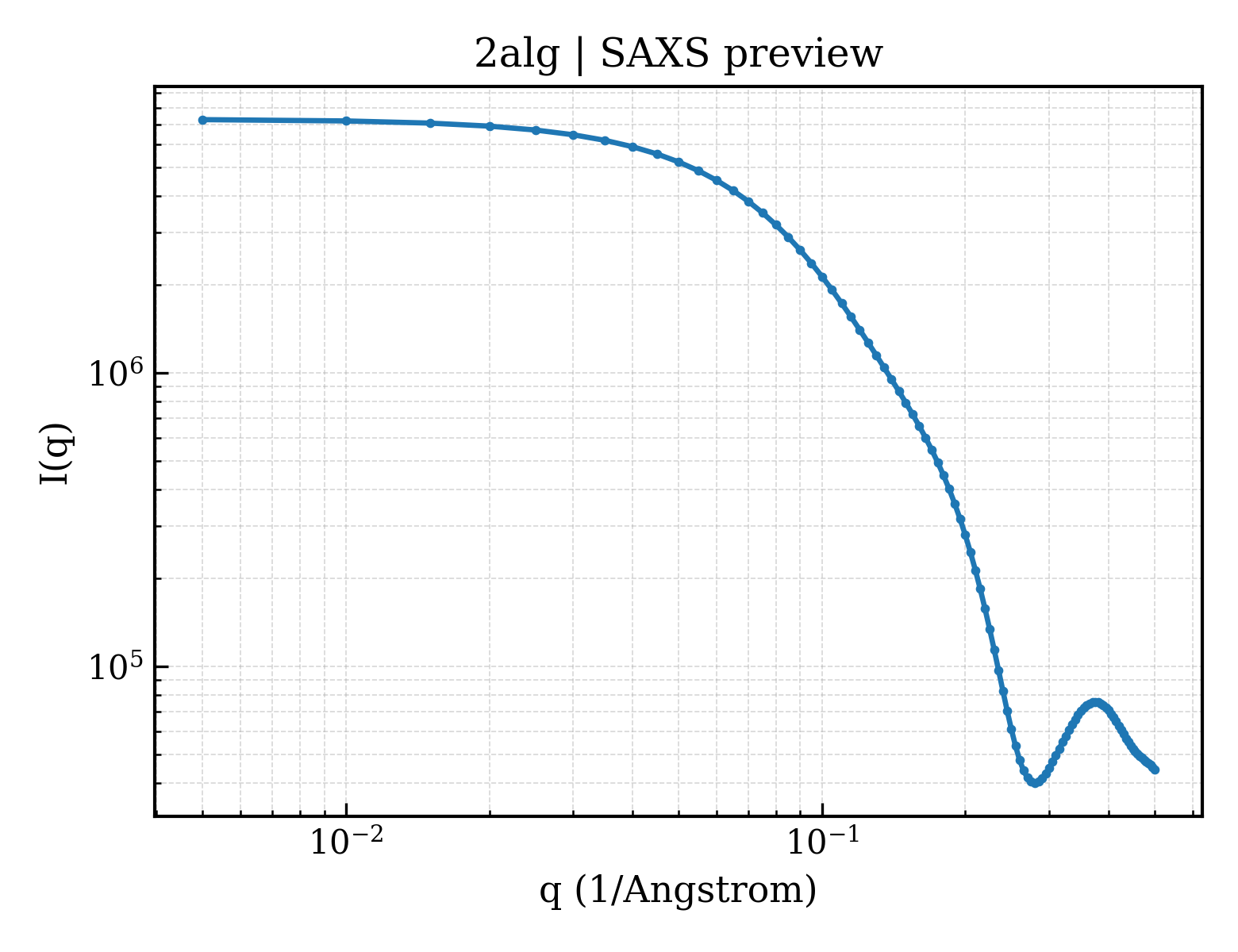

2alg__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

2alg__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	13.34 Å
Rg (electron density)	11.93 Å
Total Rg	13.18 Å
Atom count	663
Residues	92
Excluded volume	11951 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2alg__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`2alg__assembly_2__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
3	1	`2alg__assembly_3__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download
4	1	`2alg__assembly_4__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download
5	1	`2alg__assembly_5__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
6	1	`2alg__assembly_6__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	non-specific lipid transfer protein
Molecular weight formula_weight	9282.7 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	1471

MITCGQVSSSLAPCIPYVRGGGAVPPACCNGIRNVNNLARTTPDRQAACNCLKQLSASVPGVNPNNAAALPGKCGVSIPYKISASTNCATVK

Source Source

Source organism organism	Prunus persica
Common name common_name	peach
NCBI taxonomy ID ncbi_taxonomy_id	3760
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 non-polymer

Description description	LAURIC ACID
Molecular weight formula_weight	200.3 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 non-polymer

Description description	HEPTANE
Molecular weight formula_weight	100.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 non-polymer

Description description	HEXAETHYLENE GLYCOL
Molecular weight formula_weight	282.3 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 6 Entity 6 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	136

▼

6. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d2alga_
Class class	a — All alpha proteins
Fold Fold fold	a.52 — Bifunctional inhibitor/lipid-transfer protein/seed storage 2S albumin
Superfamily Superfamily superfamily	a.52.1 — Bifunctional inhibitor/lipid-transfer protein/seed storage 2S albumin
Family Family family	a.52.1.1 — Plant lipid-transfer and hydrophobic proteins

Domain ID domain_id	d2algb_
Class class	a — All alpha proteins
Fold Fold fold	a.52 — Bifunctional inhibitor/lipid-transfer protein/seed storage 2S albumin
Superfamily Superfamily superfamily	a.52.1 — Bifunctional inhibitor/lipid-transfer protein/seed storage 2S albumin
Family Family family	a.52.1.1 — Plant lipid-transfer and hydrophobic proteins

CATH v4.4 (2 domains)

Domain ID domain_id	2algA00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	110 — Hydrophobic Seed Protein
Homologous superfamily homologous superfamily	10 — Plant lipid-transfer and hydrophobic proteins

Domain ID domain_id	2algB00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	110 — Hydrophobic Seed Protein
Homologous superfamily homologous superfamily	10 — Plant lipid-transfer and hydrophobic proteins

▶

Unit-cell length a length_a	102.378 Å
Unit-cell length b length_b	102.378 Å
Unit-cell length c length_c	77.295 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	24

Space group space_group	P 65 2 2
Space-group number int_tables_number	179
Crystal system crystal_system	—

Resolution resolution	2.300 Å
Low-resolution limit resolution_low	51.190 Å
R factor r_factor	0.2040
R_work r_work	0.2040
R_free r_free	0.2620
