1. 结构基本信息 1. Structure Basics

条目编号 entry_id	2aot
沉积日期 deposition_date	2005-08-14
结构标题 title	Histamine Methyltransferase Complexed with the Antihistamine Drug Diphenhydramine
关键词 keywords	CLASSIC METHYLTRANSFERASE FOLD, PROTEIN-DRUG COMPLEX, TRANSFERASE; TRANSFERASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	28.36 Å
回转半径 Rg (电子) rg_electron	27.44 Å
零角强度 I(0) i0	64499100.00
分子量 molecular_weight	63881.0 kDa
排除体积 excluded_volume	80250 Å³
包络体积 envelope_volume	96452 Å³
水化壳体积 shell_volume	29873 Å³
包络直径 envelope_diameter	94.1 Å
壳层 Rg shell_rg	34.11 Å
包络 Rg envelope_rg	27.28 Å
形状 Rg shape_rg	27.46 Å
总 Rg total_rg	28.09 Å
总原子数 total_atoms	4494
残基数 n_residues	572
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	92.8 Å
Rg (实空间) rg_real	28.37 Å
Rg 误差 (实空间) rg_real_error	0.68 Å
I(0) (实空间) i0_real	6.4500e+07
I(0) 误差 (实空间) i0_real_error	9.8760e+05
Rg (倒空间) rg_reciprocal	28.37 Å
I(0) (倒空间) i0_reciprocal	64500000.0000
解质量估计 total_estimate	0.8928
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	91.2 Å
偏度 Skewness skewness	0.306
峰度 Kurtosis kurtosis	-0.498
角度范围 angular_range	— – 0.2800 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	20160000.0000
实空间数据点数 n_real_points	57
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.905; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.964; Smooth: 0.921

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (5)

Entity 1 polymer

描述 description	Histamine N-methyltransferase
分子量 formula_weight	33365.0 kDa
EC 编号 ec_number	2.1.1.8
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A
原子数 atom_count	4931

MASSMRSLFSDHGKYVESFRRFLNHSTEHQCMQEFMDKKLPGIIGRIGDTKSEIKILSIGGGAGEIDLQILSKVQAQYPGVCINNEVVEPSAEQIAKYKELVAKTSNLENVKFAWHKETSSEYQSRMLEKKELQKWDFIHMIQMLYYVKDIPATLKFFHSLLGTNAKMLIIVVSGSSGWDKLWKKYGSRFPQDDLCQYITSDDLTQMLDNLGLKYECYDLLSTMDISDCFIDGNENGDLLWDFLTETCNFNATAPPDLRAELGKDLQEPEFSAKKEGKVLFNNTLSFIVIEA

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 polymer

描述 description	Histamine N-methyltransferase
分子量 formula_weight	33365.0 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B

MASSMRSLFSDHGKYVESFRRFLNHSTEHQCMQEFMDKKLPGIIGRIGDTKSEIKILSIGGGAGEIDLQILSKVQAQYPGVCINNEVVEPSAEQIAKYKELVAKTSNLENVKFAWHKETSSEYQSRMLEKKELQKWDFIHMIQMLYYVKDIPATLKFFHSLLGTNAKMLIIVVSGSSGWDKLWKKYGSRFPQDDLCQYITSDDLTQMLDNLGLKYECYDLLSTMDISDCFIDGNENGDLLWDFLTETCNFNATAPPDLRAELGKDLQEPEFSAKKEGKVLFNNTLSFIVIEA

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 3 non-polymer

描述 description	N-[2-(BENZHYDRYLOXY)ETHYL]-N,N-DIMETHYLAMINE
分子量 formula_weight	255.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 4 non-polymer

描述 description	S-ADENOSYL-L-HOMOCYSTEINE
分子量 formula_weight	384.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 5 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	337

▼

6. 折叠分类 (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

结构域编号 domain_id	d2aota_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.66 — S-adenosyl-L-methionine-dependent methyltransferases
超家族 Superfamily superfamily	c.66.1 — S-adenosyl-L-methionine-dependent methyltransferases
家族 Family family	c.66.1.19 — Histamine methyltransferase

结构域编号 domain_id	d2aotb_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.66 — S-adenosyl-L-methionine-dependent methyltransferases
超家族 Superfamily superfamily	c.66.1 — S-adenosyl-L-methionine-dependent methyltransferases
家族 Family family	c.66.1.19 — Histamine methyltransferase

CATH v4.4 (2 domains)

结构域编号 domain_id	2aotA00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	150 — Vaccinia Virus protein VP39

结构域编号 domain_id	2aotB00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	150 — Vaccinia Virus protein VP39

▶

7. 引用文献 (2)

▶

晶胞边长 a length_a	131.670 Å
晶胞边长 b length_b	131.670 Å
晶胞边长 c length_c	63.750 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	120.00 °
晶胞分子数 Z z_pdb	6

空间群 space_group	P 6
空间群编号 int_tables_number	168
晶系 crystal_system	—

分辨率 resolution	1.900 Å
最低分辨率 resolution_low	35.000 Å
R 因子 r_factor	0.2250
R_work r_work	0.2210
R_free r_free	0.2560

fit	/app/data/saxs_computation/ao/2aot/2aot.fit
pddf	/app/data/pr_computation/ao/2aot/2aot.pr.out
profile	/app/data/saxs_computation/ao/2aot/2aot.dat

Histamine Methyltransferase Complexed with the Antihistamine Drug Diphenhydramine

SAXS 散射曲线 SAXS Profile

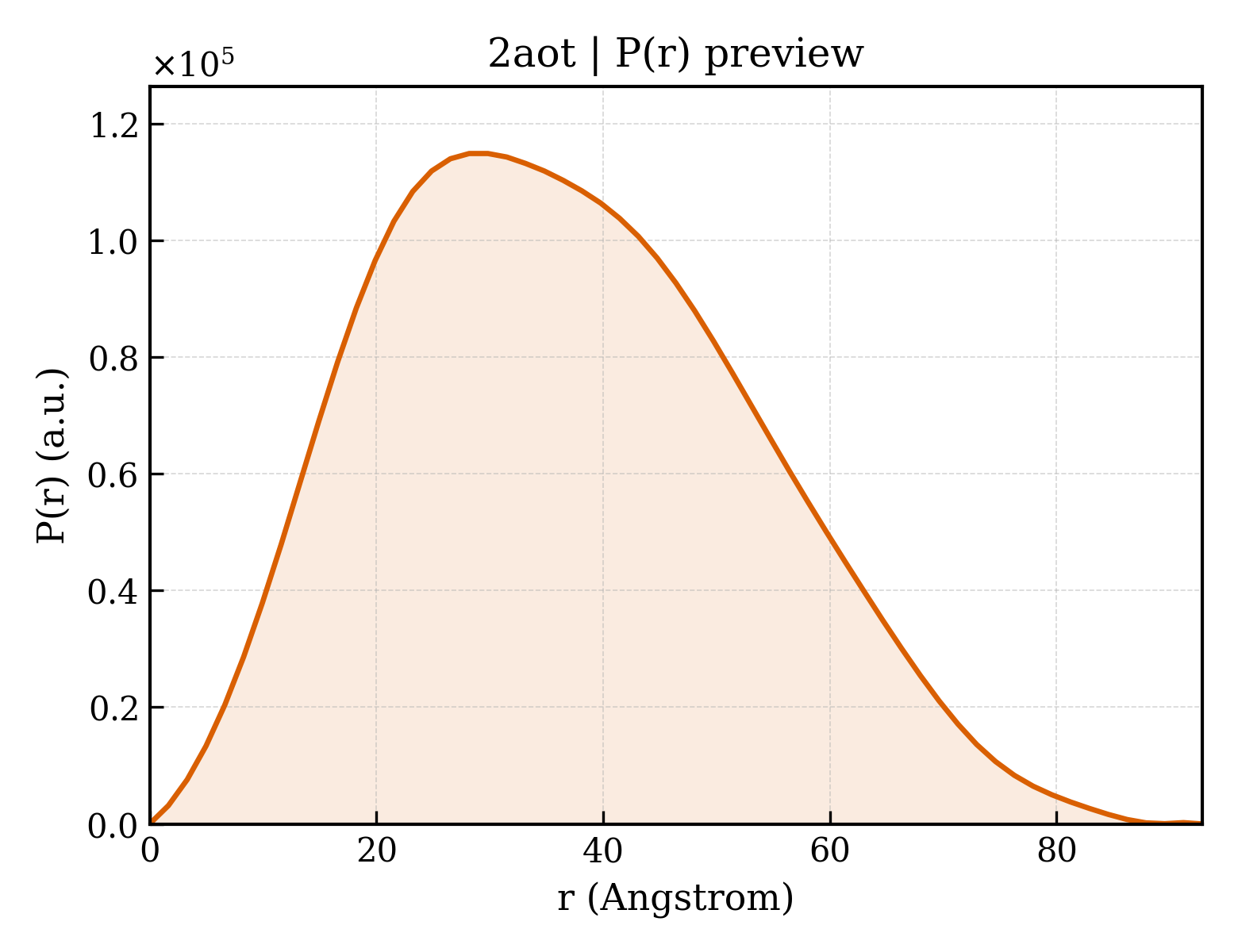

P(r) 距离分布 P(r) Distribution
