2ap6

X-Ray Crystal Structure of Protein Atu4242 from Agrobacterium tumefaciens. Northeast Strucutral Genomics Consortium Target AtR43.

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

hypothetical protein Atu4242

Agrobacterium tumefaciens str.

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 8	water × 8	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q8U857_AGRT5
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–103； UniProt 1–103 Author chain B； PDBConstruct 1–103； UniProt 1–103 Author chain C； PDBConstruct 1–103； UniProt 1–103 Author chain D； PDBConstruct 1–103； UniProt 1–103 Author chain E； PDBConstruct 1–103； UniProt 1–103 Author chain F； PDBConstruct 1–103； UniProt 1–103 Author chain G； PDBConstruct 1–103； UniProt 1–103 Author chain H； PDBConstruct 1–103； UniProt 1–103

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2ap6
Deposition date deposition_date	2005-08-15
Structure title title	X-Ray Crystal Structure of Protein Atu4242 from Agrobacterium tumefaciens. Northeast Strucutral Genomics Consortium Target AtR43.
Keywords keywords	STRUCTURAL GENOMICS, PSI, PROTEIN STRUCTURE INITIATIVE, NORTHEAST STRUCTURAL GENOMICS CONSORTIUM, NESG, UNKNOWN FUNCTION; UNKNOWN FUNCTION
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2ap6__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

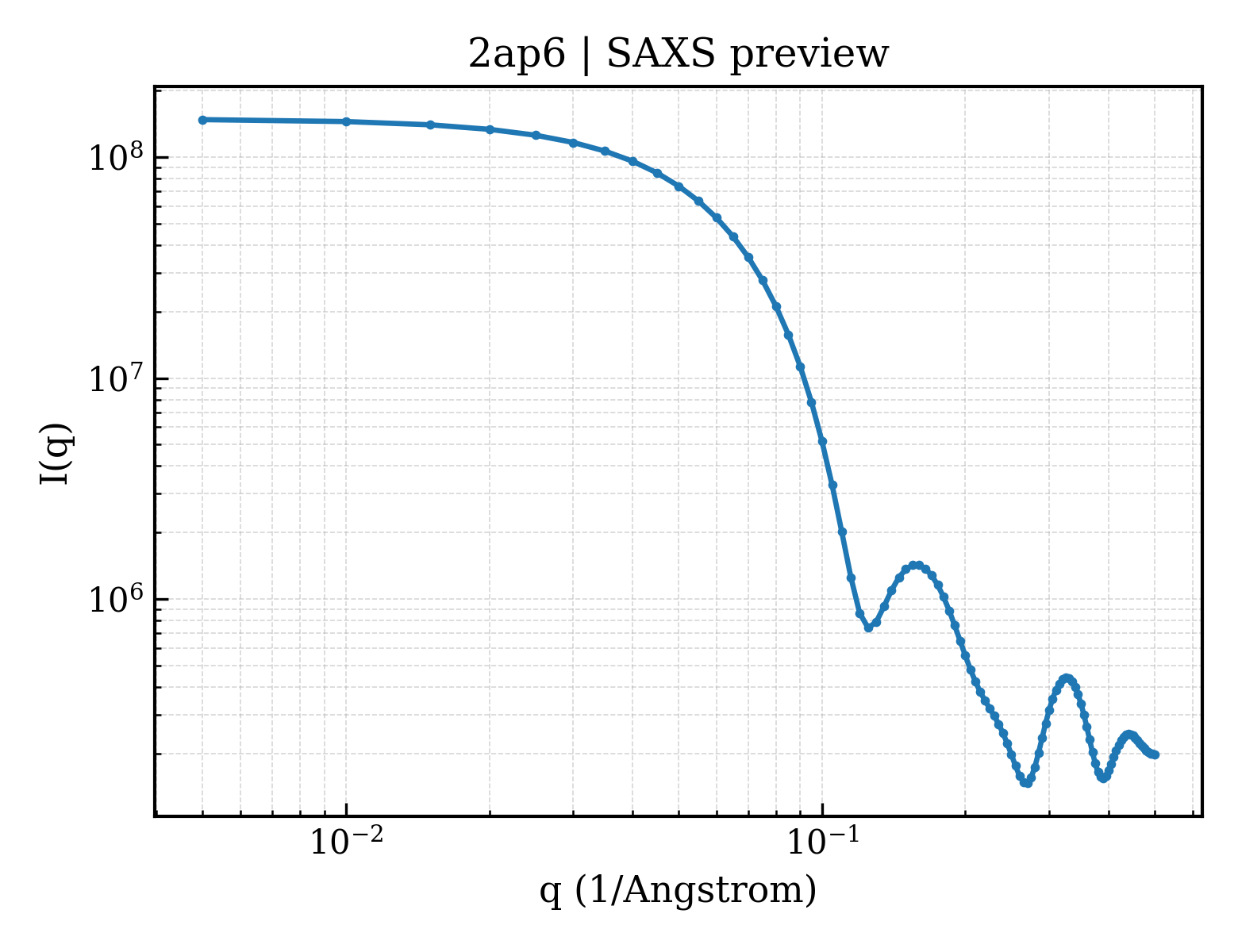

2ap6__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

2ap6__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	28.54 Å
Rg (electron density)	27.15 Å
Total Rg	28.12 Å
Atom count	6864
Residues	800
Excluded volume	124250 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2ap6__assembly_1__model_1`	octameric （8）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (2)

▼

6. Fold Classification (SCOP + CATH) 24 domains

SCOP 2.08 (16 domains)

Domain ID domain_id	d2ap6a1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.4 — Dimeric alpha+beta barrel
Family Family family	d.58.4.13 — NIPSNAP

Domain ID domain_id	d2ap6a2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d2ap6b2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.4 — Dimeric alpha+beta barrel
Family Family family	d.58.4.13 — NIPSNAP

Domain ID domain_id	d2ap6b3
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d2ap6c2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.4 — Dimeric alpha+beta barrel
Family Family family	d.58.4.13 — NIPSNAP

Domain ID domain_id	d2ap6c3
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d2ap6d2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.4 — Dimeric alpha+beta barrel
Family Family family	d.58.4.13 — NIPSNAP

Domain ID domain_id	d2ap6d3
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d2ap6e2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.4 — Dimeric alpha+beta barrel
Family Family family	d.58.4.13 — NIPSNAP

Domain ID domain_id	d2ap6e3
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d2ap6f2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.4 — Dimeric alpha+beta barrel
Family Family family	d.58.4.13 — NIPSNAP

Domain ID domain_id	d2ap6f3
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d2ap6g2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.4 — Dimeric alpha+beta barrel
Family Family family	d.58.4.13 — NIPSNAP

Domain ID domain_id	d2ap6g3
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d2ap6h2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.4 — Dimeric alpha+beta barrel
Family Family family	d.58.4.13 — NIPSNAP

Domain ID domain_id	d2ap6h3
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

CATH v4.4 (8 domains)

Domain ID domain_id	2ap6A00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	100 —

Domain ID domain_id	2ap6B00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	100 —

Domain ID domain_id	2ap6C00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	100 —

Domain ID domain_id	2ap6D00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	100 —

Domain ID domain_id	2ap6E00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	100 —

Domain ID domain_id	2ap6F00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	100 —

Domain ID domain_id	2ap6G00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	100 —

Domain ID domain_id	2ap6H00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	100 —

▶

Unit-cell length a length_a	134.832 Å
Unit-cell length b length_b	134.830 Å
Unit-cell length c length_c	56.320 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	32

Space group space_group	P 21 21 2
Space-group number int_tables_number	18
Crystal system crystal_system	—

Resolution resolution	2.500 Å
Low-resolution limit resolution_low	19.720 Å
R factor r_factor	0.1965
R_work r_work	0.1965
R_free r_free	0.2847

Description description	hypothetical protein Atu4242
Molecular weight formula_weight	13444.9 kDa
Source method src_method	man
Copy count entity_count	8

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E,F,G,H
Atom count atom_count	7048

X-Ray Crystal Structure of Protein Atu4242 from Agrobacterium tumefaciens. Northeast Strucutral Genomics Consortium Target AtR43.

1. Protein Identity and Related Structures Protein Identity & Related Structures

hypothetical protein Atu4242

State in the Current Structure

Other States of the Same Protein in the Database

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

2ap6__assembly_1__model_1

2ap6__assembly_1__model_1 | I(q)

2ap6__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 water

6. Fold Classification (SCOP + CATH) 24 domains

SCOP 2.08 (16 domains)

CATH v4.4 (8 domains)

7. Citations (1)

Source organism organism	Agrobacterium tumefaciens str.
NCBI taxonomy ID ncbi_taxonomy_id	176299
Host organism host_organism	Escherichia coli

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	184
