SAXSdb — 2aqx

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

PREDICTED: inositol 1,4,5-trisphosphate 3-kinase B

Mus musculus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	MAGNESIUM ION × 4 ADENOSINE-5'-TRIPHOSPHATE × 2 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	IP3KB_RAT
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–289； UniProt 722–1010 Author chain B； PDBConstruct 1–289； UniProt 722–1010

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2aqx
Deposition date deposition_date	2005-08-18
Structure title title	Crystal Structure of the Catalytic and CaM-Binding domains of Inositol 1,4,5-Trisphosphate 3-Kinase B
Keywords keywords	IP3K, ITPKB, IP3-3K, IP3-3KB, inositol, kinase, IP3, Calmodulin binding, TRANSFERASE; TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2aqx__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2aqx__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

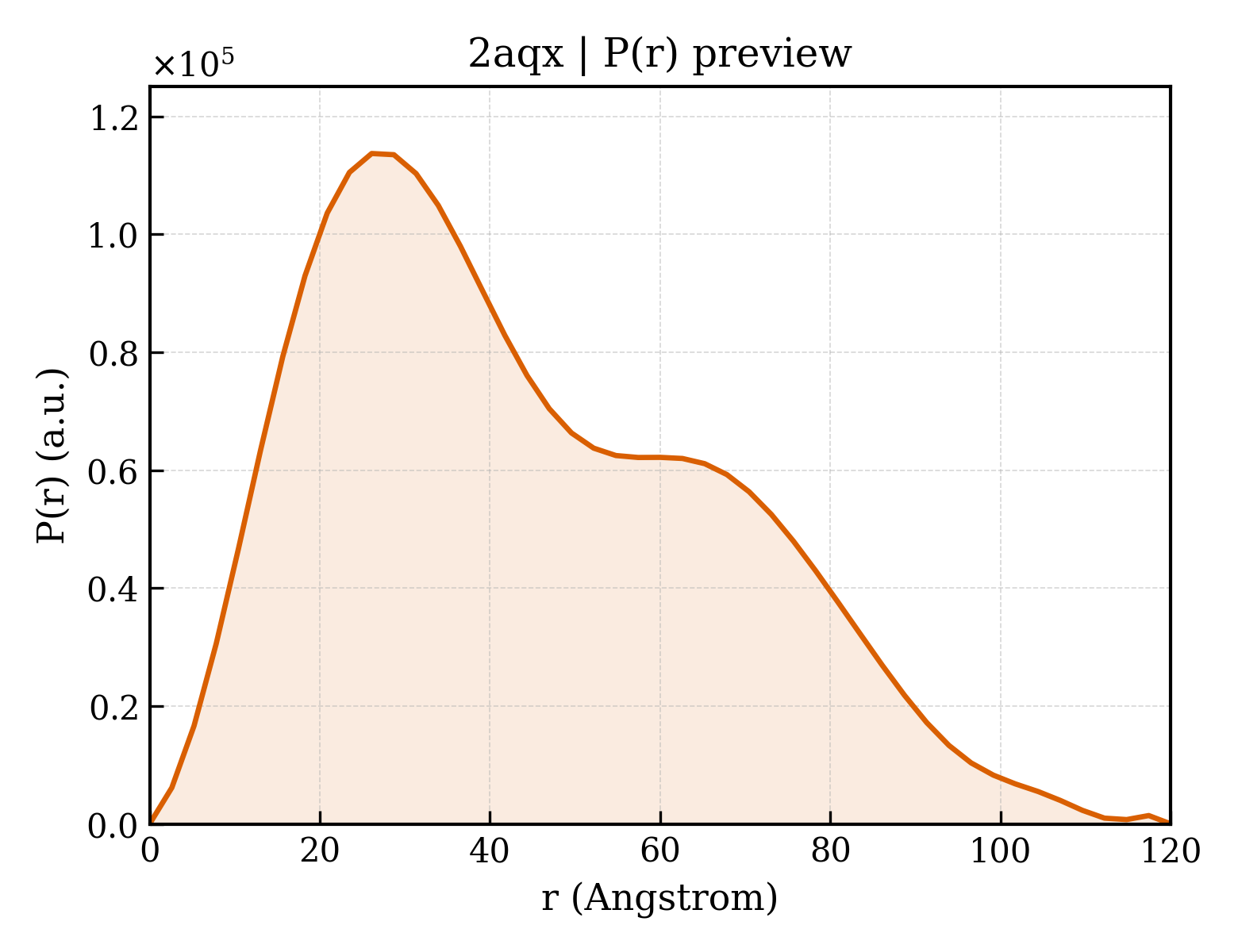

2aqx__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	34.65 Å
Rg (electron density)	34.59 Å
Total Rg	34.91 Å
Atom count	4738
Residues	576
Excluded volume	84020 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2aqx__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	PREDICTED: inositol 1,4,5-trisphosphate 3-kinase B
Molecular weight formula_weight	33431.3 kDa
EC 编号 ec_number	2.7.1.127
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	4837

MVQWSPFVMSFKKKYPWIQLAGHAGSFKAAANGRILKKHCESEQRCLDRLMADVLRPFVPAYHGDVVKDGERYNQMDDLLADFDSPCVMDCKMGVRTYLEEELTKARKKPSLRKDMYQKMVEVDPEAPTEEEKAQRAVTKPRYMQWRETISSTATLGFRIEGIKKEDGSVNRDFKKTKTREQVTEAFREFTKGNQNILIAYRDRLKAIRATLEISPFFKCHEVIGSSLLFIHDKKEQAKVWMIDFGKTTPLPEGQTLQHDVPWQEGNREDGYLSGLDNLIDILTEMSQG

Source Source

Source organism organism	Mus musculus
Common name common_name	house mouse
NCBI taxonomy ID ncbi_taxonomy_id	10090
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 3 Entity 3 non-polymer

Description description	ADENOSINE-5'-TRIPHOSPHATE
Molecular weight formula_weight	507.2 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	99

▼

6. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d2aqxa_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.143 — SAICAR synthase-like
Superfamily Superfamily superfamily	d.143.1 — SAICAR synthase-like
Family Family family	d.143.1.3 — Inositol polyphosphate kinase (IPK)

Domain ID domain_id	d2aqxb_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.143 — SAICAR synthase-like
Superfamily Superfamily superfamily	d.143.1 — SAICAR synthase-like
Family Family family	d.143.1.3 — Inositol polyphosphate kinase (IPK)

CATH v4.4 (2 domains)

Domain ID domain_id	2aqxA01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	470 — D-amino Acid Aminotransferase; Chain A, domain 1
Homologous superfamily homologous superfamily	160 — Inositol polyphosphate kinase

Domain ID domain_id	2aqxB01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	470 — D-amino Acid Aminotransferase; Chain A, domain 1
Homologous superfamily homologous superfamily	160 — Inositol polyphosphate kinase

▶

Unit-cell length a length_a	53.204 Å
Unit-cell length b length_b	60.655 Å
Unit-cell length c length_c	56.851 Å
Unit-cell angle α angle_alpha	59.90 °
Unit-cell angle β angle_beta	72.74 °
Unit-cell angle γ angle_gamma	88.18 °
Molecules per unit cell Z z_pdb	2

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	2.500 Å
Low-resolution limit resolution_low	50.000 Å
R factor r_factor	0.1888
R_work r_work	0.1845
R_free r_free	0.2680

Crystal Structure of the Catalytic and CaM-Binding domains of Inositol 1,4,5-Trisphosphate 3-Kinase B
