SAXSdb — 2arz

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

hypothetical protein PA4388

Pseudomonas aeruginosa

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	CHLORIDE ION × 3 GLYCEROL × 2 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q9HW16_PSEAE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 4–247； UniProt 1–244 Author chain B； PDBConstruct 4–247； UniProt 1–244

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2arz
Deposition date deposition_date	2005-08-22
Structure title title	Crystal Structure of Protein of Unknown Function from Pseudomonas aeruginosa
Keywords keywords	;hypothetical protein, structural genomics, MCSG, Pseudomonas aeruginosa, PSI, Protein Structure Initiative, Midwest Center for Structural Genomics, UNKNOWN FUNCTION ;; UNKNOWN FUNCTION
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2arz__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2arz__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

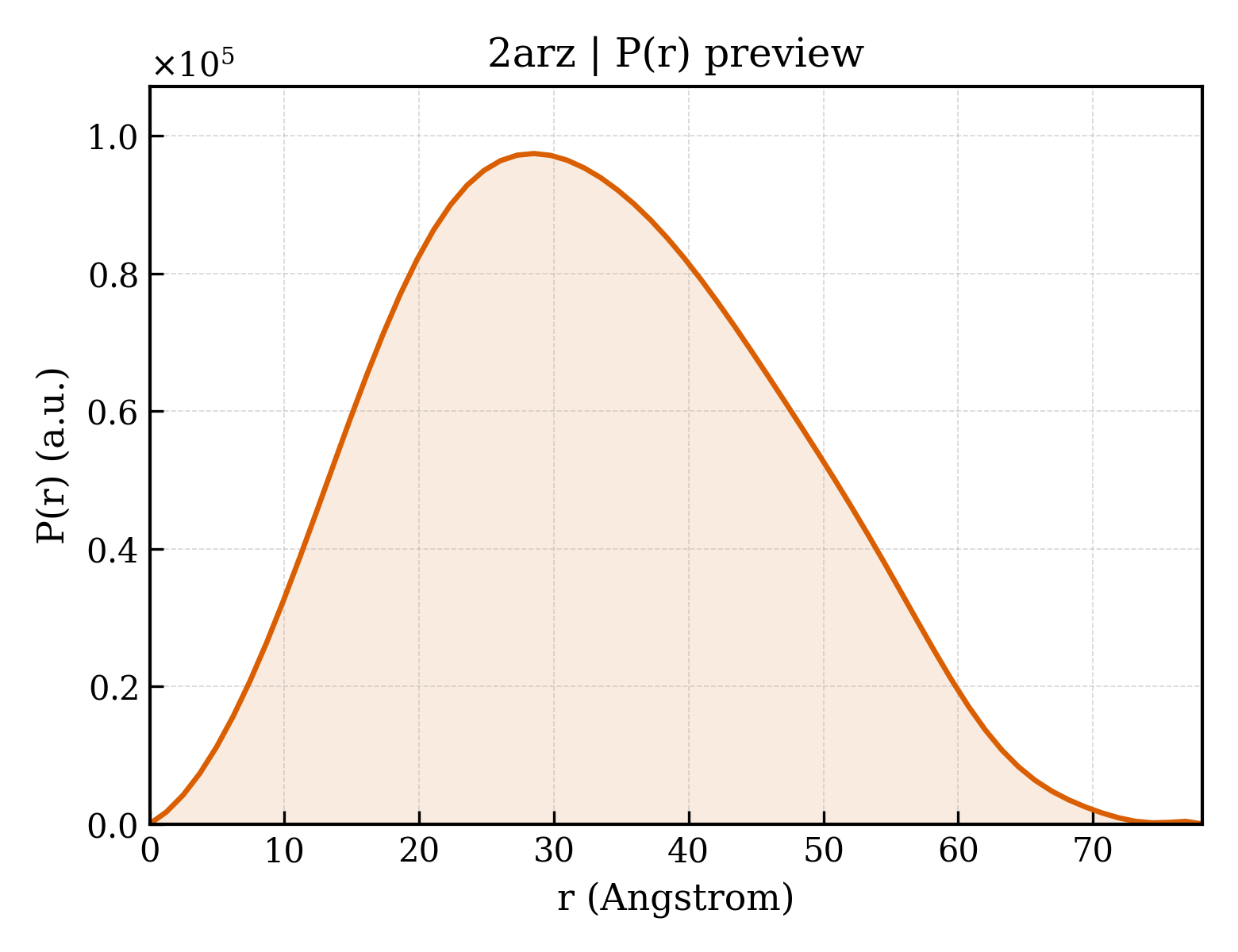

2arz__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	25.19 Å
Rg (electron density)	23.95 Å
Total Rg	24.83 Å
Atom count	3714
Residues	473
Excluded volume	65584 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2arz__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	hypothetical protein PA4388
Molecular weight formula_weight	27306.9 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	4042

ANSMSVEAAKNARELLLKEYRAVLSTHSKKWPGFPFGSVVPYCLDAEGRPLILISRIAQHTHNLQADPRCSMLVGERGAEDIQAVGRLTLLAEARQLAEEEVAAAAERYYRYFPESADYHRVHDFDFWVLQPVQWRFIGGFGAIHWLAAERVPLANPFAGEAERGMVEHMNSDHAAAIAHYVELAGLPAHAAAQLAGIDTEGFHLRIGQGLHWLPFPAACGNPGAVRQALVQLARAERWPTVEPEQG

Source Source

Source organism organism	Pseudomonas aeruginosa
NCBI taxonomy ID ncbi_taxonomy_id	208964
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 non-polymer

Description description	CHLORIDE ION
Molecular weight formula_weight	35.5 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 3 Entity 3 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	317

▼

6. Fold Classification (SCOP + CATH) 7 domains

SCOP 2.08 (3 domains)

Domain ID domain_id	d2arza1
Class class	b — All beta proteins
Fold Fold fold	b.45 — Split barrel-like
Superfamily Superfamily superfamily	b.45.1 — FMN-binding split barrel
Family Family family	b.45.1.1 — PNP-oxidase like

Domain ID domain_id	d2arzb2
Class class	b — All beta proteins
Fold Fold fold	b.45 — Split barrel-like
Superfamily Superfamily superfamily	b.45.1 — FMN-binding split barrel
Family Family family	b.45.1.1 — PNP-oxidase like

Domain ID domain_id	d2arzb3
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

CATH v4.4 (4 domains)

Domain ID domain_id	2arzA01
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	110 — Pnp Oxidase; Chain A
Homologous superfamily homologous superfamily	10 — Electron Transport, Fmn-binding Protein; Chain A

Domain ID domain_id	2arzA02
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	180 — Split barrel-like
Homologous superfamily homologous superfamily	10 — PNP-oxidase-like

Domain ID domain_id	2arzB01
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	110 — Pnp Oxidase; Chain A
Homologous superfamily homologous superfamily	10 — Electron Transport, Fmn-binding Protein; Chain A

Domain ID domain_id	2arzB02
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	180 — Split barrel-like
Homologous superfamily homologous superfamily	10 — PNP-oxidase-like

▶

Unit-cell length a length_a	71.272 Å
Unit-cell length b length_b	79.775 Å
Unit-cell length c length_c	99.612 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.000 Å
Low-resolution limit resolution_low	33.560 Å
R factor r_factor	0.1975
R_work r_work	0.1951
R_free r_free	0.2403
