SAXSdb — 2ash

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Queuine tRNA-ribosyltransferase

Thermotoga maritima

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	ZINC ION × 2 CHLORIDE ION × 2 1,2-ETHANEDIOL × 4 water × 2	Consistent with protein count
2	Protein homooligomer	Homooligomer	Protein 2	ZINC ION × 2 CHLORIDE ION × 3 1,2-ETHANEDIOL × 6 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	TGT_THEMA
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 13–381； UniProt 1–369 Author chain B； PDBConstruct 13–381； UniProt 1–369 Author chain C； PDBConstruct 13–381； UniProt 1–369 Author chain D； PDBConstruct 13–381； UniProt 1–369

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2ash
Deposition date deposition_date	2005-08-23
Structure title title	Crystal structure of Queuine tRNA-ribosyltransferase (EC 2.4.2.29) (tRNA-guanine (tm1561) from THERMOTOGA MARITIMA at 1.90 A resolution
Keywords keywords	;tm1561, Queuine tRNA-ribosyltransferase, tRNA-guanine, Structural Genomics, Joint Center for Structural Genomics, JCSG, Protein Structure Initiative, PSI, transferase ;; TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2ash__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2ash__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

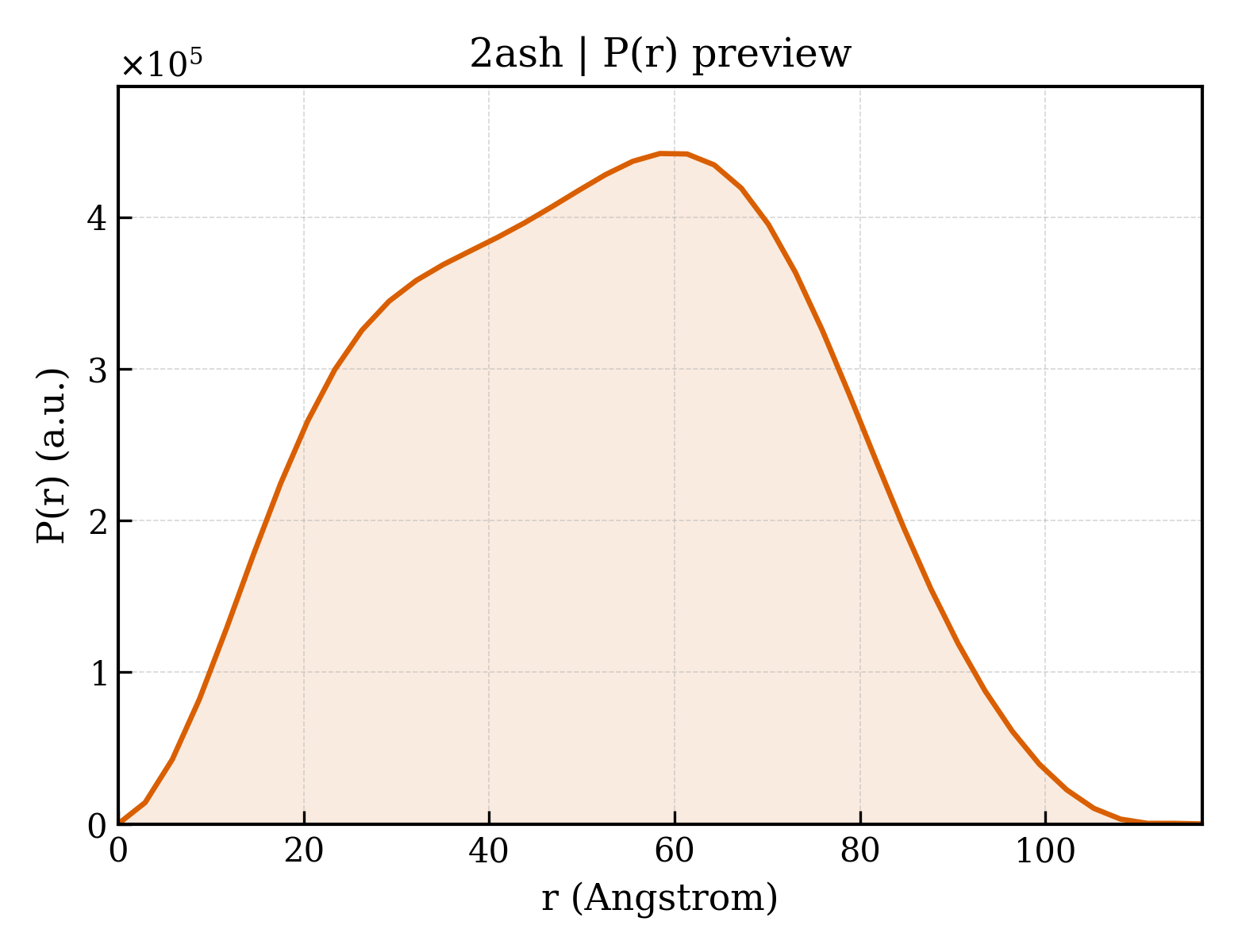

2ash__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	30.36 Å
Rg (electron density)	30.02 Å
Total Rg	30.47 Å
Atom count	5565
Residues	721
Excluded volume	100090 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2ash__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`2ash__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Queuine tRNA-ribosyltransferase
Molecular weight formula_weight	42945.4 kDa
EC 编号 ec_number	2.4.2.29
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D
Atom count atom_count	11856

MGSDKIHHHHHHMEFEVKKTFGKARLGVMKLHHGAVETPVFMPVGTNASVKLLTPRDLEEAGAEIILSNTFHLMLKPGVEIIKLHRGLHNFMGWKRPILTDSGGFQVFSLPKIRIDDEGVVFRSPIDGSKVFLNPEISMEVQIALGSDICMVFDHCPVPDADYEEVKEATERTYRWALRSKKAFKTENQALFGIVQGGIYPDLRRESALQLTSIGFDGYAIGGLSIGEERSLTLEMTEVTVEFLPEDKPRYFMGGGSPELILELVDRGVDMFDSVFPTRIARHGTALTWNGKLNLKASYNKRSLEPVDERCGCYTCKNFTRSYIHHLFDRGEVLGQILLTIHNINFMISLMKEVRRSIESGTFKELKSKVVEVYSSGGVNV

Source Source

Source organism organism	Thermotoga maritima
NCBI taxonomy ID ncbi_taxonomy_id	2336
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 3 Entity 3 non-polymer

Description description	CHLORIDE ION
Molecular weight formula_weight	35.5 kDa
Source method src_method	syn
Copy count entity_count	5

Entity 4 Entity 4 non-polymer

Description description	1,2-ETHANEDIOL
Molecular weight formula_weight	62.1 kDa
Source method src_method	syn
Copy count entity_count	10

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	655

▼

6. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d2asha_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.20 — tRNA-guanine transglycosylase
Family Family family	c.1.20.1 — tRNA-guanine transglycosylase

Domain ID domain_id	d2ashb_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.20 — tRNA-guanine transglycosylase
Family Family family	c.1.20.1 — tRNA-guanine transglycosylase

Domain ID domain_id	d2ashc_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.20 — tRNA-guanine transglycosylase
Family Family family	c.1.20.1 — tRNA-guanine transglycosylase

Domain ID domain_id	d2ashd_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.20 — tRNA-guanine transglycosylase
Family Family family	c.1.20.1 — tRNA-guanine transglycosylase

CATH v4.4 (4 domains)

Domain ID domain_id	2ashA00
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	105 — Queuine tRNA-ribosyltransferase-like

Domain ID domain_id	2ashB00
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	105 — Queuine tRNA-ribosyltransferase-like

Domain ID domain_id	2ashC00
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	105 — Queuine tRNA-ribosyltransferase-like

Domain ID domain_id	2ashD00
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	105 — Queuine tRNA-ribosyltransferase-like

▶

Unit-cell length a length_a	169.467 Å
Unit-cell length b length_b	99.422 Å
Unit-cell length c length_c	124.163 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	123.80 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	1.900 Å
Low-resolution limit resolution_low	51.700 Å
R factor r_factor	—
R_work r_work	0.1930
R_free r_free	0.2290

Crystal structure of Queuine tRNA-ribosyltransferase (EC 2.4.2.29) (tRNA-guanine (tm1561) from THERMOTOGA MARITIMA at 1.90 A resolution
