2asl

oxoG-modified Postinsertion Binary Complex

Method: X-RAY DIFFRACTION D_max: 192.2 Å Quality: REASONABLE

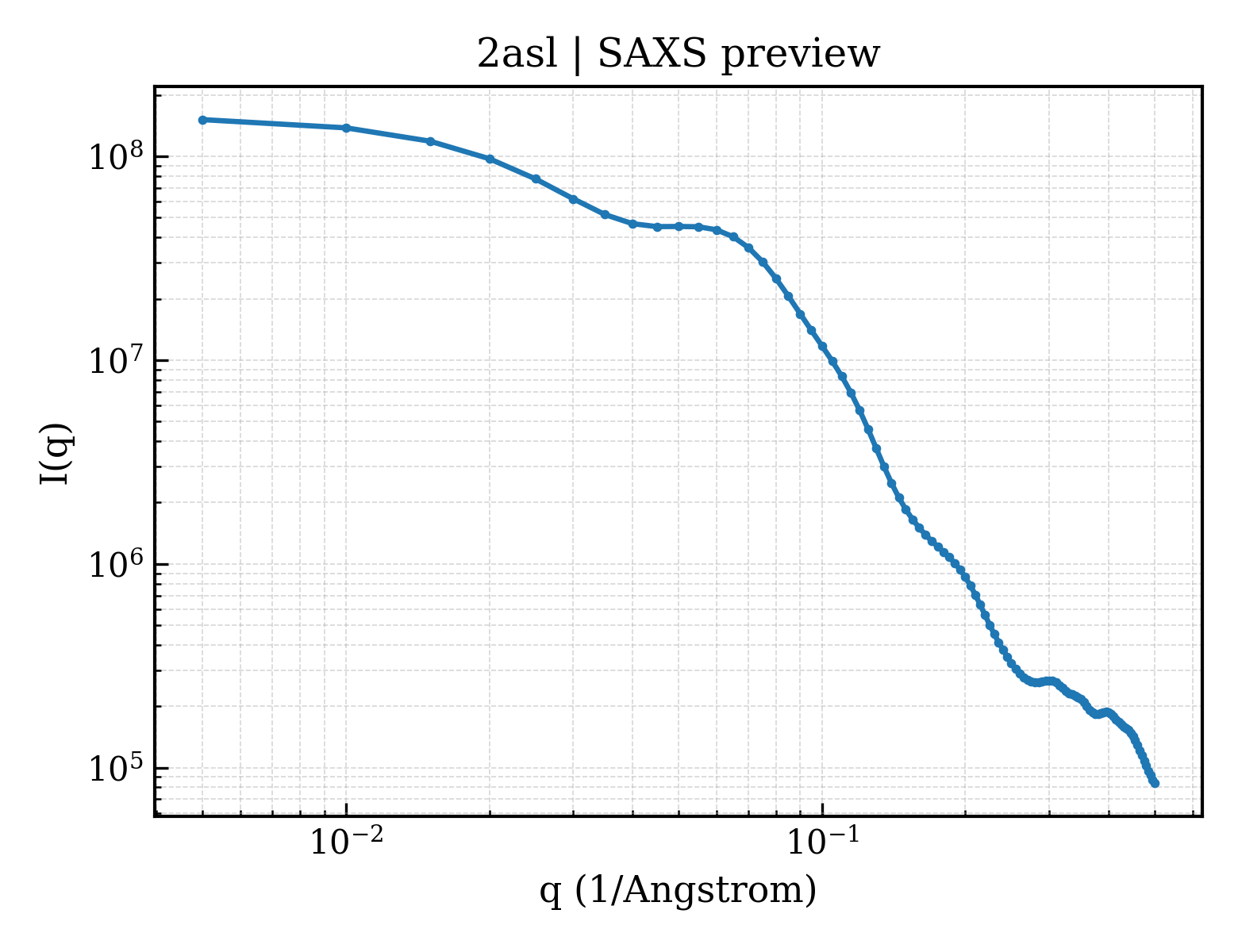

SAXS 散射曲线 SAXS Profile

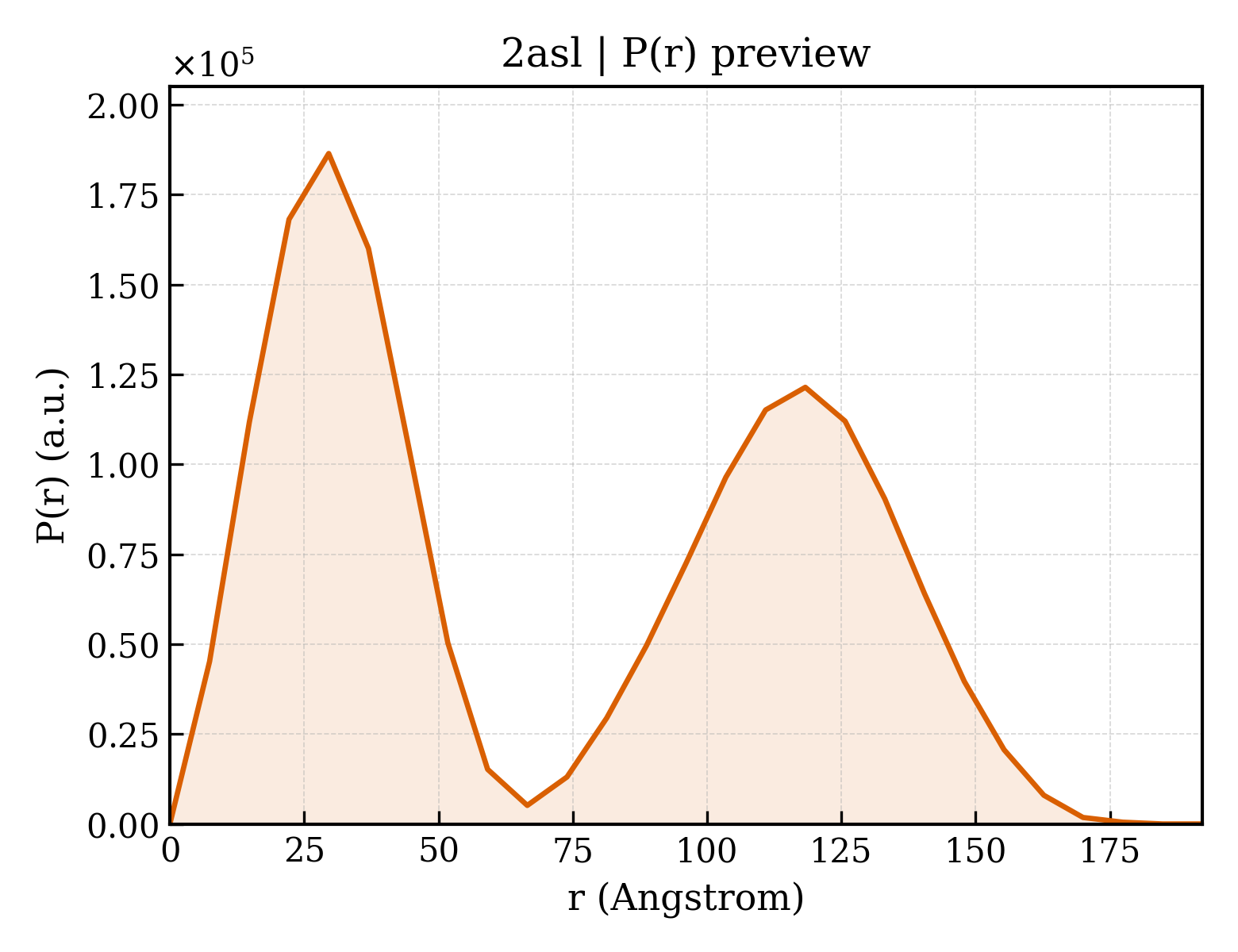

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	2asl
沉积日期 deposition_date	2005-08-23
结构标题 title	oxoG-modified Postinsertion Binary Complex
关键词 keywords	DNA polymerase, 8-oxoguanine, Y-family, lesion bypass, transferase-DNA COMPLEX; transferase/DNA
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	60.48 Å
回转半径 Rg (电子) rg_electron	61.31 Å
零角强度 I(0) i0	156269000.00
分子量 molecular_weight	96852.0 kDa
排除体积 excluded_volume	117810 Å³
包络体积 envelope_volume	205310 Å³
水化壳体积 shell_volume	27325 Å³
包络直径 envelope_diameter	180.9 Å
壳层 Rg shell_rg	69.51 Å
包络 Rg envelope_rg	56.91 Å
形状 Rg shape_rg	61.30 Å
总 Rg total_rg	61.46 Å
总原子数 total_atoms	6740
残基数 n_residues	740
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	192.2 Å
Rg (实空间) rg_real	61.34 Å
Rg 误差 (实空间) rg_real_error	2.79 Å
I(0) (实空间) i0_real	1.5630e+08
I(0) 误差 (实空间) i0_real_error	3.6290e+06
Rg (倒空间) rg_reciprocal	59.58 Å
I(0) (倒空间) i0_reciprocal	155800000.0000
解质量估计 total_estimate	0.5620
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	29.6 Å
偏度 Skewness skewness	0.160
峰度 Kurtosis kurtosis	-1.536
角度范围 angular_range	— – 0.1300 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	3565000.0000
实空间数据点数 n_real_points	27
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.000; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.024; Smooth: 0.277

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (5)

Entity 1 polymer

描述 description	5'-D(GPGPTPTPGPGPAPTPGPGPTPAPGP(DOC))-3'
分子量 formula_weight	4375.9 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polydeoxyribonucleotide
链编号 strand_id	D,H
原子数 atom_count	6921

GGTTGGATGGTAGC

Entity 2 polymer

描述 description	5'-D(CPTAPAPCP(8OG)PCPTPAPCPCPAPTPCPCPAPAPCP*C)-3'
分子量 formula_weight	5694.7 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polydeoxyribonucleotide
链编号 strand_id	E,J

CTAACGCTACCATCCAACC

Entity 3 polymer

描述 description	DNA polymerase IV
分子量 formula_weight	40825.4 kDa
EC 编号 ec_number	2.7.7.7
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B

GSHMGGGGGIVLFVDFDYFYAQVEEVLNPSLKGKPVVVCVFSGRFEDSGAVATANYEARKFGVKAGIPIVEAKKILPNAVYLPMRKEVYQQVSSRIMNLLREYSEKIEIASIDEAYLDISDKVRDYREAYNLGLEIKNKILEKEKITVTVGISKNKVFAKIAADMAKPNGIKVIDDEEVKRLIRELDIADVPGIGNITAEKLKKLGINKLVDTLSIEFDKLKGMIGEAKAKYLISLARDEYNEPIRTRVRKSIGRIVTMKRNSRNLEEIKPYLFRAIEESYYKLDKRIPKAIHVVAVTEDLDIVSRGRTFPHGISKETAYSESVKLLQKILEEDERKIRRIGVRFSKFIEAIGLDKFFDT

来源 Source

来源生物 organism	Sulfolobus solfataricus
NCBI 分类编号 ncbi_taxonomy_id	2287
宿主生物 host_organism	Escherichia coli

Entity 4 non-polymer

描述 description	CALCIUM ION
分子量 formula_weight	40.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

Entity 5 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	181

▼

6. 折叠分类 (SCOP + CATH) 14 domains

SCOP 2.08 (6 domains)

结构域编号 domain_id	d2asla1
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.240 — Lesion bypass DNA polymerase (Y-family), little finger domain
超家族 Superfamily superfamily	d.240.1 — Lesion bypass DNA polymerase (Y-family), little finger domain
家族 Family family	d.240.1.1 — Lesion bypass DNA polymerase (Y-family), little finger domain

结构域编号 domain_id	d2asla2
类 Class class	e — Multi-domain proteins (alpha and beta)
折叠类型 Fold fold	e.8 — DNA/RNA polymerases
超家族 Superfamily superfamily	e.8.1 — DNA/RNA polymerases
家族 Family family	e.8.1.7 — Lesion bypass DNA polymerase (Y-family), catalytic domain

结构域编号 domain_id	d2asla3
类 Class class	l — Artifacts
折叠类型 Fold fold	l.1 — Tags
超家族 Superfamily superfamily	l.1.1 — Tags
家族 Family family	l.1.1.1 — Tags

结构域编号 domain_id	d2aslb1
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.240 — Lesion bypass DNA polymerase (Y-family), little finger domain
超家族 Superfamily superfamily	d.240.1 — Lesion bypass DNA polymerase (Y-family), little finger domain
家族 Family family	d.240.1.1 — Lesion bypass DNA polymerase (Y-family), little finger domain

结构域编号 domain_id	d2aslb2
类 Class class	e — Multi-domain proteins (alpha and beta)
折叠类型 Fold fold	e.8 — DNA/RNA polymerases
超家族 Superfamily superfamily	e.8.1 — DNA/RNA polymerases
家族 Family family	e.8.1.7 — Lesion bypass DNA polymerase (Y-family), catalytic domain

结构域编号 domain_id	d2aslb3
类 Class class	l — Artifacts
折叠类型 Fold fold	l.1 — Tags
超家族 Superfamily superfamily	l.1.1 — Tags
家族 Family family	l.1.1.1 — Tags

CATH v4.4 (8 domains)

结构域编号 domain_id	2aslA01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	70 — Alpha-Beta Plaits
同源超家族 H-superfamily homologous superfamily	270 — Reverse transcriptase/Diguanylate cyclase domain

结构域编号 domain_id	2aslA02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	1170 — MutS, DNA mismatch repair protein, domain I
同源超家族 H-superfamily homologous superfamily	60 —

结构域编号 domain_id	2aslA03
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	150 — DNA polymerase; domain 1
同源超家族 H-superfamily homologous superfamily	20 — 5' to 3' exonuclease, C-terminal subdomain

结构域编号 domain_id	2aslA04
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	1490 — Dna Ligase; domain 1
同源超家族 H-superfamily homologous superfamily	100 — DNA polymerase, Y-family, little finger domain

结构域编号 domain_id	2aslB01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	70 — Alpha-Beta Plaits
同源超家族 H-superfamily homologous superfamily	270 — Reverse transcriptase/Diguanylate cyclase domain

结构域编号 domain_id	2aslB02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	1170 — MutS, DNA mismatch repair protein, domain I
同源超家族 H-superfamily homologous superfamily	60 —

结构域编号 domain_id	2aslB03
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	150 — DNA polymerase; domain 1
同源超家族 H-superfamily homologous superfamily	20 — 5' to 3' exonuclease, C-terminal subdomain

结构域编号 domain_id	2aslB04
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	1490 — Dna Ligase; domain 1
同源超家族 H-superfamily homologous superfamily	100 — DNA polymerase, Y-family, little finger domain

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	73.218 Å
晶胞边长 b length_b	101.024 Å
晶胞边长 c length_c	84.925 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	97.16 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	4

空间群 space_group	P 1 21 1
空间群编号 int_tables_number	4
晶系 crystal_system	—

分辨率 resolution	2.650 Å
最低分辨率 resolution_low	20.000 Å
R 因子 r_factor	0.2379
R_work r_work	0.2323
R_free r_free	0.2869

fit	/app/data/saxs_computation/as/2asl/2asl.fit
pddf	/app/data/pr_computation/as/2asl/2asl.pr.out
profile	/app/data/saxs_computation/as/2asl/2asl.dat
