2atw
Structure of a Mycobacterium tuberculosis NusA-RNA complex

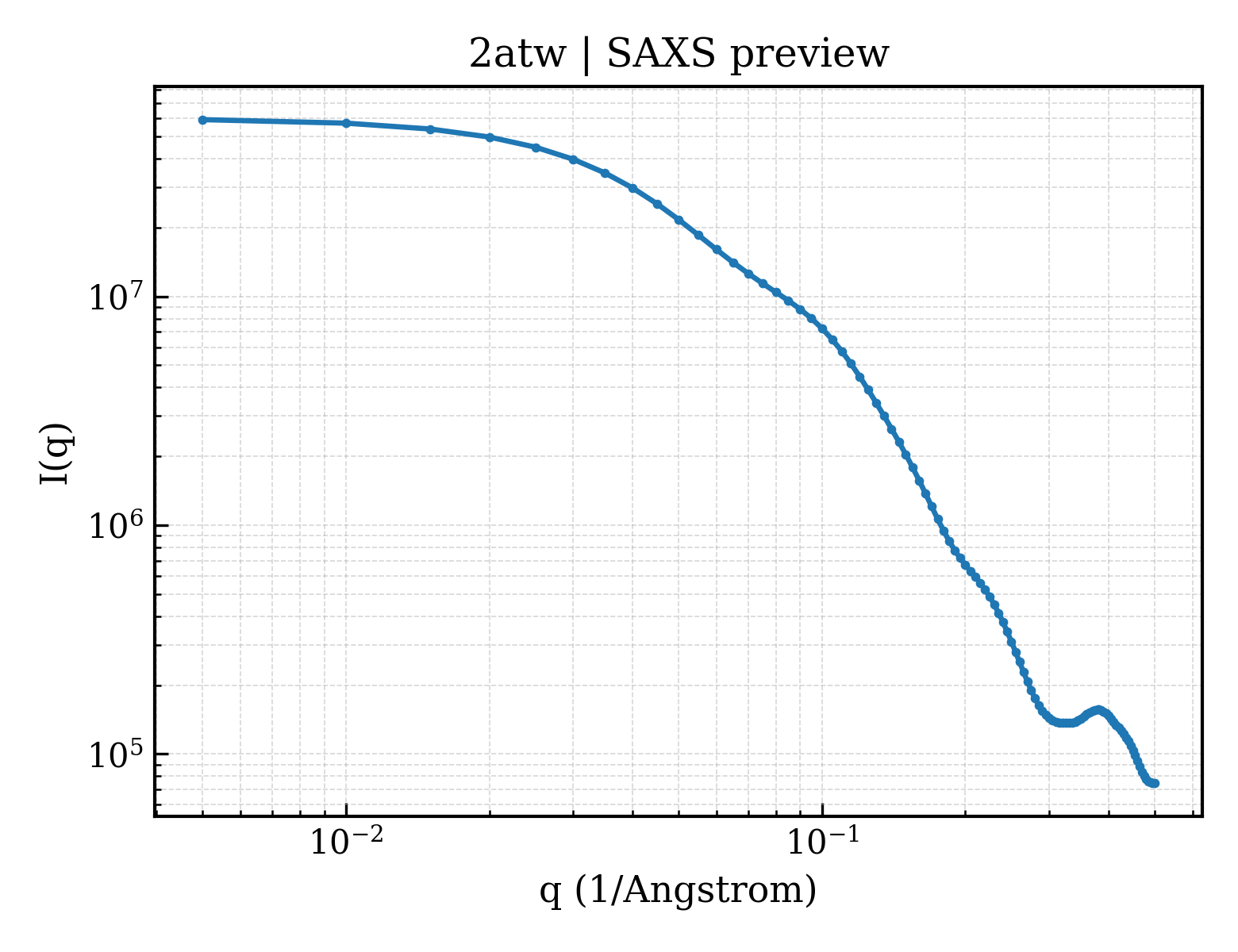

SAXS 散射曲线 SAXS Profile

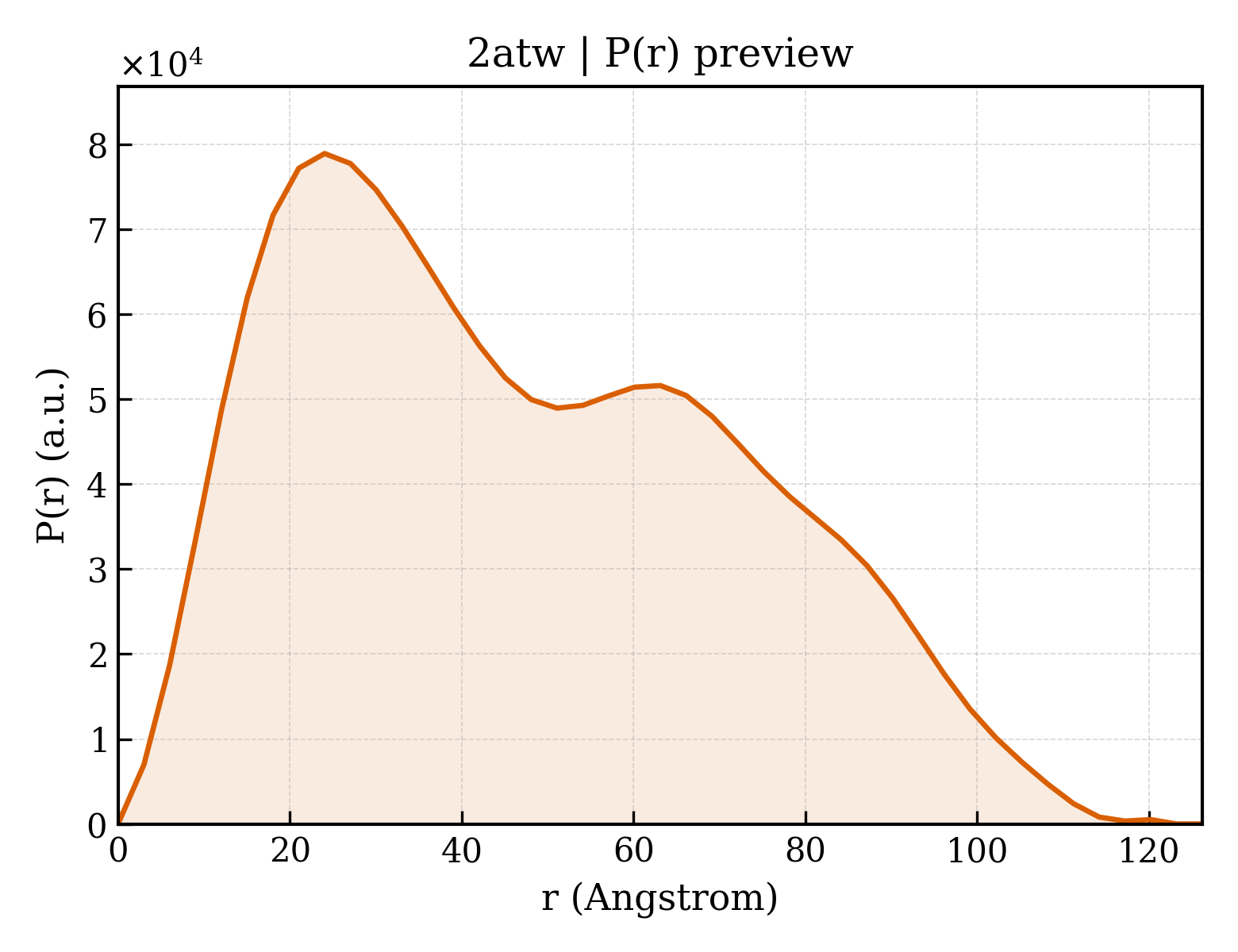

P(r) 距离分布 P(r) Distribution
1. 结构基本信息 1. Structure Basics
| 条目编号 entry_id | 2atw |
| 沉积日期 deposition_date | 2005-08-26 |
| 结构标题 title | Structure of a Mycobacterium tuberculosis NusA-RNA complex |
| 关键词 keywords | Protein-RNA complex, transcription-RNA COMPLEX; transcription/RNA |
| 实验方法 method | X-RAY DIFFRACTION |
2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)
| 回转半径 Rg (Guinier) rg_guinier | 37.24 Å |
| 回转半径 Rg (电子) rg_electron | 38.10 Å |
| 零角强度 I(0) i0 | 59922000.00 |
| 分子量 molecular_weight | 55535.0 kDa |
| 排除体积 excluded_volume | 66754 ų |
| 包络体积 envelope_volume | 100910 ų |
| 水化壳体积 shell_volume | 23099 ų |
| 包络直径 envelope_diameter | 130.2 Å |
| 壳层 Rg shell_rg | 42.13 Å |
| 包络 Rg envelope_rg | 37.36 Å |
| 形状 Rg shape_rg | 38.12 Å |
| 总 Rg total_rg | 38.29 Å |
| 总原子数 total_atoms | 3875 |
| 残基数 n_residues | 472 |
| 球谐函数阶数 n_harmonics | 20 |
| q 范围 q_range | — – 0.5000 Å−1 |
| 数据点数 n_points | 101 |
| 壳层类型 shell_type | directional |
| 溶剂电子密度 solvent_density | 0.3340 e/ų |
| 壳层衬度 contrast_shell | 0.0300 e/ų |
| CRYSOL 版本 crysol_version | 4.1.3 |
3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)
| 最大尺寸 Dmax dmax | 126.2 Å |
| Rg (实空间) rg_real | 37.71 Å |
| Rg 误差 (实空间) rg_real_error | 1.88 Å |
| I(0) (实空间) i0_real | 5.9920e+07 |
| I(0) 误差 (实空间) i0_real_error | 1.0550e+06 |
| Rg (倒空间) rg_reciprocal | 37.43 Å |
| I(0) (倒空间) i0_reciprocal | 59900000.0000 |
| 解质量估计 total_estimate | 0.7459 |
| 解质量评级 solution_quality | REASONABLE a REASONABLE solution |
| P(r) 峰数 n_peaks | 3 |
| 主峰位置 r_peak_primary | 24.0 Å |
| 偏度 Skewness skewness | 0.388 |
| 峰度 Kurtosis kurtosis | -0.831 |
| 角度范围 angular_range | — – 0.2100 Å−1 |
| 当前正则化参数 α current_alpha | 0.0000 |
| 最高正则化参数 α highest_alpha | 2925000.0000 |
| 实空间数据点数 n_real_points | 43 |
| GNOM 版本 gnom_version | 4.1.3 |
| 质量判据 quality_criteria | AN1: 0.000; Oscil: 0.506; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.360; Smooth: 0.816 |
4. 晶体学与实验 4. Crystallography & Experiment
5. 实体与聚合体信息 (3)
6. 折叠分类 (SCOP + CATH) 12 domains
SCOP 2.08 (6 domains)
| 结构域编号 domain_id | d2atwa1 |
| 类 Class class | b — All beta proteins |
| 折叠类型 Fold fold | b.40 — OB-fold |
| 超家族 Superfamily superfamily | b.40.4 — Nucleic acid-binding proteins |
| 家族 Family family | b.40.4.5 — Cold shock DNA-binding domain-like |
| 结构域编号 domain_id | d2atwa2 |
| 类 Class class | d — Alpha and beta proteins (a+b) |
| 折叠类型 Fold fold | d.52 — Alpha-lytic protease prodomain-like |
| 超家族 Superfamily superfamily | d.52.3 — Prokaryotic type KH domain (KH-domain type II) |
| 家族 Family family | d.52.3.1 — Prokaryotic type KH domain (KH-domain type II) |
| 结构域编号 domain_id | d2atwa3 |
| 类 Class class | d — Alpha and beta proteins (a+b) |
| 折叠类型 Fold fold | d.52 — Alpha-lytic protease prodomain-like |
| 超家族 Superfamily superfamily | d.52.3 — Prokaryotic type KH domain (KH-domain type II) |
| 家族 Family family | d.52.3.1 — Prokaryotic type KH domain (KH-domain type II) |
| 结构域编号 domain_id | d2atwc1 |
| 类 Class class | b — All beta proteins |
| 折叠类型 Fold fold | b.40 — OB-fold |
| 超家族 Superfamily superfamily | b.40.4 — Nucleic acid-binding proteins |
| 家族 Family family | b.40.4.5 — Cold shock DNA-binding domain-like |
| 结构域编号 domain_id | d2atwc2 |
| 类 Class class | d — Alpha and beta proteins (a+b) |
| 折叠类型 Fold fold | d.52 — Alpha-lytic protease prodomain-like |
| 超家族 Superfamily superfamily | d.52.3 — Prokaryotic type KH domain (KH-domain type II) |
| 家族 Family family | d.52.3.1 — Prokaryotic type KH domain (KH-domain type II) |
| 结构域编号 domain_id | d2atwc3 |
| 类 Class class | d — Alpha and beta proteins (a+b) |
| 折叠类型 Fold fold | d.52 — Alpha-lytic protease prodomain-like |
| 超家族 Superfamily superfamily | d.52.3 — Prokaryotic type KH domain (KH-domain type II) |
| 家族 Family family | d.52.3.1 — Prokaryotic type KH domain (KH-domain type II) |
CATH v4.4 (6 domains)
| 结构域编号 domain_id | 2atwA01 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 40 — Beta Barrel |
| 拓扑 Topology topology | 50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P) |
| 同源超家族 H-superfamily homologous superfamily | 140 — Nucleic acid-binding proteins |
| 结构域编号 domain_id | 2atwA02 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 30 — 2-Layer Sandwich |
| 拓扑 Topology topology | 300 — GMP Synthetase; Chain A, domain 3 |
| 同源超家族 H-superfamily homologous superfamily | 20 — K homology (KH) domain |
| 结构域编号 domain_id | 2atwA03 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 30 — 2-Layer Sandwich |
| 拓扑 Topology topology | 300 — GMP Synthetase; Chain A, domain 3 |
| 同源超家族 H-superfamily homologous superfamily | 20 — K homology (KH) domain |
| 结构域编号 domain_id | 2atwC01 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 40 — Beta Barrel |
| 拓扑 Topology topology | 50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P) |
| 同源超家族 H-superfamily homologous superfamily | 140 — Nucleic acid-binding proteins |
| 结构域编号 domain_id | 2atwC02 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 30 — 2-Layer Sandwich |
| 拓扑 Topology topology | 300 — GMP Synthetase; Chain A, domain 3 |
| 同源超家族 H-superfamily homologous superfamily | 20 — K homology (KH) domain |
| 结构域编号 domain_id | 2atwC03 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 30 — 2-Layer Sandwich |
| 拓扑 Topology topology | 300 — GMP Synthetase; Chain A, domain 3 |
| 同源超家族 H-superfamily homologous superfamily | 20 — K homology (KH) domain |
