1. Protein Identity and Related Structures Protein Identity & Related Structures

Growth factor receptor-bound protein 14

OrganismNot specified

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 433–537	Fragment：SH2 domain	No other associated polymer	X-RAY DIFFRACTION X-ray crystallization conditions：pH 7.5；pH 7.5	Resolution 2.30 Å R-free 0.248
2	Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain B； UniProt 430–537	Fragment：SH2 domain	No other associated polymer	X-RAY DIFFRACTION X-ray crystallization conditions：pH 7.5；pH 7.5	Resolution 2.30 Å R-free 0.248

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 2AUG	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2AUH Crystal structure of the Grb14 BPS region in complex with the insulin receptor tyrosine kinase Deposited 2005-08-27	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 361–419（59 aa） Fragment：BPS region	Not recorded	CA CALCIUM ION × 2	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 3.20 Å R-free 0.254
4K81 Crystal structure of the Grb14 RA and PH domains in complex with GTP-loaded H-Ras Deposited 2013-04-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 106–356（251 aa） Fragment：RA-PH domains, UNP residues 106-356	Mutation：K272A,E273A	GOL GLYCEROL × 5 GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.9；315 K；14% (w/v) PEG 3350, 100 mM MES, pH 5.9, 200 mM MgCl2, 2% glycerol, and 3% glucose, VAPOR DIFFUSION, HANGING DROP, temperature 315K	Resolution 2.40 Å R-free 0.277
4K81 Crystal structure of the Grb14 RA and PH domains in complex with GTP-loaded H-Ras Deposited 2013-04-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 106–356（251 aa） Fragment：RA-PH domains, UNP residues 106-356	Mutation：K272A,E273A	GOL GLYCEROL × 2 GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.9；315 K；14% (w/v) PEG 3350, 100 mM MES, pH 5.9, 200 mM MgCl2, 2% glycerol, and 3% glucose, VAPOR DIFFUSION, HANGING DROP, temperature 315K	Resolution 2.40 Å R-free 0.277
4K81 Crystal structure of the Grb14 RA and PH domains in complex with GTP-loaded H-Ras Deposited 2013-04-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain E 106–356（251 aa） Fragment：RA-PH domains, UNP residues 106-356	Mutation：K272A,E273A	GOL GLYCEROL × 2 GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.9；315 K；14% (w/v) PEG 3350, 100 mM MES, pH 5.9, 200 mM MgCl2, 2% glycerol, and 3% glucose, VAPOR DIFFUSION, HANGING DROP, temperature 315K	Resolution 2.40 Å R-free 0.277
4K81 Crystal structure of the Grb14 RA and PH domains in complex with GTP-loaded H-Ras Deposited 2013-04-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain G 106–356（251 aa） Fragment：RA-PH domains, UNP residues 106-356	Mutation：K272A,E273A	GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.9；315 K；14% (w/v) PEG 3350, 100 mM MES, pH 5.9, 200 mM MgCl2, 2% glycerol, and 3% glucose, VAPOR DIFFUSION, HANGING DROP, temperature 315K	Resolution 2.40 Å R-free 0.277

2 other PDB entries and 5 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	GRB14_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 22–126； UniProt 433–537 Author chain B； PDBConstruct 20–126； UniProt 430–537

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2aug
Deposition date deposition_date	2005-08-27
Structure title title	Crystal structure of the Grb14 SH2 domain
Keywords keywords	Phosphorylation, SH2 domain, SIGNALING PROTEIN; SIGNALING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	18.28 Å
Radius of gyration Rg (electron density) rg_electron	17.15 Å
Forward intensity I(0) i0	11076800.00
Molecular weight molecular_weight	24723.0 kDa
Excluded volume excluded_volume	30931 Å³
Envelope volume envelope_volume	35455 Å³
Hydration-shell volume shell_volume	17328 Å³
Envelope diameter envelope_diameter	53.6 Å
Shell Rg shell_rg	23.01 Å
Envelope Rg envelope_rg	17.21 Å
Shape Rg shape_rg	17.14 Å
Total Rg total_rg	18.10 Å
Total atoms total_atoms	1745
Residues n_residues	213
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	55.3 Å
Rg (real space) rg_real	18.16 Å
Rg uncertainty (real space) rg_real_error	0.33 Å
I(0) (real space) i0_real	1.1080e+07
I(0) uncertainty (real space) i0_real_error	1.3220e+05
Rg (reciprocal space) rg_reciprocal	18.18 Å
I(0) (reciprocal space) i0_reciprocal	11080000.0000
Solution quality estimate total_estimate	0.9055
Solution quality rating solution_quality	EXCELLENT a EXCELLENT solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	23.9 Å
Skewness Skewness skewness	0.103
Kurtosis Kurtosis kurtosis	-0.456
Angular range angular_range	— – 0.4350 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	1986000.0000
Real-space data points n_real_points	75
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.928; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.984; Smooth: 0.999

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (2)

▼

7. Fold Classification (SCOP + CATH) 5 domains

SCOP 2.08 (3 domains)

Domain ID domain_id	d2auga_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.93 — SH2-like
Superfamily Superfamily superfamily	d.93.1 — SH2 domain
Family Family family	d.93.1.1 — SH2 domain

Domain ID domain_id	d2augb1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.93 — SH2-like
Superfamily Superfamily superfamily	d.93.1 — SH2 domain
Family Family family	d.93.1.1 — SH2 domain

Domain ID domain_id	d2augb2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

CATH v4.4 (2 domains)

Domain ID domain_id	2augA00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	505 — SHC Adaptor Protein
Homologous superfamily homologous superfamily	10 — SH2 domain

Domain ID domain_id	2augB00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	505 — SHC Adaptor Protein
Homologous superfamily homologous superfamily	10 — SH2 domain

▶

8. Citations (1)

▶

Unit-cell length a length_a	49.118 Å
Unit-cell length b length_b	49.118 Å
Unit-cell length c length_c	184.087 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	P 31 2 1
Space-group number int_tables_number	152
Crystal system crystal_system	—

Resolution resolution	2.300 Å
Low-resolution limit resolution_low	27.840 Å
R factor r_factor	—
R_work r_work	0.1990
R_free r_free	0.2480

Description description	Growth factor receptor-bound protein 14
Molecular weight formula_weight	14633.7 kDa
Source method src_method	nat
Copy count entity_count	2

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	1901

Crystal structure of the Grb14 SH2 domain

1. Protein Identity and Related Structures Protein Identity & Related Structures

Growth factor receptor-bound protein 14

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

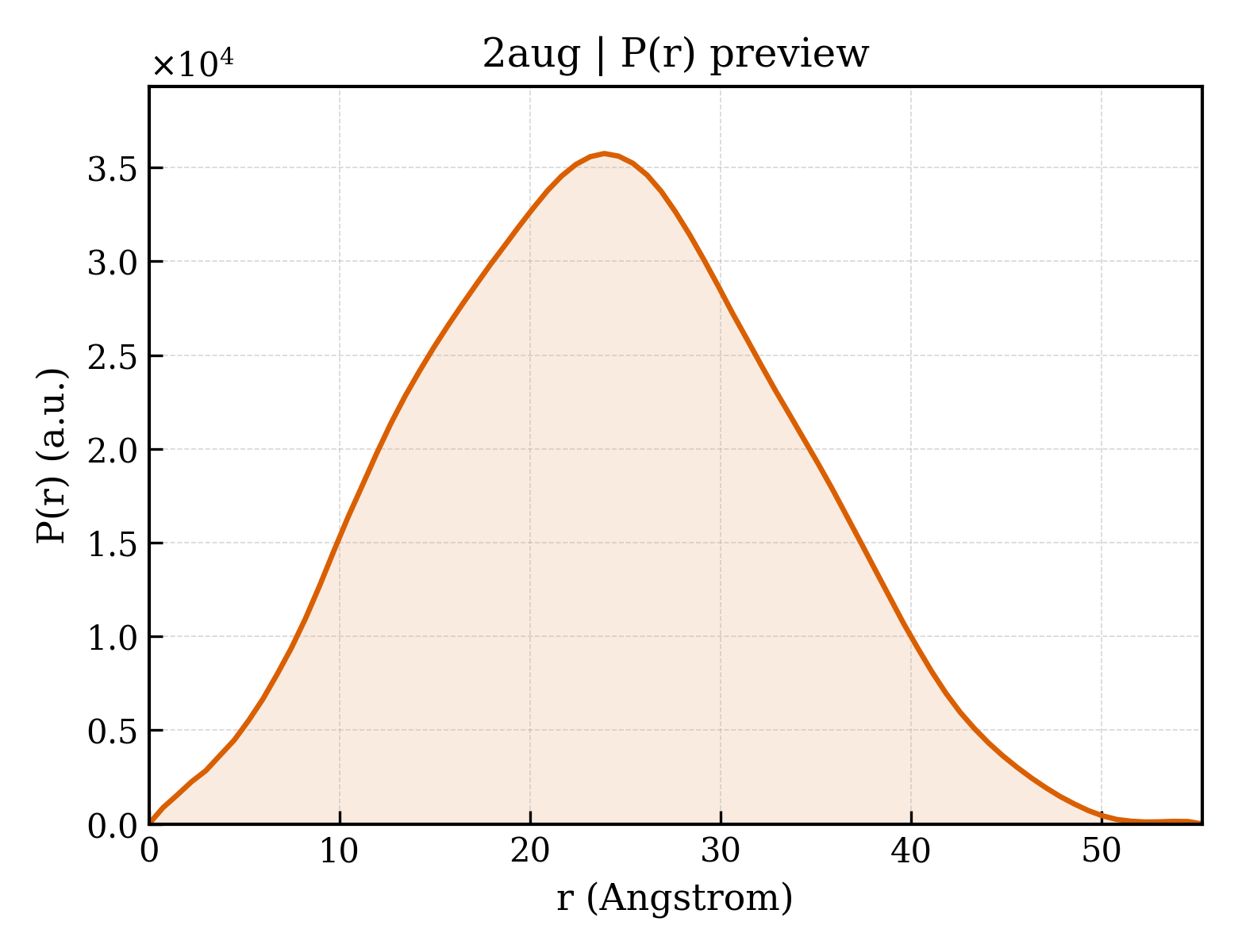

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

6. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Polymer Polymer

Entity 2 Entity 2 water

7. Fold Classification (SCOP + CATH) 5 domains

SCOP 2.08 (3 domains)

CATH v4.4 (2 domains)

8. Citations (1)

9. Files and Curves (10)

Files (7)

Curves (3)

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	156

fit	/app/data/saxs_computation/au/2aug/2aug.fit
pddf	/app/data/pr_computation/au/2aug/2aug.pr.out
profile	/app/data/saxs_computation/au/2aug/2aug.dat
