2aus
Crystal structure of the archaeal box H/ACA sRNP Nop10-Cbf5 complex
SAXS 散射曲线 SAXS Profile

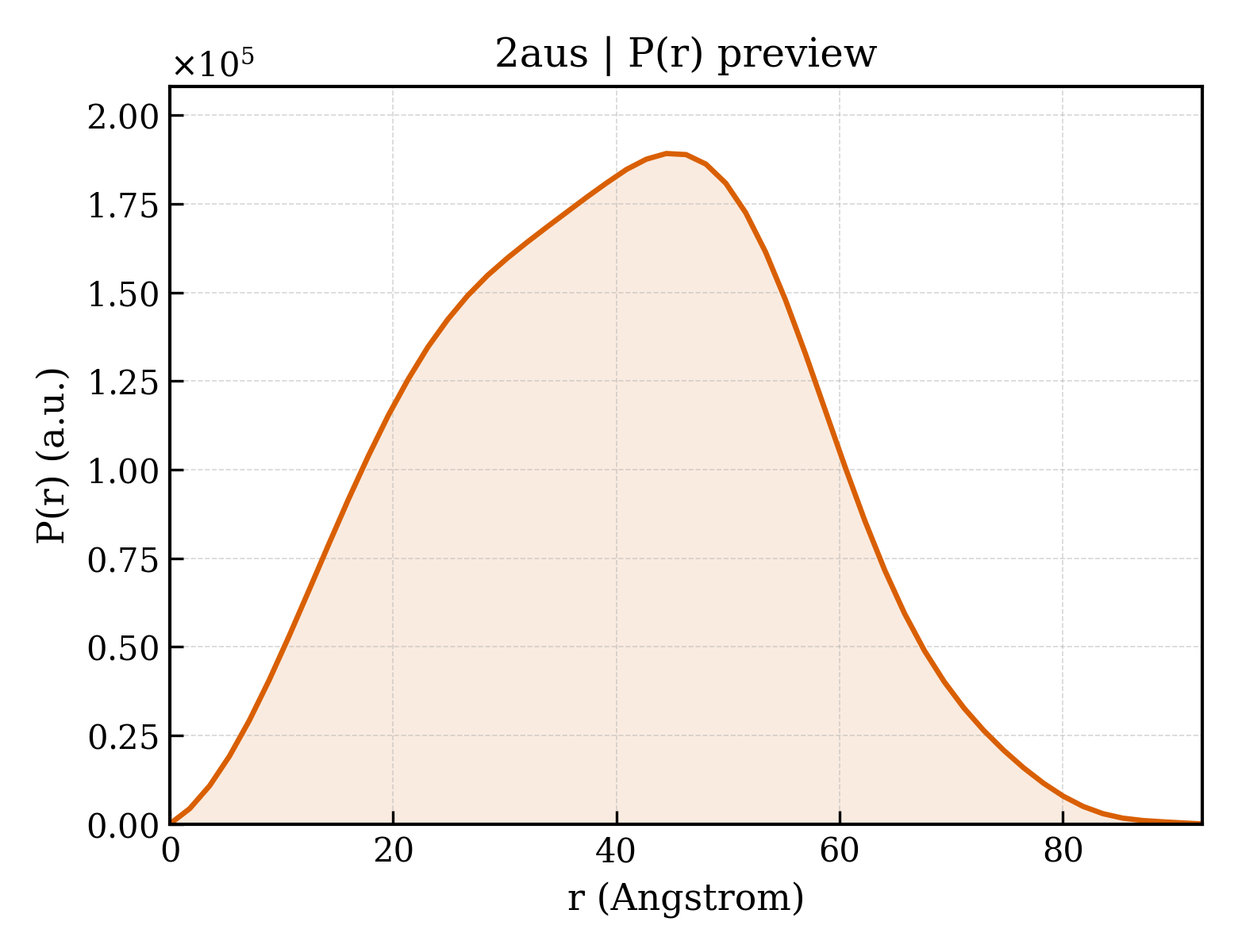

P(r) 距离分布 P(r) Distribution
1. 结构基本信息 1. Structure Basics
| 条目编号 entry_id | 2aus |
| 沉积日期 deposition_date | 2005-08-29 |
| 结构标题 title | Crystal structure of the archaeal box H/ACA sRNP Nop10-Cbf5 complex |
| 关键词 keywords | ISOMERASE, STRUCTURAL PROTEIN, ISOMERASE-STRUCTURAL PROTEIN COMPLEX; ISOMERASE/STRUCTURAL PROTEIN |
| 实验方法 method | X-RAY DIFFRACTION |
2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)
| 回转半径 Rg (Guinier) rg_guinier | 30.59 Å |
| 回转半径 Rg (电子) rg_electron | 29.45 Å |
| 零角强度 I(0) i0 | 105596000.00 |
| 分子量 molecular_weight | 82628.0 kDa |
| 排除体积 excluded_volume | 104360 ų |
| 包络体积 envelope_volume | 135780 ų |
| 水化壳体积 shell_volume | 37497 ų |
| 包络直径 envelope_diameter | 98.8 Å |
| 壳层 Rg shell_rg | 37.67 Å |
| 包络 Rg envelope_rg | 28.74 Å |
| 形状 Rg shape_rg | 29.49 Å |
| 总 Rg total_rg | 30.14 Å |
| 总原子数 total_atoms | 5803 |
| 残基数 n_residues | 726 |
| 球谐函数阶数 n_harmonics | 20 |
| q 范围 q_range | — – 0.5000 Å−1 |
| 数据点数 n_points | 101 |
| 壳层类型 shell_type | directional |
| 溶剂电子密度 solvent_density | 0.3340 e/ų |
| 壳层衬度 contrast_shell | 0.0300 e/ų |
| CRYSOL 版本 crysol_version | 4.1.3 |
3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)
| 最大尺寸 Dmax dmax | 92.5 Å |
| Rg (实空间) rg_real | 30.40 Å |
| Rg 误差 (实空间) rg_real_error | 0.45 Å |
| I(0) (实空间) i0_real | 1.0560e+08 |
| I(0) 误差 (实空间) i0_real_error | 1.6000e+06 |
| Rg (倒空间) rg_reciprocal | 30.48 Å |
| I(0) (倒空间) i0_reciprocal | 105600000.0000 |
| 解质量估计 total_estimate | 0.9021 |
| 解质量评级 solution_quality | EXCELLENT a EXCELLENT solution |
| P(r) 峰数 n_peaks | 1 |
| 主峰位置 r_peak_primary | 44.5 Å |
| 偏度 Skewness skewness | 0.040 |
| 峰度 Kurtosis kurtosis | -0.574 |
| 角度范围 angular_range | — – 0.2600 Å−1 |
| 当前正则化参数 α current_alpha | 0.0000 |
| 最高正则化参数 α highest_alpha | 22000000.0000 |
| 实空间数据点数 n_real_points | 53 |
| GNOM 版本 gnom_version | 4.1.3 |
| 质量判据 quality_criteria | AN1: 0.000; Oscil: 0.936; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.993; Smooth: 0.922 |
4. 晶体学与实验 4. Crystallography & Experiment
5. 实体与聚合体信息 (5)
6. 折叠分类 (SCOP + CATH) 12 domains
SCOP 2.08 (6 domains)
| 结构域编号 domain_id | d2ausa1 |
| 类 Class class | d — Alpha and beta proteins (a+b) |
| 折叠类型 Fold fold | d.265 — Pseudouridine synthase |
| 超家族 Superfamily superfamily | d.265.1 — Pseudouridine synthase |
| 家族 Family family | d.265.1.0 — automated matches |
| 结构域编号 domain_id | d2ausa2 |
| 类 Class class | b — All beta proteins |
| 折叠类型 Fold fold | b.122 — PUA domain-like |
| 超家族 Superfamily superfamily | b.122.1 — PUA domain-like |
| 家族 Family family | b.122.1.0 — automated matches |
| 结构域编号 domain_id | d2ausb_ |
| 类 Class class | g — Small proteins |
| 折叠类型 Fold fold | g.41 — Rubredoxin-like |
| 超家族 Superfamily superfamily | g.41.16 — Nop10-like SnoRNP |
| 家族 Family family | g.41.16.1 — Nucleolar RNA-binding protein Nop10-like |
| 结构域编号 domain_id | d2ausc1 |
| 类 Class class | d — Alpha and beta proteins (a+b) |
| 折叠类型 Fold fold | d.265 — Pseudouridine synthase |
| 超家族 Superfamily superfamily | d.265.1 — Pseudouridine synthase |
| 家族 Family family | d.265.1.0 — automated matches |
| 结构域编号 domain_id | d2ausc2 |
| 类 Class class | b — All beta proteins |
| 折叠类型 Fold fold | b.122 — PUA domain-like |
| 超家族 Superfamily superfamily | b.122.1 — PUA domain-like |
| 家族 Family family | b.122.1.0 — automated matches |
| 结构域编号 domain_id | d2ausd_ |
| 类 Class class | g — Small proteins |
| 折叠类型 Fold fold | g.41 — Rubredoxin-like |
| 超家族 Superfamily superfamily | g.41.16 — Nop10-like SnoRNP |
| 家族 Family family | g.41.16.1 — Nucleolar RNA-binding protein Nop10-like |
CATH v4.4 (6 domains)
| 结构域编号 domain_id | 2ausA01 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 30 — Roll |
| 拓扑 Topology topology | 130 — Archaeosine Trna-guanine Transglycosylase; Chain: A, domain 4 |
| 同源超家族 H-superfamily homologous superfamily | 10 — PUA domain |
| 结构域编号 domain_id | 2ausA02 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 30 — 2-Layer Sandwich |
| 拓扑 Topology topology | 2350 — Pseudouridine synthase |
| 同源超家族 H-superfamily homologous superfamily | 10 — Pseudouridine synthase |
| 结构域编号 domain_id | 2ausB00 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 20 — Single Sheet |
| 拓扑 Topology topology | 28 — Rubrerythrin, domain 2 |
| 同源超家族 H-superfamily homologous superfamily | 40 — H/ACA ribonucleoprotein complex, subunit Nop10 |
| 结构域编号 domain_id | 2ausC01 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 30 — Roll |
| 拓扑 Topology topology | 130 — Archaeosine Trna-guanine Transglycosylase; Chain: A, domain 4 |
| 同源超家族 H-superfamily homologous superfamily | 10 — PUA domain |
| 结构域编号 domain_id | 2ausC02 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 30 — 2-Layer Sandwich |
| 拓扑 Topology topology | 2350 — Pseudouridine synthase |
| 同源超家族 H-superfamily homologous superfamily | 10 — Pseudouridine synthase |
| 结构域编号 domain_id | 2ausD00 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 20 — Single Sheet |
| 拓扑 Topology topology | 28 — Rubrerythrin, domain 2 |
| 同源超家族 H-superfamily homologous superfamily | 40 — H/ACA ribonucleoprotein complex, subunit Nop10 |
