SAXSdb — 2avn

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

ubiquinone/menaquinone biosynthesis methyltransferase-related protein

Thermotoga maritima

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	PHOSPHATE ION × 1 S-ADENOSYL-L-HOMOSELENOCYSTEINE × 2 water × 2	Consistent with protein count
2	Protein homooligomer	Homooligomer	Protein 4	PHOSPHATE ION × 2 S-ADENOSYL-L-HOMOSELENOCYSTEINE × 4 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q9X1A9_THEMA
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 13–260； UniProt 1–248 Author chain B； PDBConstruct 13–260； UniProt 1–248

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2avn
Deposition date deposition_date	2005-08-30
Structure title title	CRYSTAL STRUCTURE OF A UBIQUINONE/MENAQUINONE BIOSYNTHESIS METHYLTRANSFERASE-RELATED PROTEIN (TM1389) FROM THERMOTOGA MARITIMA MSB8 AT 2.35 A RESOLUTION
Keywords keywords	;UBIQUINONE/MENAQUINONE BIOSYNTHESIS METHYLTRANSFERASE-RELATED PROTEIN, STRUCTURAL GENOMICS, JOINT CENTER FOR STRUCTURAL GENOMICS, JCSG, PROTEIN STRUCTURE INITIATIVE, PSI-2, TRANSFERASE ;; TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2avn__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2avn__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

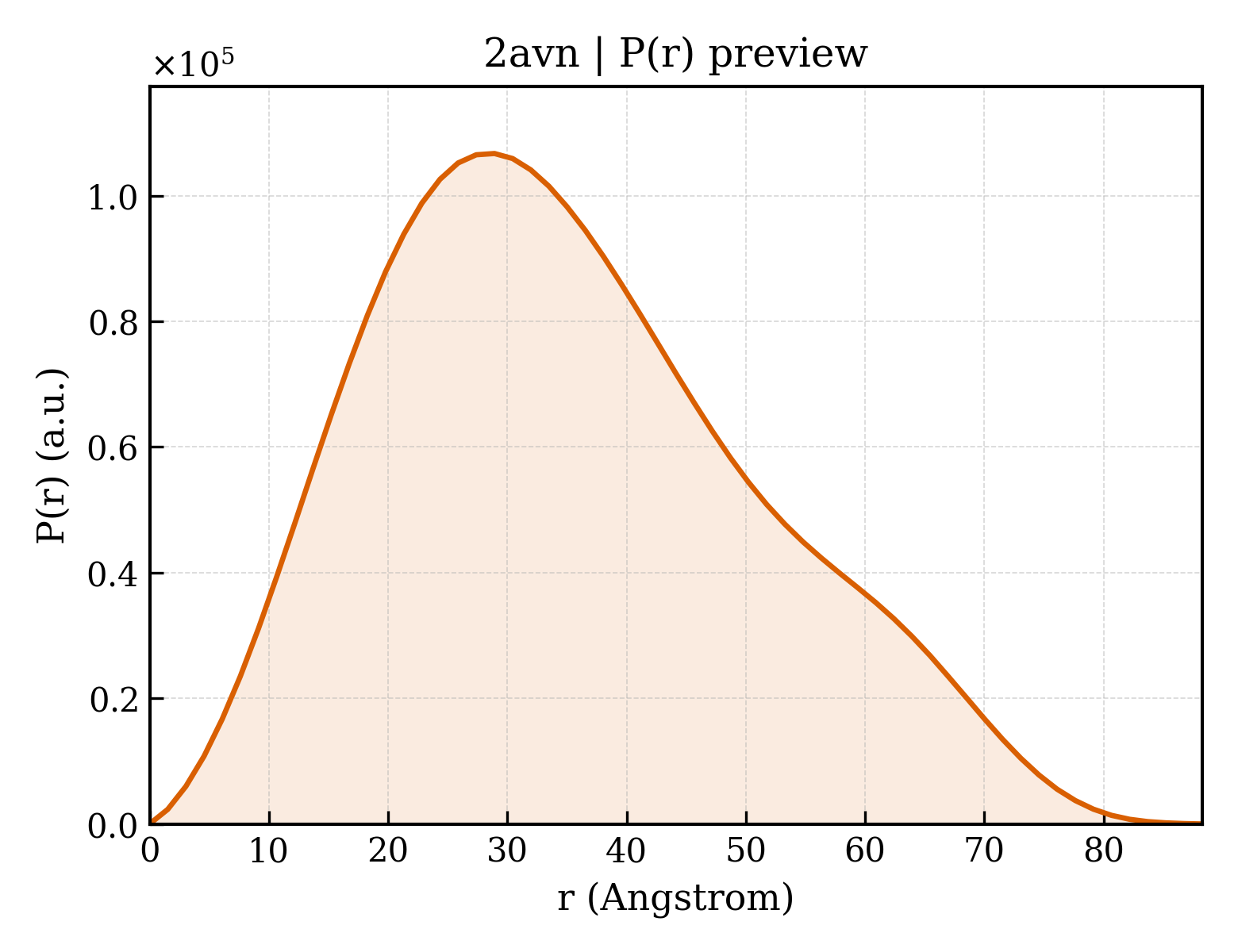

2avn__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	27.16 Å
Rg (electron density)	26.28 Å
Total Rg	27.13 Å
Atom count	4048
Residues	484
Excluded volume	72428 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2avn__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`2avn__assembly_2__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	ubiquinone/menaquinone biosynthesis methyltransferase-related protein
Molecular weight formula_weight	30590.9 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	4279

MGSDKIHHHHHHMKLRSWEFYDRIARAYDSMYETPKWKLYHRLIGSFLEEYLKNPCRVLDLGGGTGKWSLFLQERGFEVVLVDPSKEMLEVAREKGVKNVVEAKAEDLPFPSGAFEAVLALGDVLSYVENKDKAFSEIRRVLVPDGLLIATVDNFYTFLQQMIEKDAWDQITRFLKTQTTSVGTTLFSFNSYAFKPEDLDSLEGFETVDIRGIGVMEYPDERISEREETIFRLEQELSRDRNIIWKADHIFFVLKKKRGA

Source Source

Source organism organism	Thermotoga maritima
NCBI taxonomy ID ncbi_taxonomy_id	243274
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	PHOSPHATE ION
Molecular weight formula_weight	95.0 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	S-ADENOSYL-L-HOMOSELENOCYSTEINE
Molecular weight formula_weight	431.3 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	210

▼

6. Fold Classification (SCOP + CATH) 6 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d2avna1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.66 — S-adenosyl-L-methionine-dependent methyltransferases
Superfamily Superfamily superfamily	c.66.1 — S-adenosyl-L-methionine-dependent methyltransferases
Family Family family	c.66.1.41 — UbiE/COQ5-like

Domain ID domain_id	d2avna2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d2avnb2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.66 — S-adenosyl-L-methionine-dependent methyltransferases
Superfamily Superfamily superfamily	c.66.1 — S-adenosyl-L-methionine-dependent methyltransferases
Family Family family	c.66.1.41 — UbiE/COQ5-like

Domain ID domain_id	d2avnb3
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

CATH v4.4 (2 domains)

Domain ID domain_id	2avnA00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	150 — Vaccinia Virus protein VP39

Domain ID domain_id	2avnB00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	150 — Vaccinia Virus protein VP39

▶

Unit-cell length a length_a	130.475 Å
Unit-cell length b length_b	130.475 Å
Unit-cell length c length_c	192.926 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	24

Space group space_group	P 64 2 2
Space-group number int_tables_number	181
Crystal system crystal_system	—

Resolution resolution	2.350 Å
Low-resolution limit resolution_low	29.800 Å
R factor r_factor	—
R_work r_work	0.1690
R_free r_free	0.1990

CRYSTAL STRUCTURE OF A UBIQUINONE/MENAQUINONE BIOSYNTHESIS METHYLTRANSFERASE-RELATED PROTEIN (TM1389) FROM THERMOTOGA MARITIMA MSB8 AT 2.35 A RESOLUTION
