SAXSdb — 2ayt

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

glutaredoxin-like protein

Aquifex aeolicus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	SULFATE ION × 2 GLYCEROL × 3 water × 1	Consistent with protein count
2	Protein monomer	Monomer	Protein 1	GLYCEROL × 1 water × 1	Consistent with protein count
3	Protein homooligomer	Homooligomer	Protein 12	SULFATE ION × 12 GLYCEROL × 24 water × 12	Consistent with protein count
4	Protein homooligomer	Homooligomer	Protein 2	SULFATE ION × 2 GLYCEROL × 4 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	O66753_AQUAE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–229； UniProt 1–229 Author chain B； PDBConstruct 1–229； UniProt 1–229

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2ayt
Deposition date deposition_date	2005-09-08
Structure title title	The crystal structure of a protein disulfide oxidoreductase from aquifex aeolicus
Keywords keywords	Protein disulfide oxidoreductase, glutaredoxin, thioredoxin fold, Oxidoreductase; OXIDOREDUCTASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2ayt__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2ayt__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

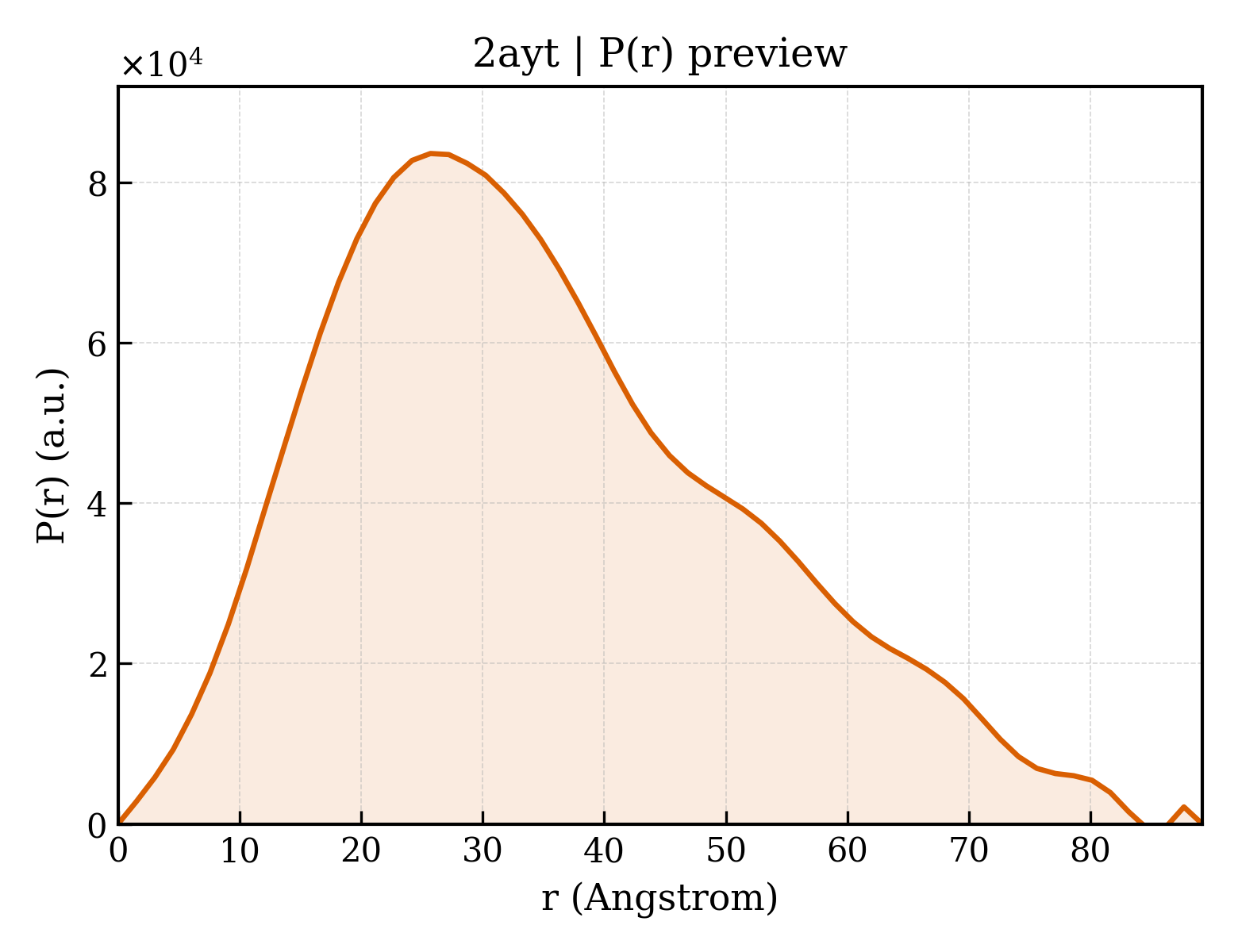

2ayt__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	19.04 Å
Rg (electron density)	17.70 Å
Total Rg	18.93 Å
Atom count	1839
Residues	230
Excluded volume	33181 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2ayt__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`2ayt__assembly_2__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
3	1	`2ayt__assembly_3__model_1`	dodecameric （12）	Success	4.1.3-1-20251215 (887e7ef)	View Download
4	1	`2ayt__assembly_4__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	glutaredoxin-like protein
Molecular weight formula_weight	26736.6 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	3951

MLLNLDVRMQLKELAQKEFKEPVSIKLFSQAIGCESCQTAEELLKETVEVIGEAVGQDKIKLDIYSPFTHKEETEKYGVDRVPTIVIEGDKDYGIRYIGLPAGLEFTTLINGIFHVSQRKPQLSEKTLELLQVVDIPIEIWVFVTTSCGYCPSAAVMAWDFALANDYITSKVIDASENQDLAEQFQVVGVPKIVINKGVAEFVGAQPENAFLGYIMAVYEKLKREKEQALEHHHHHH

Source Source

Source organism organism	Aquifex aeolicus
NCBI taxonomy ID ncbi_taxonomy_id	63363
Host organism host_organism	Escherichia coli BL21

Entity 2 Entity 2 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	294

▼

6. Fold Classification (SCOP + CATH) 10 domains

SCOP 2.08 (6 domains)

Domain ID domain_id	d2ayta1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.47 — Thioredoxin fold
Superfamily Superfamily superfamily	c.47.1 — Thioredoxin-like
Family Family family	c.47.1.0 — automated matches

Domain ID domain_id	d2ayta2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.47 — Thioredoxin fold
Superfamily Superfamily superfamily	c.47.1 — Thioredoxin-like
Family Family family	c.47.1.0 — automated matches

Domain ID domain_id	d2ayta3
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d2aytb1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.47 — Thioredoxin fold
Superfamily Superfamily superfamily	c.47.1 — Thioredoxin-like
Family Family family	c.47.1.0 — automated matches

Domain ID domain_id	d2aytb2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.47 — Thioredoxin fold
Superfamily Superfamily superfamily	c.47.1 — Thioredoxin-like
Family Family family	c.47.1.0 — automated matches

Domain ID domain_id	d2aytb3
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

CATH v4.4 (4 domains)

Domain ID domain_id	2aytA01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	30 — Glutaredoxin
Homologous superfamily homologous superfamily	10 — Glutaredoxin

Domain ID domain_id	2aytA02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	30 — Glutaredoxin
Homologous superfamily homologous superfamily	10 — Glutaredoxin

Domain ID domain_id	2aytB01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	30 — Glutaredoxin
Homologous superfamily homologous superfamily	10 — Glutaredoxin

Domain ID domain_id	2aytB02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	30 — Glutaredoxin
Homologous superfamily homologous superfamily	10 — Glutaredoxin

▶

Unit-cell length a length_a	161.100 Å
Unit-cell length b length_b	161.100 Å
Unit-cell length c length_c	153.100 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	36

Space group space_group	H 3 2
Space-group number int_tables_number	155
Crystal system crystal_system	—

Resolution resolution	2.400 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	—
R_work r_work	0.1790
R_free r_free	0.2180

The crystal structure of a protein disulfide oxidoreductase from aquifex aeolicus
