SAXSdb — 2b13

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Glycyl-glycine endopeptidase lytM

Staphylococcus aureus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	ZINC ION × 1 L(+)-TARTARIC ACID × 1 water × 1	Consistent with protein count
2	Protein monomer	Monomer	Protein 1	ZINC ION × 1 L(+)-TARTARIC ACID × 1 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	LYTM_STAAU
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 3–134； UniProt 185–316 Author chain B； PDBConstruct 3–134； UniProt 185–316

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2b13
Deposition date deposition_date	2005-09-15
Structure title title	Truncated S. aureus LytM, P41 crystal form
Keywords keywords	LytM, lysostaphin, peptidoglycan amidase, peptidase, HYDROLASE; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2b13__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2b13__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

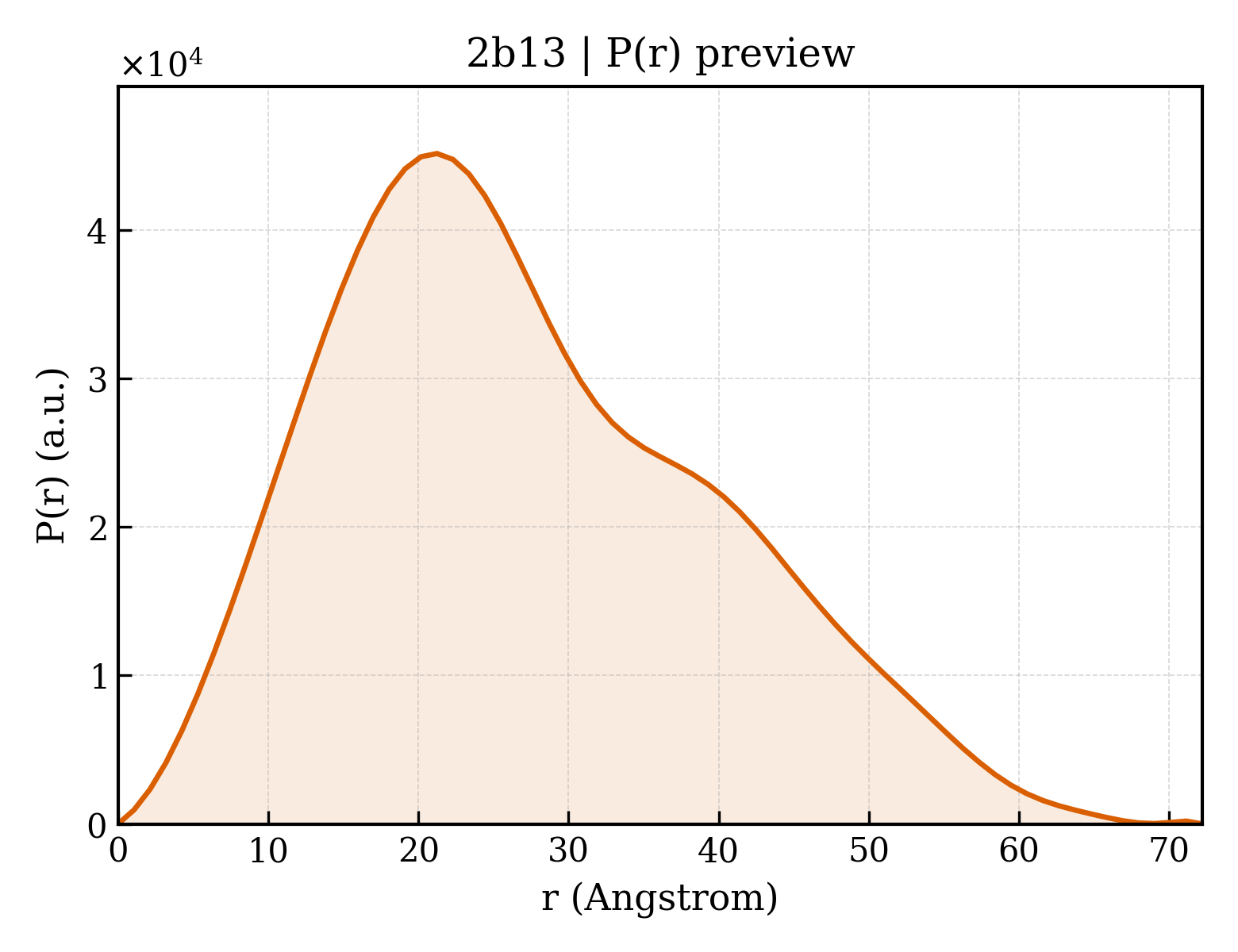

2b13__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	14.56 Å
Rg (electron density)	13.27 Å
Total Rg	14.46 Å
Atom count	1013
Residues	131
Excluded volume	17450 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2b13__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`2b13__assembly_2__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Glycyl-glycine endopeptidase lytM
Molecular weight formula_weight	14564.8 kDa
EC 编号 ec_number	3.4.24.75
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	2368

MAHAKDASWLTSRKQLQPYGQYHGGGAHYGVDYAMPENSPVYSLTDGTVVQAGWSNYGGGNQVTIKEANSNNYQWYMHNNRLTVSAGDKVKAGDQIAYSGSTGNSTAPHVHFQRMSGGIGNQYAVDPTSYLQSR

Source Source

Source organism organism	Staphylococcus aureus
NCBI taxonomy ID ncbi_taxonomy_id	1280
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 non-polymer

Description description	L(+)-TARTARIC ACID
Molecular weight formula_weight	150.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	342

▼

6. Fold Classification (SCOP + CATH) 2 domains

CATH v4.4 (2 domains)

Domain ID domain_id	2b13A00
Class class	2 — Mainly Beta
Architecture architecture	70 — Distorted Sandwich
Topology topology	70 — Glucose Permease (Domain IIA)
Homologous superfamily homologous superfamily	10 — Glucose Permease (Domain IIA)

Domain ID domain_id	2b13B00
Class class	2 — Mainly Beta
Architecture architecture	70 — Distorted Sandwich
Topology topology	70 — Glucose Permease (Domain IIA)
Homologous superfamily homologous superfamily	10 — Glucose Permease (Domain IIA)

▶

Unit-cell length a length_a	65.962 Å
Unit-cell length b length_b	65.962 Å
Unit-cell length c length_c	62.960 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 41
Space-group number int_tables_number	76
Crystal system crystal_system	—

Resolution resolution	1.550 Å
Low-resolution limit resolution_low	14.800 Å
R factor r_factor	0.1730
R_work r_work	0.1716
R_free r_free	0.2005
