SAXSdb — 2b1y

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

hypothetical protein Atu1913

Agrobacterium tumefaciens str.

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	SULFATE ION × 6 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q8UE48_AGRT5
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–104； UniProt 1–104

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2b1y
Deposition date deposition_date	2005-09-16
Structure title title	Crystal Structure of Protein of Unknown Function ATU1913 from Agrobacterium tumefaciens str. C58
Keywords keywords	;hypothetical protein, new fold, structural genomics, PSI, Protein Structure Initiative, Midwest Center for Structural Genomics, MCSG, UNKNOWN FUNCTION ;; UNKNOWN FUNCTION
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2b1y__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

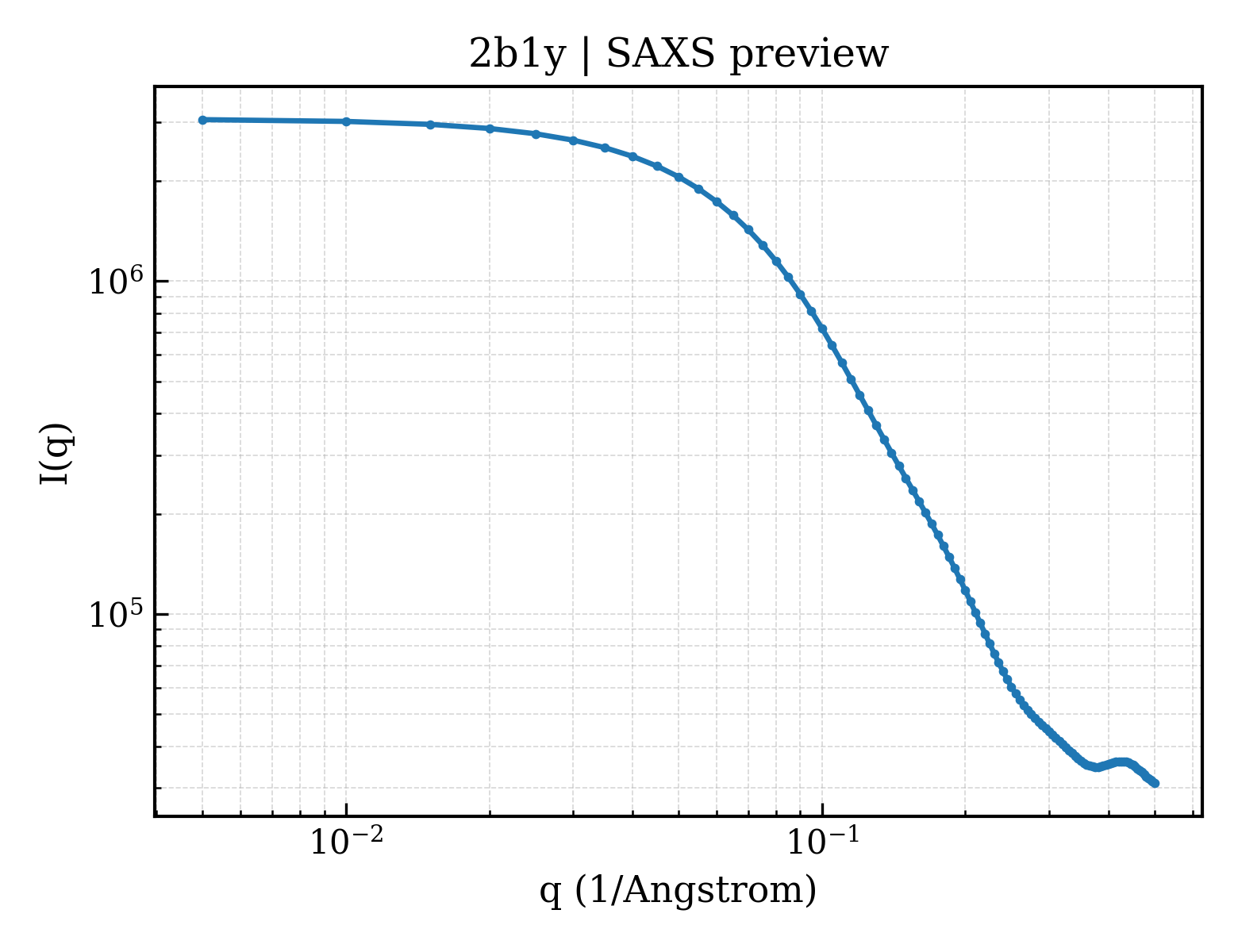

2b1y__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

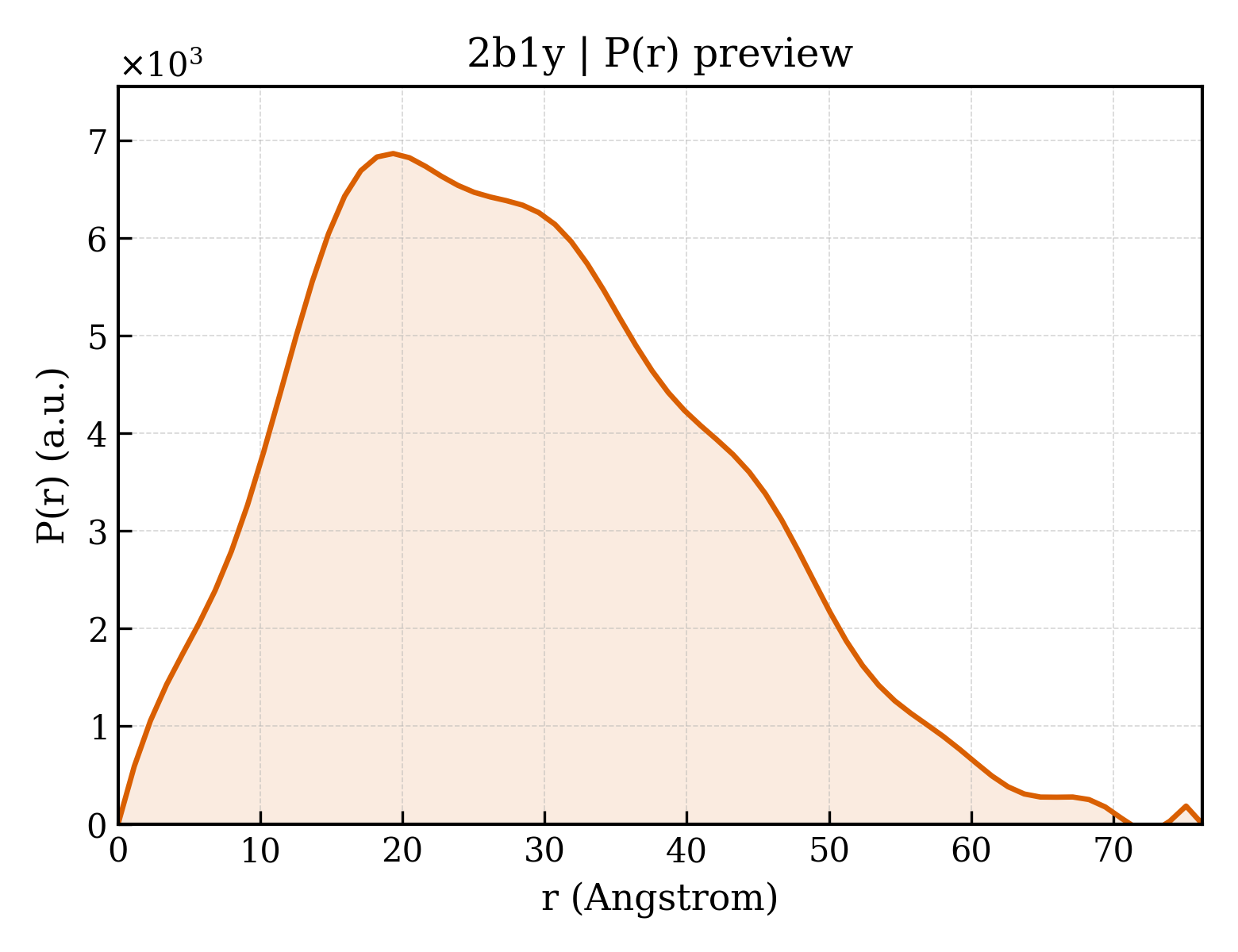

2b1y__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	22.62 Å
Rg (electron density)	22.14 Å
Total Rg	23.11 Å
Atom count	1620
Residues	196
Excluded volume	28858 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2b1y__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	hypothetical protein Atu1913
Molecular weight formula_weight	11847.0 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	918

MARPNFRYTHYDLKELRAGTTLEISLSSVNNVRLMTGANFQRFTELLDFKYLGGVAKKSPIRIAVPETMHWHLIIDAEGHSGLAESSVKMLPAQPQATLTRKAS

Source Source

Source organism organism	Agrobacterium tumefaciens str.
NCBI taxonomy ID ncbi_taxonomy_id	176299
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	71

▼

6. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d2b1ya1
Class class	b — All beta proteins
Fold Fold fold	b.156 — Atu1913-like
Superfamily Superfamily superfamily	b.156.1 — Atu1913-like
Family Family family	b.156.1.1 — Atu1913-like

CATH v4.4 (1 domains)

Domain ID domain_id	2b1yA00
Class class	4 — Few Secondary Structures
Architecture architecture	10 — Irregular
Topology topology	1210 — Atu1913-like
Homologous superfamily homologous superfamily	10 — Atu1913-like

▶

Unit-cell length a length_a	40.428 Å
Unit-cell length b length_b	99.646 Å
Unit-cell length c length_c	55.827 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	C 2 2 21
Space-group number int_tables_number	20
Crystal system crystal_system	—

Resolution resolution	1.800 Å
Low-resolution limit resolution_low	49.810 Å
R factor r_factor	0.2129
R_work r_work	0.2125
R_free r_free	0.2207
