Crystal structure of naphthalene 1,2-dioxygenase from Rhodococcus sp. bound to indole

Method: X-RAY DIFFRACTION D_max: 108.7 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

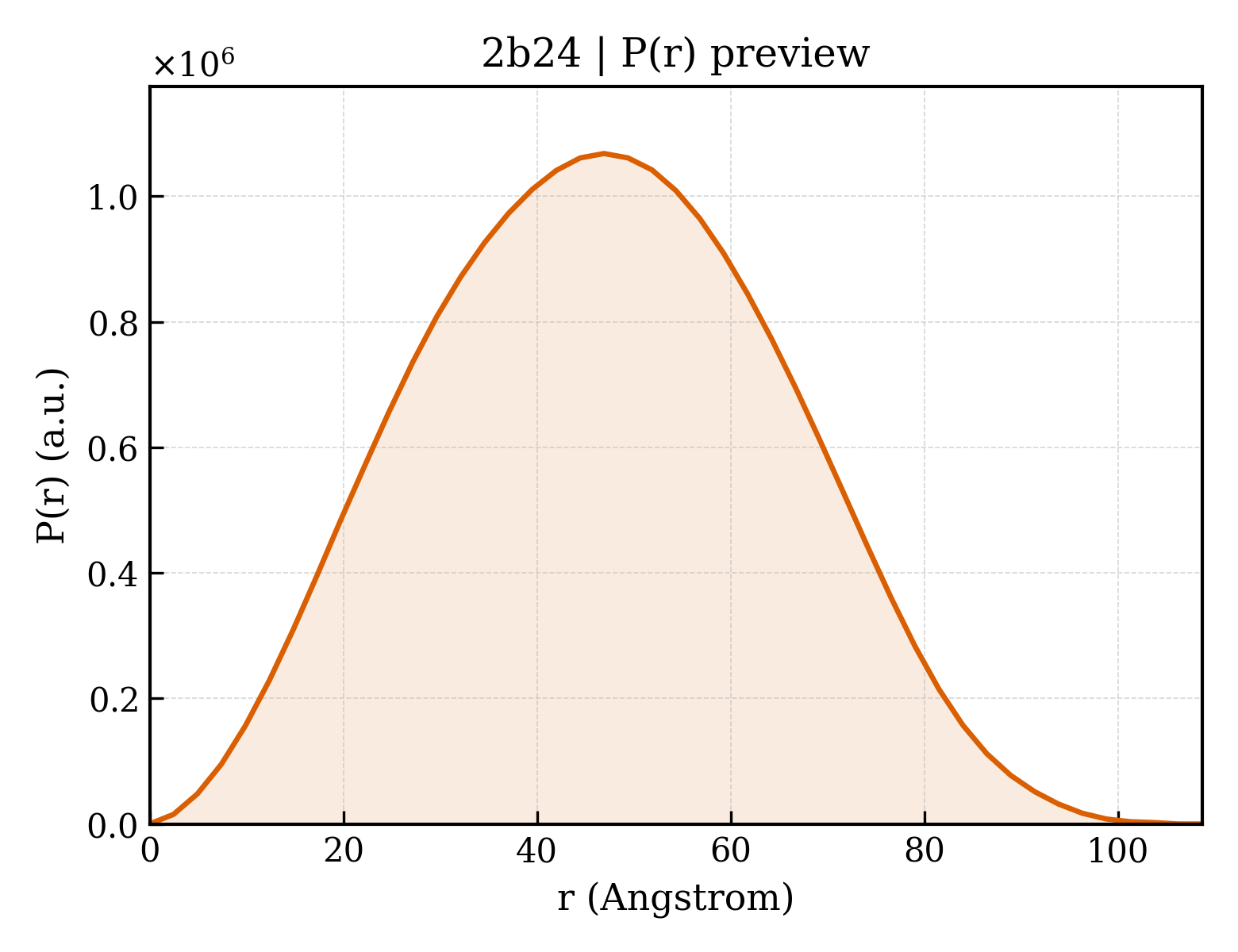

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	2b24
沉积日期 deposition_date	2005-09-16
结构标题 title	Crystal structure of naphthalene 1,2-dioxygenase from Rhodococcus sp. bound to indole
关键词 keywords	RIESKE NON-HEME IRON OXYGENASE, OXIDOREDUCTASE; OXIDOREDUCTASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	35.79 Å
回转半径 Rg (电子) rg_electron	34.92 Å
零角强度 I(0) i0	672147000.00
分子量 molecular_weight	206960.0 kDa
排除体积 excluded_volume	256690 Å³
包络体积 envelope_volume	307410 Å³
水化壳体积 shell_volume	68533 Å³
包络直径 envelope_diameter	110.8 Å
壳层 Rg shell_rg	44.53 Å
包络 Rg envelope_rg	34.91 Å
形状 Rg shape_rg	34.96 Å
总 Rg total_rg	35.36 Å
总原子数 total_atoms	14550
残基数 n_residues	1815
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	108.7 Å
Rg (实空间) rg_real	35.54 Å
Rg 误差 (实空间) rg_real_error	0.69 Å
I(0) (实空间) i0_real	6.7210e+08
I(0) 误差 (实空间) i0_real_error	1.0480e+07
Rg (倒空间) rg_reciprocal	35.70 Å
I(0) (倒空间) i0_reciprocal	672200000.0000
解质量估计 total_estimate	0.8280
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	46.9 Å
偏度 Skewness skewness	0.077
峰度 Kurtosis kurtosis	-0.550
角度范围 angular_range	— – 0.2200 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	269100000.0000
实空间数据点数 n_real_points	45
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.930; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.970; Smooth: 0.000

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (6)

Entity 1 polymer

描述 description	naphthalene dioxygenase large subunit
分子量 formula_weight	52580.9 kDa
EC 编号 ec_number	1.14.12.12
来源方法 src_method	nat
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,C,E
原子数 atom_count	14862

MLSNELRQTLQKGLHDVNSDWTVPAAIINDPEVHDVERERIFGHAWVFLAHESEIPERGDYVVRYISEDQFIVCRDEGGEIRGHLNACRHRGMQVCRAEMGNTSHFRCPYHGWTYSNTGSLVGVPAGKDAYGNQLKKSDWNLRPMPNLASYKGLIFGSLDPHADSLEDYLGDLKFYLDIVLDRSDAGLQVVGAPQRWVIDANWKLGADNFVGDAYHTMMTHRSMVELGLAPPDPQFALYGEHIHTGHGHGLGIIGPPPGMPLPEFMGLPENIVEELERRLTPEQVEIFRPTAFIHGTVFPNLSIGNFLMGKDHLSAPTAFLTLRLWHPLGPDKMEVMSFFLVEKDAPDWFKDESYKSYLRTFGISGGFEQDDAENWRSITRVMGGQFAKTGELNYQMGRGVLEPDPNWTGPGEAYPLDYAEANQRNFLEYWMQLMLAESPLRDGNSNGSGTADASTPAAAKSKSPAKAEA

Entity 2 polymer

描述 description	naphthalene dioxygenase small subunit
分子量 formula_weight	19836.4 kDa
EC 编号 ec_number	1.14.12.12
来源方法 src_method	nat
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B,D,F

MNTQTRVSDTTVREITEWLYMEAELLDAGKYREWLALVTEDLSYVVPIRVTREREAVTDVVEGMTHMDDDADSMEMRVLRLETEYAWAEDPPSRSRHFVTNVRVATGDSEDEFKVTSNLLLYRTRGDVATYDVLSGERTDVLRRAGDSFLMAKRVVLLDQTTIMTHNLALIM

Entity 3 non-polymer

描述 description	FE (III) ION
分子量 formula_weight	55.8 kDa
来源方法 src_method	syn
拷贝数 entity_count	3

Entity 4 non-polymer

描述 description	FE2/S2 (INORGANIC) CLUSTER
分子量 formula_weight	175.8 kDa
来源方法 src_method	syn
拷贝数 entity_count	3

Entity 5 non-polymer

描述 description	INDOLE
分子量 formula_weight	117.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	3

Entity 6 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	312

▼

6. 折叠分类 (SCOP + CATH) 18 domains

SCOP 2.08 (9 domains)

结构域编号 domain_id	d2b24a1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.33 — ISP domain
超家族 Superfamily superfamily	b.33.1 — ISP domain
家族 Family family	b.33.1.0 — automated matches

结构域编号 domain_id	d2b24a2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.129 — TBP-like
超家族 Superfamily superfamily	d.129.3 — Bet v1-like
家族 Family family	d.129.3.3 — Ring hydroxylating alpha subunit catalytic domain

结构域编号 domain_id	d2b24b_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.17 — Cystatin-like
超家族 Superfamily superfamily	d.17.4 — NTF2-like
家族 Family family	d.17.4.4 — Ring hydroxylating beta subunit

结构域编号 domain_id	d2b24c1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.33 — ISP domain
超家族 Superfamily superfamily	b.33.1 — ISP domain
家族 Family family	b.33.1.0 — automated matches

结构域编号 domain_id	d2b24c2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.129 — TBP-like
超家族 Superfamily superfamily	d.129.3 — Bet v1-like
家族 Family family	d.129.3.3 — Ring hydroxylating alpha subunit catalytic domain

结构域编号 domain_id	d2b24d_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.17 — Cystatin-like
超家族 Superfamily superfamily	d.17.4 — NTF2-like
家族 Family family	d.17.4.4 — Ring hydroxylating beta subunit

结构域编号 domain_id	d2b24e1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.33 — ISP domain
超家族 Superfamily superfamily	b.33.1 — ISP domain
家族 Family family	b.33.1.0 — automated matches

结构域编号 domain_id	d2b24e2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.129 — TBP-like
超家族 Superfamily superfamily	d.129.3 — Bet v1-like
家族 Family family	d.129.3.3 — Ring hydroxylating alpha subunit catalytic domain

结构域编号 domain_id	d2b24f_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.17 — Cystatin-like
超家族 Superfamily superfamily	d.17.4 — NTF2-like
家族 Family family	d.17.4.4 — Ring hydroxylating beta subunit

CATH v4.4 (9 domains)

结构域编号 domain_id	2b24A01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	380 — Naphthalene 1,2-dioxygenase Alpha Subunit; Chain A, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Naphthalene 1,2-dioxygenase Alpha Subunit; Chain A, domain 1

结构域编号 domain_id	2b24A02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	102 — 3-layer Sandwich
拓扑 Topology topology	10 — Rieske Iron-sulfur Protein
同源超家族 H-superfamily homologous superfamily	10 — Rieske [2Fe-2S] iron-sulphur domain

结构域编号 domain_id	2b24B00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	10 — Roll
拓扑 Topology topology	450 — Nuclear Transport Factor 2; Chain: A,
同源超家族 H-superfamily homologous superfamily	50 —

结构域编号 domain_id	2b24C01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	380 — Naphthalene 1,2-dioxygenase Alpha Subunit; Chain A, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Naphthalene 1,2-dioxygenase Alpha Subunit; Chain A, domain 1

结构域编号 domain_id	2b24C02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	102 — 3-layer Sandwich
拓扑 Topology topology	10 — Rieske Iron-sulfur Protein
同源超家族 H-superfamily homologous superfamily	10 — Rieske [2Fe-2S] iron-sulphur domain

结构域编号 domain_id	2b24D00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	10 — Roll
拓扑 Topology topology	450 — Nuclear Transport Factor 2; Chain: A,
同源超家族 H-superfamily homologous superfamily	50 —

结构域编号 domain_id	2b24E01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	380 — Naphthalene 1,2-dioxygenase Alpha Subunit; Chain A, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Naphthalene 1,2-dioxygenase Alpha Subunit; Chain A, domain 1

结构域编号 domain_id	2b24E02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	102 — 3-layer Sandwich
拓扑 Topology topology	10 — Rieske Iron-sulfur Protein
同源超家族 H-superfamily homologous superfamily	10 — Rieske [2Fe-2S] iron-sulphur domain

结构域编号 domain_id	2b24F00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	10 — Roll
拓扑 Topology topology	450 — Nuclear Transport Factor 2; Chain: A,
同源超家族 H-superfamily homologous superfamily	50 —

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	179.358 Å
晶胞边长 b length_b	179.358 Å
晶胞边长 c length_c	245.411 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	24

空间群 space_group	P 43 21 2
空间群编号 int_tables_number	96
晶系 crystal_system	—

分辨率 resolution	3.000 Å
最低分辨率 resolution_low	20.420 Å
R 因子 r_factor	0.2873
R_work r_work	0.2869
R_free r_free	0.2999
