2b43
Crystal structure of the Norwalk virus RNA dependent RNA polymerase from strain Hu/NLV/Dresden174/1997/GE
SAXS 散射曲线 SAXS Profile

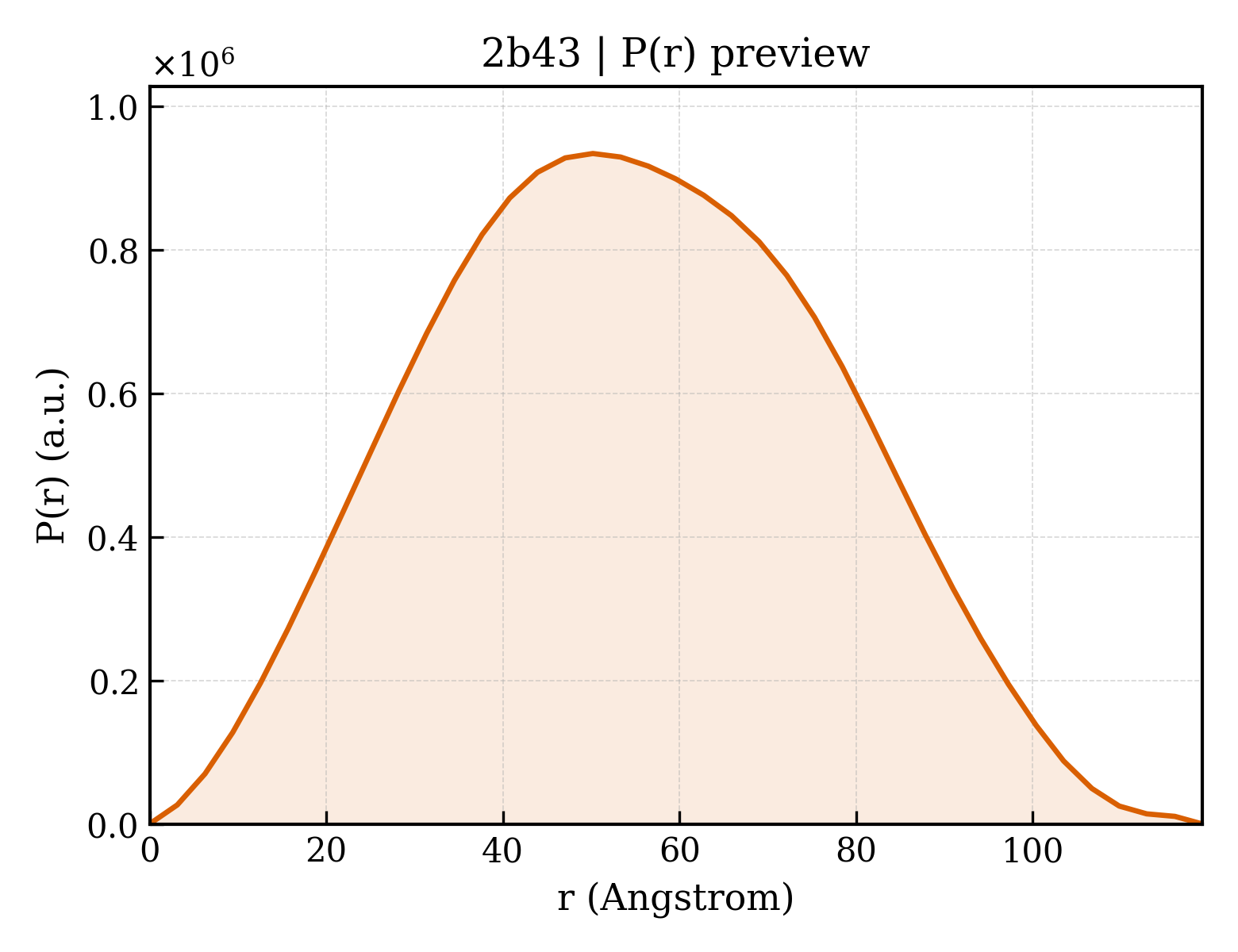

P(r) 距离分布 P(r) Distribution
1. 结构基本信息 1. Structure Basics
| 条目编号 entry_id | 2b43 |
| 沉积日期 deposition_date | 2005-09-22 |
| 结构标题 title | Crystal structure of the Norwalk virus RNA dependent RNA polymerase from strain Hu/NLV/Dresden174/1997/GE |
| 关键词 keywords | RNA, polymerase, Viral protein; VIRAL PROTEIN |
| 实验方法 method | X-RAY DIFFRACTION |
2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)
| 回转半径 Rg (Guinier) rg_guinier | 41.83 Å |
| 回转半径 Rg (电子) rg_electron | 41.43 Å |
| 零角强度 I(0) i0 | 727075000.00 |
| 分子量 molecular_weight | 223410.0 kDa |
| 排除体积 excluded_volume | 280290 ų |
| 包络体积 envelope_volume | 376030 ų |
| 水化壳体积 shell_volume | 73570 ų |
| 包络直径 envelope_diameter | 130.2 Å |
| 壳层 Rg shell_rg | 48.70 Å |
| 包络 Rg envelope_rg | 40.49 Å |
| 形状 Rg shape_rg | 41.38 Å |
| 总 Rg total_rg | 41.93 Å |
| 总原子数 total_atoms | 15716 |
| 残基数 n_residues | 2004 |
| 球谐函数阶数 n_harmonics | 20 |
| q 范围 q_range | — – 0.5000 Å−1 |
| 数据点数 n_points | 101 |
| 壳层类型 shell_type | directional |
| 溶剂电子密度 solvent_density | 0.3340 e/ų |
| 壳层衬度 contrast_shell | 0.0300 e/ų |
| CRYSOL 版本 crysol_version | 4.1.3 |
3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)
| 最大尺寸 Dmax dmax | 119.2 Å |
| Rg (实空间) rg_real | 41.62 Å |
| Rg 误差 (实空间) rg_real_error | 0.66 Å |
| I(0) (实空间) i0_real | 7.2710e+08 |
| I(0) 误差 (实空间) i0_real_error | 1.3210e+07 |
| Rg (倒空间) rg_reciprocal | 41.83 Å |
| I(0) (倒空间) i0_reciprocal | 727200000.0000 |
| 解质量估计 total_estimate | 0.8595 |
| 解质量评级 solution_quality | GOOD a GOOD solution |
| P(r) 峰数 n_peaks | 1 |
| 主峰位置 r_peak_primary | 50.2 Å |
| 偏度 Skewness skewness | 0.081 |
| 峰度 Kurtosis kurtosis | -0.626 |
| 角度范围 angular_range | — – 0.1900 Å−1 |
| 当前正则化参数 α current_alpha | 0.0000 |
| 最高正则化参数 α highest_alpha | 64500000.0000 |
| 实空间数据点数 n_real_points | 39 |
| GNOM 版本 gnom_version | 4.1.3 |
| 质量判据 quality_criteria | AN1: 0.000; Oscil: 0.994; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.996; Smooth: 0.191 |
4. 晶体学与实验 4. Crystallography & Experiment
5. 实体与聚合体信息 (2)
6. 折叠分类 (SCOP + CATH) 12 domains
CATH v4.4 (12 domains)
| 结构域编号 domain_id | 2b43A02 |
| 类 Class class | 6 — Special |
| 架构 Architecture architecture | 10 — Helix non-globular |
| 拓扑 Topology topology | 250 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces |
| 同源超家族 H-superfamily homologous superfamily | 3230 — |
| 结构域编号 domain_id | 2b43A03 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 30 — 2-Layer Sandwich |
| 拓扑 Topology topology | 70 — Alpha-Beta Plaits |
| 同源超家族 H-superfamily homologous superfamily | 270 — Reverse transcriptase/Diguanylate cyclase domain |
| 结构域编号 domain_id | 2b43A04 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 20 — Up-down Bundle |
| 拓扑 Topology topology | 960 — Mitochondrial Import Receptor Subunit Tom20; Chain A |
| 同源超家族 H-superfamily homologous superfamily | 20 — |
| 结构域编号 domain_id | 2b43B02 |
| 类 Class class | 6 — Special |
| 架构 Architecture architecture | 10 — Helix non-globular |
| 拓扑 Topology topology | 250 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces |
| 同源超家族 H-superfamily homologous superfamily | 3230 — |
| 结构域编号 domain_id | 2b43B03 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 30 — 2-Layer Sandwich |
| 拓扑 Topology topology | 70 — Alpha-Beta Plaits |
| 同源超家族 H-superfamily homologous superfamily | 270 — Reverse transcriptase/Diguanylate cyclase domain |
| 结构域编号 domain_id | 2b43B04 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 20 — Up-down Bundle |
| 拓扑 Topology topology | 960 — Mitochondrial Import Receptor Subunit Tom20; Chain A |
| 同源超家族 H-superfamily homologous superfamily | 20 — |
| 结构域编号 domain_id | 2b43C02 |
| 类 Class class | 6 — Special |
| 架构 Architecture architecture | 10 — Helix non-globular |
| 拓扑 Topology topology | 250 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces |
| 同源超家族 H-superfamily homologous superfamily | 3230 — |
| 结构域编号 domain_id | 2b43C03 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 30 — 2-Layer Sandwich |
| 拓扑 Topology topology | 70 — Alpha-Beta Plaits |
| 同源超家族 H-superfamily homologous superfamily | 270 — Reverse transcriptase/Diguanylate cyclase domain |
| 结构域编号 domain_id | 2b43C04 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 20 — Up-down Bundle |
| 拓扑 Topology topology | 960 — Mitochondrial Import Receptor Subunit Tom20; Chain A |
| 同源超家族 H-superfamily homologous superfamily | 20 — |
| 结构域编号 domain_id | 2b43D02 |
| 类 Class class | 6 — Special |
| 架构 Architecture architecture | 10 — Helix non-globular |
| 拓扑 Topology topology | 250 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces |
| 同源超家族 H-superfamily homologous superfamily | 3230 — |
| 结构域编号 domain_id | 2b43D03 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 30 — 2-Layer Sandwich |
| 拓扑 Topology topology | 70 — Alpha-Beta Plaits |
| 同源超家族 H-superfamily homologous superfamily | 270 — Reverse transcriptase/Diguanylate cyclase domain |
| 结构域编号 domain_id | 2b43D04 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 20 — Up-down Bundle |
| 拓扑 Topology topology | 960 — Mitochondrial Import Receptor Subunit Tom20; Chain A |
| 同源超家族 H-superfamily homologous superfamily | 20 — |
