Leishmania major
| Assembly | Physical composition | Protein state | Molecular copy count | Associated components | Data consistency |
|---|---|---|---|---|---|
| 1 | Protein monomer | Monomer | Protein 1 | water × 1 | Consistent with protein count |
| UniProt name | Q4QH86_LEIMA |
| Isoform | — |
| PDB entities | 1 |
| Chains and sequence ranges | Author chain A； PDBConstruct 1–315； UniProt 1–315 |
The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.
| Entry ID entry_id | 2b4w |
| Deposition date deposition_date | 2005-09-26 |
| Structure title title | Hypothetical protein from leishmania major |
| Keywords keywords | ;STRUCTURAL GENOMICS, PSI, Protein Structure Initiative, Structural Genomics of Pathogenic Protozoa Consortium, SGPP, UNKNOWN FUNCTION ;; STRUCTURAL GENOMICS, UNKNOWN FUNCTION |
| Experimental Method method | X-RAY DIFFRACTION |
This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

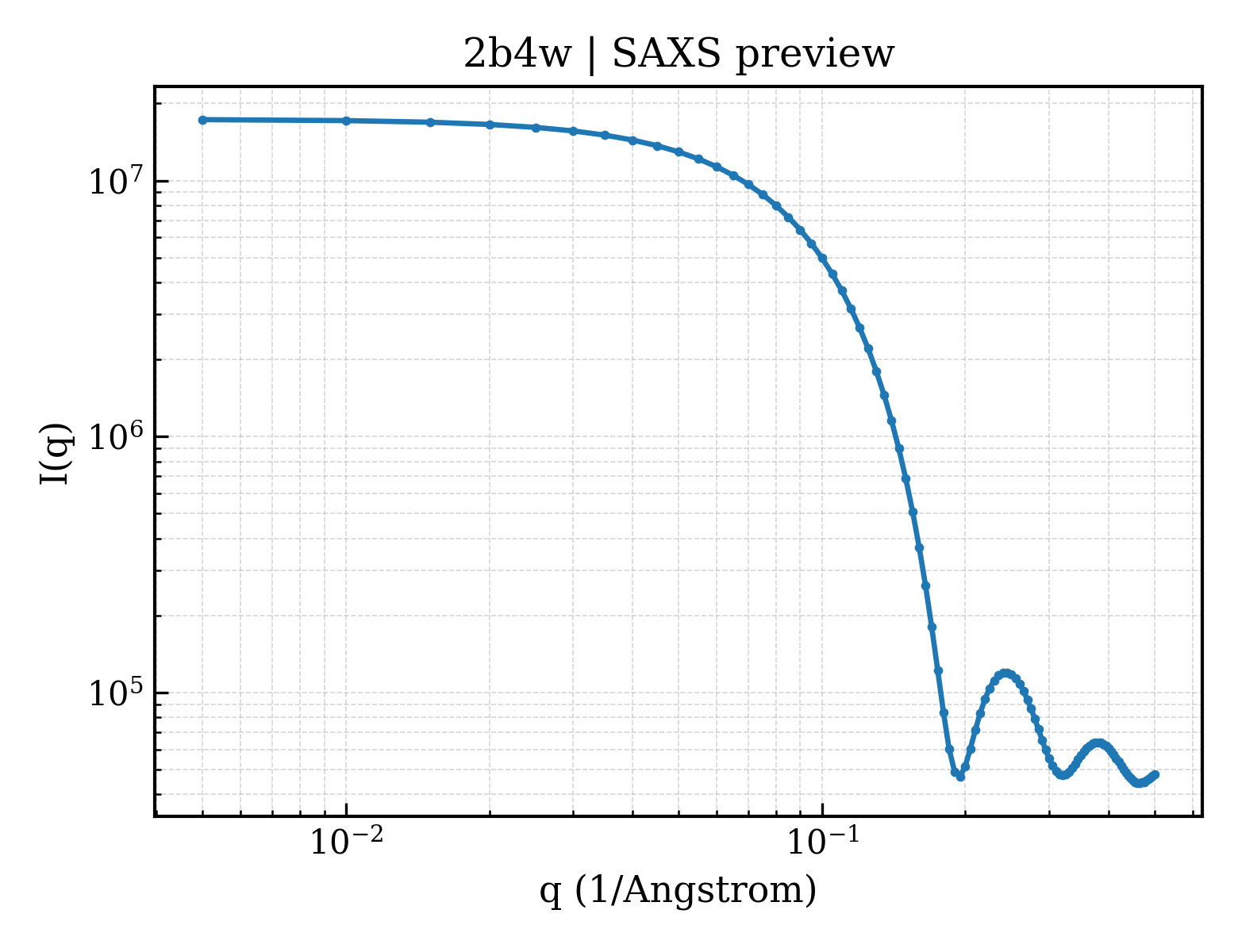

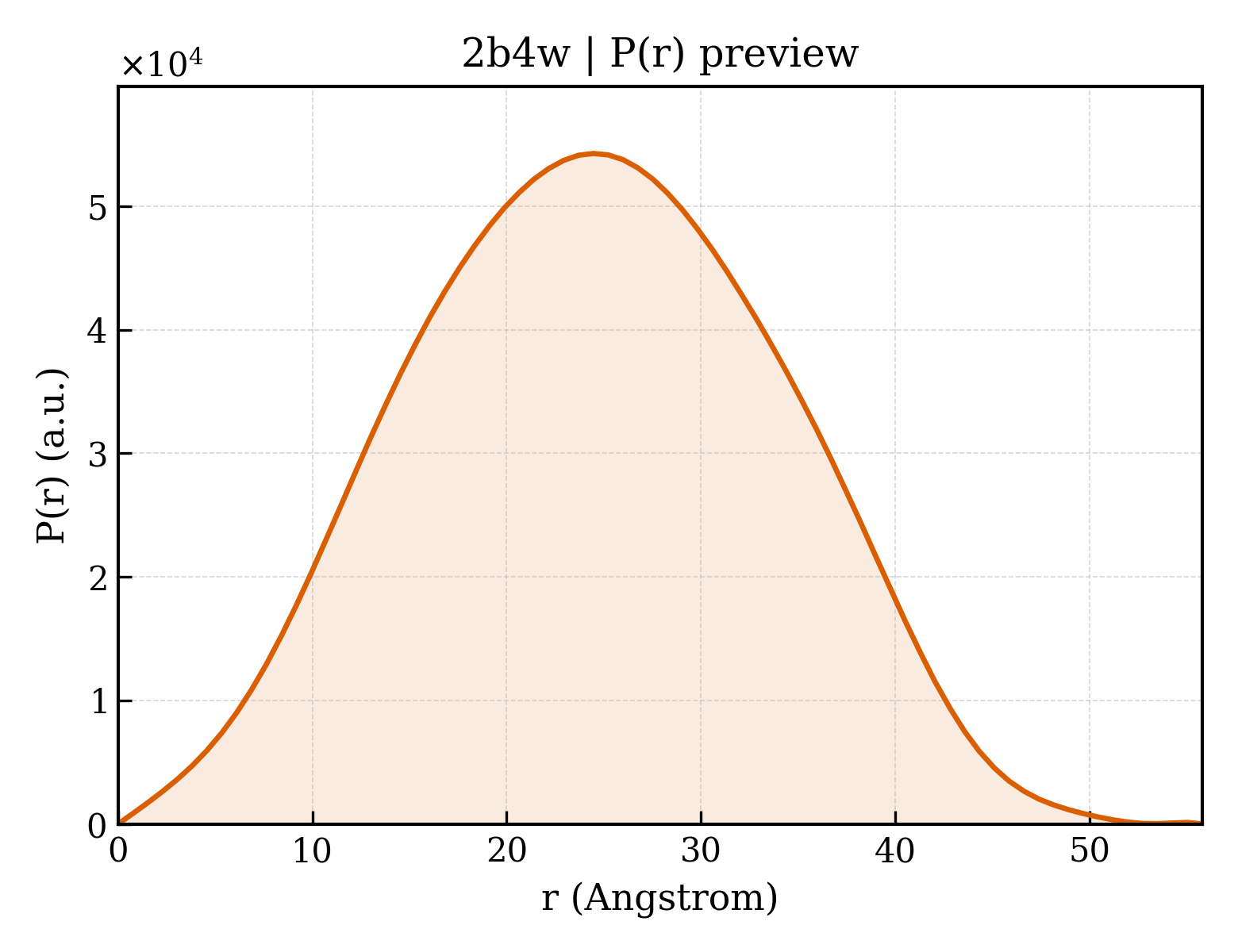

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)
| Rg（Guinier） | 18.75 Å |
| Rg (electron density) | 17.50 Å |
| Total Rg | 18.56 Å |
| Atom count | 2250 |
| Residues | 288 |
| Excluded volume | 40149 ų |
| Maximum q | 0.500 Å⁻¹ |
| Domain ID domain_id | d2b4wa1 |
| Class class | b — All beta proteins |
| Fold Fold fold | b.67 — 5-bladed beta-propeller |
| Superfamily Superfamily superfamily | b.67.2 — Arabinanase/levansucrase/invertase |
| Family Family family | b.67.2.5 — LmjF10.1260-like |
| Domain ID domain_id | 2b4wA00 |
| Class class | 2 — Mainly Beta |
| Architecture architecture | 115 — 5 Propeller |
| Topology topology | 10 — Tachylectin-2; Chain A |
| Homologous superfamily homologous superfamily | 20 — Glycosyl hydrolase domain; family 43 |
