SAXSdb — 2b6c

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

hypothetical protein EF3068

Enterococcus faecalis

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	SULFATE ION × 5 CHLORIDE ION × 1 BETA-MERCAPTOETHANOL × 2 GLYCEROL × 4 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q82ZI8_ENTFA
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 4–220； UniProt 1–217 Author chain B； PDBConstruct 4–220； UniProt 1–217

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2b6c
Deposition date deposition_date	2005-09-30
Structure title title	Predicted DNA alkylation repair enzyme from Enterococcus faecalis.
Keywords keywords	;structural genomis, DNA repair enzyme, Structural Genomics, PSI, Protein Structure Initiative, Midwest Center for Structural Genomics, MCSG, UNKNOWN FUNCTION ;; STRUCTURAL GENOMICS, UNKNOWN FUNCTION
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2b6c__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

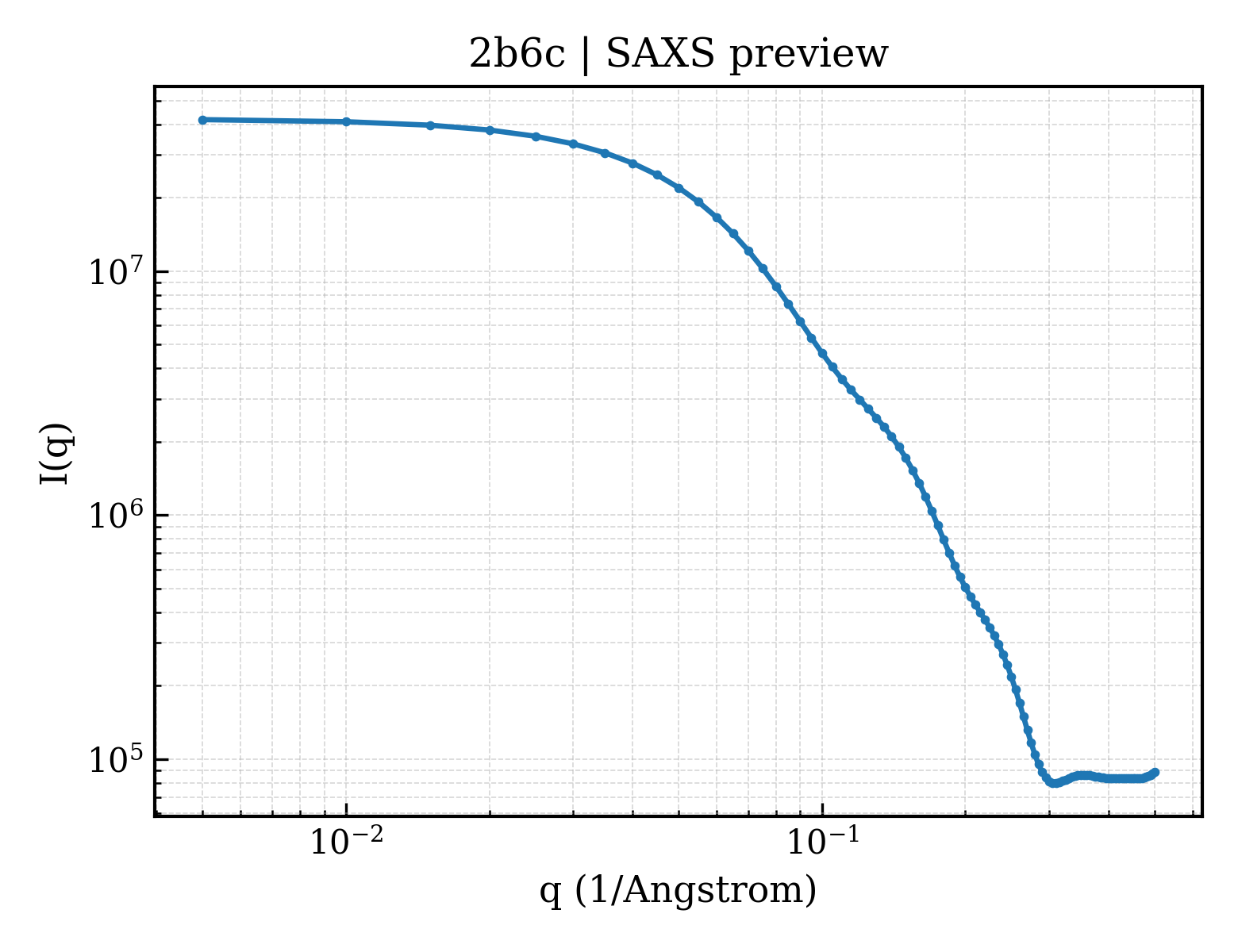

2b6c__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

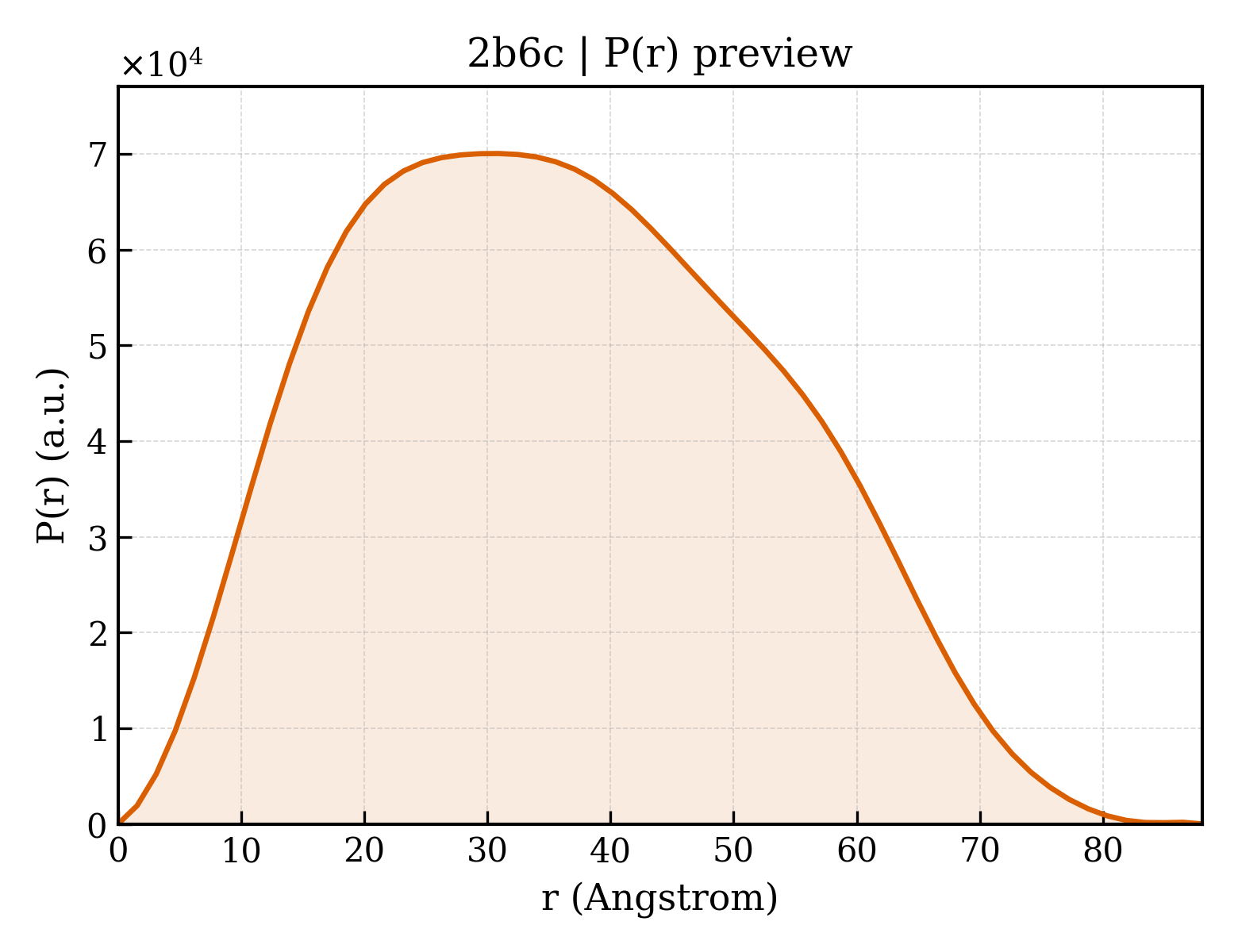

2b6c__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	27.97 Å
Rg (electron density)	27.11 Å
Total Rg	27.95 Å
Atom count	3634
Residues	420
Excluded volume	65364 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2b6c__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	hypothetical protein EF3068
Molecular weight formula_weight	26140.2 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	4098

SNAMDTLQFQKNPETAAKMSAYMKHQFVFAGIPAPERQALSKQLLKESHTWPKEKLCQEIEAYYQKTEREYQYVAIDLALQNVQRFSLEEVVAFKAYVPQKAWWDSVDAWRKFFGSWVALHLTELPTIFALFYGAENFWNRRVALNLQLMLKEKTNQDLLKKAIIYDRTTEEFFIQKAIGWSLRQYSKTNPQWVEELMKELVLSPLAQREGSKYLAKASE

Source Source

Source organism organism	Enterococcus faecalis
NCBI taxonomy ID ncbi_taxonomy_id	1351
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	5

Entity 3 Entity 3 non-polymer

Description description	CHLORIDE ION
Molecular weight formula_weight	35.5 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	BETA-MERCAPTOETHANOL
Molecular weight formula_weight	78.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 5 Entity 5 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 6 Entity 6 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	305

▼

6. Fold Classification (SCOP + CATH) 6 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d2b6ca1
Class class	a — All alpha proteins
Fold Fold fold	a.118 — alpha-alpha superhelix
Superfamily Superfamily superfamily	a.118.1 — ARM repeat
Family Family family	a.118.1.17 — BC3264-like

Domain ID domain_id	d2b6cb_
Class class	a — All alpha proteins
Fold Fold fold	a.118 — alpha-alpha superhelix
Superfamily Superfamily superfamily	a.118.1 — ARM repeat
Family Family family	a.118.1.17 — BC3264-like

CATH v4.4 (4 domains)

Domain ID domain_id	2b6cA01
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1660 — ARM repeat fold
Homologous superfamily homologous superfamily	10 — Hypothetical protein (EF3068)

Domain ID domain_id	2b6cA02
Class class	1 — Mainly Alpha
Architecture architecture	25 — Alpha Horseshoe
Topology topology	40 — Serine Threonine Protein Phosphatase 5, Tetratricopeptide repeat
Homologous superfamily homologous superfamily	290 — ARM repeat domains

Domain ID domain_id	2b6cB01
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1660 — ARM repeat fold
Homologous superfamily homologous superfamily	10 — Hypothetical protein (EF3068)

Domain ID domain_id	2b6cB02
Class class	1 — Mainly Alpha
Architecture architecture	25 — Alpha Horseshoe
Topology topology	40 — Serine Threonine Protein Phosphatase 5, Tetratricopeptide repeat
Homologous superfamily homologous superfamily	290 — ARM repeat domains

▶

Unit-cell length a length_a	155.714 Å
Unit-cell length b length_b	155.714 Å
Unit-cell length c length_c	46.287 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	P 65
Space-group number int_tables_number	170
Crystal system crystal_system	—

Resolution resolution	2.100 Å
Low-resolution limit resolution_low	40.000 Å
R factor r_factor	0.1600
R_work r_work	0.1583
R_free r_free	0.2016
