2b8e
CopA ATP Binding Domain
SAXS 散射曲线 SAXS Profile

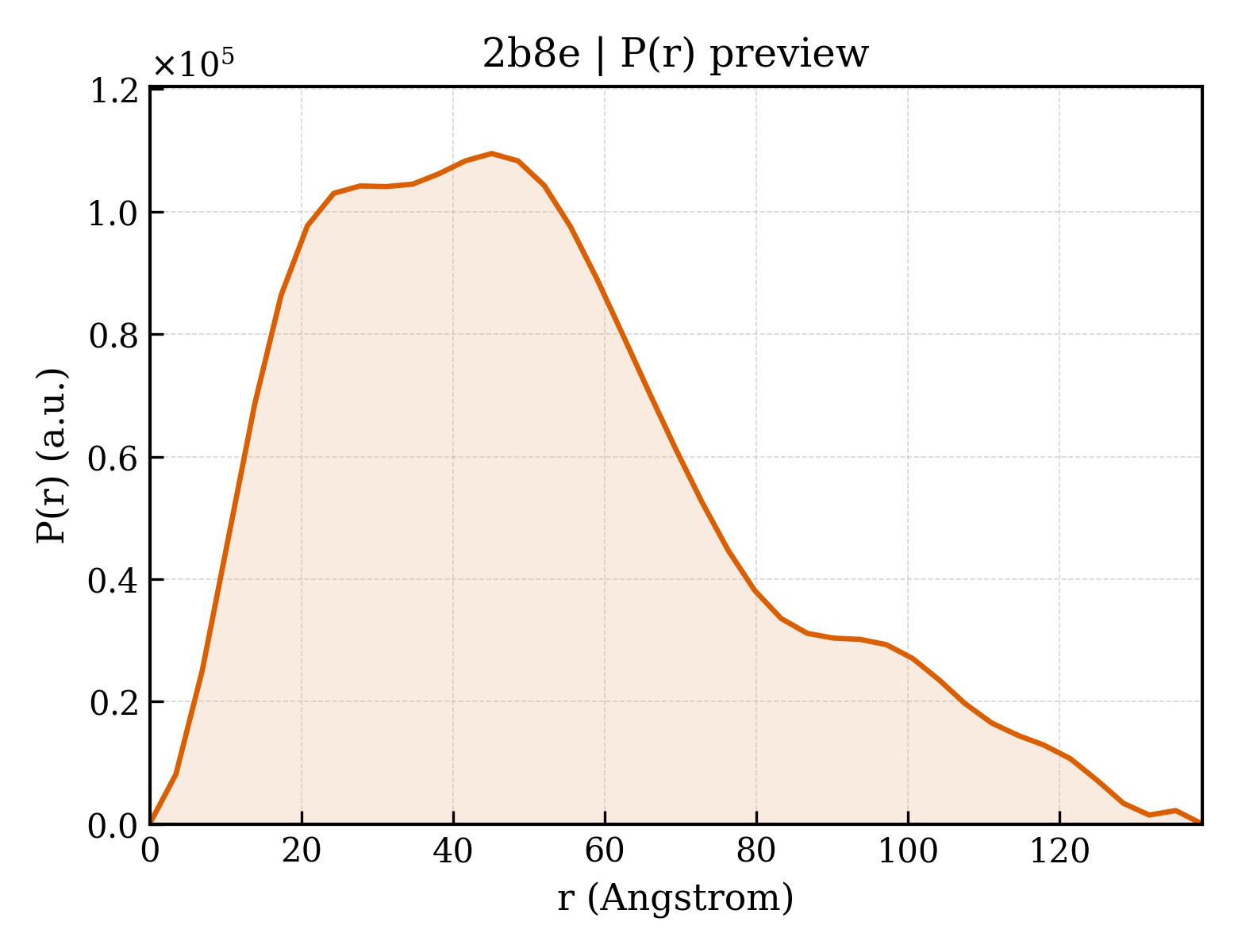

P(r) 距离分布 P(r) Distribution
1. 结构基本信息 1. Structure Basics
| 条目编号 entry_id | 2b8e |
| 沉积日期 deposition_date | 2005-10-06 |
| 结构标题 title | CopA ATP Binding Domain |
| 关键词 keywords | ATP binding domain, copper transport, membrane protein, CopA, ATPase, heavy metal ATPase; MEMBRANE PROTEIN |
| 实验方法 method | X-RAY DIFFRACTION |
2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)
| 回转半径 Rg (Guinier) rg_guinier | 39.38 Å |
| 回转半径 Rg (电子) rg_electron | 40.24 Å |
| 零角强度 I(0) i0 | 92059500.00 |
| 分子量 molecular_weight | 77170.0 kDa |
| 排除体积 excluded_volume | 96836 ų |
| 包络体积 envelope_volume | 134990 ų |
| 水化壳体积 shell_volume | 32656 ų |
| 包络直径 envelope_diameter | 147.4 Å |
| 壳层 Rg shell_rg | 38.38 Å |
| 包络 Rg envelope_rg | 39.98 Å |
| 形状 Rg shape_rg | 40.26 Å |
| 总 Rg total_rg | 40.05 Å |
| 总原子数 total_atoms | 5393 |
| 残基数 n_residues | 731 |
| 球谐函数阶数 n_harmonics | 20 |
| q 范围 q_range | — – 0.5000 Å−1 |
| 数据点数 n_points | 101 |
| 壳层类型 shell_type | directional |
| 溶剂电子密度 solvent_density | 0.3340 e/ų |
| 壳层衬度 contrast_shell | 0.0300 e/ų |
| CRYSOL 版本 crysol_version | 4.1.3 |
3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)
| 最大尺寸 Dmax dmax | 138.8 Å |
| Rg (实空间) rg_real | 40.23 Å |
| Rg 误差 (实空间) rg_real_error | 1.60 Å |
| I(0) (实空间) i0_real | 9.2060e+07 |
| I(0) 误差 (实空间) i0_real_error | 1.5810e+06 |
| Rg (倒空间) rg_reciprocal | 39.70 Å |
| I(0) (倒空间) i0_reciprocal | 92010000.0000 |
| 解质量估计 total_estimate | 0.7262 |
| 解质量评级 solution_quality | REASONABLE a REASONABLE solution |
| P(r) 峰数 n_peaks | 3 |
| 主峰位置 r_peak_primary | 45.1 Å |
| 偏度 Skewness skewness | 0.676 |
| 峰度 Kurtosis kurtosis | -0.080 |
| 角度范围 angular_range | — – 0.2000 Å−1 |
| 当前正则化参数 α current_alpha | 0.0000 |
| 最高正则化参数 α highest_alpha | 6094000.0000 |
| 实空间数据点数 n_real_points | 41 |
| GNOM 版本 gnom_version | 4.1.3 |
| 质量判据 quality_criteria | AN1: 0.000; Oscil: 0.598; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.493; Smooth: 0.149 |
4. 晶体学与实验 4. Crystallography & Experiment
5. 实体与聚合体信息 (2)
6. 折叠分类 (SCOP + CATH) 12 domains
SCOP 2.08 (6 domains)
| 结构域编号 domain_id | d2b8ea1 |
| 类 Class class | c — Alpha and beta proteins (a/b) |
| 折叠类型 Fold fold | c.108 — HAD-like |
| 超家族 Superfamily superfamily | c.108.1 — HAD-like |
| 家族 Family family | c.108.1.7 — Meta-cation ATPase, catalytic domain P |
| 结构域编号 domain_id | d2b8ea2 |
| 类 Class class | d — Alpha and beta proteins (a+b) |
| 折叠类型 Fold fold | d.220 — Metal cation-transporting ATPase, ATP-binding domain N |
| 超家族 Superfamily superfamily | d.220.1 — Metal cation-transporting ATPase, ATP-binding domain N |
| 家族 Family family | d.220.1.1 — Metal cation-transporting ATPase, ATP-binding domain N |
| 结构域编号 domain_id | d2b8eb1 |
| 类 Class class | c — Alpha and beta proteins (a/b) |
| 折叠类型 Fold fold | c.108 — HAD-like |
| 超家族 Superfamily superfamily | c.108.1 — HAD-like |
| 家族 Family family | c.108.1.7 — Meta-cation ATPase, catalytic domain P |
| 结构域编号 domain_id | d2b8eb2 |
| 类 Class class | d — Alpha and beta proteins (a+b) |
| 折叠类型 Fold fold | d.220 — Metal cation-transporting ATPase, ATP-binding domain N |
| 超家族 Superfamily superfamily | d.220.1 — Metal cation-transporting ATPase, ATP-binding domain N |
| 家族 Family family | d.220.1.1 — Metal cation-transporting ATPase, ATP-binding domain N |
| 结构域编号 domain_id | d2b8ec1 |
| 类 Class class | c — Alpha and beta proteins (a/b) |
| 折叠类型 Fold fold | c.108 — HAD-like |
| 超家族 Superfamily superfamily | c.108.1 — HAD-like |
| 家族 Family family | c.108.1.7 — Meta-cation ATPase, catalytic domain P |
| 结构域编号 domain_id | d2b8ec2 |
| 类 Class class | d — Alpha and beta proteins (a+b) |
| 折叠类型 Fold fold | d.220 — Metal cation-transporting ATPase, ATP-binding domain N |
| 超家族 Superfamily superfamily | d.220.1 — Metal cation-transporting ATPase, ATP-binding domain N |
| 家族 Family family | d.220.1.1 — Metal cation-transporting ATPase, ATP-binding domain N |
CATH v4.4 (6 domains)
| 结构域编号 domain_id | 2b8eA01 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| 拓扑 Topology topology | 50 — Rossmann fold |
| 同源超家族 H-superfamily homologous superfamily | 1000 — HAD superfamily/HAD-like |
| 结构域编号 domain_id | 2b8eA02 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| 拓扑 Topology topology | 1110 — Calcium-transporting ATPase, cytoplasmic domain N |
| 同源超家族 H-superfamily homologous superfamily | 10 — Calcium-transporting ATPase, cytoplasmic domain N |
| 结构域编号 domain_id | 2b8eB01 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| 拓扑 Topology topology | 50 — Rossmann fold |
| 同源超家族 H-superfamily homologous superfamily | 1000 — HAD superfamily/HAD-like |
| 结构域编号 domain_id | 2b8eB02 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| 拓扑 Topology topology | 1110 — Calcium-transporting ATPase, cytoplasmic domain N |
| 同源超家族 H-superfamily homologous superfamily | 10 — Calcium-transporting ATPase, cytoplasmic domain N |
| 结构域编号 domain_id | 2b8eC01 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| 拓扑 Topology topology | 50 — Rossmann fold |
| 同源超家族 H-superfamily homologous superfamily | 1000 — HAD superfamily/HAD-like |
| 结构域编号 domain_id | 2b8eC02 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| 拓扑 Topology topology | 1110 — Calcium-transporting ATPase, cytoplasmic domain N |
| 同源超家族 H-superfamily homologous superfamily | 10 — Calcium-transporting ATPase, cytoplasmic domain N |
