2b9v

Acetobacter turbidans alpha-amino acid ester hydrolase

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Alpha-amino acid ester hydrolase

Acetobacter pasteurianus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 4	water × 4	Consistent with protein count
2	Protein homooligomer	Homooligomer	Protein 4	water × 4	Consistent with protein count
3	Protein homooligomer	Homooligomer	Protein 4	water × 4	Consistent with protein count
4	Protein homooligomer	Homooligomer	Protein 4	water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q8VRK8_ACEPA
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–627； UniProt 41–667 Author chain B； PDBConstruct 1–627； UniProt 41–667 Author chain C； PDBConstruct 1–627； UniProt 41–667 Author chain D； PDBConstruct 1–627； UniProt 41–667 Author chain E； PDBConstruct 1–627； UniProt 41–667 Author chain F； PDBConstruct 1–627； UniProt 41–667 Author chain G； PDBConstruct 1–627； UniProt 41–667 Author chain H； PDBConstruct 1–627； UniProt 41–667 Author chain I； PDBConstruct 1–627； UniProt 41–667 Author chain J； PDBConstruct 1–627； UniProt 41–667 Author chain K； PDBConstruct 1–627； UniProt 41–667 Author chain L； PDBConstruct 1–627； UniProt 41–667 Author chain M； PDBConstruct 1–627； UniProt 41–667 Author chain N； PDBConstruct 1–627； UniProt 41–667 Author chain O； PDBConstruct 1–627； UniProt 41–667 Author chain P； PDBConstruct 1–627； UniProt 41–667

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2b9v
Deposition date deposition_date	2005-10-13
Structure title title	Acetobacter turbidans alpha-amino acid ester hydrolase
Keywords keywords	catalytic triad, alpha/beta-hydrolase, hydrolase; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2b9v__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2b9v__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

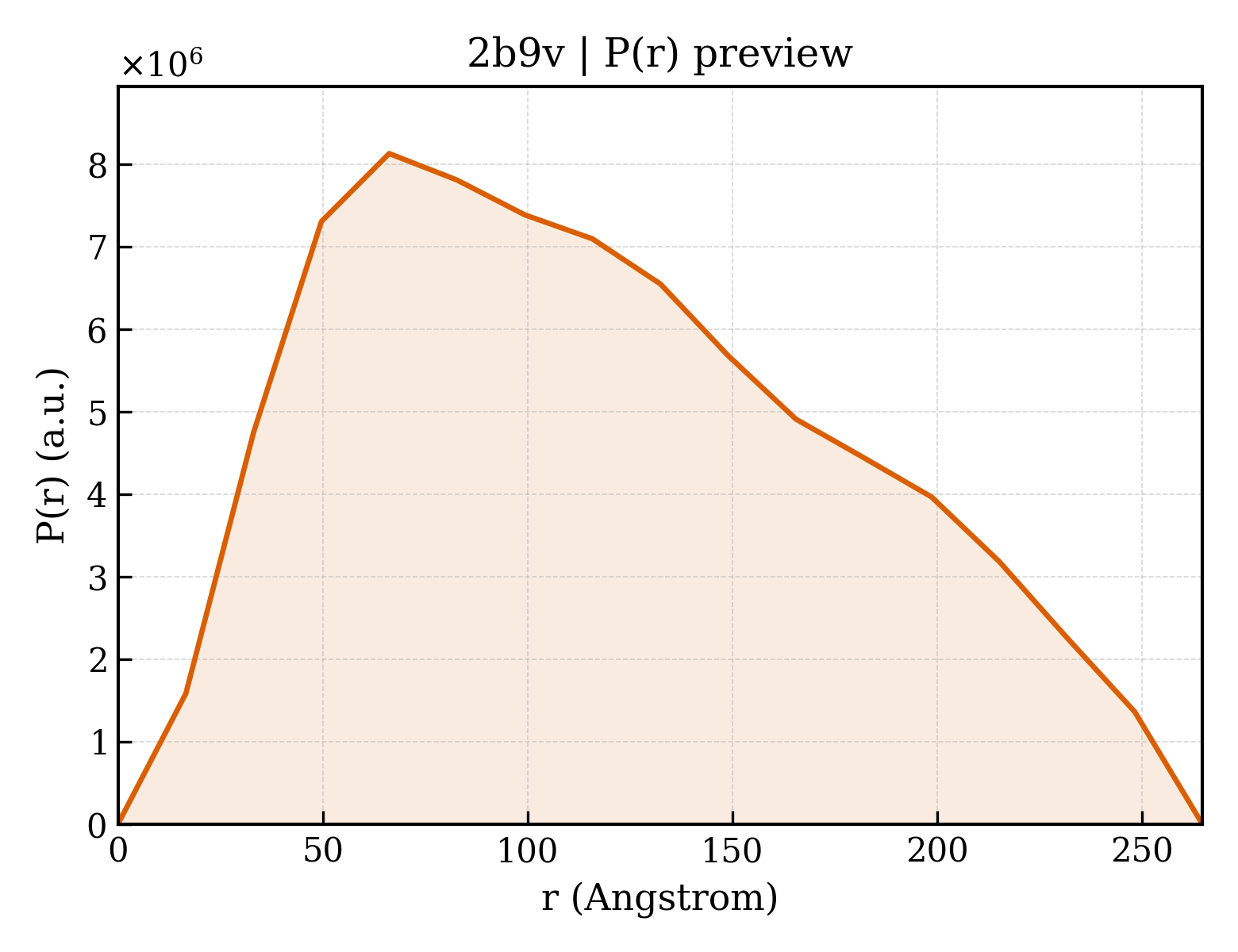

2b9v__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	40.21 Å
Rg (electron density)	39.42 Å
Total Rg	39.95 Å
Atom count	19264
Residues	2432
Excluded volume	339180 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2b9v__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`2b9v__assembly_2__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download
3	1	`2b9v__assembly_3__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download
4	1	`2b9v__assembly_4__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Description description	Alpha-amino acid ester hydrolase
Molecular weight formula_weight	72947.5 kDa
Source method src_method	man
Copy count entity_count	16

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E,F,G,H,I,J,K,L,M,N,O,P
Atom count atom_count	80710

APAADAAQAHDPLSVQTGSDIPASVHMPTDQQRDYIKREVMVPMRDGVKLYTVIVIPKNARNAPILLTRTPYNAKGRANRVPNALTMREVLPQGDDVFVEGGYIRVFQDIRGKYGSQGDYVMTRPPHGPLNPTKTDETTDAWDTVDWLVHNVPESNGRVGMTGSSYEGFTVVMALLDPHPALKVAAPESPMVDGWMGDDWFHYGAFRQGAFDYFVSQMTARGGGNDIPRRDADDYTNFLKAGSAGSFATQAGLDQYPFWQRMHAHPAYDAFWQGQALDKILAQRKPTVPMLWEQGLWDQEDMWGAIHAWQALKDADVKAPNTLVMGPWRHSGVNYNGSTLGPLEFEGDTAHQYRRDVFRPFFDEYLKPGSASVHLPDAIIYNTGDQKWDYYRSWPSVCESNCTGGLTPLYLADGHGLSFTHPAADGADSYVSDPAHPVPFISRPFAFAQSSRWKPWLVQDQREAESRPDVVTYETEVLDEPVRVSGVPVADLFAATSGTDSDWVVKLIDVQPAMTPDDPKMGGYELPVSMDIFRGRYRKDFAKPEALQPDATLHYHFTLPAVNHVFAKGHRIMVQIQSSWFPLYDRNPQKFVPNIFDAKPADYTVATQSIHHGGKEATSILLPVVKQKLGPEQKLISEEDLNSAVDHHHHHH

Source Source

Source organism organism	Acetobacter pasteurianus
NCBI taxonomy ID ncbi_taxonomy_id	438
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	3654

▼

6. Fold Classification (SCOP + CATH) 80 domains

SCOP 2.08 (32 domains)

Domain ID domain_id	d2b9va1
Class class	b — All beta proteins
Fold Fold fold	b.18 — Galactose-binding domain-like
Superfamily Superfamily superfamily	b.18.1 — Galactose-binding domain-like
Family Family family	b.18.1.13 — PepX C-terminal domain-like

Domain ID domain_id	d2b9va2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.69 — alpha/beta-Hydrolases
Superfamily Superfamily superfamily	c.69.1 — alpha/beta-Hydrolases
Family Family family	c.69.1.21 — PepX catalytic domain-like

Domain ID domain_id	d2b9vb1
Class class	b — All beta proteins
Fold Fold fold	b.18 — Galactose-binding domain-like
Superfamily Superfamily superfamily	b.18.1 — Galactose-binding domain-like
Family Family family	b.18.1.13 — PepX C-terminal domain-like

Domain ID domain_id	d2b9vb2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.69 — alpha/beta-Hydrolases
Superfamily Superfamily superfamily	c.69.1 — alpha/beta-Hydrolases
Family Family family	c.69.1.21 — PepX catalytic domain-like

Domain ID domain_id	d2b9vc1
Class class	b — All beta proteins
Fold Fold fold	b.18 — Galactose-binding domain-like
Superfamily Superfamily superfamily	b.18.1 — Galactose-binding domain-like
Family Family family	b.18.1.13 — PepX C-terminal domain-like

Domain ID domain_id	d2b9vc2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.69 — alpha/beta-Hydrolases
Superfamily Superfamily superfamily	c.69.1 — alpha/beta-Hydrolases
Family Family family	c.69.1.21 — PepX catalytic domain-like

Domain ID domain_id	d2b9vd1
Class class	b — All beta proteins
Fold Fold fold	b.18 — Galactose-binding domain-like
Superfamily Superfamily superfamily	b.18.1 — Galactose-binding domain-like
Family Family family	b.18.1.13 — PepX C-terminal domain-like

Domain ID domain_id	d2b9vd2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.69 — alpha/beta-Hydrolases
Superfamily Superfamily superfamily	c.69.1 — alpha/beta-Hydrolases
Family Family family	c.69.1.21 — PepX catalytic domain-like

Domain ID domain_id	d2b9ve1
Class class	b — All beta proteins
Fold Fold fold	b.18 — Galactose-binding domain-like
Superfamily Superfamily superfamily	b.18.1 — Galactose-binding domain-like
Family Family family	b.18.1.13 — PepX C-terminal domain-like

Domain ID domain_id	d2b9ve2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.69 — alpha/beta-Hydrolases
Superfamily Superfamily superfamily	c.69.1 — alpha/beta-Hydrolases
Family Family family	c.69.1.21 — PepX catalytic domain-like

Domain ID domain_id	d2b9vf1
Class class	b — All beta proteins
Fold Fold fold	b.18 — Galactose-binding domain-like
Superfamily Superfamily superfamily	b.18.1 — Galactose-binding domain-like
Family Family family	b.18.1.13 — PepX C-terminal domain-like

Domain ID domain_id	d2b9vf2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.69 — alpha/beta-Hydrolases
Superfamily Superfamily superfamily	c.69.1 — alpha/beta-Hydrolases
Family Family family	c.69.1.21 — PepX catalytic domain-like

Domain ID domain_id	d2b9vg1
Class class	b — All beta proteins
Fold Fold fold	b.18 — Galactose-binding domain-like
Superfamily Superfamily superfamily	b.18.1 — Galactose-binding domain-like
Family Family family	b.18.1.13 — PepX C-terminal domain-like

Domain ID domain_id	d2b9vg2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.69 — alpha/beta-Hydrolases
Superfamily Superfamily superfamily	c.69.1 — alpha/beta-Hydrolases
Family Family family	c.69.1.21 — PepX catalytic domain-like

Domain ID domain_id	d2b9vh1
Class class	b — All beta proteins
Fold Fold fold	b.18 — Galactose-binding domain-like
Superfamily Superfamily superfamily	b.18.1 — Galactose-binding domain-like
Family Family family	b.18.1.13 — PepX C-terminal domain-like

Domain ID domain_id	d2b9vh2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.69 — alpha/beta-Hydrolases
Superfamily Superfamily superfamily	c.69.1 — alpha/beta-Hydrolases
Family Family family	c.69.1.21 — PepX catalytic domain-like

Domain ID domain_id	d2b9vi1
Class class	b — All beta proteins
Fold Fold fold	b.18 — Galactose-binding domain-like
Superfamily Superfamily superfamily	b.18.1 — Galactose-binding domain-like
Family Family family	b.18.1.13 — PepX C-terminal domain-like

Domain ID domain_id	d2b9vi2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.69 — alpha/beta-Hydrolases
Superfamily Superfamily superfamily	c.69.1 — alpha/beta-Hydrolases
Family Family family	c.69.1.21 — PepX catalytic domain-like

Domain ID domain_id	d2b9vj1
Class class	b — All beta proteins
Fold Fold fold	b.18 — Galactose-binding domain-like
Superfamily Superfamily superfamily	b.18.1 — Galactose-binding domain-like
Family Family family	b.18.1.13 — PepX C-terminal domain-like

Domain ID domain_id	d2b9vj2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.69 — alpha/beta-Hydrolases
Superfamily Superfamily superfamily	c.69.1 — alpha/beta-Hydrolases
Family Family family	c.69.1.21 — PepX catalytic domain-like

Domain ID domain_id	d2b9vk1
Class class	b — All beta proteins
Fold Fold fold	b.18 — Galactose-binding domain-like
Superfamily Superfamily superfamily	b.18.1 — Galactose-binding domain-like
Family Family family	b.18.1.13 — PepX C-terminal domain-like

Domain ID domain_id	d2b9vk2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.69 — alpha/beta-Hydrolases
Superfamily Superfamily superfamily	c.69.1 — alpha/beta-Hydrolases
Family Family family	c.69.1.21 — PepX catalytic domain-like

Domain ID domain_id	d2b9vl1
Class class	b — All beta proteins
Fold Fold fold	b.18 — Galactose-binding domain-like
Superfamily Superfamily superfamily	b.18.1 — Galactose-binding domain-like
Family Family family	b.18.1.13 — PepX C-terminal domain-like

Domain ID domain_id	d2b9vl2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.69 — alpha/beta-Hydrolases
Superfamily Superfamily superfamily	c.69.1 — alpha/beta-Hydrolases
Family Family family	c.69.1.21 — PepX catalytic domain-like

Domain ID domain_id	d2b9vm1
Class class	b — All beta proteins
Fold Fold fold	b.18 — Galactose-binding domain-like
Superfamily Superfamily superfamily	b.18.1 — Galactose-binding domain-like
Family Family family	b.18.1.13 — PepX C-terminal domain-like

Domain ID domain_id	d2b9vm2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.69 — alpha/beta-Hydrolases
Superfamily Superfamily superfamily	c.69.1 — alpha/beta-Hydrolases
Family Family family	c.69.1.21 — PepX catalytic domain-like

Domain ID domain_id	d2b9vn1
Class class	b — All beta proteins
Fold Fold fold	b.18 — Galactose-binding domain-like
Superfamily Superfamily superfamily	b.18.1 — Galactose-binding domain-like
Family Family family	b.18.1.13 — PepX C-terminal domain-like

Domain ID domain_id	d2b9vn2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.69 — alpha/beta-Hydrolases
Superfamily Superfamily superfamily	c.69.1 — alpha/beta-Hydrolases
Family Family family	c.69.1.21 — PepX catalytic domain-like

Domain ID domain_id	d2b9vo1
Class class	b — All beta proteins
Fold Fold fold	b.18 — Galactose-binding domain-like
Superfamily Superfamily superfamily	b.18.1 — Galactose-binding domain-like
Family Family family	b.18.1.13 — PepX C-terminal domain-like

Domain ID domain_id	d2b9vo2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.69 — alpha/beta-Hydrolases
Superfamily Superfamily superfamily	c.69.1 — alpha/beta-Hydrolases
Family Family family	c.69.1.21 — PepX catalytic domain-like

Domain ID domain_id	d2b9vp1
Class class	b — All beta proteins
Fold Fold fold	b.18 — Galactose-binding domain-like
Superfamily Superfamily superfamily	b.18.1 — Galactose-binding domain-like
Family Family family	b.18.1.13 — PepX C-terminal domain-like

Domain ID domain_id	d2b9vp2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.69 — alpha/beta-Hydrolases
Superfamily Superfamily superfamily	c.69.1 — alpha/beta-Hydrolases
Family Family family	c.69.1.21 — PepX catalytic domain-like

CATH v4.4 (48 domains)

Domain ID domain_id	2b9vA01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1820 — Alpha/Beta hydrolase fold, catalytic domain

Domain ID domain_id	2b9vA02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	3020 — alpha-amino acid ester hydrolase ( Helical cap domain)
Homologous superfamily homologous superfamily	10 — alpha-amino acid ester hydrolase ( Helical cap domain)

Domain ID domain_id	2b9vA03
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	260 — Galactose-binding domain-like

Domain ID domain_id	2b9vB01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1820 — Alpha/Beta hydrolase fold, catalytic domain

Domain ID domain_id	2b9vB02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	3020 — alpha-amino acid ester hydrolase ( Helical cap domain)
Homologous superfamily homologous superfamily	10 — alpha-amino acid ester hydrolase ( Helical cap domain)

Domain ID domain_id	2b9vB03
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	260 — Galactose-binding domain-like

Domain ID domain_id	2b9vC01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1820 — Alpha/Beta hydrolase fold, catalytic domain

Domain ID domain_id	2b9vC02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	3020 — alpha-amino acid ester hydrolase ( Helical cap domain)
Homologous superfamily homologous superfamily	10 — alpha-amino acid ester hydrolase ( Helical cap domain)

Domain ID domain_id	2b9vC03
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	260 — Galactose-binding domain-like

Domain ID domain_id	2b9vD01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1820 — Alpha/Beta hydrolase fold, catalytic domain

Domain ID domain_id	2b9vD02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	3020 — alpha-amino acid ester hydrolase ( Helical cap domain)
Homologous superfamily homologous superfamily	10 — alpha-amino acid ester hydrolase ( Helical cap domain)

Domain ID domain_id	2b9vD03
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	260 — Galactose-binding domain-like

Domain ID domain_id	2b9vE01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1820 — Alpha/Beta hydrolase fold, catalytic domain

Domain ID domain_id	2b9vE02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	3020 — alpha-amino acid ester hydrolase ( Helical cap domain)
Homologous superfamily homologous superfamily	10 — alpha-amino acid ester hydrolase ( Helical cap domain)

Domain ID domain_id	2b9vE03
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	260 — Galactose-binding domain-like

Domain ID domain_id	2b9vF01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1820 — Alpha/Beta hydrolase fold, catalytic domain

Domain ID domain_id	2b9vF02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	3020 — alpha-amino acid ester hydrolase ( Helical cap domain)
Homologous superfamily homologous superfamily	10 — alpha-amino acid ester hydrolase ( Helical cap domain)

Domain ID domain_id	2b9vF03
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	260 — Galactose-binding domain-like

Domain ID domain_id	2b9vG01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1820 — Alpha/Beta hydrolase fold, catalytic domain

Domain ID domain_id	2b9vG02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	3020 — alpha-amino acid ester hydrolase ( Helical cap domain)
Homologous superfamily homologous superfamily	10 — alpha-amino acid ester hydrolase ( Helical cap domain)

Domain ID domain_id	2b9vG03
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	260 — Galactose-binding domain-like

Domain ID domain_id	2b9vH01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1820 — Alpha/Beta hydrolase fold, catalytic domain

Domain ID domain_id	2b9vH02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	3020 — alpha-amino acid ester hydrolase ( Helical cap domain)
Homologous superfamily homologous superfamily	10 — alpha-amino acid ester hydrolase ( Helical cap domain)

Domain ID domain_id	2b9vH03
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	260 — Galactose-binding domain-like

Domain ID domain_id	2b9vI01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1820 — Alpha/Beta hydrolase fold, catalytic domain

Domain ID domain_id	2b9vI02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	3020 — alpha-amino acid ester hydrolase ( Helical cap domain)
Homologous superfamily homologous superfamily	10 — alpha-amino acid ester hydrolase ( Helical cap domain)

Domain ID domain_id	2b9vI03
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	260 — Galactose-binding domain-like

Domain ID domain_id	2b9vJ01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1820 — Alpha/Beta hydrolase fold, catalytic domain

Domain ID domain_id	2b9vJ02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	3020 — alpha-amino acid ester hydrolase ( Helical cap domain)
Homologous superfamily homologous superfamily	10 — alpha-amino acid ester hydrolase ( Helical cap domain)

Domain ID domain_id	2b9vJ03
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	260 — Galactose-binding domain-like

Domain ID domain_id	2b9vK01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1820 — Alpha/Beta hydrolase fold, catalytic domain

Domain ID domain_id	2b9vK02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	3020 — alpha-amino acid ester hydrolase ( Helical cap domain)
Homologous superfamily homologous superfamily	10 — alpha-amino acid ester hydrolase ( Helical cap domain)

Domain ID domain_id	2b9vK03
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	260 — Galactose-binding domain-like

Domain ID domain_id	2b9vL01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1820 — Alpha/Beta hydrolase fold, catalytic domain

Domain ID domain_id	2b9vL02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	3020 — alpha-amino acid ester hydrolase ( Helical cap domain)
Homologous superfamily homologous superfamily	10 — alpha-amino acid ester hydrolase ( Helical cap domain)

Domain ID domain_id	2b9vL03
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	260 — Galactose-binding domain-like

Domain ID domain_id	2b9vM01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1820 — Alpha/Beta hydrolase fold, catalytic domain

Domain ID domain_id	2b9vM02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	3020 — alpha-amino acid ester hydrolase ( Helical cap domain)
Homologous superfamily homologous superfamily	10 — alpha-amino acid ester hydrolase ( Helical cap domain)

Domain ID domain_id	2b9vM03
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	260 — Galactose-binding domain-like

Domain ID domain_id	2b9vN01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1820 — Alpha/Beta hydrolase fold, catalytic domain

Domain ID domain_id	2b9vN02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	3020 — alpha-amino acid ester hydrolase ( Helical cap domain)
Homologous superfamily homologous superfamily	10 — alpha-amino acid ester hydrolase ( Helical cap domain)

Domain ID domain_id	2b9vN03
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	260 — Galactose-binding domain-like

Domain ID domain_id	2b9vO01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1820 — Alpha/Beta hydrolase fold, catalytic domain

Domain ID domain_id	2b9vO02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	3020 — alpha-amino acid ester hydrolase ( Helical cap domain)
Homologous superfamily homologous superfamily	10 — alpha-amino acid ester hydrolase ( Helical cap domain)

Domain ID domain_id	2b9vO03
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	260 — Galactose-binding domain-like

Domain ID domain_id	2b9vP01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1820 — Alpha/Beta hydrolase fold, catalytic domain

Domain ID domain_id	2b9vP02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	3020 — alpha-amino acid ester hydrolase ( Helical cap domain)
Homologous superfamily homologous superfamily	10 — alpha-amino acid ester hydrolase ( Helical cap domain)

Domain ID domain_id	2b9vP03
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	260 — Galactose-binding domain-like

▶

Unit-cell length a length_a	98.369 Å
Unit-cell length b length_b	275.594 Å
Unit-cell length c length_c	197.953 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.11 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	32

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	2.000 Å
Low-resolution limit resolution_low	40.000 Å
R factor r_factor	0.2005
R_work r_work	0.1988
R_free r_free	0.2348

Acetobacter turbidans alpha-amino acid ester hydrolase

1. Protein Identity and Related Structures Protein Identity & Related Structures

Alpha-amino acid ester hydrolase

State in the Current Structure

Other States of the Same Protein in the Database

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

2b9v__assembly_1__model_1

2b9v__assembly_1__model_1 | I(q)

2b9v__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 water

6. Fold Classification (SCOP + CATH) 80 domains

SCOP 2.08 (32 domains)

CATH v4.4 (48 domains)

7. Citations (1)

Acetobacter turbidans alpha-amino acid ester hydrolase

1. Protein Identity and Related Structures Protein Identity & Related Structures

Alpha-amino acid ester hydrolase

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

2b9v__assembly_1__model_1

2b9v__assembly_1__model_1 | I(q)

2b9v__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 water

6. Fold Classification (SCOP + CATH) 80 domains

SCOP 2.08 (32 domains)

CATH v4.4 (48 domains)

7. Citations (1)
