2ba1

Archaeal exosome core

Method: X-RAY DIFFRACTION D_max: 112.7 Å Quality: GOOD

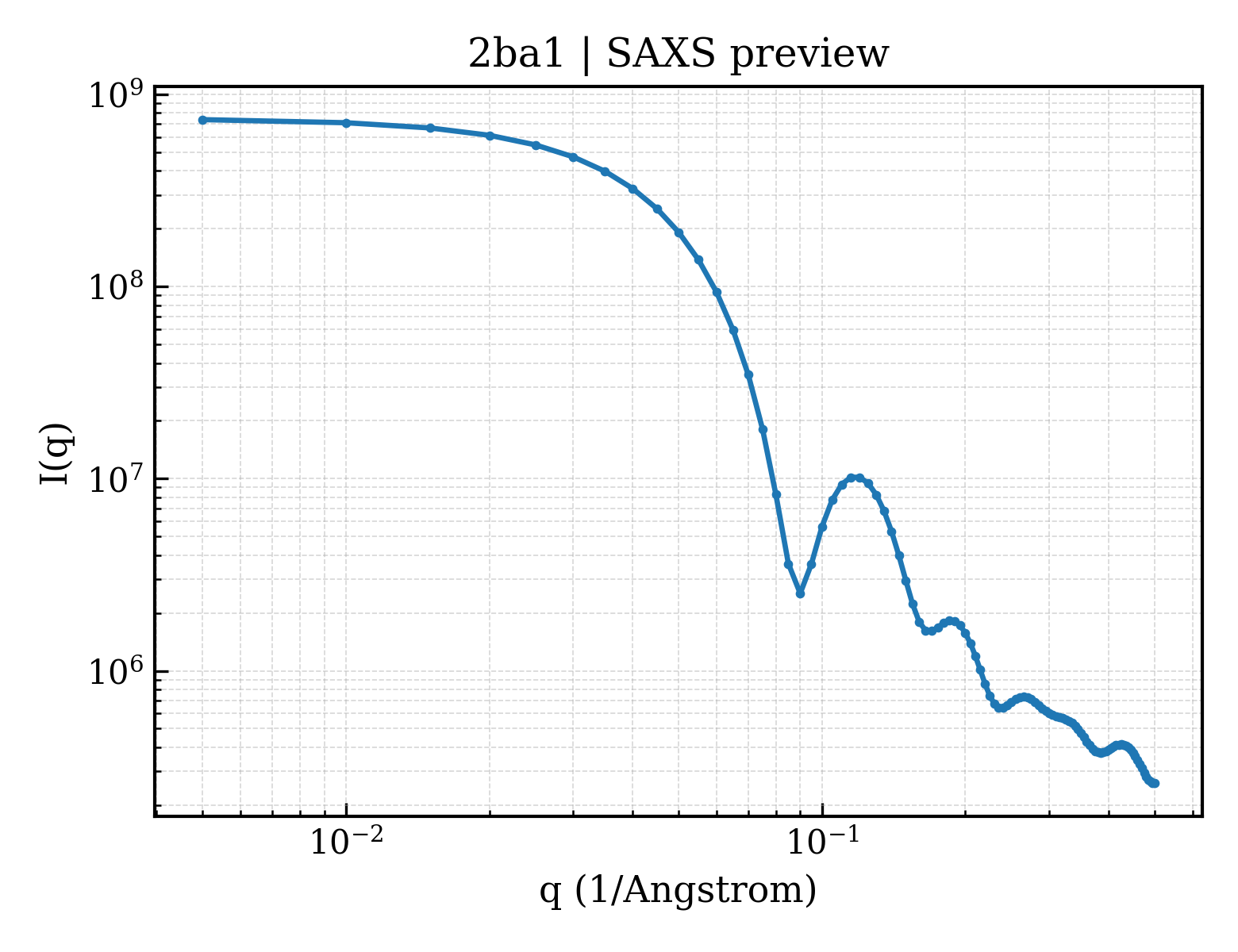

SAXS 散射曲线 SAXS Profile

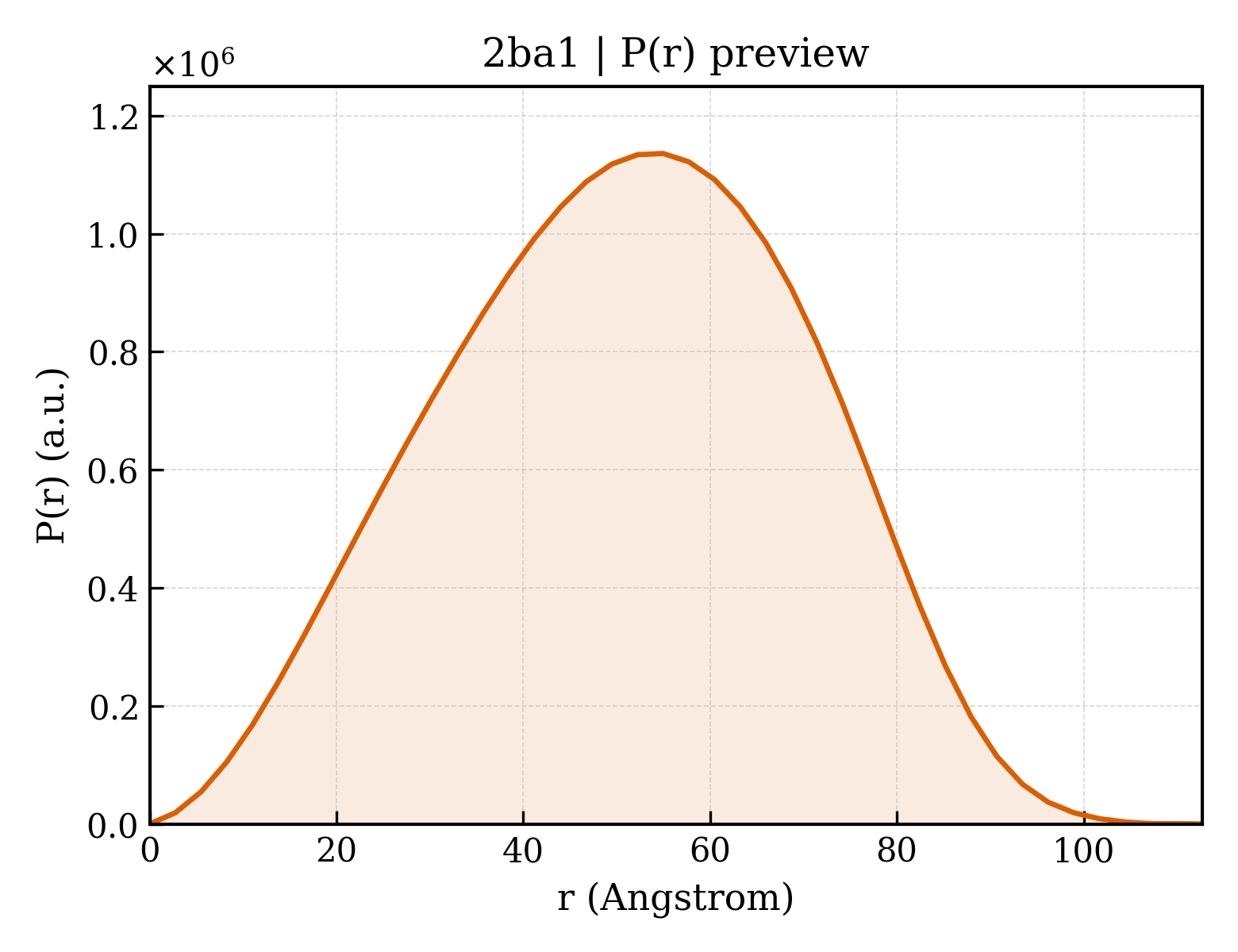

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	2ba1
沉积日期 deposition_date	2005-10-13
结构标题 title	Archaeal exosome core
关键词 keywords	;EXOSOME, RNASE PH, RNA DEGRADATION, EXORIBONUCLEASE, RNA BINDING, S1 DOMAIN, ZN-RIBBON, ARCHAEAL, PHOSPHOROLYTIC, RNA BINDING PROTEIN ;; RNA BINDING PROTEIN
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	38.86 Å
回转半径 Rg (电子) rg_electron	37.79 Å
零角强度 I(0) i0	747745000.00
分子量 molecular_weight	223490.0 kDa
排除体积 excluded_volume	280390 Å³
包络体积 envelope_volume	381450 Å³
水化壳体积 shell_volume	79256 Å³
包络直径 envelope_diameter	114.1 Å
壳层 Rg shell_rg	47.66 Å
包络 Rg envelope_rg	36.68 Å
形状 Rg shape_rg	37.78 Å
总 Rg total_rg	38.39 Å
总原子数 total_atoms	15657
残基数 n_residues	2013
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	112.7 Å
Rg (实空间) rg_real	38.43 Å
Rg 误差 (实空间) rg_real_error	0.41 Å
I(0) (实空间) i0_real	7.4770e+08
I(0) 误差 (实空间) i0_real_error	1.0050e+07
Rg (倒空间) rg_reciprocal	38.70 Å
I(0) (倒空间) i0_reciprocal	747900000.0000
解质量估计 total_estimate	0.8980
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	55.0 Å
偏度 Skewness skewness	-0.077
峰度 Kurtosis kurtosis	-0.600
角度范围 angular_range	— – 0.2050 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	138100000.0000
实空间数据点数 n_real_points	42
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.930; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.952; Smooth: 0.929

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (5)

Entity 1 polymer

描述 description	Archaeal exosome RNA binding protein CSL4
分子量 formula_weight	19625.6 kDa
来源方法 src_method	man
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,C,B
原子数 atom_count	15740

MRFVMPGDRIGSAEEYVKGEGVYEEGGELFAAVAGKLIIKDRVAKVESISPIPEIVKGDVVLGRVVDLRNSIALIEVSSKKGENRGPSNRGIGILHVSNVDEGYVKEISEAVGYLDILKARVIGDNLRLSTKEEEMGVLRALCSNCKTEMVREGDILKCPECGRVEKRKISTDYGKGEW

来源 Source

来源生物 organism	Archaeoglobus fulgidus
NCBI 分类编号 ncbi_taxonomy_id	2234
宿主生物 host_organism	Escherichia coli

Entity 2 polymer

描述 description	Archaeal exosome complex exonuclease RRP41
分子量 formula_weight	28888.3 kDa
EC 编号 ec_number	3.1.13.-
来源方法 src_method	man
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	E,D,F

MSEFNEKPEKLIVDGLRLDGRKFDELRPIKIEASVLKRADGSCYLEMGKNKVIAAVFGPREVHPRHLQDPSKAIIRYRYNMAPFSVEERKRPGPDRRSIEISKVSKEAFEAVIMKELFPRSAIDIFVEVLQADAGSRTACLNAASVALVDAGVPMKGMITSVAVGKADGQLVLDPMKEEDNFGEADMPFAFLIRNGKIESIALLQMDGRMTRDEVKQAIELAKKGALQIYEMQREAILRRYIEVGEEMDEITEGGEDA

来源 Source

来源生物 organism	Archaeoglobus fulgidus
NCBI 分类编号 ncbi_taxonomy_id	2234
宿主生物 host_organism	Escherichia coli

Entity 3 polymer

描述 description	Archaeal exosome complex exonuclease RRP42
分子量 formula_weight	28677.6 kDa
EC 编号 ec_number	3.1.13.-
来源方法 src_method	man
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	H,G,I

MPEDILVDIKRDYVLSKLRDNERIDGRGFDEFRKVEIIPNVIEKAEGSALVKLGDTQVVVGVKMQPGEPYPDTPDRGVIIVNAELVPLASPTFEPGPPDENSIELARVVDRGIRESEAVDLSKLVIEEGEKVWIVFVDIHALDDDGNLLDASALAAIAALMNTKVPAERFDLGEDYLLPVRDLPVSVTSLIVGNKYLVDPSREEMSVGDTTLTITTDKDDNVVAMQKSGGYLLDEKLFDELLDVSINCARKLREKFKEI

来源 Source

来源生物 organism	Archaeoglobus fulgidus
NCBI 分类编号 ncbi_taxonomy_id	2234
宿主生物 host_organism	Escherichia coli

Entity 4 non-polymer

描述 description	ZINC ION
分子量 formula_weight	65.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	3

Entity 5 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	83

▼

6. 折叠分类 (SCOP + CATH) 27 domains

SCOP 2.08 (12 domains)

结构域编号 domain_id	d2ba1d1
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.14 — Ribosomal protein S5 domain 2-like
超家族 Superfamily superfamily	d.14.1 — Ribosomal protein S5 domain 2-like
家族 Family family	d.14.1.4 — Ribonuclease PH domain 1-like

结构域编号 domain_id	d2ba1d2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.101 — Ribonuclease PH domain 2-like
超家族 Superfamily superfamily	d.101.1 — Ribonuclease PH domain 2-like
家族 Family family	d.101.1.1 — Ribonuclease PH domain 2-like

结构域编号 domain_id	d2ba1e1
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.14 — Ribosomal protein S5 domain 2-like
超家族 Superfamily superfamily	d.14.1 — Ribosomal protein S5 domain 2-like
家族 Family family	d.14.1.4 — Ribonuclease PH domain 1-like

结构域编号 domain_id	d2ba1e2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.101 — Ribonuclease PH domain 2-like
超家族 Superfamily superfamily	d.101.1 — Ribonuclease PH domain 2-like
家族 Family family	d.101.1.1 — Ribonuclease PH domain 2-like

结构域编号 domain_id	d2ba1f1
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.14 — Ribosomal protein S5 domain 2-like
超家族 Superfamily superfamily	d.14.1 — Ribosomal protein S5 domain 2-like
家族 Family family	d.14.1.4 — Ribonuclease PH domain 1-like

结构域编号 domain_id	d2ba1f2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.101 — Ribonuclease PH domain 2-like
超家族 Superfamily superfamily	d.101.1 — Ribonuclease PH domain 2-like
家族 Family family	d.101.1.1 — Ribonuclease PH domain 2-like

结构域编号 domain_id	d2ba1g1
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.14 — Ribosomal protein S5 domain 2-like
超家族 Superfamily superfamily	d.14.1 — Ribosomal protein S5 domain 2-like
家族 Family family	d.14.1.4 — Ribonuclease PH domain 1-like

结构域编号 domain_id	d2ba1g2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.101 — Ribonuclease PH domain 2-like
超家族 Superfamily superfamily	d.101.1 — Ribonuclease PH domain 2-like
家族 Family family	d.101.1.1 — Ribonuclease PH domain 2-like

结构域编号 domain_id	d2ba1h1
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.14 — Ribosomal protein S5 domain 2-like
超家族 Superfamily superfamily	d.14.1 — Ribosomal protein S5 domain 2-like
家族 Family family	d.14.1.4 — Ribonuclease PH domain 1-like

结构域编号 domain_id	d2ba1h2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.101 — Ribonuclease PH domain 2-like
超家族 Superfamily superfamily	d.101.1 — Ribonuclease PH domain 2-like
家族 Family family	d.101.1.1 — Ribonuclease PH domain 2-like

结构域编号 domain_id	d2ba1i1
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.14 — Ribosomal protein S5 domain 2-like
超家族 Superfamily superfamily	d.14.1 — Ribosomal protein S5 domain 2-like
家族 Family family	d.14.1.4 — Ribonuclease PH domain 1-like

结构域编号 domain_id	d2ba1i2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.101 — Ribonuclease PH domain 2-like
超家族 Superfamily superfamily	d.101.1 — Ribonuclease PH domain 2-like
家族 Family family	d.101.1.1 — Ribonuclease PH domain 2-like

CATH v4.4 (15 domains)

结构域编号 domain_id	2ba1A01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	40 — Beta Barrel
拓扑 Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
同源超家族 H-superfamily homologous superfamily	100 — RNA polymerase II/Efflux pump adaptor protein, barrel-sandwich hybrid domain

结构域编号 domain_id	2ba1A02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	40 — Beta Barrel
拓扑 Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
同源超家族 H-superfamily homologous superfamily	140 — Nucleic acid-binding proteins

结构域编号 domain_id	2ba1A03
类 Class class	2 — Mainly Beta
架构 Architecture architecture	20 — Single Sheet
拓扑 Topology topology	70 — Ubiquitin Ligase Nedd4; Chain: W;
同源超家族 H-superfamily homologous superfamily	10 —

结构域编号 domain_id	2ba1B01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	40 — Beta Barrel
拓扑 Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
同源超家族 H-superfamily homologous superfamily	100 — RNA polymerase II/Efflux pump adaptor protein, barrel-sandwich hybrid domain

结构域编号 domain_id	2ba1B02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	40 — Beta Barrel
拓扑 Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
同源超家族 H-superfamily homologous superfamily	140 — Nucleic acid-binding proteins

结构域编号 domain_id	2ba1B03
类 Class class	2 — Mainly Beta
架构 Architecture architecture	20 — Single Sheet
拓扑 Topology topology	70 — Ubiquitin Ligase Nedd4; Chain: W;
同源超家族 H-superfamily homologous superfamily	10 —

结构域编号 domain_id	2ba1C01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	40 — Beta Barrel
拓扑 Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
同源超家族 H-superfamily homologous superfamily	100 — RNA polymerase II/Efflux pump adaptor protein, barrel-sandwich hybrid domain

结构域编号 domain_id	2ba1C02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	40 — Beta Barrel
拓扑 Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
同源超家族 H-superfamily homologous superfamily	140 — Nucleic acid-binding proteins

结构域编号 domain_id	2ba1C03
类 Class class	2 — Mainly Beta
架构 Architecture architecture	20 — Single Sheet
拓扑 Topology topology	70 — Ubiquitin Ligase Nedd4; Chain: W;
同源超家族 H-superfamily homologous superfamily	10 —

结构域编号 domain_id	2ba1D01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	230 — Ribosomal Protein S5; domain 2
同源超家族 H-superfamily homologous superfamily	70 — GHMP Kinase, N-terminal domain

结构域编号 domain_id	2ba1E01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	230 — Ribosomal Protein S5; domain 2
同源超家族 H-superfamily homologous superfamily	70 — GHMP Kinase, N-terminal domain

结构域编号 domain_id	2ba1F01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	230 — Ribosomal Protein S5; domain 2
同源超家族 H-superfamily homologous superfamily	70 — GHMP Kinase, N-terminal domain

结构域编号 domain_id	2ba1G01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	230 — Ribosomal Protein S5; domain 2
同源超家族 H-superfamily homologous superfamily	70 — GHMP Kinase, N-terminal domain

结构域编号 domain_id	2ba1H01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	230 — Ribosomal Protein S5; domain 2
同源超家族 H-superfamily homologous superfamily	70 — GHMP Kinase, N-terminal domain

结构域编号 domain_id	2ba1I01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	230 — Ribosomal Protein S5; domain 2
同源超家族 H-superfamily homologous superfamily	70 — GHMP Kinase, N-terminal domain

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	137.460 Å
晶胞边长 b length_b	137.460 Å
晶胞边长 c length_c	261.010 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	24

空间群 space_group	P 43 2 2
空间群编号 int_tables_number	95
晶系 crystal_system	—

分辨率 resolution	2.700 Å
最低分辨率 resolution_low	20.000 Å
R 因子 r_factor	—
R_work r_work	0.2240
R_free r_free	0.2750

fit	/app/data/saxs_computation/ba/2ba1/2ba1.fit
pddf	/app/data/pr_computation/ba/2ba1/2ba1.pr.out
profile	/app/data/saxs_computation/ba/2ba1/2ba1.dat
