SAXSdb — 2bbz

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Viral CASP8 and FADD-like apoptosis regulator

Molluscum contagiosum virus subtype 1

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	water × 1	Consistent with protein count
2	Protein monomer	Monomer	Protein 1	water × 1	Consistent with protein count
3	Protein monomer	Monomer	Protein 1	water × 1	Consistent with protein count
4	Protein monomer	Monomer	Protein 1	water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CFLA_MCV1
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–241； UniProt 1–241 Author chain B； PDBConstruct 1–241； UniProt 1–241 Author chain C； PDBConstruct 1–241； UniProt 1–241 Author chain D； PDBConstruct 1–241； UniProt 1–241

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2bbz
Deposition date deposition_date	2005-10-18
Structure title title	Crystal Structure of MC159 Reveals Molecular Mechanism of DISC Assembly and vFLIP Inhibition
Keywords keywords	death effector domain, VIRAL PROTEIN; VIRAL PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2bbz__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2bbz__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

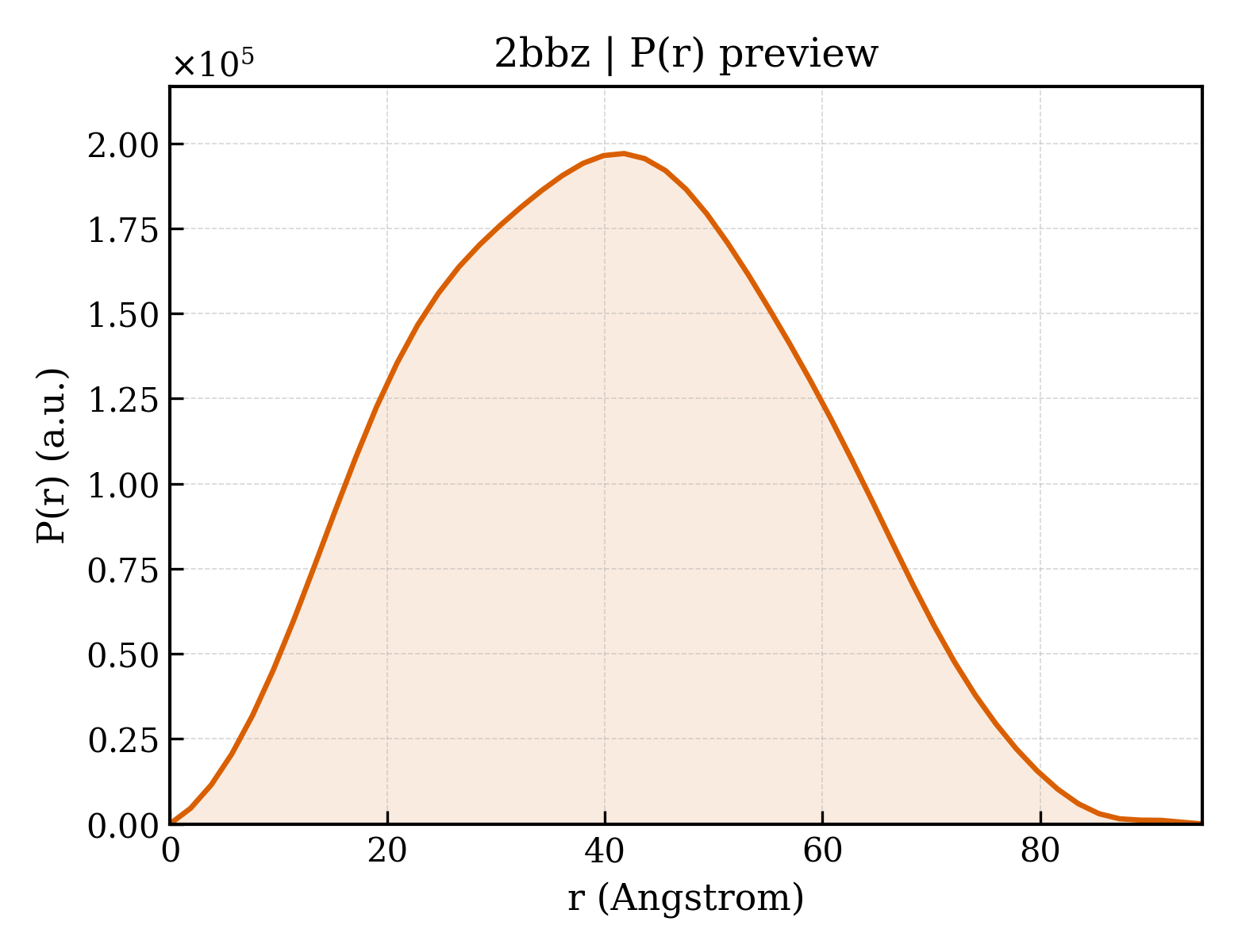

2bbz__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	18.63 Å
Rg (electron density)	17.41 Å
Total Rg	18.33 Å
Atom count	1491
Residues	190
Excluded volume	26729 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2bbz__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`2bbz__assembly_2__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
3	1	`2bbz__assembly_3__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
4	1	`2bbz__assembly_4__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (2)

▼

6. Fold Classification (SCOP + CATH) 8 domains

CATH v4.4 (8 domains)

Domain ID domain_id	2bbzA01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	533 — Death Domain, Fas
Homologous superfamily homologous superfamily	10 — Death Domain, Fas

Domain ID domain_id	2bbzA02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	533 — Death Domain, Fas
Homologous superfamily homologous superfamily	10 — Death Domain, Fas

Domain ID domain_id	2bbzB01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	533 — Death Domain, Fas
Homologous superfamily homologous superfamily	10 — Death Domain, Fas

Domain ID domain_id	2bbzB02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	533 — Death Domain, Fas
Homologous superfamily homologous superfamily	10 — Death Domain, Fas

Domain ID domain_id	2bbzC01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	533 — Death Domain, Fas
Homologous superfamily homologous superfamily	10 — Death Domain, Fas

Domain ID domain_id	2bbzC02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	533 — Death Domain, Fas
Homologous superfamily homologous superfamily	10 — Death Domain, Fas

Domain ID domain_id	2bbzD01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	533 — Death Domain, Fas
Homologous superfamily homologous superfamily	10 — Death Domain, Fas

Domain ID domain_id	2bbzD02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	533 — Death Domain, Fas
Homologous superfamily homologous superfamily	10 — Death Domain, Fas

▶

Unit-cell length a length_a	83.857 Å
Unit-cell length b length_b	108.065 Å
Unit-cell length c length_c	142.643 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	P 2 2 21
Space-group number int_tables_number	17
Crystal system crystal_system	—

Resolution resolution	3.800 Å
Low-resolution limit resolution_low	30.000 Å
R factor r_factor	0.3250
R_work r_work	0.3250
R_free r_free	0.3720

Description description	Viral CASP8 and FADD-like apoptosis regulator
Molecular weight formula_weight	28038.9 kDa
Source method src_method	man
Copy count entity_count	4

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D
Atom count atom_count	6016

Crystal Structure of MC159 Reveals Molecular Mechanism of DISC Assembly and vFLIP Inhibition

1. Protein Identity and Related Structures Protein Identity & Related Structures

Viral CASP8 and FADD-like apoptosis regulator

State in the Current Structure

Other States of the Same Protein in the Database

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

2bbz__assembly_1__model_1

2bbz__assembly_1__model_1 | I(q)

2bbz__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 water

6. Fold Classification (SCOP + CATH) 8 domains

CATH v4.4 (8 domains)

7. Citations (1)

Source organism organism	Molluscum contagiosum virus subtype 1
NCBI taxonomy ID ncbi_taxonomy_id	10280
Host organism host_organism	Escherichia coli

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	52
