2bfg
crystal structure of beta-xylosidase (fam GH39) in complex with dinitrophenyl-beta-xyloside and covalently bound xyloside
SAXS 散射曲线 SAXS Profile

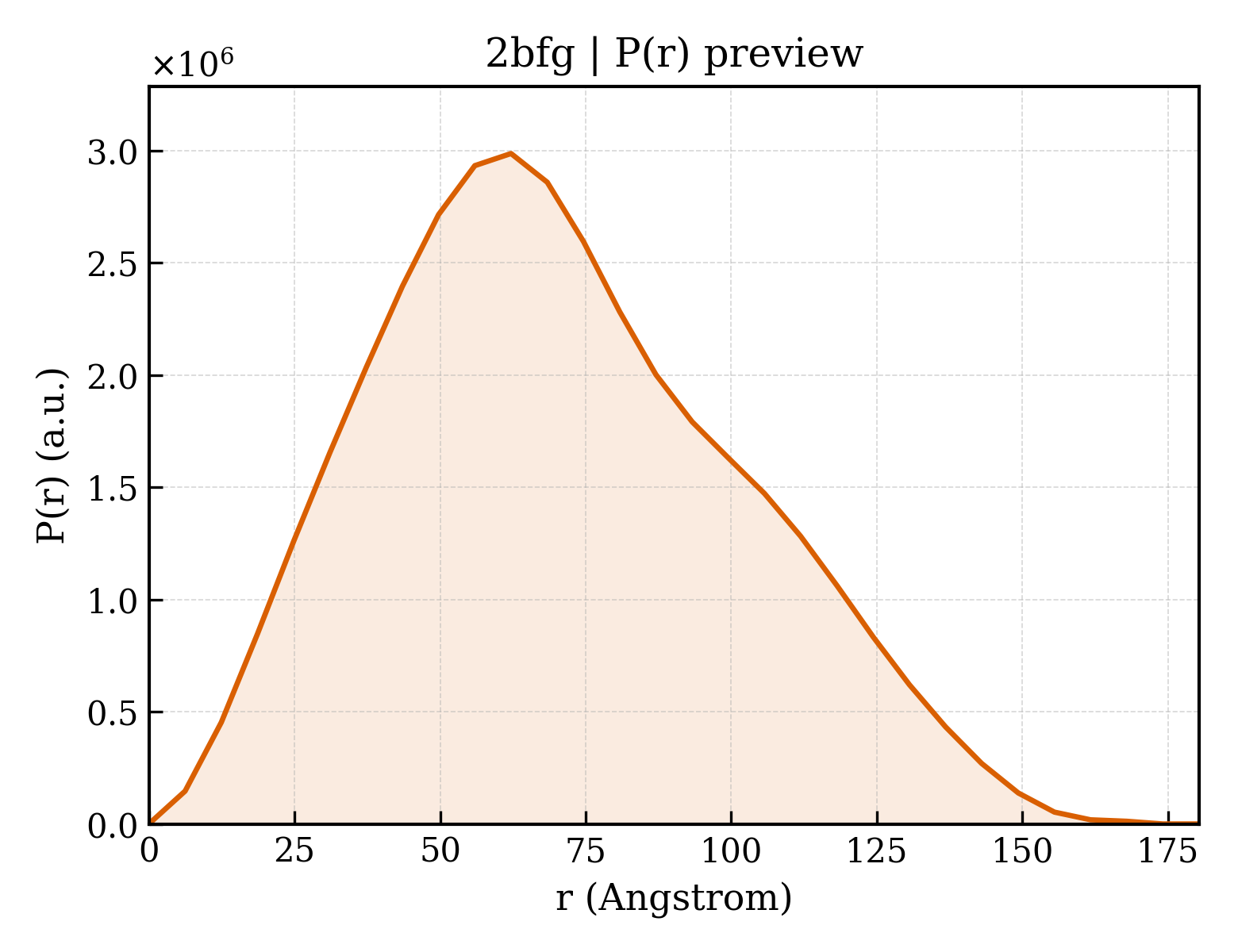

P(r) 距离分布 P(r) Distribution
1. 结构基本信息 1. Structure Basics
| 条目编号 entry_id | 2bfg |
| 沉积日期 deposition_date | 2004-12-07 |
| 结构标题 title | crystal structure of beta-xylosidase (fam GH39) in complex with dinitrophenyl-beta-xyloside and covalently bound xyloside |
| 关键词 keywords | HYDROLASE, FAMILY GH39, THERMOPHILIC ENZYME; HYDROLASE |
| 实验方法 method | X-RAY DIFFRACTION |
2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)
| 回转半径 Rg (Guinier) rg_guinier | 54.30 Å |
| 回转半径 Rg (电子) rg_electron | 54.02 Å |
| 零角强度 I(0) i0 | 2873270000.00 |
| 分子量 molecular_weight | 464090.0 kDa |
| 排除体积 excluded_volume | 585290 ų |
| 包络体积 envelope_volume | 745300 ų |
| 水化壳体积 shell_volume | 113390 ų |
| 包络直径 envelope_diameter | 186.1 Å |
| 壳层 Rg shell_rg | 58.83 Å |
| 包络 Rg envelope_rg | 52.46 Å |
| 形状 Rg shape_rg | 54.00 Å |
| 总 Rg total_rg | 54.19 Å |
| 总原子数 total_atoms | 32857 |
| 残基数 n_residues | 4008 |
| 球谐函数阶数 n_harmonics | 20 |
| q 范围 q_range | — – 0.5000 Å−1 |
| 数据点数 n_points | 101 |
| 壳层类型 shell_type | directional |
| 溶剂电子密度 solvent_density | 0.3340 e/ų |
| 壳层衬度 contrast_shell | 0.0300 e/ų |
| CRYSOL 版本 crysol_version | 4.1.3 |
3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)
| 最大尺寸 Dmax dmax | 180.4 Å |
| Rg (实空间) rg_real | 54.29 Å |
| Rg 误差 (实空间) rg_real_error | 1.37 Å |
| I(0) (实空间) i0_real | 2.8730e+09 |
| I(0) 误差 (实空间) i0_real_error | 5.0990e+07 |
| Rg (倒空间) rg_reciprocal | 54.29 Å |
| I(0) (倒空间) i0_reciprocal | 2873000000.0000 |
| 解质量估计 total_estimate | 0.8661 |
| 解质量评级 solution_quality | GOOD a GOOD solution |
| P(r) 峰数 n_peaks | 1 |
| 主峰位置 r_peak_primary | 62.2 Å |
| 偏度 Skewness skewness | 0.331 |
| 峰度 Kurtosis kurtosis | -0.474 |
| 角度范围 angular_range | — – 0.1450 Å−1 |
| 当前正则化参数 α current_alpha | 0.0001 |
| 最高正则化参数 α highest_alpha | 185000000.0000 |
| 实空间数据点数 n_real_points | 30 |
| GNOM 版本 gnom_version | 4.1.3 |
| 质量判据 quality_criteria | AN1: 0.000; Oscil: 0.831; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.993; Smooth: 0.769 |
4. 晶体学与实验 4. Crystallography & Experiment
5. 实体与聚合体信息 (7)
6. 折叠分类 (SCOP + CATH) 32 domains
SCOP 2.08 (16 domains)
| 结构域编号 domain_id | d2bfga1 |
| 类 Class class | b — All beta proteins |
| 折叠类型 Fold fold | b.71 — Glycosyl hydrolase domain |
| 超家族 Superfamily superfamily | b.71.1 — Glycosyl hydrolase domain |
| 家族 Family family | b.71.1.2 — Composite domain of glycosyl hydrolase families 5, 30, 39 and 51 |
| 结构域编号 domain_id | d2bfga2 |
| 类 Class class | c — Alpha and beta proteins (a/b) |
| 折叠类型 Fold fold | c.1 — TIM beta/alpha-barrel |
| 超家族 Superfamily superfamily | c.1.8 — (Trans)glycosidases |
| 家族 Family family | c.1.8.3 — beta-glycanases |
| 结构域编号 domain_id | d2bfgb1 |
| 类 Class class | b — All beta proteins |
| 折叠类型 Fold fold | b.71 — Glycosyl hydrolase domain |
| 超家族 Superfamily superfamily | b.71.1 — Glycosyl hydrolase domain |
| 家族 Family family | b.71.1.2 — Composite domain of glycosyl hydrolase families 5, 30, 39 and 51 |
| 结构域编号 domain_id | d2bfgb2 |
| 类 Class class | c — Alpha and beta proteins (a/b) |
| 折叠类型 Fold fold | c.1 — TIM beta/alpha-barrel |
| 超家族 Superfamily superfamily | c.1.8 — (Trans)glycosidases |
| 家族 Family family | c.1.8.3 — beta-glycanases |
| 结构域编号 domain_id | d2bfgc1 |
| 类 Class class | b — All beta proteins |
| 折叠类型 Fold fold | b.71 — Glycosyl hydrolase domain |
| 超家族 Superfamily superfamily | b.71.1 — Glycosyl hydrolase domain |
| 家族 Family family | b.71.1.2 — Composite domain of glycosyl hydrolase families 5, 30, 39 and 51 |
| 结构域编号 domain_id | d2bfgc2 |
| 类 Class class | c — Alpha and beta proteins (a/b) |
| 折叠类型 Fold fold | c.1 — TIM beta/alpha-barrel |
| 超家族 Superfamily superfamily | c.1.8 — (Trans)glycosidases |
| 家族 Family family | c.1.8.3 — beta-glycanases |
| 结构域编号 domain_id | d2bfgd1 |
| 类 Class class | b — All beta proteins |
| 折叠类型 Fold fold | b.71 — Glycosyl hydrolase domain |
| 超家族 Superfamily superfamily | b.71.1 — Glycosyl hydrolase domain |
| 家族 Family family | b.71.1.2 — Composite domain of glycosyl hydrolase families 5, 30, 39 and 51 |
| 结构域编号 domain_id | d2bfgd2 |
| 类 Class class | c — Alpha and beta proteins (a/b) |
| 折叠类型 Fold fold | c.1 — TIM beta/alpha-barrel |
| 超家族 Superfamily superfamily | c.1.8 — (Trans)glycosidases |
| 家族 Family family | c.1.8.3 — beta-glycanases |
| 结构域编号 domain_id | d2bfge1 |
| 类 Class class | b — All beta proteins |
| 折叠类型 Fold fold | b.71 — Glycosyl hydrolase domain |
| 超家族 Superfamily superfamily | b.71.1 — Glycosyl hydrolase domain |
| 家族 Family family | b.71.1.2 — Composite domain of glycosyl hydrolase families 5, 30, 39 and 51 |
| 结构域编号 domain_id | d2bfge2 |
| 类 Class class | c — Alpha and beta proteins (a/b) |
| 折叠类型 Fold fold | c.1 — TIM beta/alpha-barrel |
| 超家族 Superfamily superfamily | c.1.8 — (Trans)glycosidases |
| 家族 Family family | c.1.8.3 — beta-glycanases |
| 结构域编号 domain_id | d2bfgf1 |
| 类 Class class | b — All beta proteins |
| 折叠类型 Fold fold | b.71 — Glycosyl hydrolase domain |
| 超家族 Superfamily superfamily | b.71.1 — Glycosyl hydrolase domain |
| 家族 Family family | b.71.1.2 — Composite domain of glycosyl hydrolase families 5, 30, 39 and 51 |
| 结构域编号 domain_id | d2bfgf2 |
| 类 Class class | c — Alpha and beta proteins (a/b) |
| 折叠类型 Fold fold | c.1 — TIM beta/alpha-barrel |
| 超家族 Superfamily superfamily | c.1.8 — (Trans)glycosidases |
| 家族 Family family | c.1.8.3 — beta-glycanases |
| 结构域编号 domain_id | d2bfgg1 |
| 类 Class class | b — All beta proteins |
| 折叠类型 Fold fold | b.71 — Glycosyl hydrolase domain |
| 超家族 Superfamily superfamily | b.71.1 — Glycosyl hydrolase domain |
| 家族 Family family | b.71.1.2 — Composite domain of glycosyl hydrolase families 5, 30, 39 and 51 |
| 结构域编号 domain_id | d2bfgg2 |
| 类 Class class | c — Alpha and beta proteins (a/b) |
| 折叠类型 Fold fold | c.1 — TIM beta/alpha-barrel |
| 超家族 Superfamily superfamily | c.1.8 — (Trans)glycosidases |
| 家族 Family family | c.1.8.3 — beta-glycanases |
| 结构域编号 domain_id | d2bfgh1 |
| 类 Class class | b — All beta proteins |
| 折叠类型 Fold fold | b.71 — Glycosyl hydrolase domain |
| 超家族 Superfamily superfamily | b.71.1 — Glycosyl hydrolase domain |
| 家族 Family family | b.71.1.2 — Composite domain of glycosyl hydrolase families 5, 30, 39 and 51 |
| 结构域编号 domain_id | d2bfgh2 |
| 类 Class class | c — Alpha and beta proteins (a/b) |
| 折叠类型 Fold fold | c.1 — TIM beta/alpha-barrel |
| 超家族 Superfamily superfamily | c.1.8 — (Trans)glycosidases |
| 家族 Family family | c.1.8.3 — beta-glycanases |
CATH v4.4 (16 domains)
| 结构域编号 domain_id | 2bfgA01 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 60 — Sandwich |
| 拓扑 Topology topology | 40 — Immunoglobulin-like |
| 同源超家族 H-superfamily homologous superfamily | 1500 — Glycosyl hydrolase domain; family 39 |
| 结构域编号 domain_id | 2bfgA02 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 20 — Alpha-Beta Barrel |
| 拓扑 Topology topology | 20 — TIM Barrel |
| 同源超家族 H-superfamily homologous superfamily | 80 — Glycosidases |
| 结构域编号 domain_id | 2bfgB01 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 60 — Sandwich |
| 拓扑 Topology topology | 40 — Immunoglobulin-like |
| 同源超家族 H-superfamily homologous superfamily | 1500 — Glycosyl hydrolase domain; family 39 |
| 结构域编号 domain_id | 2bfgB02 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 20 — Alpha-Beta Barrel |
| 拓扑 Topology topology | 20 — TIM Barrel |
| 同源超家族 H-superfamily homologous superfamily | 80 — Glycosidases |
| 结构域编号 domain_id | 2bfgC01 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 60 — Sandwich |
| 拓扑 Topology topology | 40 — Immunoglobulin-like |
| 同源超家族 H-superfamily homologous superfamily | 1500 — Glycosyl hydrolase domain; family 39 |
| 结构域编号 domain_id | 2bfgC02 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 20 — Alpha-Beta Barrel |
| 拓扑 Topology topology | 20 — TIM Barrel |
| 同源超家族 H-superfamily homologous superfamily | 80 — Glycosidases |
| 结构域编号 domain_id | 2bfgD01 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 60 — Sandwich |
| 拓扑 Topology topology | 40 — Immunoglobulin-like |
| 同源超家族 H-superfamily homologous superfamily | 1500 — Glycosyl hydrolase domain; family 39 |
| 结构域编号 domain_id | 2bfgD02 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 20 — Alpha-Beta Barrel |
| 拓扑 Topology topology | 20 — TIM Barrel |
| 同源超家族 H-superfamily homologous superfamily | 80 — Glycosidases |
| 结构域编号 domain_id | 2bfgE01 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 60 — Sandwich |
| 拓扑 Topology topology | 40 — Immunoglobulin-like |
| 同源超家族 H-superfamily homologous superfamily | 1500 — Glycosyl hydrolase domain; family 39 |
| 结构域编号 domain_id | 2bfgE02 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 20 — Alpha-Beta Barrel |
| 拓扑 Topology topology | 20 — TIM Barrel |
| 同源超家族 H-superfamily homologous superfamily | 80 — Glycosidases |
| 结构域编号 domain_id | 2bfgF01 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 60 — Sandwich |
| 拓扑 Topology topology | 40 — Immunoglobulin-like |
| 同源超家族 H-superfamily homologous superfamily | 1500 — Glycosyl hydrolase domain; family 39 |
| 结构域编号 domain_id | 2bfgF02 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 20 — Alpha-Beta Barrel |
| 拓扑 Topology topology | 20 — TIM Barrel |
| 同源超家族 H-superfamily homologous superfamily | 80 — Glycosidases |
| 结构域编号 domain_id | 2bfgG01 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 60 — Sandwich |
| 拓扑 Topology topology | 40 — Immunoglobulin-like |
| 同源超家族 H-superfamily homologous superfamily | 1500 — Glycosyl hydrolase domain; family 39 |
| 结构域编号 domain_id | 2bfgG02 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 20 — Alpha-Beta Barrel |
| 拓扑 Topology topology | 20 — TIM Barrel |
| 同源超家族 H-superfamily homologous superfamily | 80 — Glycosidases |
| 结构域编号 domain_id | 2bfgH01 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 60 — Sandwich |
| 拓扑 Topology topology | 40 — Immunoglobulin-like |
| 同源超家族 H-superfamily homologous superfamily | 1500 — Glycosyl hydrolase domain; family 39 |
| 结构域编号 domain_id | 2bfgH02 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 20 — Alpha-Beta Barrel |
| 拓扑 Topology topology | 20 — TIM Barrel |
| 同源超家族 H-superfamily homologous superfamily | 80 — Glycosidases |
