2bh1

X-ray structure of the general secretion pathway complex of the N- terminal domain of EpsE and the cytosolic domain of EpsL of Vibrio cholerae

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

GENERAL SECRETION PATHWAY PROTEIN L

VIBRIO CHOLERAE

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	GENERAL SECRETION PATHWAY PROTEIN E, × 1 （P37093） CALCIUM ION × 1 water × 2	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 2	GENERAL SECRETION PATHWAY PROTEIN E, × 1 （P37093） water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	GSPL_VIBCH
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–242； UniProt 5–246 Author chain B； PDBConstruct 1–242； UniProt 5–246

GENERAL SECRETION PATHWAY PROTEIN E,

VIBRIO CHOLERAE

UniProt P37093

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	GENERAL SECRETION PATHWAY PROTEIN L × 1 （P45782） CALCIUM ION × 1 water × 2	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 2	GENERAL SECRETION PATHWAY PROTEIN L × 1 （P45782） water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	GSPE_VIBCH
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain X； PDBConstruct 1–96； UniProt 1–96 Author chain Y； PDBConstruct 1–96； UniProt 1–96

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2bh1
Deposition date deposition_date	2005-01-06
Structure title title	X-ray structure of the general secretion pathway complex of the N- terminal domain of EpsE and the cytosolic domain of EpsL of Vibrio cholerae
Keywords keywords	TRANSPORT PROTEIN, TYPE II SECRETION, VIBRIO CHOLERAE, EPS, GSP, TRANSMEMBRANE, TRANSPORT, ATP-BINDING; TRANSPORT PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2bh1__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2bh1__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

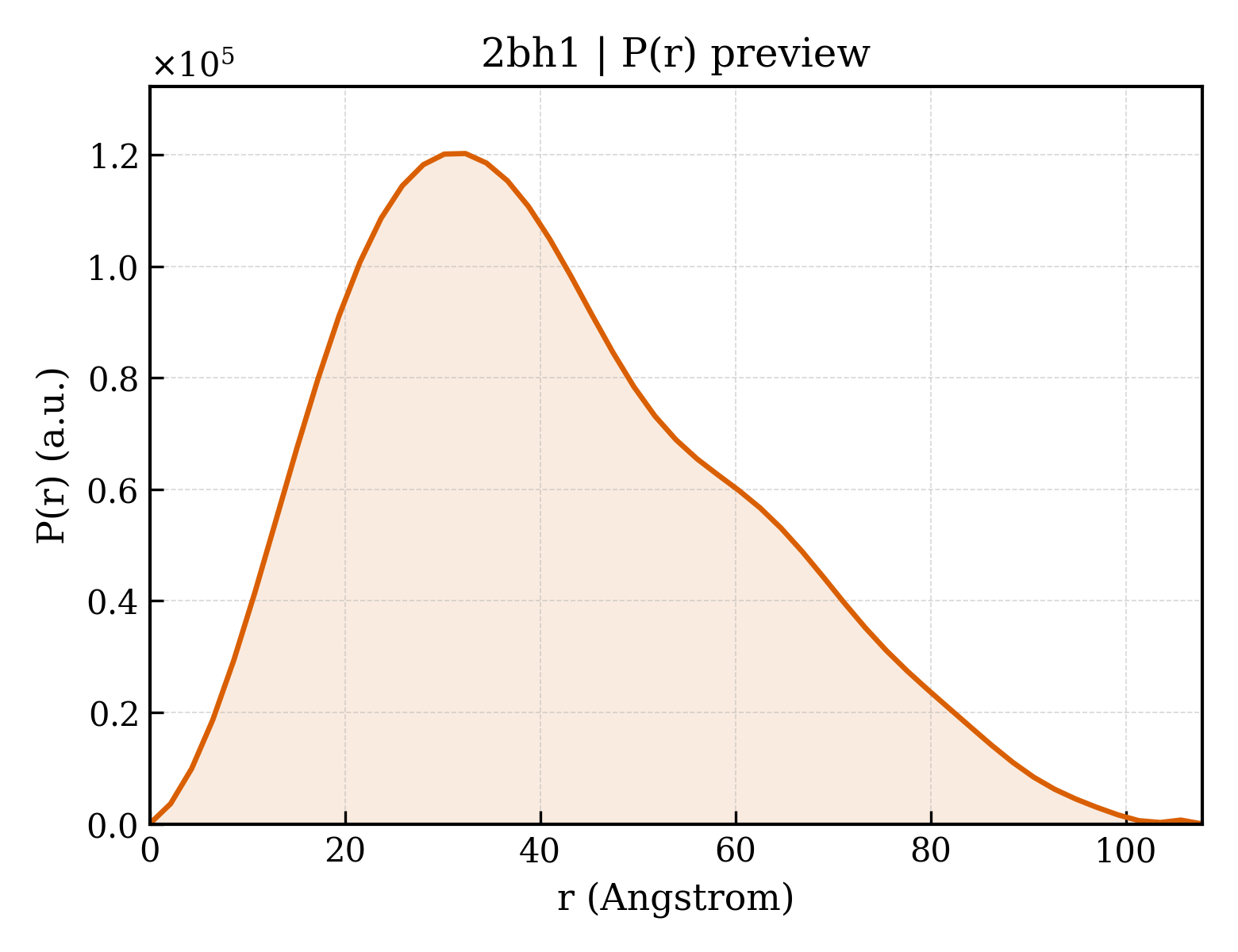

2bh1__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	21.47 Å
Rg (electron density)	20.01 Å
Total Rg	20.89 Å
Atom count	2435
Residues	306
Excluded volume	43620 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2bh1__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`2bh1__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	GENERAL SECRETION PATHWAY PROTEIN L
Molecular weight formula_weight	27983.7 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	5046

VSEFLTVRLSSQKEADIPWLVWSAEQQEVIASGQVAGWEALHEIESYADQRSVVVLLAASDLILTSVEIPPGASRQLENMLPYLLEDEIAQDVEDVHFCVLSKGRETADVVGVDRLWLRACLDHLKACGFDVKRVLPDVLAIPRPEHGLAALQLGDEWLVRKSTTQGMAVDAQWLSLLAASDWVQNEGEYLPLQALTPLPELSLAETQEWRYEPSGLVMQLLTQEALTSKFNLLTGSFKLKSLEHHHHHH

Source Source

Source organism organism	VIBRIO CHOLERAE
NCBI taxonomy ID ncbi_taxonomy_id	666
Host organism host_organism	ESCHERICHIA COLI

Entity 2 Entity 2 polymer

Description description	GENERAL SECRETION PATHWAY PROTEIN E,
Molecular weight formula_weight	11187.7 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	X,Y

MTEMVISPAERQSIRRLPFSFANRFKLVLDWNEDFSQASIYYLAPLSMEALVETKRVVKHAFQLIELSQAEFESKLTQVYQRDSSEARQLMEDIGA

Source Source

Source organism organism	VIBRIO CHOLERAE
NCBI taxonomy ID ncbi_taxonomy_id	666
Host organism host_organism	ESCHERICHIA COLI

Entity 3 Entity 3 non-polymer

Description description	CALCIUM ION
Molecular weight formula_weight	40.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	177

▼

6. Fold Classification (SCOP + CATH) 12 domains

SCOP 2.08 (6 domains)

Domain ID domain_id	d2bh1a1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.55 — Ribonuclease H-like motif
Superfamily Superfamily superfamily	c.55.1 — Actin-like ATPase domain
Family Family family	c.55.1.0 — automated matches

Domain ID domain_id	d2bh1a2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.55 — Ribonuclease H-like motif
Superfamily Superfamily superfamily	c.55.1 — Actin-like ATPase domain
Family Family family	c.55.1.11 — Cyto-EpsL domain

Domain ID domain_id	d2bh1b1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.55 — Ribonuclease H-like motif
Superfamily Superfamily superfamily	c.55.1 — Actin-like ATPase domain
Family Family family	c.55.1.0 — automated matches

Domain ID domain_id	d2bh1b2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.55 — Ribonuclease H-like motif
Superfamily Superfamily superfamily	c.55.1 — Actin-like ATPase domain
Family Family family	c.55.1.11 — Cyto-EpsL domain

Domain ID domain_id	d2bh1x1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.52 — Alpha-lytic protease prodomain-like
Superfamily Superfamily superfamily	d.52.10 — EspE N-terminal domain-like
Family Family family	d.52.10.1 — GSPII protein E N-terminal domain-like

Domain ID domain_id	d2bh1y_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.52 — Alpha-lytic protease prodomain-like
Superfamily Superfamily superfamily	d.52.10 — EspE N-terminal domain-like
Family Family family	d.52.10.1 — GSPII protein E N-terminal domain-like

CATH v4.4 (6 domains)

Domain ID domain_id	2bh1A01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	420 — Nucleotidyltransferase; domain 5
Homologous superfamily homologous superfamily	380 —

Domain ID domain_id	2bh1A02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	420 — Nucleotidyltransferase; domain 5
Homologous superfamily homologous superfamily	370 — GspL cytoplasmic domain, C-terminal subdomain

Domain ID domain_id	2bh1B01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	420 — Nucleotidyltransferase; domain 5
Homologous superfamily homologous superfamily	380 —

Domain ID domain_id	2bh1B02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	420 — Nucleotidyltransferase; domain 5
Homologous superfamily homologous superfamily	370 — GspL cytoplasmic domain, C-terminal subdomain

Domain ID domain_id	2bh1X00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	300 — GMP Synthetase; Chain A, domain 3
Homologous superfamily homologous superfamily	160 — Type II secretion system, protein E, N-terminal domain

Domain ID domain_id	2bh1Y00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	300 — GMP Synthetase; Chain A, domain 3
Homologous superfamily homologous superfamily	160 — Type II secretion system, protein E, N-terminal domain

▶

Unit-cell length a length_a	50.887 Å
Unit-cell length b length_b	89.325 Å
Unit-cell length c length_c	79.726 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	91.16 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	2.400 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	0.1940
R_work r_work	0.1910
R_free r_free	0.2520
