ASCARIS SUUM
| Assembly | Physical composition | Protein state | Molecular copy count | Associated components | Data consistency |
|---|---|---|---|---|---|
| 1 | Protein monomer | Monomer | Protein 1 | water × 1 | Consistent with protein count |
| UniProt name | Q7YXK2_ASCSU |
| Isoform | — |
| PDB entities | 1 |
| Chains and sequence ranges | Author chain A； PDBConstruct 1–345； UniProt 1–345 |
The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.
| Entry ID entry_id | 2bjq |
| Deposition date deposition_date | 2005-02-07 |
| Structure title title | Crystal structure of the nematode sperm cell motility protein MFP2 |
| Keywords keywords | MOTILITY, ASCARIS, NEMATODE, MSP; MOTILITY |
| Experimental Method method | X-RAY DIFFRACTION |

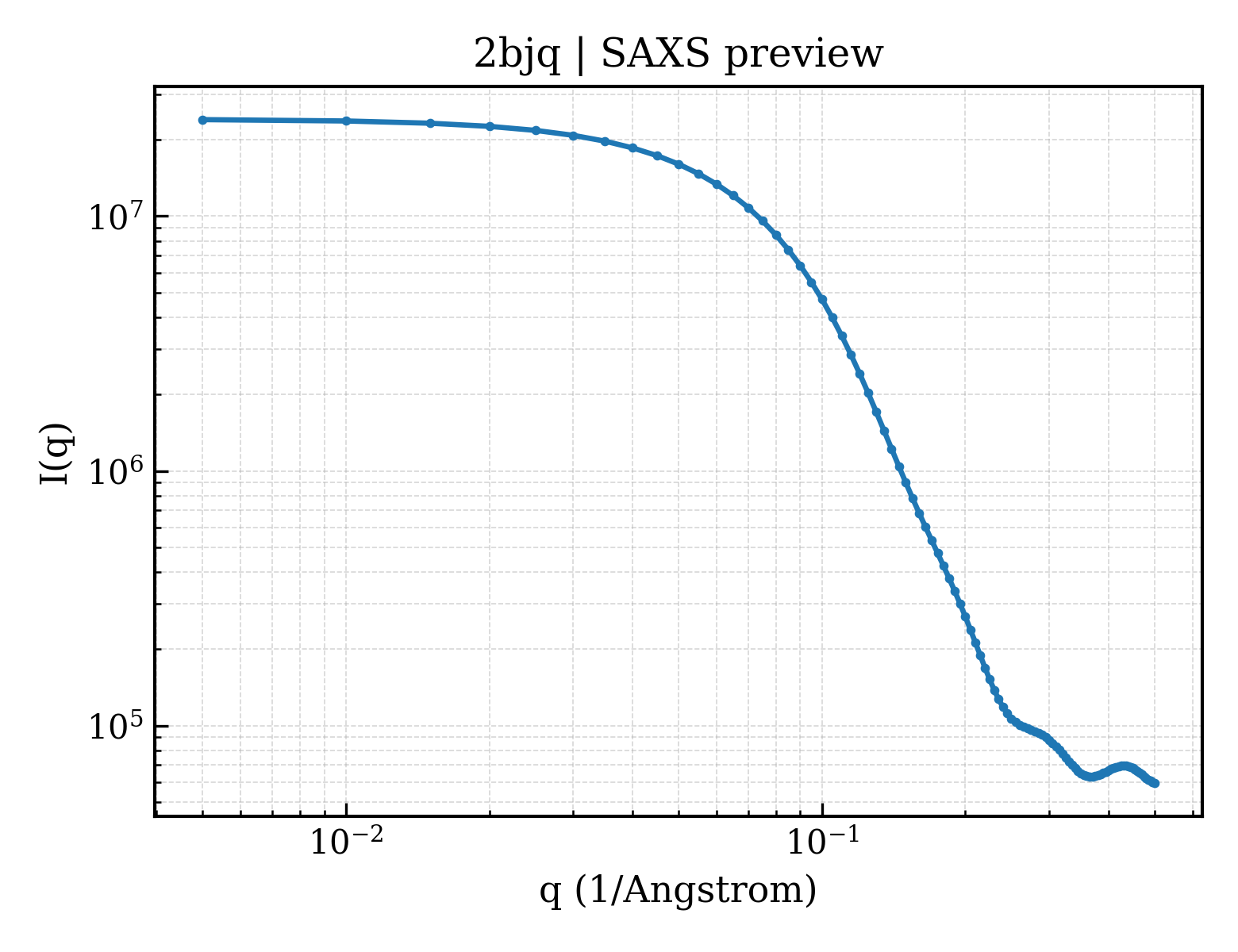

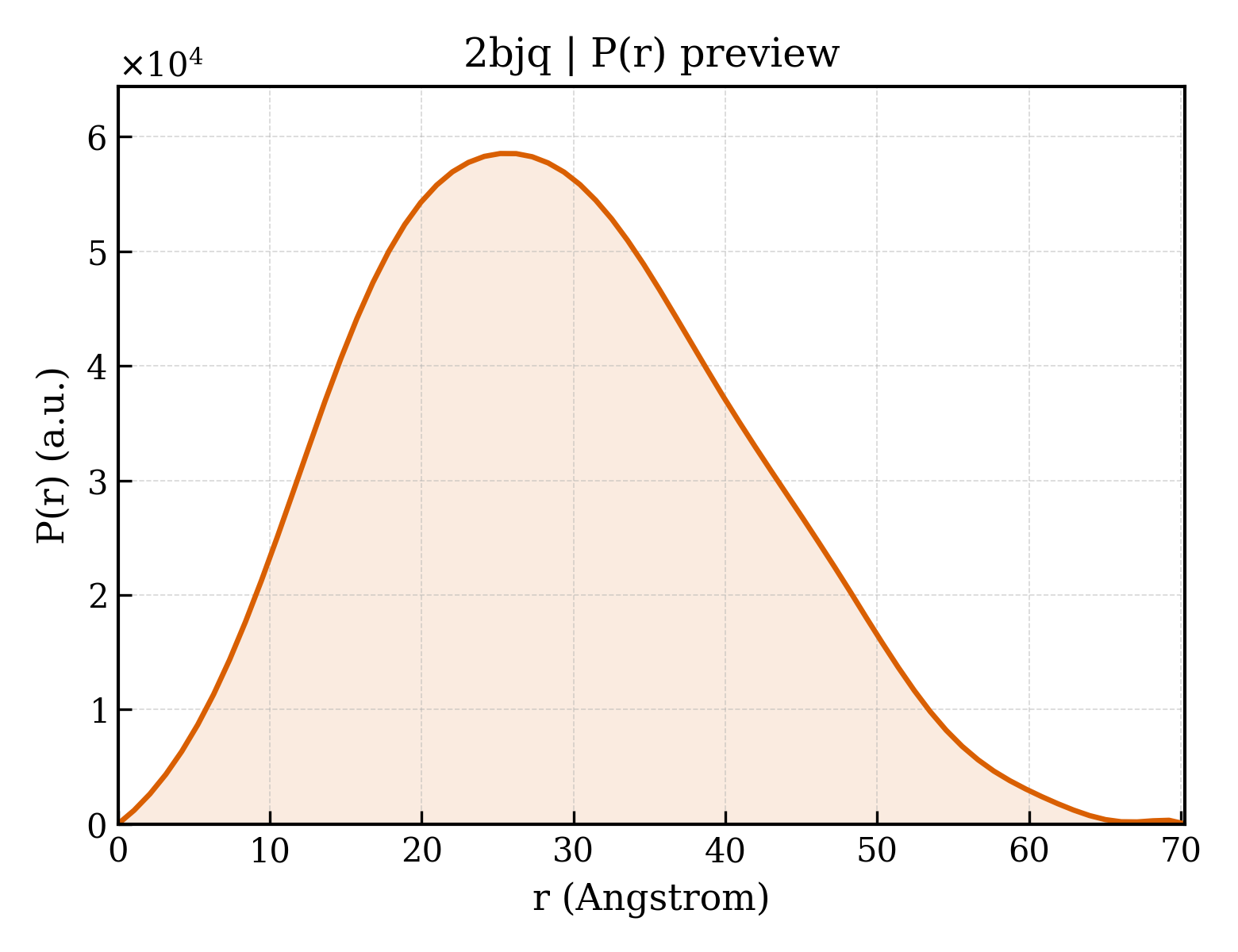

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.
Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)
| Rg（Guinier） | 22.07 Å |
| Rg (electron density) | 21.18 Å |
| Total Rg | 22.15 Å |
| Atom count | 2653 |
| Residues | 340 |
| Excluded volume | 47092 ų |
| Maximum q | 0.500 Å⁻¹ |
| Domain ID domain_id | d2bjqa1 |
| Class class | b — All beta proteins |
| Fold Fold fold | b.169 — MFPT repeat-like |
| Superfamily Superfamily superfamily | b.169.1 — MFPT repeat-like |
| Family Family family | b.169.1.1 — MFPT repeat |
| Domain ID domain_id | d2bjqa2 |
| Class class | b — All beta proteins |
| Fold Fold fold | b.169 — MFPT repeat-like |
| Superfamily Superfamily superfamily | b.169.1 — MFPT repeat-like |
| Family Family family | b.169.1.1 — MFPT repeat |
