2bm4
;The Structure of MfpA (Rv3361c, C2 Crystal form). The Pentapeptide Repeat Protein from Mycobacterium tuberculosis Folds as A Right- handed Quadrilateral Beta-helix. ;

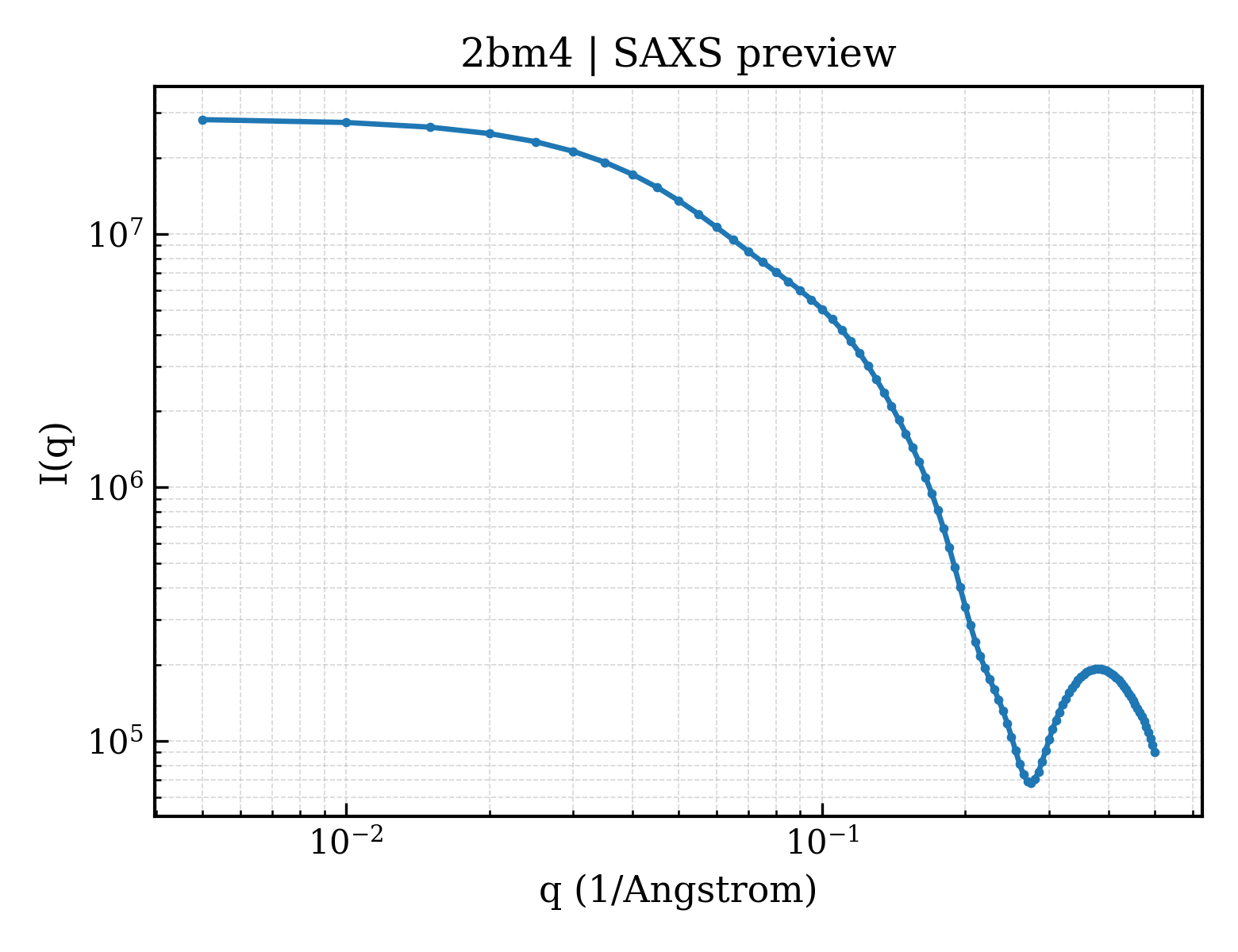

SAXS 散射曲线 SAXS Profile

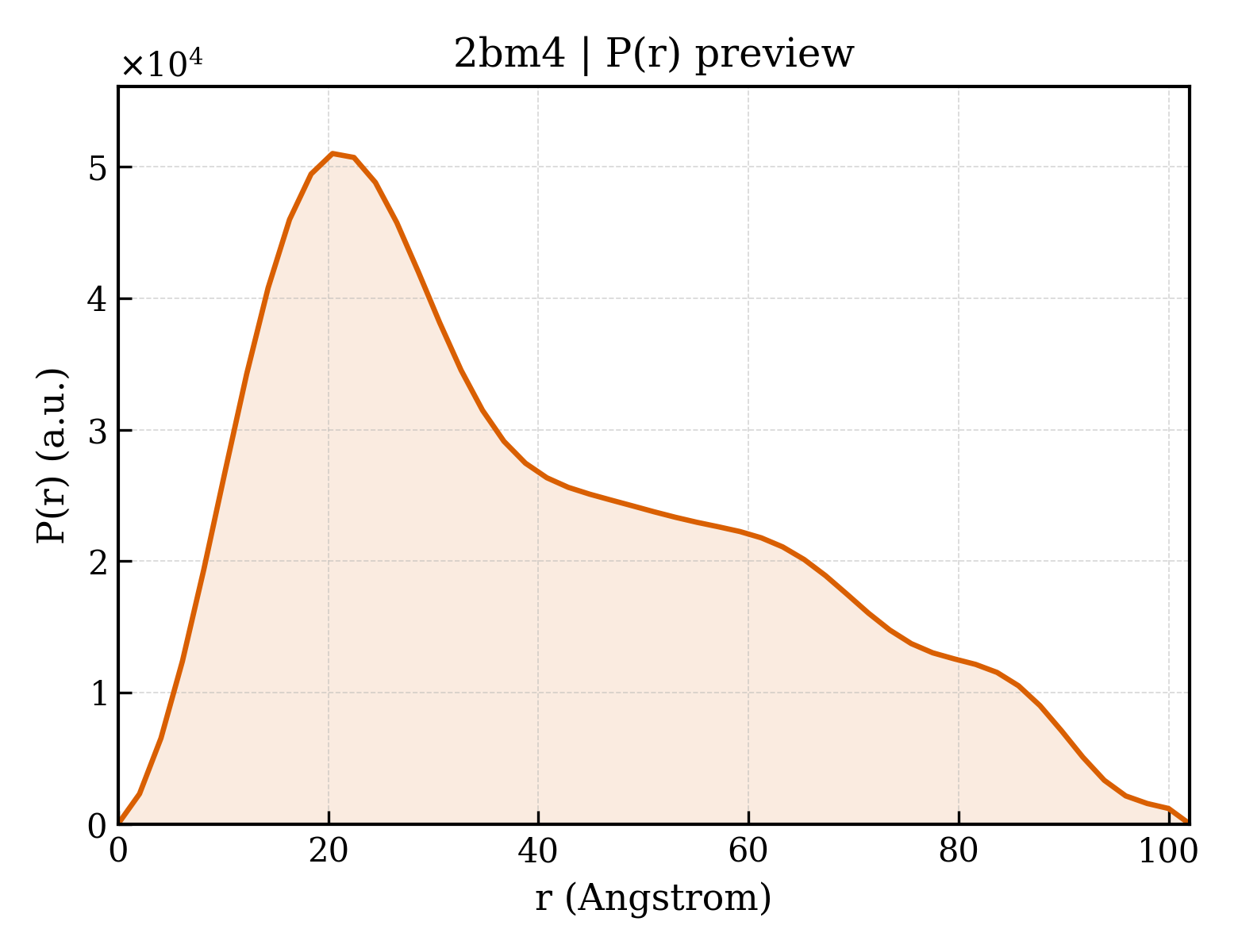

P(r) 距离分布 P(r) Distribution
1. 结构基本信息 1. Structure Basics
| 条目编号 entry_id | 2bm4 |
| 沉积日期 deposition_date | 2005-03-09 |
| 结构标题 title | ;The Structure of MfpA (Rv3361c, C2 Crystal form). The Pentapeptide Repeat Protein from Mycobacterium tuberculosis Folds as A Right- handed Quadrilateral Beta-helix. ; |
| 关键词 keywords | ;PENTAPEPTIDE REPEAT PROTEIN, PENTAPEPTIDE REPEAT PROTEINS, FLUROQUINOLONE RESISTANCE, DNA GYRASE, DNA MIMICRY, RIGHT-HANDED QUADRILATERAL BETA-HELIX ;; PENTAPEPTIDE REPEAT PROTEIN |
| 实验方法 method | X-RAY DIFFRACTION |
2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)
| 回转半径 Rg (Guinier) rg_guinier | 31.41 Å |
| 回转半径 Rg (电子) rg_electron | 31.57 Å |
| 零角强度 I(0) i0 | 28480600.00 |
| 分子量 molecular_weight | 39406.0 kDa |
| 排除体积 excluded_volume | 48289 ų |
| 包络体积 envelope_volume | 59709 ų |
| 水化壳体积 shell_volume | 18357 ų |
| 包络直径 envelope_diameter | 105.6 Å |
| 壳层 Rg shell_rg | 33.15 Å |
| 包络 Rg envelope_rg | 31.76 Å |
| 形状 Rg shape_rg | 31.59 Å |
| 总 Rg total_rg | 31.65 Å |
| 总原子数 total_atoms | 2761 |
| 残基数 n_residues | 361 |
| 球谐函数阶数 n_harmonics | 20 |
| q 范围 q_range | — – 0.5000 Å−1 |
| 数据点数 n_points | 101 |
| 壳层类型 shell_type | directional |
| 溶剂电子密度 solvent_density | 0.3340 e/ų |
| 壳层衬度 contrast_shell | 0.0300 e/ų |
| CRYSOL 版本 crysol_version | 4.1.3 |
3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)
| 最大尺寸 Dmax dmax | 102.0 Å |
| Rg (实空间) rg_real | 32.08 Å |
| Rg 误差 (实空间) rg_real_error | 0.82 Å |
| I(0) (实空间) i0_real | 2.8480e+07 |
| I(0) 误差 (实空间) i0_real_error | 4.2960e+05 |
| Rg (倒空间) rg_reciprocal | 31.80 Å |
| I(0) (倒空间) i0_reciprocal | 28470000.0000 |
| 解质量估计 total_estimate | 0.6400 |
| 解质量评级 solution_quality | REASONABLE a REASONABLE solution |
| P(r) 峰数 n_peaks | 1 |
| 主峰位置 r_peak_primary | 20.4 Å |
| 偏度 Skewness skewness | 0.573 |
| 峰度 Kurtosis kurtosis | -0.665 |
| 角度范围 angular_range | — – 0.2500 Å−1 |
| 当前正则化参数 α current_alpha | 0.0000 |
| 最高正则化参数 α highest_alpha | 5514000.0000 |
| 实空间数据点数 n_real_points | 51 |
| GNOM 版本 gnom_version | 4.1.3 |
| 质量判据 quality_criteria | AN1: 0.000; Oscil: 0.343; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.202; Smooth: 0.087 |
4. 晶体学与实验 4. Crystallography & Experiment
5. 实体与聚合体信息 (2)
6. 折叠分类 (SCOP + CATH) 4 domains
SCOP 2.08 (2 domains)
| 结构域编号 domain_id | d2bm4a1 |
| 类 Class class | b — All beta proteins |
| 折叠类型 Fold fold | b.80 — Single-stranded right-handed beta-helix |
| 超家族 Superfamily superfamily | b.80.8 — Pentapeptide repeat-like |
| 家族 Family family | b.80.8.1 — Pentapeptide repeats |
| 结构域编号 domain_id | d2bm4b_ |
| 类 Class class | b — All beta proteins |
| 折叠类型 Fold fold | b.80 — Single-stranded right-handed beta-helix |
| 超家族 Superfamily superfamily | b.80.8 — Pentapeptide repeat-like |
| 家族 Family family | b.80.8.1 — Pentapeptide repeats |
CATH v4.4 (2 domains)
| 结构域编号 domain_id | 2bm4A00 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 160 — 3 Solenoid |
| 拓扑 Topology topology | 20 — Pectate Lyase C-like |
| 同源超家族 H-superfamily homologous superfamily | 80 — E3 ubiquitin-protein ligase SopA |
| 结构域编号 domain_id | 2bm4B00 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 160 — 3 Solenoid |
| 拓扑 Topology topology | 20 — Pectate Lyase C-like |
| 同源超家族 H-superfamily homologous superfamily | 80 — E3 ubiquitin-protein ligase SopA |
