2bp7

New crystal form of the Pseudomonas putida branched-chain dehydrogenase (E1)

Method: X-RAY DIFFRACTION D_max: 162.8 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

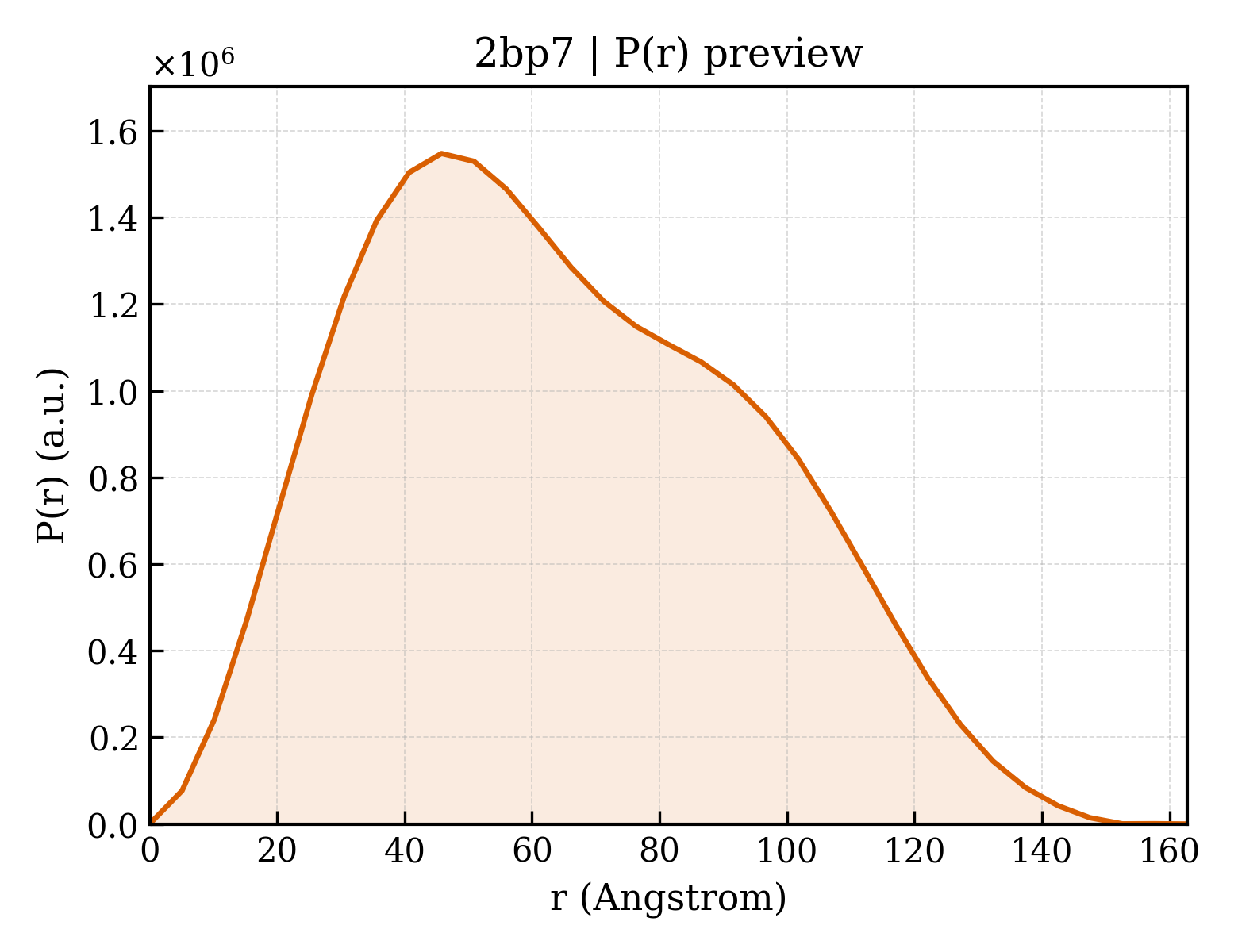

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	2bp7
沉积日期 deposition_date	2005-04-18
结构标题 title	New crystal form of the Pseudomonas putida branched-chain dehydrogenase (E1)
关键词 keywords	FLAVOPROTEIN, THDP COFACTOR, OXIDOREDUCTASE; OXIDOREDUCTASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	49.93 Å
回转半径 Rg (电子) rg_electron	49.71 Å
零角强度 I(0) i0	1521030000.00
分子量 molecular_weight	324970.0 kDa
排除体积 excluded_volume	405720 Å³
包络体积 envelope_volume	504190 Å³
水化壳体积 shell_volume	81741 Å³
包络直径 envelope_diameter	161.5 Å
壳层 Rg shell_rg	55.65 Å
包络 Rg envelope_rg	49.23 Å
形状 Rg shape_rg	49.70 Å
总 Rg total_rg	49.91 Å
总原子数 total_atoms	22980
残基数 n_residues	2980
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	162.8 Å
Rg (实空间) rg_real	50.06 Å
Rg 误差 (实空间) rg_real_error	1.29 Å
I(0) (实空间) i0_real	1.5210e+09
I(0) 误差 (实空间) i0_real_error	2.5610e+07
Rg (倒空间) rg_reciprocal	49.94 Å
I(0) (倒空间) i0_reciprocal	1521000000.0000
解质量估计 total_estimate	0.8601
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	45.8 Å
偏度 Skewness skewness	0.306
峰度 Kurtosis kurtosis	-0.697
角度范围 angular_range	— – 0.1600 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	330700000.0000
实空间数据点数 n_real_points	33
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.867; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.981; Smooth: 0.597

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (3)

Entity 1 polymer

描述 description	2-OXOISOVALERATE DEHYDROGENASE ALPHA SUBUNIT
分子量 formula_weight	45319.0 kDa
EC 编号 ec_number	1.2.4.4
来源方法 src_method	man
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,C,E,G
原子数 atom_count	23118

MNEYAPLRLHVPEPTGRPGCQTDFSYLRLNDAGQARKPPVDVDAADTADLSYSLVRVLDEQGDAQGPWAEDIDPQILRQGMRAMLKTRIFDSRMVVAQRQKKMSFYMQSLGEEAIGSGQALALNRTDMCFPTYRQQSILMARDVSLVEMICQLLSNERDPLKGRQLPIMYSVREAGFFTISGNLATQFVQAVGWAMASAIKGDTKIASAWIGDGATAESDFHTALTFAHVYRAPVILNVVNNQWAISTFQAIAGGESTTFAGRGVGCGIASLRVDGNDFVAVYAASRWAAERARRGLGPSLIEWVTYRAGPHSTSDDPSKYRPADDWSHFPLGDPIARLKQHLIKIGHWSEEEHQATTAEFEAAVIAAQKEAEQYGTLANGHIPSAASMFEDVYKEMPDHLRRQRQELGV

来源 Source

来源生物 organism	PSEUDOMONAS PUTIDA
NCBI 分类编号 ncbi_taxonomy_id	303
宿主生物 host_organism	ESCHERICHIA COLI

Entity 2 polymer

描述 description	2-OXOISOVALERATE DEHYDROGENASE BETA SUBUNIT
分子量 formula_weight	37172.2 kDa
EC 编号 ec_number	1.2.4.4
来源方法 src_method	man
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B,D,F,H

MATTTMTMIQALRSAMDVMLERDDNVVVYGQDVGYFGGVFRCTEGLQTKYGKSRVFDAPISESGIVGTAVGMGAYGLRPVVEIQFADYFYPASDQIVSEMARLRYRSAGEFIAPLTLRMPCGGGIYGGQTHSQSPEAMFTQVCGLRTVMPSNPYDAKGLLIASIECDDPVIFLEPKRLYNGPFDGHHDRPVTPWSKHPHSAVPDGYYTVPLDKAAITRPGNDVSVLTYGTTVYVAQVAAEESGVDAEVIDLRSLWPLDLDTIVESVKKTGRCVVVHEATRTCGFGAELVSLVQEHCFHHLEAPIERVTGWDTPYPHAQEWAYFPGPSRVGAALKKVMEV

来源 Source

来源生物 organism	PSEUDOMONAS PUTIDA
NCBI 分类编号 ncbi_taxonomy_id	303
宿主生物 host_organism	ESCHERICHIA COLI

Entity 3 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	138

▼

6. 折叠分类 (SCOP + CATH) 24 domains

SCOP 2.08 (12 domains)

结构域编号 domain_id	d2bp7a_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.36 — Thiamin diphosphate-binding fold (THDP-binding)
超家族 Superfamily superfamily	c.36.1 — Thiamin diphosphate-binding fold (THDP-binding)
家族 Family family	c.36.1.11 — Branched-chain alpha-keto acid dehydrogenase PP module

结构域编号 domain_id	d2bp7b1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.36 — Thiamin diphosphate-binding fold (THDP-binding)
超家族 Superfamily superfamily	c.36.1 — Thiamin diphosphate-binding fold (THDP-binding)
家族 Family family	c.36.1.7 — Branched-chain alpha-keto acid dehydrogenase Pyr module

结构域编号 domain_id	d2bp7b2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.48 — TK C-terminal domain-like
超家族 Superfamily superfamily	c.48.1 — TK C-terminal domain-like
家族 Family family	c.48.1.2 — Branched-chain alpha-keto acid dehydrogenase beta-subunit, C-terminal-domain

结构域编号 domain_id	d2bp7c_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.36 — Thiamin diphosphate-binding fold (THDP-binding)
超家族 Superfamily superfamily	c.36.1 — Thiamin diphosphate-binding fold (THDP-binding)
家族 Family family	c.36.1.11 — Branched-chain alpha-keto acid dehydrogenase PP module

结构域编号 domain_id	d2bp7d1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.36 — Thiamin diphosphate-binding fold (THDP-binding)
超家族 Superfamily superfamily	c.36.1 — Thiamin diphosphate-binding fold (THDP-binding)
家族 Family family	c.36.1.7 — Branched-chain alpha-keto acid dehydrogenase Pyr module

结构域编号 domain_id	d2bp7d2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.48 — TK C-terminal domain-like
超家族 Superfamily superfamily	c.48.1 — TK C-terminal domain-like
家族 Family family	c.48.1.2 — Branched-chain alpha-keto acid dehydrogenase beta-subunit, C-terminal-domain

结构域编号 domain_id	d2bp7e_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.36 — Thiamin diphosphate-binding fold (THDP-binding)
超家族 Superfamily superfamily	c.36.1 — Thiamin diphosphate-binding fold (THDP-binding)
家族 Family family	c.36.1.11 — Branched-chain alpha-keto acid dehydrogenase PP module

结构域编号 domain_id	d2bp7f1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.36 — Thiamin diphosphate-binding fold (THDP-binding)
超家族 Superfamily superfamily	c.36.1 — Thiamin diphosphate-binding fold (THDP-binding)
家族 Family family	c.36.1.7 — Branched-chain alpha-keto acid dehydrogenase Pyr module

结构域编号 domain_id	d2bp7f2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.48 — TK C-terminal domain-like
超家族 Superfamily superfamily	c.48.1 — TK C-terminal domain-like
家族 Family family	c.48.1.2 — Branched-chain alpha-keto acid dehydrogenase beta-subunit, C-terminal-domain

结构域编号 domain_id	d2bp7g_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.36 — Thiamin diphosphate-binding fold (THDP-binding)
超家族 Superfamily superfamily	c.36.1 — Thiamin diphosphate-binding fold (THDP-binding)
家族 Family family	c.36.1.11 — Branched-chain alpha-keto acid dehydrogenase PP module

结构域编号 domain_id	d2bp7h1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.36 — Thiamin diphosphate-binding fold (THDP-binding)
超家族 Superfamily superfamily	c.36.1 — Thiamin diphosphate-binding fold (THDP-binding)
家族 Family family	c.36.1.7 — Branched-chain alpha-keto acid dehydrogenase Pyr module

结构域编号 domain_id	d2bp7h2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.48 — TK C-terminal domain-like
超家族 Superfamily superfamily	c.48.1 — TK C-terminal domain-like
家族 Family family	c.48.1.2 — Branched-chain alpha-keto acid dehydrogenase beta-subunit, C-terminal-domain

CATH v4.4 (12 domains)

结构域编号 domain_id	2bp7A00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	970 — Thiamin diphosphate (ThDP)-binding fold, Pyr/PP domains

结构域编号 domain_id	2bp7B01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	970 — Thiamin diphosphate (ThDP)-binding fold, Pyr/PP domains

结构域编号 domain_id	2bp7B02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	920 —

结构域编号 domain_id	2bp7C00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	970 — Thiamin diphosphate (ThDP)-binding fold, Pyr/PP domains

结构域编号 domain_id	2bp7D01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	970 — Thiamin diphosphate (ThDP)-binding fold, Pyr/PP domains

结构域编号 domain_id	2bp7D02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	920 —

结构域编号 domain_id	2bp7E00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	970 — Thiamin diphosphate (ThDP)-binding fold, Pyr/PP domains

结构域编号 domain_id	2bp7F01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	970 — Thiamin diphosphate (ThDP)-binding fold, Pyr/PP domains

结构域编号 domain_id	2bp7F02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	920 —

结构域编号 domain_id	2bp7G00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	970 — Thiamin diphosphate (ThDP)-binding fold, Pyr/PP domains

结构域编号 domain_id	2bp7H01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	970 — Thiamin diphosphate (ThDP)-binding fold, Pyr/PP domains

结构域编号 domain_id	2bp7H02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	920 —

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	156.866 Å
晶胞边长 b length_b	156.866 Å
晶胞边长 c length_c	619.605 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	120.00 °
晶胞分子数 Z z_pdb	48

空间群 space_group	P 61 2 2
空间群编号 int_tables_number	178
晶系 crystal_system	—

分辨率 resolution	2.900 Å
最低分辨率 resolution_low	20.000 Å
R 因子 r_factor	0.2280
R_work r_work	0.2270
R_free r_free	0.2540

fit	/app/data/saxs_computation/bp/2bp7/2bp7.fit
pddf	/app/data/pr_computation/bp/2bp7/2bp7.pr.out
profile	/app/data/saxs_computation/bp/2bp7/2bp7.dat
