SAXSdb — 2bpo

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	2bpo
沉积日期 deposition_date	2005-04-21
结构标题 title	Crystal structure of the yeast CPR triple mutant: D74G, Y75F, K78A.
关键词 keywords	REDUCTASE, NADPH-CYTOCHROME P450 REDUCTASE, CPR, DIFLAVIN REDUCTASE, FAD, FMN-BINDING, NADP, ELECTRON TRANSFER; REDUCTASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	41.95 Å
回转半径 Rg (电子) rg_electron	42.23 Å
零角强度 I(0) i0	327099000.00
分子量 molecular_weight	146800.0 kDa
排除体积 excluded_volume	183050 Å³
包络体积 envelope_volume	237710 Å³
水化壳体积 shell_volume	49982 Å³
包络直径 envelope_diameter	145.1 Å
壳层 Rg shell_rg	43.43 Å
包络 Rg envelope_rg	42.11 Å
形状 Rg shape_rg	42.21 Å
总 Rg total_rg	42.34 Å
总原子数 total_atoms	10343
残基数 n_residues	1282
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	137.3 Å
Rg (实空间) rg_real	42.36 Å
Rg 误差 (实空间) rg_real_error	1.31 Å
I(0) (实空间) i0_real	3.2710e+08
I(0) 误差 (实空间) i0_real_error	6.0810e+06
Rg (倒空间) rg_reciprocal	41.96 Å
I(0) (倒空间) i0_reciprocal	327000000.0000
解质量估计 total_estimate	0.5611
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	36.1 Å
偏度 Skewness skewness	0.575
峰度 Kurtosis kurtosis	-0.393
角度范围 angular_range	— – 0.1900 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	66380000.0000
实空间数据点数 n_real_points	39
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.724; Stabil: 1.000; Sysdev: 0.008; Positv: 1.000; Valcen: 0.887; Smooth: 0.207

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (6)

Entity 1 polymer

描述 description	NADPH-CYTOCHROM P450 REDUCTASE
分子量 formula_weight	75710.9 kDa
EC 编号 ec_number	1.6.2.4
突变 mutation	YES
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B
原子数 atom_count	10528

MGSSHHHHHHSSGLVPRGSHMLDIMSDDGDITAVSSGNRDIAQVVTENNKNYLVLYASQTGTAEGFAKAFSKELVAKFNLNVMCADVENYDFESLNDVPVIVSIFISTYGEGDFPDGAVNFEDFICNAEAGALSNLRYNMFGLGNSTYEFFNGAAKKAEKHLSAAGAIRLGKLGEADDGAGTTDEDYMAWKDSILEVLKDELHLDEQEAKFTSQFQYTVLNEITDSMSLGEPSAHYLPSHQLNRNADGIQLGPFDLSQPYIAPIVKSRELFSSNDRNCIHSEFDLSGSNIKYSTGDHLAVWPSNPLEKVEQFLSIFNLDPETIFDLKPLDPTVKVPFPTPTTIGAAIKHYLEITGPVSRQLFSSLIQFAPNADVKEKLTLLSKDKDQFAVEITSKYFNIADALKYLSDGAKWDTVPMQFLVESVPQMTPRYYSISSSSLSEKQTVHVTSIVENFPNPELPDAPPVVGVTTNLLRNIQLAQNNVNIAETNLPVHYDLNGPRKLFANYKLPVHVRRSNFRLPSNPSTPVIMIGPGTGVAPFRGFIRERVAFLESQKKGGNNVSLGKHILFYGSRNTDDFLYQDEWPEYAKKLDGSFEMVVAHSRLPNTKKVYVQDKLKDYEDQVFEMINNGAFIYVCGDAKGMAKGVSTALVGILSRGKSITTDEATELIKMLKTSGRYQEDVW

来源 Source

来源生物 organism	SACCHAROMYCES CEREVISIAE
通用名 common_name	;BAKER'S YEAST ;
NCBI 分类编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	ESCHERICHIA COLI

Entity 2 non-polymer

描述 description	FLAVIN-ADENINE DINUCLEOTIDE
分子量 formula_weight	785.5 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 3 non-polymer

描述 description	FLAVIN MONONUCLEOTIDE
分子量 formula_weight	456.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 4 non-polymer

描述 description	NADP NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE
分子量 formula_weight	743.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 5 non-polymer

描述 description	SULFATE ION
分子量 formula_weight	96.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	3

Entity 6 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	185

▼

6. 折叠分类 (SCOP + CATH) 8 domains

CATH v4.4 (8 domains)

结构域编号 domain_id	2bpoA01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	360 — Flavodoxin domain

结构域编号 domain_id	2bpoA02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	990 — NADPH-cytochrome p450 Reductase; Chain A, domain 3
同源超家族 H-superfamily homologous superfamily	10 — NADPH-cytochrome p450 Reductase; Chain A, domain 3

结构域编号 domain_id	2bpoA03
类 Class class	2 — Mainly Beta
架构 Architecture architecture	40 — Beta Barrel
拓扑 Topology topology	30 — Elongation Factor Tu (Ef-tu); domain 3
同源超家族 H-superfamily homologous superfamily	10 — Translation factors

结构域编号 domain_id	2bpoA04
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	80 — Nucleotide-binding domain of ferredoxin-NADP reductase (FNR) module

结构域编号 domain_id	2bpoB01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	360 — Flavodoxin domain

结构域编号 domain_id	2bpoB02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	990 — NADPH-cytochrome p450 Reductase; Chain A, domain 3
同源超家族 H-superfamily homologous superfamily	10 — NADPH-cytochrome p450 Reductase; Chain A, domain 3

结构域编号 domain_id	2bpoB03
类 Class class	2 — Mainly Beta
架构 Architecture architecture	40 — Beta Barrel
拓扑 Topology topology	30 — Elongation Factor Tu (Ef-tu); domain 3
同源超家族 H-superfamily homologous superfamily	10 — Translation factors

结构域编号 domain_id	2bpoB04
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	80 — Nucleotide-binding domain of ferredoxin-NADP reductase (FNR) module

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	78.357 Å
晶胞边长 b length_b	86.596 Å
晶胞边长 c length_c	259.717 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	8

空间群 space_group	P 21 21 21
空间群编号 int_tables_number	19
晶系 crystal_system	—

分辨率 resolution	2.900 Å
最低分辨率 resolution_low	39.180 Å
R 因子 r_factor	0.2050
R_work r_work	0.2050
R_free r_free	0.2680

fit	/app/data/saxs_computation/bp/2bpo/2bpo.fit
pddf	/app/data/pr_computation/bp/2bpo/2bpo.pr.out
profile	/app/data/saxs_computation/bp/2bpo/2bpo.dat

Crystal structure of the yeast CPR triple mutant: D74G, Y75F, K78A.

SAXS 散射曲线 SAXS Profile

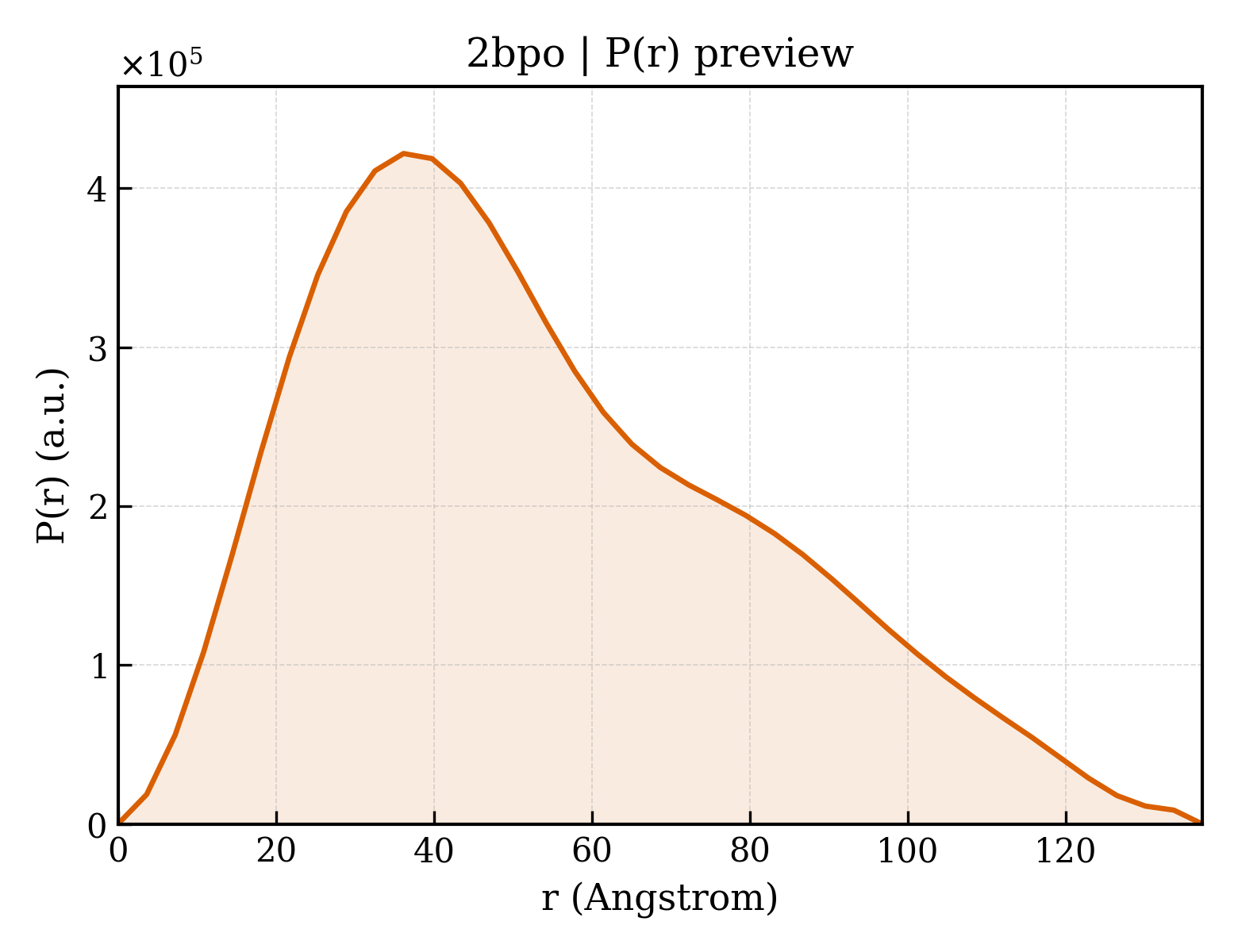

P(r) 距离分布 P(r) Distribution
