SAXSdb — 2bpq

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

ANTHRANILATE PHOSPHORIBOSYLTRANSFERASE

MYCOBACTERIUM TUBERCULOSIS

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	BENZAMIDINE × 3 GLYCEROL × 2 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	TRPD_MYCTU
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 2–370； UniProt 2–370 Author chain B； PDBConstruct 2–370； UniProt 2–370

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2bpq
Deposition date deposition_date	2005-04-22
Structure title title	Anthranilate phosphoribosyltransferase (TrpD) from Mycobacterium tuberculosis (Apo structure)
Keywords keywords	;TRANSFERASE, TRYPTOPHAN BIOSYNTHESIS, ANTHRANILATE, TRANSFERASE PHOSPHORIBOSYLTRANSFERASE, AMINO-ACID BIOSYNTHESIS, AROMATIC AMINO ACID BIOSYNTHESIS, GLYCOSYLTRANSFERASE, PSI, PROTEIN STRUCTURE INITIATIVE, TB STRUCTURAL GENOMICS CONSORTIUM, TBSGC, STRUCTURAL GENOMICS ;; TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2bpq__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2bpq__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

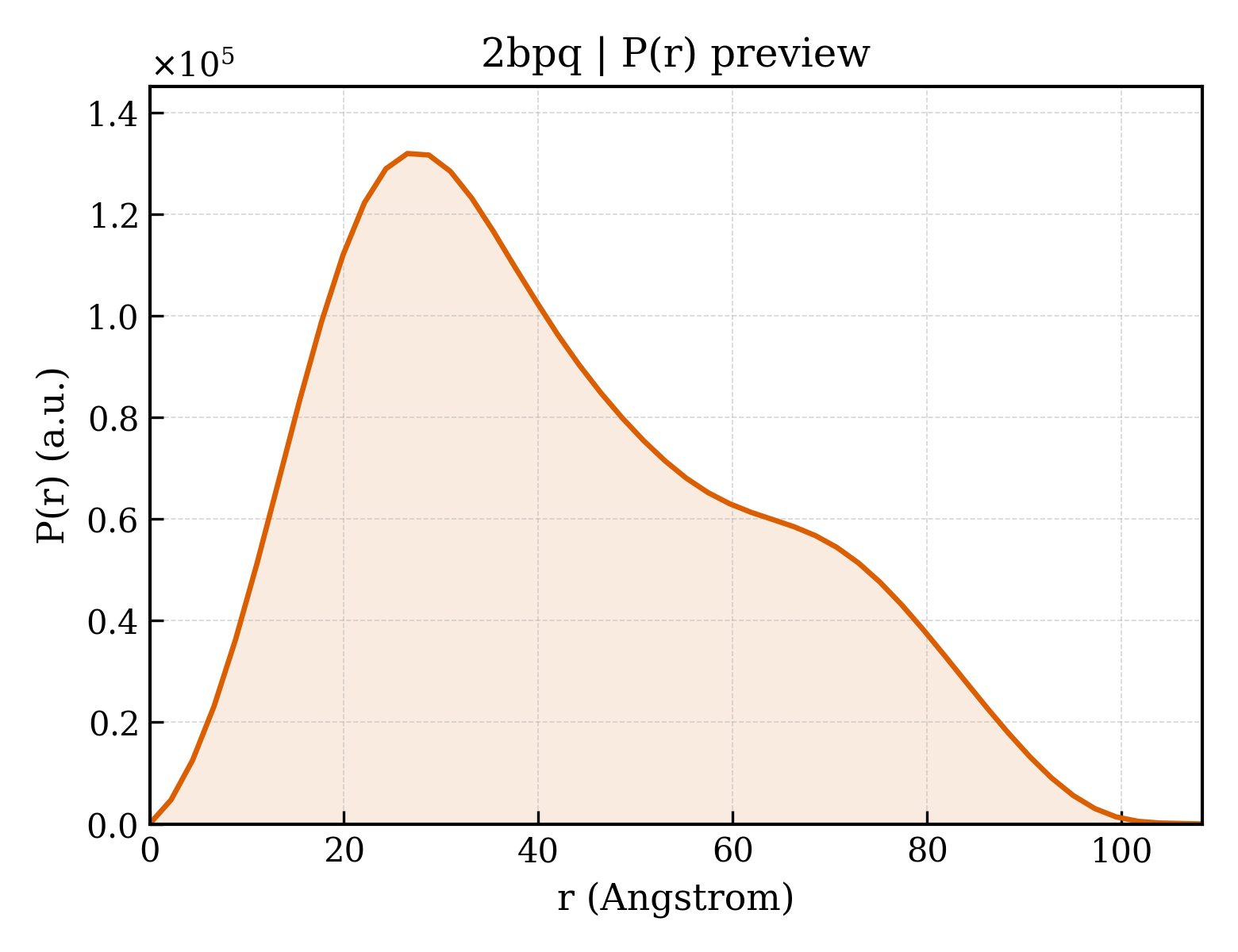

2bpq__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	32.60 Å
Rg (electron density)	32.43 Å
Total Rg	32.75 Å
Atom count	4933
Residues	684
Excluded volume	87296 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2bpq__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	ANTHRANILATE PHOSPHORIBOSYLTRANSFERASE
Molecular weight formula_weight	38001.0 kDa
EC 编号 ec_number	2.4.2.18
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	5204

VALSAEGSSGGSRGGSPKAEAASVPSWPQILGRLTDNRDLARGQAAWAMDQIMTGNARPAQIAAFAVAMTMKAPTADEVGELAGVMLSHAHPLPADTVPDDAVDVVGTGGDGVNTVNLSTMAAIVVAAAGVPVVKHGNRAASSLSGGADTLEALGVRIDLGPDLVARSLAEVGIGFCFAPRFHPSYRHAAAVRREIGVPTVFNLLGPLTNPARPRAGLIGCAFADLAEVMAGVFAARRSSVLVVHGDDGLDELTTTTTSTIWRVAAGSVDKLTFDPAGFGFARAQLDQLAGGDAQANAAAVRAVLGGARGPVRDAVVLNAAGAIVAHAGLSSRAEWLPAWEEGLRRASAAIDTGAAEQLLARWVRFGRQILAA

Source Source

Source organism organism	MYCOBACTERIUM TUBERCULOSIS
NCBI taxonomy ID ncbi_taxonomy_id	83332
Host organism host_organism	ESCHERICHIA COLI

Entity 2 Entity 2 non-polymer

Description description	BENZAMIDINE
Molecular weight formula_weight	120.2 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 3 Entity 3 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	242

▼

6. Fold Classification (SCOP + CATH) 4 domains

CATH v4.4 (4 domains)

Domain ID domain_id	2bpqA01
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	970 — Transferase, Pyrimidine Nucleoside Phosphorylase; Chain A, domain 3
Homologous superfamily homologous superfamily	10 — Transferase, Pyrimidine Nucleoside Phosphorylase; Chain C

Domain ID domain_id	2bpqA02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	1030 — Pyrimidine Nucleoside Phosphorylase; Chain A, domain 2
Homologous superfamily homologous superfamily	10 — Nucleoside phosphorylase/phosphoribosyltransferase catalytic domain

Domain ID domain_id	2bpqB01
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	970 — Transferase, Pyrimidine Nucleoside Phosphorylase; Chain A, domain 3
Homologous superfamily homologous superfamily	10 — Transferase, Pyrimidine Nucleoside Phosphorylase; Chain C

Domain ID domain_id	2bpqB02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	1030 — Pyrimidine Nucleoside Phosphorylase; Chain A, domain 2
Homologous superfamily homologous superfamily	10 — Nucleoside phosphorylase/phosphoribosyltransferase catalytic domain

▶

Unit-cell length a length_a	80.874 Å
Unit-cell length b length_b	82.415 Å
Unit-cell length c length_c	117.520 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	1.900 Å
Low-resolution limit resolution_low	19.680 Å
R factor r_factor	0.1920
R_work r_work	0.1910
R_free r_free	0.2300
