SAXSdb — 2btd

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

PTS-DEPENDENT DIHYDROXYACETONE KINASE

ESCHERICHIA COLI

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	ADENOSINE-5'-DIPHOSPHATE × 1 MAGNESIUM ION × 2 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	DHAL_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–210； UniProt 1–210

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2btd
Deposition date deposition_date	2005-05-27
Structure title title	Crystal structure of DhaL from E. coli
Keywords keywords	DIHYDROXIACETONE KINASE, DHAL, YCGS, PTS, TRANSFERASE; TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2btd__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

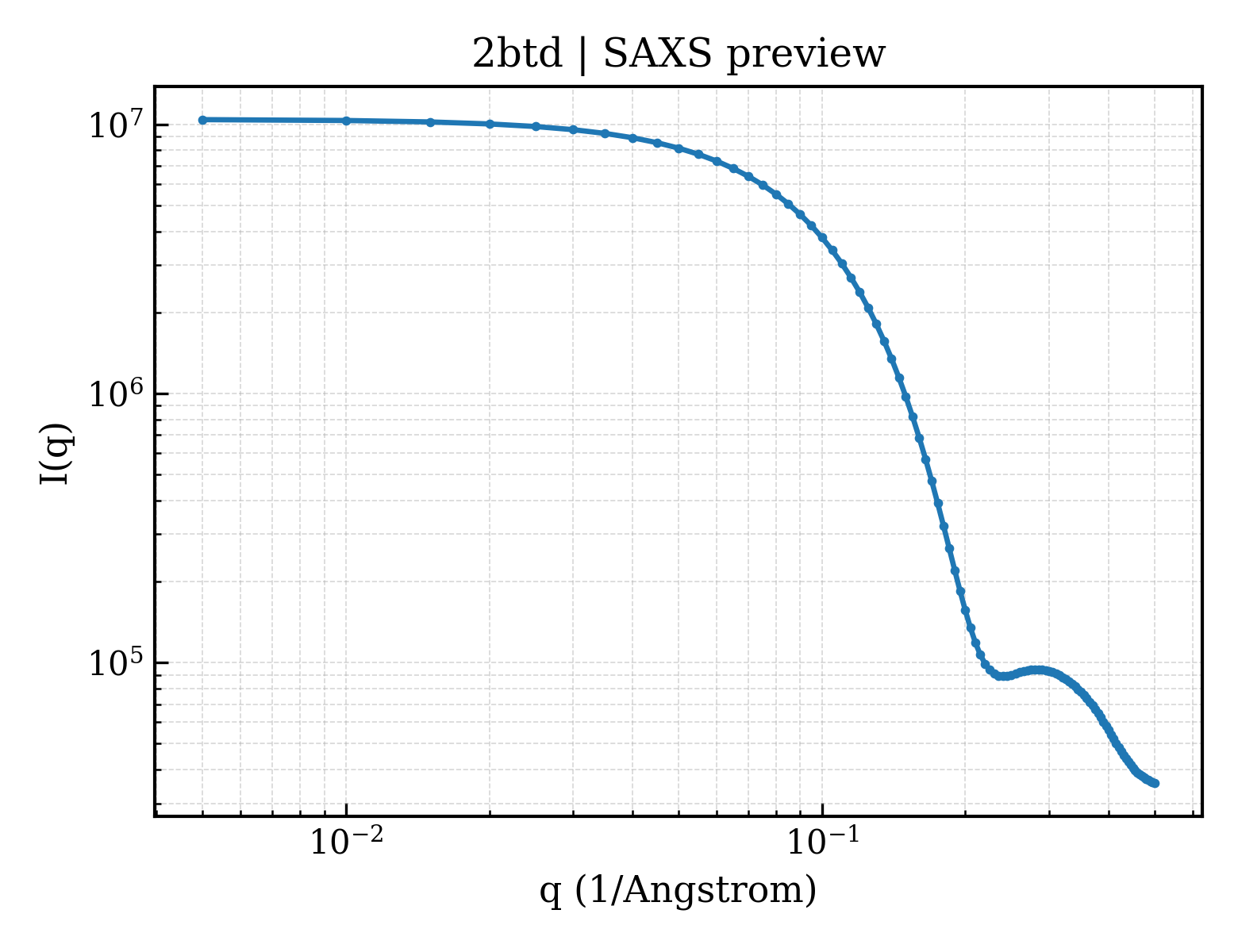

2btd__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

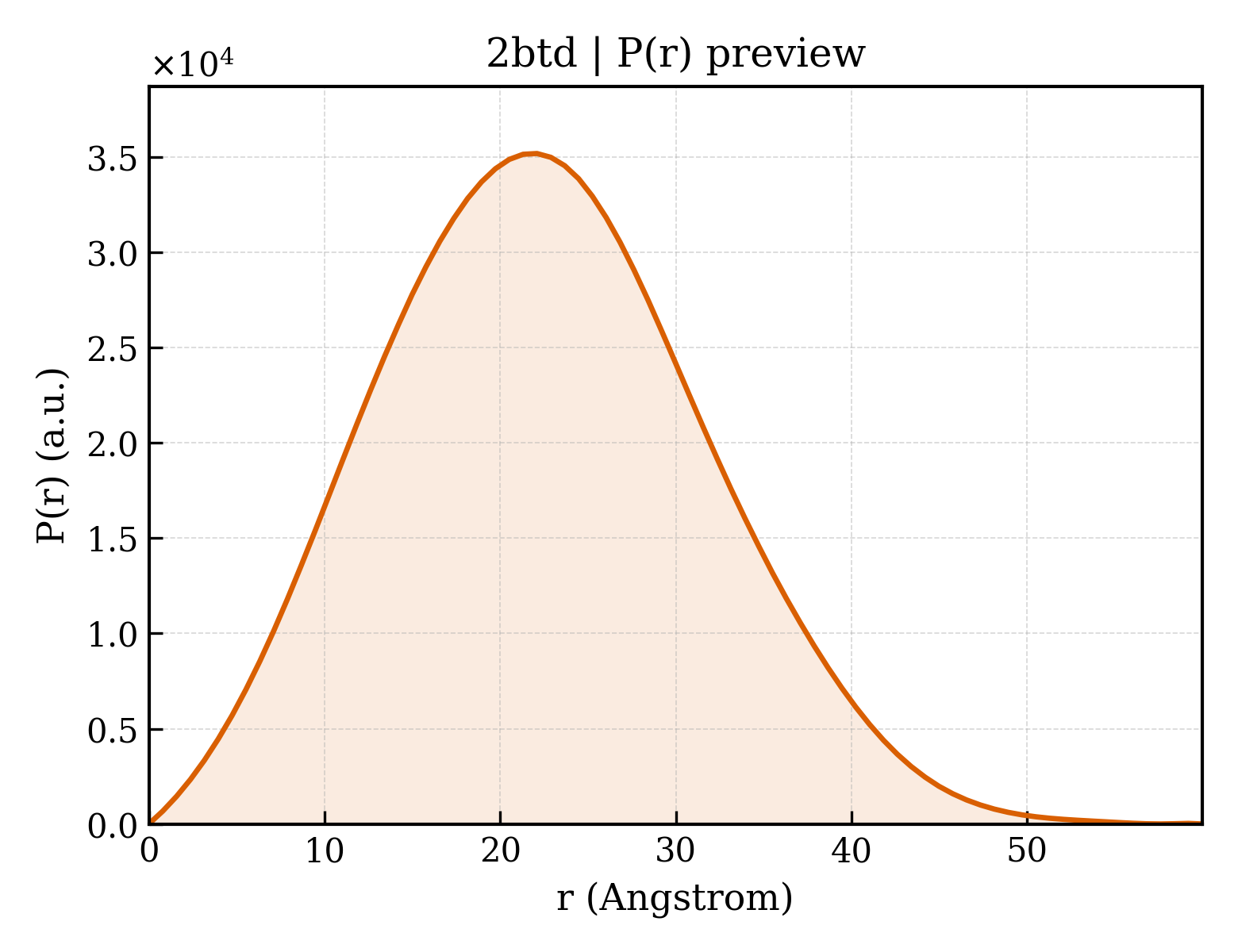

2btd__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	17.21 Å
Rg (electron density)	16.05 Å
Total Rg	16.99 Å
Atom count	1602
Residues	209
Excluded volume	28291 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2btd__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	PTS-DEPENDENT DIHYDROXYACETONE KINASE
Molecular weight formula_weight	22653.7 kDa
EC 编号 ec_number	2.7.-.-
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1641

MSLSRTQIVNWLTRCGDIFSTESEYLTGLDREIGDADHGLNMNRGFSKVVEKLPAIADKDIGFILKNTGMTLLSSVGGASGPLFGTFFIRAAQATQARQSLTLEELYQMFRDGADGVISRGKAEPGDKTMCDVWVPVVESLRQSSEQNLSVPVALEAASSIAESAAQSTITMQARKGRASYLGERSIGHQDPGATSVMFMMQMLALAAKE

Source Source

Source organism organism	ESCHERICHIA COLI
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli DH5[alpha]

Entity 2 Entity 2 non-polymer

Description description	ADENOSINE-5'-DIPHOSPHATE
Molecular weight formula_weight	427.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	39

▼

6. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d2btda_
Class class	a — All alpha proteins
Fold Fold fold	a.208 — DhaL-like
Superfamily Superfamily superfamily	a.208.1 — DhaL-like
Family Family family	a.208.1.0 — automated matches

CATH v4.4 (1 domains)

Domain ID domain_id	2btdA00
Class class	1 — Mainly Alpha
Architecture architecture	25 — Alpha Horseshoe
Topology topology	40 — Serine Threonine Protein Phosphatase 5, Tetratricopeptide repeat
Homologous superfamily homologous superfamily	340 — DhaL domain

▶

Unit-cell length a length_a	139.030 Å
Unit-cell length b length_b	139.030 Å
Unit-cell length c length_c	139.030 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	24

Space group space_group	P 41 3 2
Space-group number int_tables_number	213
Crystal system crystal_system	—

Resolution resolution	2.600 Å
Low-resolution limit resolution_low	28.400 Å
R factor r_factor	0.2370
R_work r_work	0.2350
R_free r_free	0.2760
